Mechaninis vandens filtras Cintropur NW 650, DN65, GW 2,5

Kaina:
€587,80
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Mechaninis vandens filtras Cintropur NW 650, DN65, GW 2,5. Kategorija: Vandens filtrai kriauklei ir po stalviršiu.

  • Gamintojas: UST-M
  • Modelis: CINTROPUR

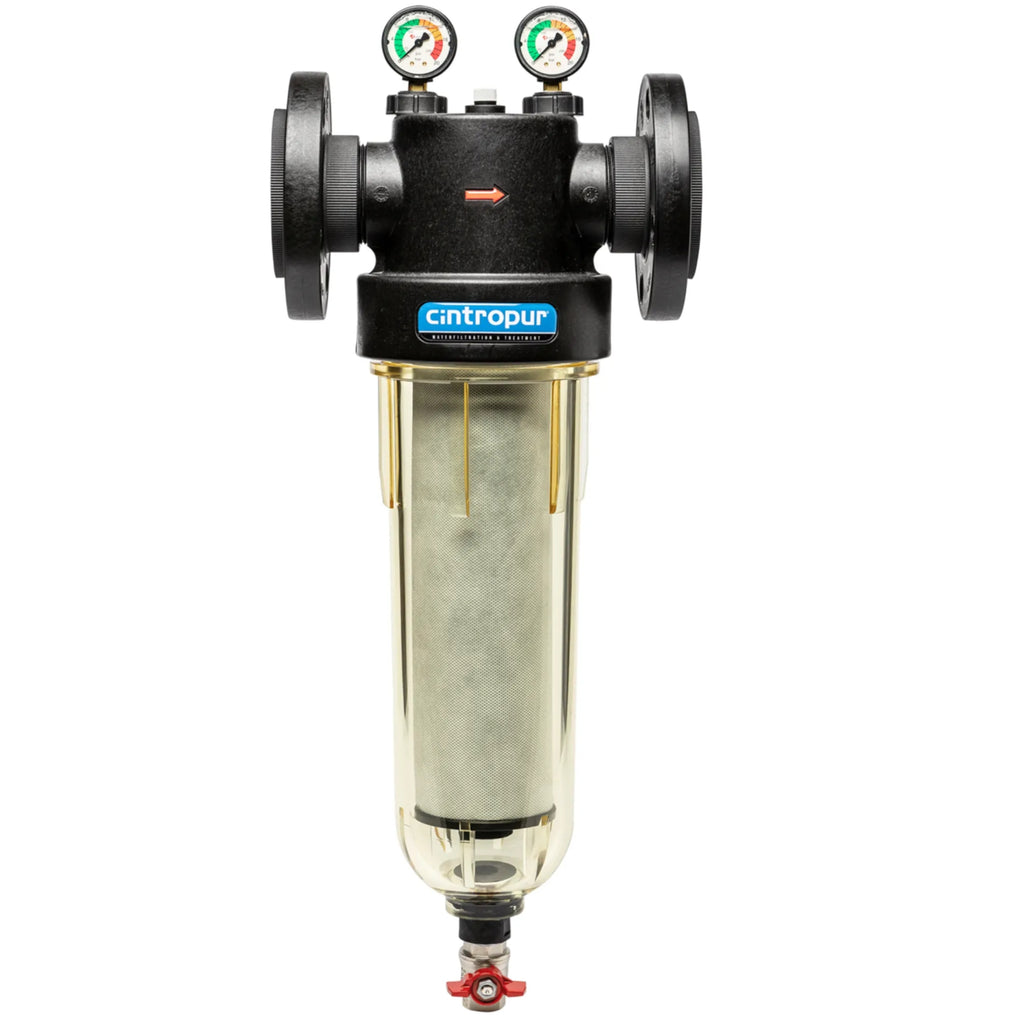

CINTROPUR mechanical filters are made of the highest quality synthetic materials. They are used in the food industry and for contact with drinking water. They remove mechanical impurities such as sand, silt, rust and others from the water. Thanks to the special design of the filter, the water is centrifugally filtered in a centrifugal way. The centrifuged impurities sink to the bottom of the lampshade, and the filter sleeve provides filtration of the selected accuracy. The filter is equipped with a 1/4" thread pressure gauge, which indicates the pressure in the network. The pressure gauge is scaled from 0 to 20 bar. The first indicator shows the input pressure and the second indicator shows the output pressure from the filter.

WATER FILTER

with centrifugal prefiltration, made entirely of synthetic materials of the highest quality. Designed for use in the food industry and for contact with drinking water. Its design forces a swirl of water flow, so that impurities are centrifuged and fall to the bottom of the lampshade, while the filter sleeve provides filtration of the selected precision.

ADVANTAGES:

✅ High flow efficiency

✅Low pressure drop

✅ Effective pre-centrifugal filtration with cyclone effect

✅ Durability and reliability

✅ Quick and easy interior cleaning

✅ Transparent lampshade to control the degree of contamination of the filter mesh

✅ Eco-friendly and economical filter sleeve system

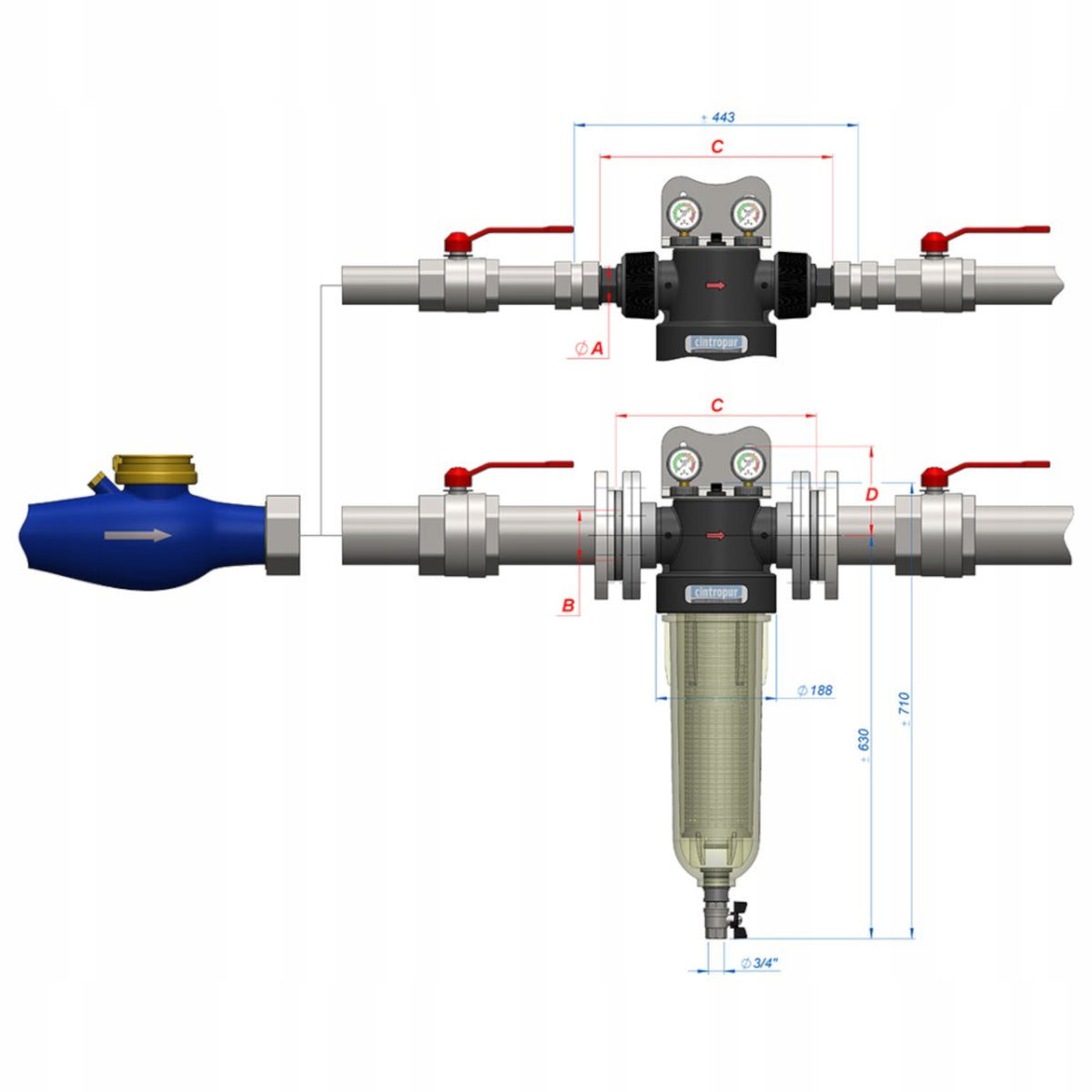

DIMENSIONS:

A: 2,5"

B: DN65

C: 304

D: +- 140

TECHNICAL DATA:

➡ Connection diameter: 2 1/2"

➡ Weight: 8 kg

➡ Height: 77,1 cm

➡ Width: 31,3 cm

➡ Working pressure: 10 bar

➡ Maximum working pressure: 16 bar

➡ Maximum operating temperature: 50°C

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand UST-M
Parametry Model CINTROPUR
Parametry Manufacturer code NW650
Parametry EAN (GTIN) 5907644318681
Parametry Packaging status original
