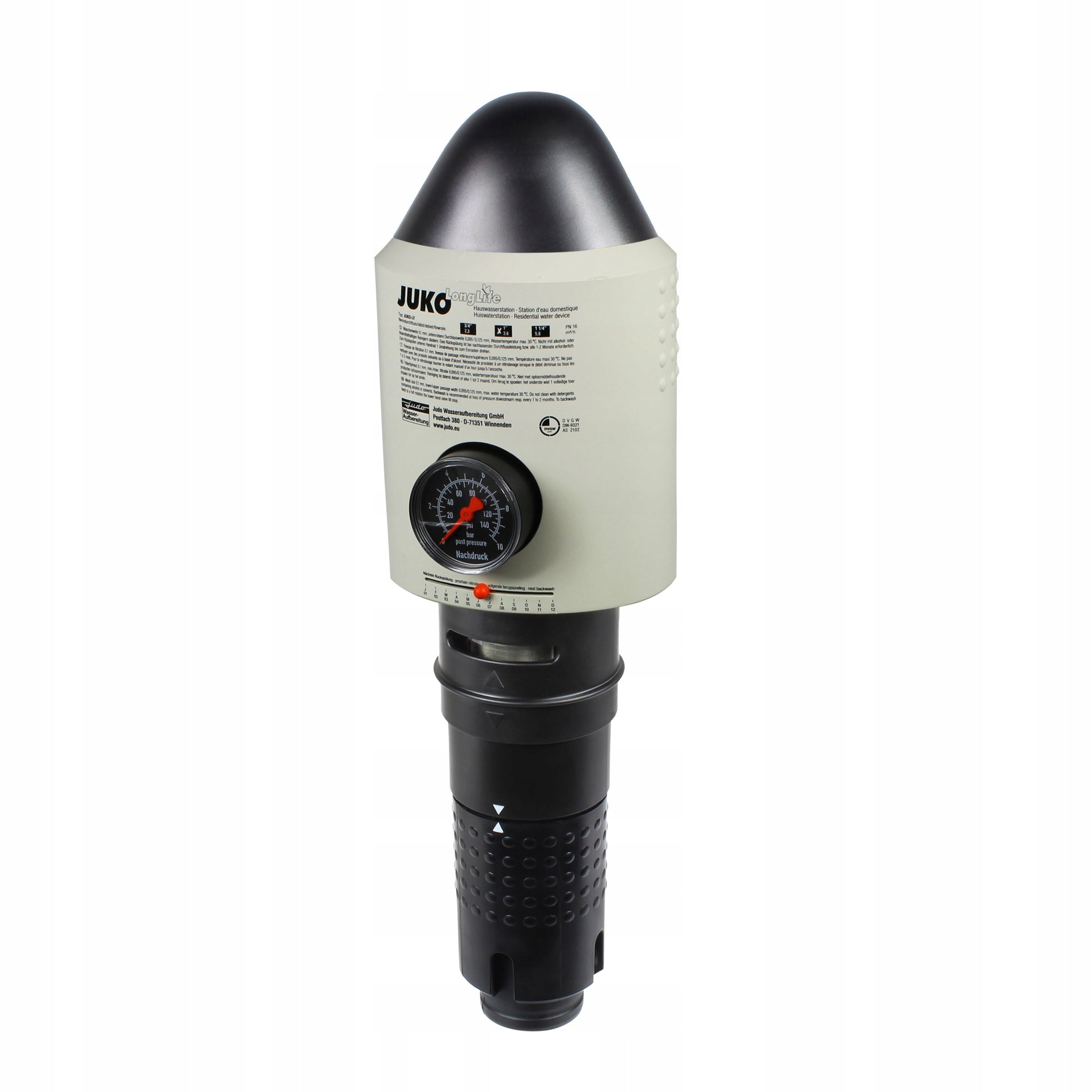

Mechaninis filtras su praplovimu JUDO JUKO LongLife 1

Trumpai apie prekę

Prekė: Mechaninis filtras su praplovimu JUDO JUKO LongLife 1. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: no brand
• Modelis: LongLife 1
• Talpa: 1 l

• All products offered by us are completely NEW and are subject to the full GUARANTEE of the manufacturer.
• We offer only proven and fully functional products!
• We provide very efficient after-sales service. If you have a question, at any time you can call or write.

P06678

Application

The JUDO JUKO LongLive mechanical backwash filter with built-in pressure reducer demonstrates significant efficiency that can be achieved thanks to its specific technical features. It is equipped with a silver coated stainless steel filter cartridge, which effectively prevents the growth of bacteria in the filter itself, thus contributing to the hygiene of drinking water.

It is dedicated for installation in installations with cold water, as well as in all other installations where the temperature of water and the environment does not exceed 30º C. This filter is designed for installation in any type of drinking water installations. The maximum permissible pressure at the entrance to the filter should not exceed 10 bar.

Features and benefits

• Economy: brak need to replace the cartridge and minimal water consumption for backwashing.
• Cleaning efficiency: backwashing is carried out using a vacuum rotary system that does not require cutting off the water supply using point rotary nozzlesPoint-Rotation
• Hygiene: brak need to replace the cartridge means brak need to open and the possibility of air entering the interior.
• Versatility: Can be used in vertical and horizontal wires

Construction and execution The filter body is made of high-quality plastic, PN 16 with a threaded brass housing. Stainless steel filter cartridge with a nominal filtration accuracy of 100 microns.

It has a large knob for backwashing and cleaning the transparent filter housing as well as an integrated pressure reducer.

• housing made of high-quality plastic PN 16
• patented connection in the form of threaded brass mounting flange
• Silver-coated stainless steel filter cartridge with additional antibacterial protection
• backwash knob with automatic filter flush reminder function using a system of point rotary nozzles with simultaneous cleaning of the transparent part of the housing.

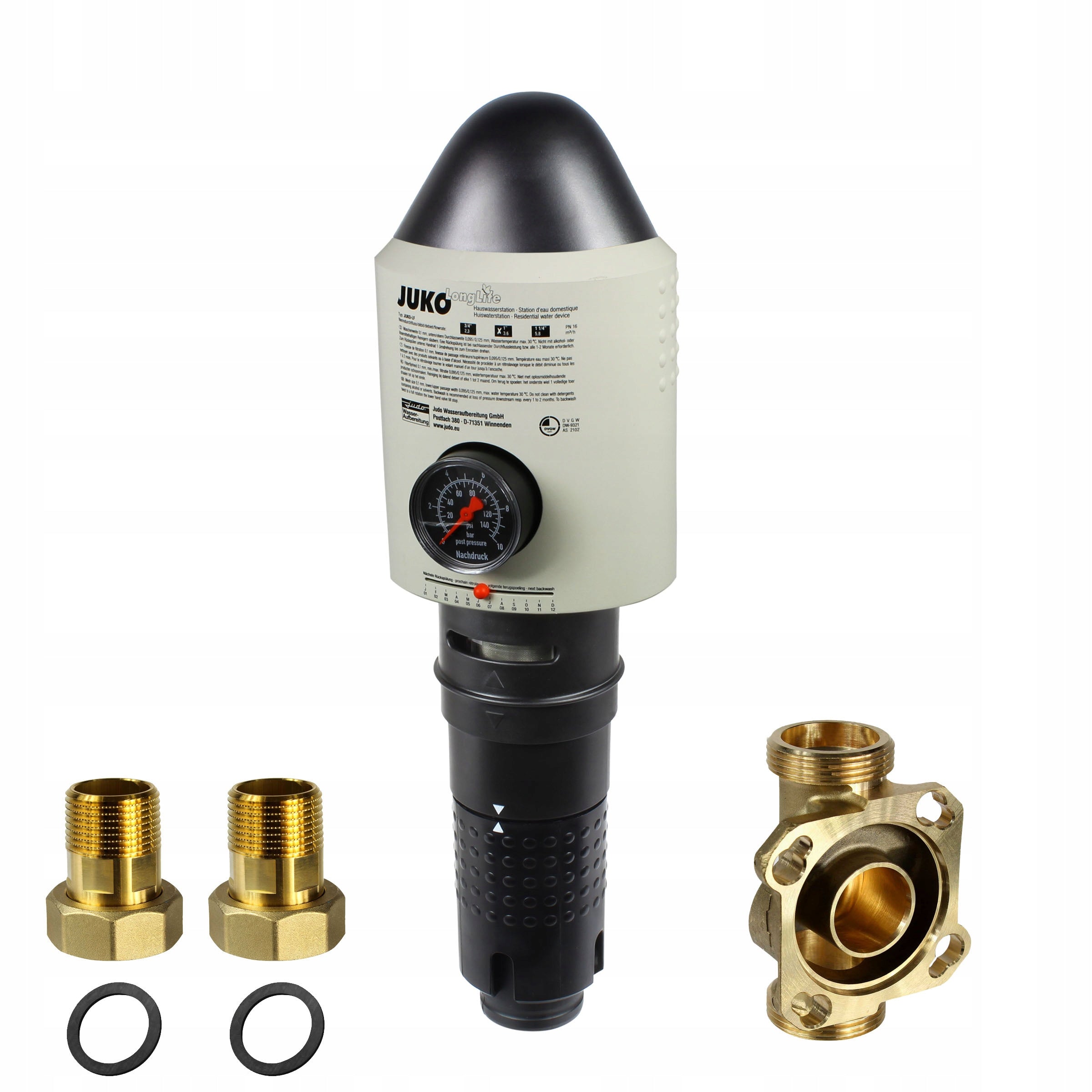

The set includes a set of 1" half-screws with gaskets, a pressure gauge and a mounting flange with a patented "Bajonett" connection and the possibility of mounting the filter on a horizontal and vertical pipeline.

Why is it worth filtering water?

Small particles in the water mean big problems in installation. The number of damages caused every year in unprotected pipelines, fittings and equipment is very large. The causes of these problems are often small particles of sand and debris entering the installation along with water from waterworks or wells. An additional risk is unfortunately the failure of water supply networks, which often causes uncontrolled entry of undesirable elements into the water. Such molecules form dangerous electrochemical compounds that cause corrosion, rust deposition and even tearing of the pipe.

These particles can also lead to serious damage to faucets, fittings and heating elements, as well as other household appliances for water. Therefore, when we do not have a guarantee that the water supplied will always be crystal clear, we recommend using JUDO mechanical filters from the series equipped with a silver-coated stainless steel filter cartridge. These filters are easy to install and for a relatively low price provide security for much more expensive devices throughout your home.

An important feature of the filter with backwash system is that does not require unscrewing the entire body as with a classic housing with a cartridge. This saves a lot of time and does not require troublesome unscrewing and reassembly, thus maintaining the durability of seals and screws, eliminating the risk of possible leaks.

• Security parameters: Yes
• Label-color: Gold

Basic parameters

• Filtering accuracy [micron]: 100

Connections

• Type of input connection(s): Thread [inch]
• Dimension of connection in.: 1
• Input thread type: Z - external
• Type of output connection(s): Thread [inch]
• Dimension of connection output: 1
• Thread type output: Z - external

Advantages / Contraindications

• Liquid temperature max. [°C]: +30
• Pressure max. [BAR]: 16
• Backwash system: Yes
• Filter cartridge: silver coated stainless steel

Additional equipment and completeness of deliveries

• Screw/anti-collar set: Yes

Dimensions and weight

• Height [mm]: 425
• Width [mm]: 135
• Length [mm]: 130
• Weight [kg]: 1,8

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Kind	filter
Parametry	Capacity	1 l
Parametry	Manufacturer code	8170251
Parametry	EAN (GTIN)	4038097017706
Parametry	Dominant color	yellow/gold
Parametry	Model	LongLife 1
