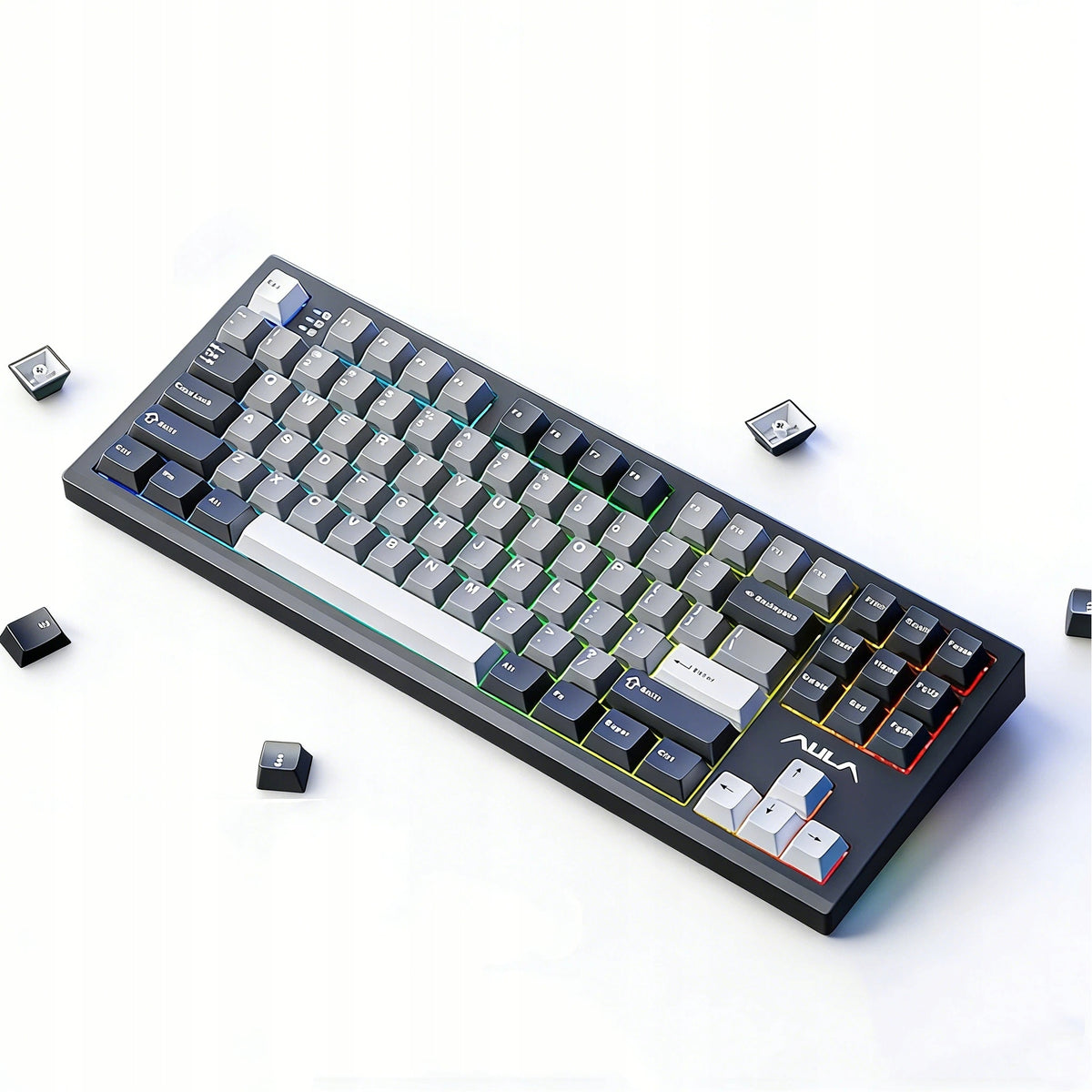

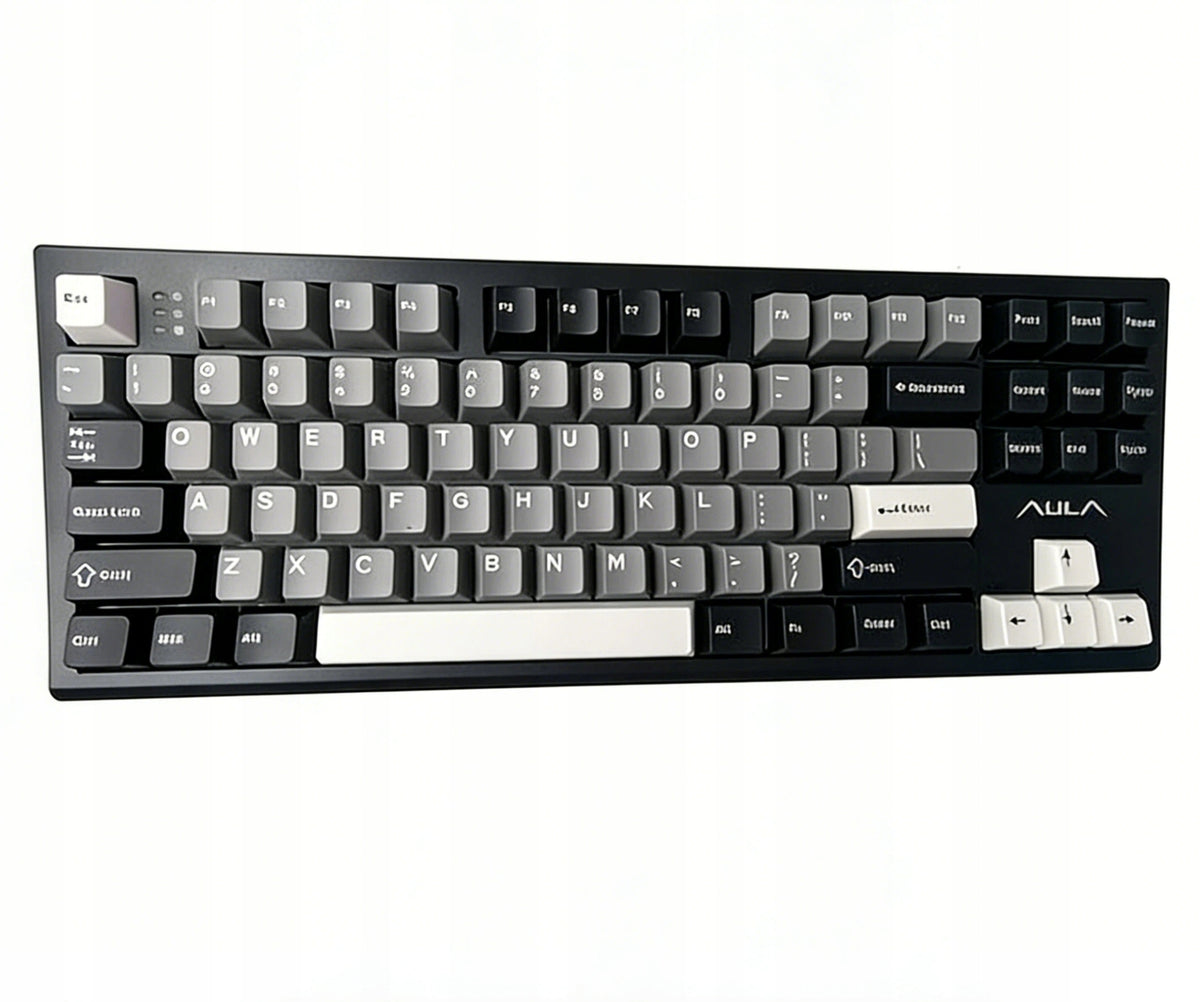

Mechaninė klaviatūra S87 Pro, juoda, USB, Bluetooth, 2.4G, LED, žaidimų

Trumpai apie prekę

Prekė: Mechaninė klaviatūra S87 Pro, juoda, USB, Bluetooth, 2.4G, LED, žaidimų. Kategorija: Belaidžiai.

• Gamintojas: no brand
• Modelis: ZREE-PC0987-TLSK-111
• Spalva: black

WIRED GAMING KEYBOARD MECHANICALLY BACKLIT FOR LED GAMERS

Compact layout 87 keys|Bluetooth 5.0|USB|12,4G

Two-tone injection-molded PBT keys

Top cover

Switch assembly

Positioning plate with grooves

Sandwich foam insole

IXPE Foam Cushion

PCB board

Base foam

Silicone pad

Side Light Strip Housing

Two-stage adjustable feet

Single key printed circuit board

The circuit board and positioning plate have a special design with holes, integrated into the gasket, which provides a soft, resilient tactile experience. Single holes in the keys provide greater consistency in the feel of pressing the keys.

Transparent PC positioning plate

The transparent positioning plate with grooves provides a noticeable feedback, while guaranteeing a clean and pleasant sound quality.

Two-color injection-molded PBT keys.

Smooth to the touch, durable.

Original keys: classic OEM height, unlit characters engraved on the side.

Backlit keys: minimalistic appearance, backlit characters.

About 6 million RGB color lighting effects

Stylish downward-facing light setting

It has multiple adjustable lighting modes, and the side effects maximize the visual effect, creating an immersive ambient atmosphere, especially glamorous at night.

Supports connectivity in three modes

Supports connectivity to multiple systems

Three connection modes – wired USB-C, wireless 2,4 GHz and Bluetooth – adapt to different scenarios, allowing for seamless switching.

Built-in large battery eliminates range concerns

Powerful battery with a capacity of 8000 mAh

With a 8000mAh battery with intelligent power management technology, you don’t have to worry about range and can enjoy uninterrupted gameplay.

Product specification

Model: S87 Pro

Product weight: approx. 1018 g (without cables/receiver)

OK. 1067 g (with cables/receiver)

Battery capacity: 8000 mAh lithium battery

Rated voltage: 3,7 V DC (4,2 V when fully charged)

Rated current: approx. 160 mA at 3,7 V (default light effect) approx. 45 mA (backlight off) at 3,7 V

Product Dimensions: 366,10 x 138,51 x 41,94+0,1 mm

Operating Modes: USB-C/2,4G/Bluetooth Wired Connection in Triple Mode

Positioning plate: positioning plate with grooves

Key Material: PBT Material

Charging Interface: USB-C port

System compatibility

Wired mode/2,4G: ALL Windows operating systems (WINXP, WIN7, WIN8, WIN10). (On Win95, Win98 systems, drivers may be required to be installed.) Bluetooth Mode: Windows 8, Windows 10 and later. Bluetooth mode: MAC computers, Android phones or tablets, iOS phones or tablets equipped with Bluetooth BLE 4.0, BLE 5.0 or later.

Instructions for operating the knob

The keyboard features a 1,14-inch TFT display in the upper right corner, offering versatile driver customization functionality. The knob and buttons in the upper right corner work with the TFT screen: rotate the knob to navigate through the menu, and press briefly to confirm the selection or return to the previous menu level. The keyboard's TFT screen displays both time and calendar information. If the power switch on the base is off at the time of delivery or during normal use, turn it on and calibrate the time and calendar with the controller. The keyboard's TFT screen displays the battery level, making the charging status and remaining power easily visible.

Connection 2,4G

Move the switch in the upper right corner to the left = 2,4G mode. Pressing FN + »~ displays the message "2.4G reconnecting" (Reconnecting 2,4G). Holding FN + «~ for 5 seconds will display "2.4G pairing". Inserting the receiver displays the message "2.4G pairing successful", indicating successful pairing. Note: If connected by 2,4G, search for the device before inserting the receiver. Factory default pairing is pre-configured. The corresponding icons in the main menu of the TFT screen will also be highlighted.

Bluetooth connection

Move the mode switch in the upper right corner to the right = Bluetooth mode BLE5.1, allowing connection to 3 devices:

1. (FN+1) = Bluetooth 1 (device name "AULA-S87 Pro-1") Pressing (FN+1) displays the message "BT1 reconnecting" (Reconnecting BT1). Pressing and holding (FN+1) displays the message “BT1 pairing” (BT1 connection). Successful connection: The screen displays the message “BT1 pairing successful” (BT1 connection successfully). The corresponding icon in the TFT main menu will also be highlighted. Switching Bluetooth 1/2/3 with keyboard shortcut (FN+1/2/3) = Bluetooth 1/2/3 (device names: AULA-S87Pro-1/AULA-S87Pro-2/AULA-S87Pro-3”)

Adjustment of lighting effects

Scroll to “Light Effects” mode on the TFT screen to switch between 19 RGB lighting modes and off (20 modes in total):- Flow (default) - Peak and Valley - On the edge -Two roasts on one fire - Wavy dispersion -Endless Stream - Layered Peaks - Gentle Rain -Pendulum mode - Static constant light - Single-point lighting Single off,Starry Sky, Snowfall, Burning Flowers, Dynamic Breathing,Spectrum Cycle, Cascade Rainbow, Colorful Spectrum, Off.

Scroll to “Light Color” mode on the TFT screen to switch between RGB, red, orange, yellow, green, cyan, blue, purple, and white.

Scroll to “Light Brightness” mode on the TFT screen to switch between 5 brightness levels, each 20% increment. Turn the knob to the right to increase brightness (+), to the left to reduce brightness (-).

Scroll to “Light Speed” mode on the TFT screen to switch between 5 speed levels, each corresponding to a 20% increment. Turning the knob to the right increases the speed of light (+), and turning to the left reduces the speed of light (-).

Scroll to “Volume Adjustment” mode on the TFT screen. Rotating to the right increases the volume, and turning to the left decreases the volume. The corresponding volume level icon will flash.

Scroll to “Language Selection” mode on the TFT screen to switch between Chinese and English.

Scroll to the “Custom Images” option on the TFT screen; custom images can be set using the driver.

Scroll wheel adjustment

Dual mode scroll wheel function (indicated by three flashes of indicator light): Press Fn key + scroll wheel button to switch between screen adjustment and volume control. Press Fn+ESC to restore the default settings (the scroll wheel adjusts the screen). Press the Fn key + scroll wheel button again to activate the volume control and return to the home screen.

Contents:

Mechanical keyboard S87 PRO black
