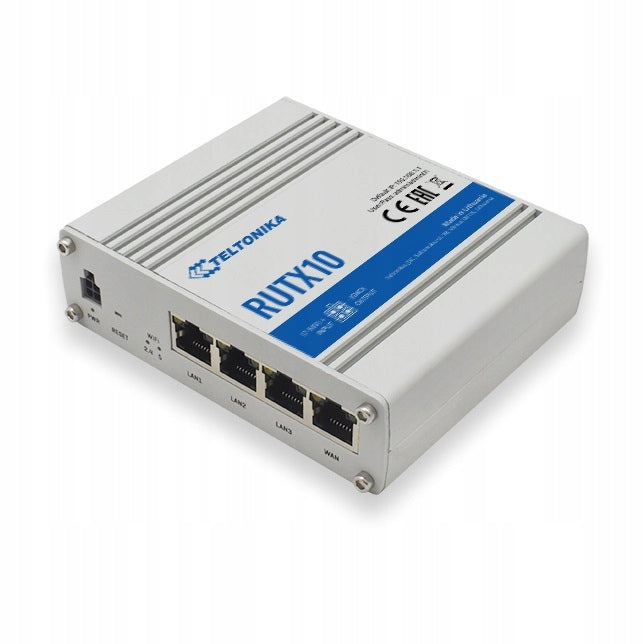

Maršrutizatorius Teltonika RUTX10, WiFi 2,4/5 GHz, 4xGB, BT, USB

Trumpai apie prekę

Prekė: Maršrutizatorius Teltonika RUTX10, WiFi 2,4/5 GHz, 4xGB, BT, USB. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Teltonika
• Modelis: RUTX10
• Plotis: 95 mm
• Aukštis: 115 mm

Teltonika RUTX10

• RUTX10 Enterprise router specifically for small to medium-sized applications.
• It is equipped with 5GHz 802.11ac dual band Wi-Fi, which is ideal for providing high data transmission and reliable wireless performance.
• It has all the latest security features and allows remote monitoring and control.
• RUTX10 includes highly functional and configurable RutOS based on OpenWRT.
• The synergy between hardware and software makes this device perfect for enterprise solutions.

Advanced

• IoT with Bluetooth LE
• High computing power
• Convenient access via remote management system (RMS)

Durable

• Durable aluminum housing
• Wide range of supply voltages - from 9 V to 50 V
• Large range of outdoor temperatures during operation - from -40°C to 75°C

Safe

• Many VPN Options
• High functionality of firewall
• Advanced Wi-Fi encryption

Technical Specifications:

• Operating frequency: 2,4 GHz and 5 GHz
• Number of LAN ports: 3x [10/100/1000M (RJ45)]
• Number of WAN ports: 1x 10/100/1000BaseTX (RJ45)
• Maximum wireless transmission speed: 867 Mbps
• LAN standard : Gigabit Ethernet 10/100/1000 Mbps
• Unscrewable Antennas: Yes
• RAM: 256MB
• USB Port: 1x USB
• Device Power Type: Power Supply, Passive PoE
• Antenna Type: External
• MIMO Type: MU-MIMO 2x2
• Housing Type: Desktop, Metal
• Device Type: Wireless Router
• WiFi Security : WPA-PSK/WPA2-PSK, WEP, TKIP/AES
• Management : Through the web browser
• Application: Inside
• Antenna Gain: Below 10dBi

Universal Wi-Fi Router Teltonika RUTX10

Teltonika RUTX10 is a new generation industrial router dedicated to enterprises. It is equipped with dual Wi-Fi 5 (802.11ac) and Bluetooth LE module. It is ideal for use in small to medium-sized offices in the public or private sector. High-speed Wi-Fi connection allows

RUTX10 - a robust router with a wide range of software features

The highly customizable RutOS operating system is at the heart of RUTX10, and the perfect harmony between the hardware and software features offered makes this device perfect for enterprise solutions. The quad-core ARM Cortex A7 717 MHz processor guarantees VPN functionality, while 256 MB of Flash memory allows you to install additional protocols.

Hardware features

• CPU: Quad Core ARM Cortex A7 717 MHz CPU
• Memory: 256 MB Flash, 256 MB DDR3 RAM
• Ethernet ports: 4 x 1-gigabit Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• Wi-Fi: Dual-Band 802.11ac Wave 2 (Wi-Fi 5) with MU-MIMO support and data transfer rates up to 867 Mbps
• Power supply: 9-50 V DC, 4-pin DC connector
• Interfaces: 1 x 4-pin DC connector, 4 x Ethernet, 2 x RP-SMA Wi-Fi, 1 x BT SMA
• LED lights: 1 x power supply, 2 x Wi-Fi band status, 8 x Ethernet status
• Working temperature: -40°C to 75°C
• Housing: Aluminium, with ground clamp
• Dimensions: 115 mm x 95 mm x 32 mm
• Weight: 357 g

Software

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
• Network functions: NAT, static/dynamic routing, Firewall, H.232 and SIP-algae-NAT helpers for correct VoIP packet forwarding
• Unique network functions: VLAN, WEB filter, load balancing, network backup
• Call monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for call control
• Authorization: Pre-shared key, digital certificates, X.509 certificates
• Settings behavior: Software update without losing current configuration
• Monitoring and management: WEB UI, SSH, SNMP, JSON-RPC, FOTA, RMS
• Supported languages: Busybox shell, Lua, C, C++

Packaging Contains

• RUTX10 router
• Euro 18 W power supply
• 2 x WiFi antennas (rotating, male RP-SMA)
• 1 x Bluetooth antenna (magnetic holder, RP-SMA plug, 1,5 m cable)
• Ethernet cable (1,5 m)
• QSG (short guide)
• RMS leaflet

DETAILED SPECIFICATION:

ETHERNET

• WAN: 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

WIRELESS

• Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
• ESSID: ESSID stealth mode
• Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

BLUETOOTH

• Bluetooth 4.0: Bluetooth low energy (LE) for short range communication

NETWORK

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forwards, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS: Supported >25 service providers, others can be configured manually
• Network backup: VRRP, Wired and WiFi WAN options, each of which can be used as an automatic Failover
• SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in FW standard)

SECURITY

• Authetication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
• GRE: GRE tunnel
• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3 support
• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN: Method of building scalable IPsec VPNs
• SSTP: SSTP client instance support
• ZeroTier: ZeroTier VPN client support
• WireGuard: WireGuard VPN client and server support

MODBUS

MODBUS TCP SLAVE

• ID filtering: Respond to one ID in range [1;255] or any
• Allow remote access: Allow access through WAN
• Custom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality

MODBUS TCP MASTER

• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY

• Gateway: Allows sending commands and receiving data from Modbus Master trough MQTT broker

DATA TO SERVER

• Protocols: HTTP(S), MQTT, Azure MQTT, Kinesis

MONITORING & MANAGEMENT

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call: Reboot, Status, Mobile data on/off, Output on/off
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: Management API over HTTP/HTTPS
• Modbus: Modbus TCP status/control
• RMS: Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM: 256 MB, DDR3
• FLASH storage: 256 MB, SPI Flash

FIRMWARE / CONFIGURATION

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

USB

• Data rate: USB 2.0
• Applications: Samba share, USB-to-series
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer
• Storage formats: FAT, FAT32, NTFS

INPUT/OUTPUT

• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events: Email, RMS

POWER

• Connector: 4 pin industrial DC power socket
• Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
• PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
• Power consumption: 9 W Max

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)

• Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
• I/Os: 1 x Digital Input, 1 x Digital Output on 4 pin power connector
• LEDs status: 8 x LAN status LEDs, 1 x Power LEDs, 2.4G and 5G WiFi LEDs
• Power: 1 x 4 pin DC connector
• Antennas: 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth
• USB: 1 x USB A port for external devices
• Reset: 1 x Reboot/User default reset/Factory reset button
• Other: 1 x Grounding screw

PHYSICAL SPECIFICATION

• Casing material: Aluminium housing with DIN rail mounting option
• Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
• Weight: 355 g
• Mounting options: DIN rail, flat surface placement

OPERATING ENVIRONMENT

• Operating temperature: -40 C to 75 C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30
