Maršrutizatorius MIKROTIK ROUTERBOARD CRS304-4XG-IN

Trumpai apie prekę

Prekė: Maršrutizatorius MIKROTIK ROUTERBOARD CRS304-4XG-IN. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: MikroTik
• Modelis: CRS304-4XG-IN

MIKROTIK ROUTERBOARD CRS304-4XG-IN

The most important features

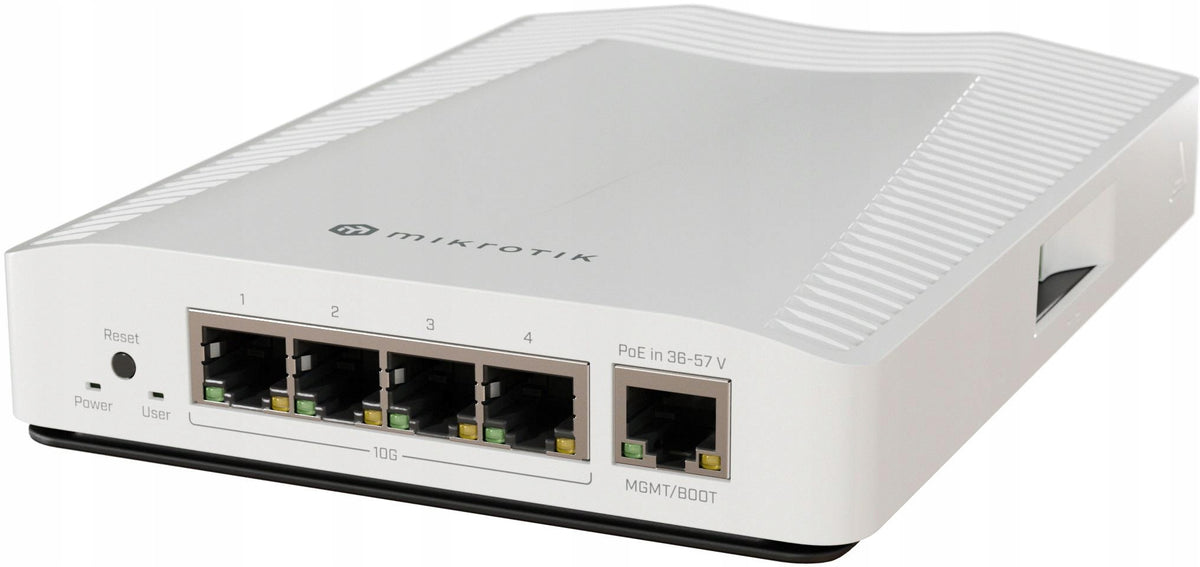

Four 10G Ethernet ports: Provide high bandwidth for demanding network applications.

Gigabit Ethernet port for management: Allows you to manage your device separately without affecting the main network traffic.

Passive cooling: The housing acts as a massive heat sink, eliminating the need for fans and ensuring quiet operation.

Multiple mounting options: The device is equipped with a DIN rail bracket and standard mounting points, allowing for flexible installation in various environments.

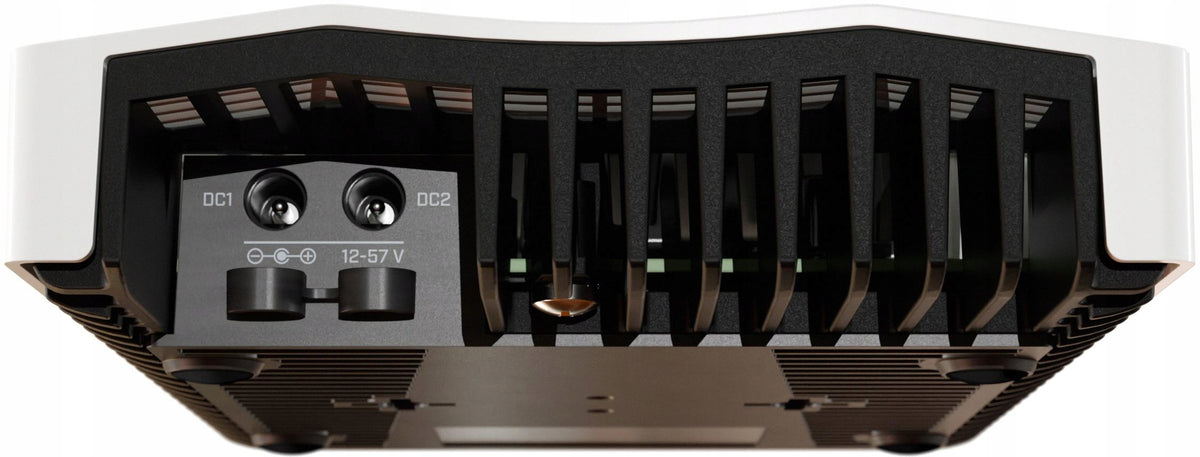

Various power sources: Supports power supply via two DC sockets, 2-pin terminal and PoE-in (802.3af/at compatible), ensuring reliability thanks to power redundancy.

Hardware performance: Powered by a dual-core 64-bit ARM processor with a clock speed of 1,2 GHz and a Marvell Prester switch chip, it offers advanced features such as broadcast storm control, MAC filtering, VLANs, motion mirroring, bandwidth limiting, and partial support for Layer 3 hardware offloading.

Operating system: The device operates under RouterOS v7 with Level 5 license, offering advanced network configuration and management capabilities.

The MikroTik CRS304-4XG-IN is a compact and powerful 10 Gigabit Ethernet switch designed to simplify network configurations. Equipped with four ready-to-use 10G Ethernet ports, it allows you to connect devices directly without the need for additional SFP modules. In addition, it has a Gigabit Ethernet port designed for management purposes.

The CRS304-4XG-IN is the ideal solution for professionals looking for a reliable and easy-to-configure 10G Ethernet switch, offering advanced features in a compact and durable design.

• Details:
• Product code: CRS304-4XG-IN
• Architecture: ARM 64bit
• CPU: 98DX2528
• CPU core count: 2
• CPU nominal frequency: 1200 MHz
• Switch chip model: 98DX2528
• RouterOS license: 5
• Operating System: RouterOS v7
• RAM Size: 512 MB
• Storage size: 32 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering:
• Number of DC inputs: 4 (DC jack, PoE-IN, 2-pin terminal)
• DC jack input Voltage: 12-57V / 12-57V
• 2-pin terminal input Voltage: 12-57V
• Max power consumption: 21 W
• Max power consumption without attachments: 15 W
• Cooling type: Passive
• PoE in: 802.3af/at
• PoE in input Voltage: 36-57 V
• Ethernet:
• 10/100/1000 Ethernet ports: 1
• Number of 1G/2.5G/5G/10G Ethernet ports: 4
• Certifications & Approvals:
• Certification: CE, EAC, ROHS
• IP: 20
