Maitinimo šaltinis BCS-UPS/IP8Gb/E-S su 8 PoE jungtimis IP stebėjimo sistemoms

Trumpai apie prekę

Prekė: Maitinimo šaltinis BCS-UPS/IP8Gb/E-S su 8 PoE jungtimis IP stebėjimo sistemoms. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 1483

BCS

8-Port Buffer PoE Switch

Series: BCS Power

Model: BCS-UPS/IP8Gb/E-S

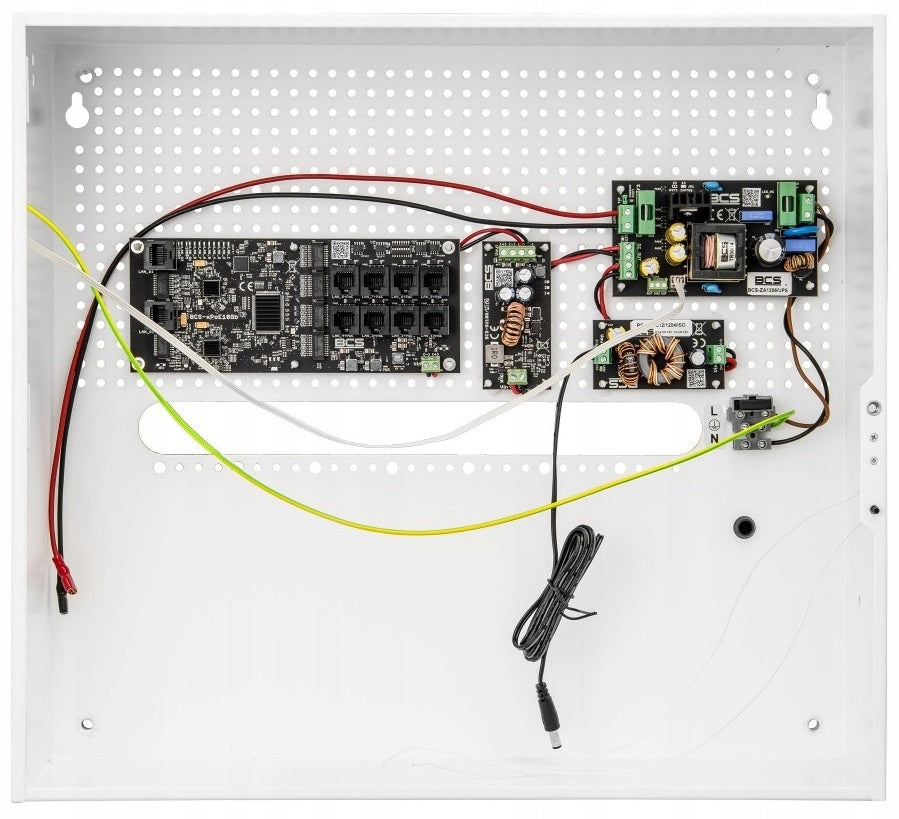

BCS-UPS/IP8Gb/E-S is a buffer power supply kit designed for industrial IP cameras and other network devices powered in the PoE (Power over Ethernet) standard. The device provides uninterrupted operation of up to 8 IP cameras, supporting PoE 802.3at/af and PoE PASSIVE power supply, and allows you to connect the battery to emergency operation. The built-in network switch offers 8 10/100 Mbps PoE ports and 2 Gigabit Uplink ports, allowing for fast and stable network connections.

The most important advantages and features

• Buffer power supply for 8 IP cameras with PoE 802.3at/af and PoE PASSIVE protocols
• Support for 4K Ultra HD high definition cameras
• Built-in space for 12V/18Ah SLA/AGM battery
• 8 PoE ports with up to 40W of power per port
• Independent electronic fuses for each PoE port with automatic return function
• Possibility to turn on/off PoE power on individual ports
• High efficiency of the power supply (>90%), ensuring low heating and energy efficiency
• Simple installation and quick start-up with no setup required
• Aesthetic, durable steel housing BCS-H with wall mounting system
• Two Gigabit Uplink ports for high-speed data transfer over the network
• Space for mounting a video recorder (NVR) inside the housing

Detailed technical specification

Ports and standards

• 8 RJ45 PoE ports 10/100 Mbps (LAN 1 ... LAN 8)
• 2 Gigabit RJ45 Uplink Ports (LAN G1, LAN G2), No PoE
• Support PoE PASSIVE (up to 40W per port), IEEE 802.3af (up to 15,4W), IEEE 802.3at (up to 30W)

Power supply and electrical parameters

• Input voltage: 190 ... 260 VAC, 50 Hz
• PoE Output Voltage: 48 VDC ±2%
• Power Supply Voltage: 12 VDC ±15%
• Maximum power supply: 72 W
• Battery charging current: 1 A or 2 A (customizable)
• Battery: 1 x 12 V / 18 Ah (SLA/AGM)
• Protections: fuses, surge and short-circuit protection

Network functions and management

• PoE ON/OFF switches on each port (1 ... 8)
• Electronic fuses on each PoE channel with auto back
• LED signaling: mains voltage, output voltage, battery charging, PoE power supply on ports

Physical parameters and assembly

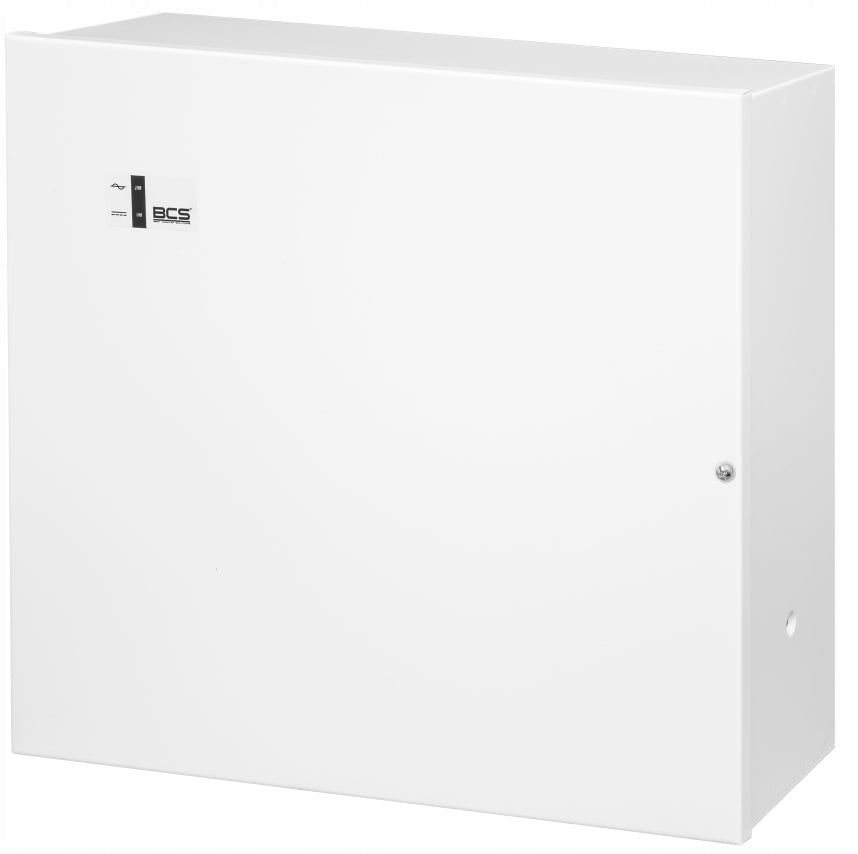

• Housing: steel, powder coated white (model BCS-H)
• Dimensions: 400 x 450 x 140 mm
• Weight: 4,4 kg
• Degree of protection: IP20
• Operating temperature: -10 ... +40°C
• Wall mounting through 6 mm mounting holes
• Tamper (protection against opening the housing)

Other functions

• Automatic start of the power supply after connecting the battery
• Battery protection against reverse connection, overload and deep discharge (disconnection below 10,2 V)
• Open collector type outputs for failure signaling (no AC/DC voltage)

Explanation of technical abbreviations and terms

• PoE (Power over Ethernet) – technology that allows the transmission of electrical power along with data over an Ethernet network cable.
• IEEE 802.3af / 802.3at – PoE standards specifying the maximum power transmitted by the cable (up to 15,4 W and up to 30 W, respectively).
• PoE PASSIVE – non-standardized PoE mode, offering a constant supply voltage (e.g. up to 40 W).
• RJ45 – connector type used for Ethernet network cables.
• Gigabit Ethernet – a high-speed network standard offering transfer rates of up to 1 Gbit/s.
• SLA (Sealed Lead Acid) – sealed lead-acid battery.
• AGM (Absorbent Glass Mat) – lead-acid battery technology with glass mat, ensuring longer service life and maintenance-free operation.
• Fuse – a fuse that automatically interrupts the circuit in case of overload or short circuit.
• Tamper – protection against unauthorized opening of the housing.
• Open collector – a type of signal output that can be used to signal emergency states.

BCS-UPS/IP8Gb/E-S is a comprehensive solution for stable and uninterrupted power supply to IP cameras and other network devices in surveillance systems. Thanks to the high quality of protection and ease of installation, the device guarantees reliability of operation and protection of equipment. The ability to connect the battery allows you to maintain business continuity even during power outages. High port bandwidth and PoE functionality make the kit an ideal choice for modern, extensive CCTV systems, while providing an aesthetic and convenient mounting solution.
