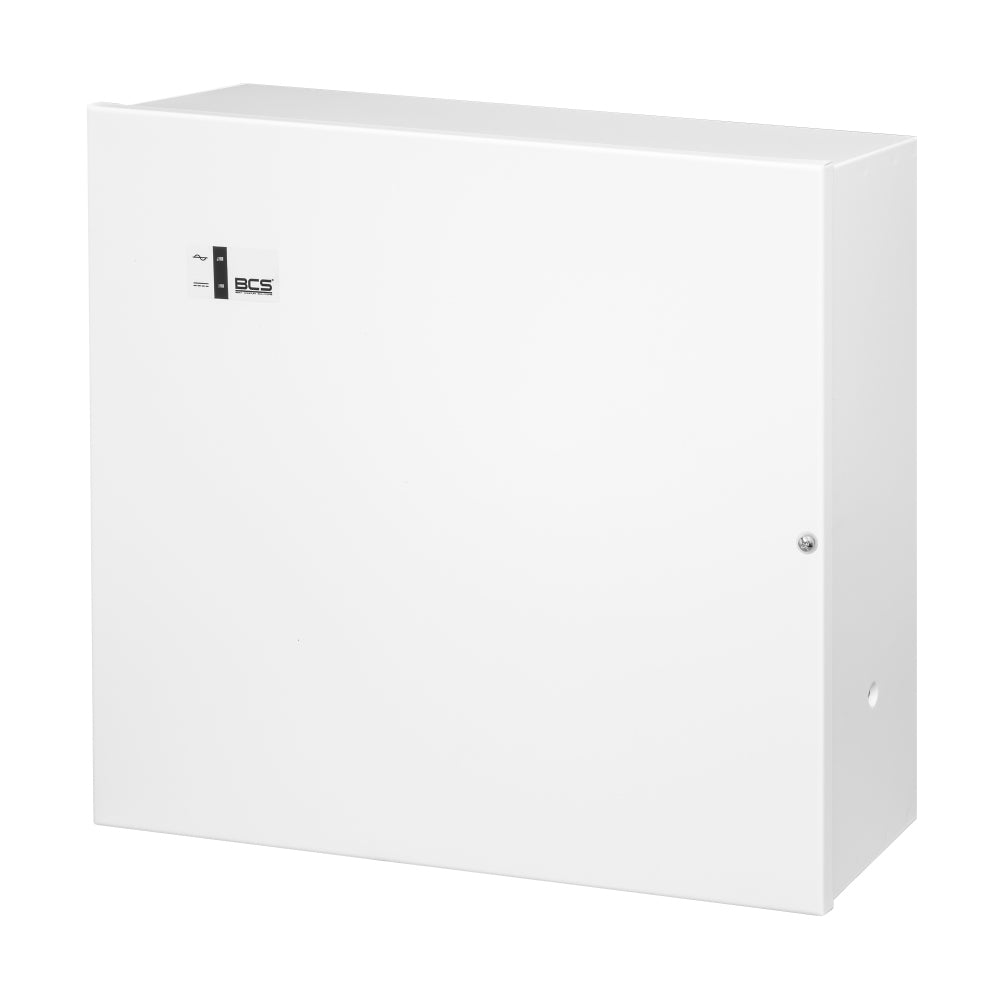

Maitinimo šaltinis BCS-UPS/IP16GB/E-S su PoE iki 16 kamerų ir registratoriui

Trumpai apie prekę

Prekė: Maitinimo šaltinis BCS-UPS/IP16GB/E-S su PoE iki 16 kamerų ir registratoriui. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 5904890706149

Model BCS-UPS/IP16Gb/E-S by BCS.

It is designed for buffer power supply of 16 IP cameras (unmanaged switch). The power supply system is enclosed in a BCS-H housing for internal installation. BCS-UPS/IP16Gb/E-S can also be used to power recorders and other devices downloading 12V +/- 5% DC. It has numerous electronic protections that protect the cameras and other devices connected to it.

NOTE! The power system must be supplemented with two 12V/18Ah batteries (2 pcs. required). ).

CHARACTERISTICS

• Buffer power supply max. 144W (2x72W),
• Unmanaged PoE switch,
• Number of ports: 16x PoE, 2x Gigabit Uplink,
• Dedicated batteries: 2x 12V / 18Ah,
• Housing: BCS-H,
• Leak-proof class: IP20,
• Dimensions: 450mm x 400mm x 140mm.

TECHNICAL DATA

Number of ports

18x RJ45

Type of ports

16 x PoE10/100Mbps

2 x Gigabit UpLink LAN port functions 1 ... LAN 8 PoE OUTPUT -for PoE PASSIVE receivers (up to 40W) and 802.3af (up to 15,4W),802.3at (up to 30W) LAN port functions G1, LAN G2 UPLINK Gigabit (without PoE power) LAN port security 1 ... LAN 8,Vin Surge protection LAN port protection 1 ... LAN 8 Short-circuit protection 0,75 A with auto back Power control PoE ON/OFF switch -Items 1 ... 8 (LAN 1 ... LAN 8)

PoE OFF on port - switch in OFF position

PoE ATTACHED on port - switch in ON position Output voltage PoE 48 VDC +/- 2% Output voltage of power supply 12 VDC +/-15% Power consumption 2x 72 W Input voltage 190 ~ 260 VAC,50 Hz Power supply input protection Fuse fuse immediate 3,15A Power supply output protection Mains power supply:Electronic overload protection at 9 A (after short circuit, a power supply restart may be required) Operation from the battery:Fuse fuse immediate 6,3A Working signal LED1 (yellow) - presence of mains voltage

LED2 (green) - presence of output voltage

LED3 (red) - battery charging

LEDs in LAN connectors 1 ... LAN 5 - presence of PoE power on the port Housing design Housing BCS-H

Housing material - steel sheet 0,8 mm

Powder coated housing in white

Mounted opening tamper

System opening 4,8 mm in pitch 10,8 mm

Distance to the wall

Mounting holes 6 mm Assembly Wall-mounted Battery 2x gel battery or AGM 12V / 18Ah Battery charging current 1 A or 2 A (selected by jumper JP1) Battery circuit protection Protection against reverse connection of the battery and overload: Fuse fuse 6,3A

Deep discharge protection: Disconnection of the battery for voltage below 10,2 V with automatic return of mains voltage Starting in the absence of power Automatic start of the power supply after connecting the battery Technical outputs OUF – no voltage +DC_OUT

ACF – no AC voltage

Open collector type outputs with a maximum load of 50mA (each output) Working temperature -10 ~ +40°C Protection class IP20 Weight 4.7 kg Dimensions 450 x 400 x 140 mm
