Maitinimo adapteris MINIUSB 12–24V ATS ATC MICRO2 MINI automobilinėms kameroms

Trumpai apie prekę

Prekė: Maitinimo adapteris MINIUSB 12–24V ATS ATC MICRO2 MINI automobilinėms kameroms. Kategorija: Automobilio vaizdo registratoriai.

• Gamintojas: LEMON
• Modelis: P26_mini USB

⭐Model: Lemon P26 ⭐Voltage: 12-24V ⭐Length: 3,5 meters

The Mini USB Car Camera Power Adapter is a reliable and convenient solution that allows you to keep your camera powered up, even when the engine is turned off. By connecting directly to the fuse socket in the car, the adapter ensures continuous operation of the camera, which is especially useful when parking, allowing you to record events around the clock

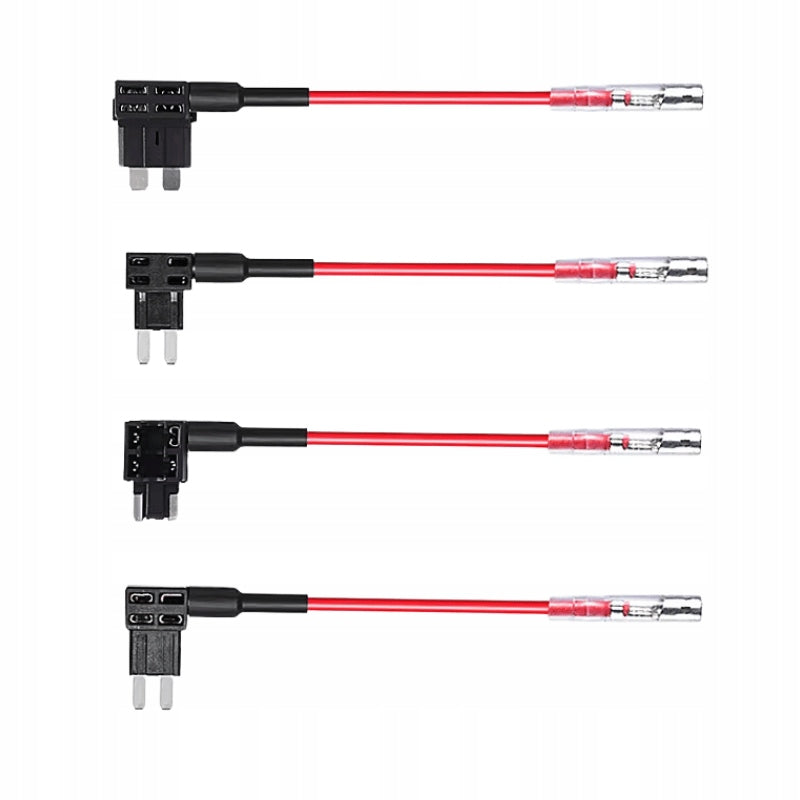

✅ Universal fuse adapter – match it to your car!

With the included replaceable fuse ends ATS, ATC, MICRO2 and MINI, our adapter ensures maximum compatibility with various car models. Whether you have an older vehicle model or a modern car equipped with advanced electrical systems, you can easily find the right tip.

How to choose the right tip?

To choose the right tip, simply compare its dimensions with the fuse socket in your car.

Connecting the driving recorder to the fuse box with an adapter allows you to constantly power the recorder from the car battery, regardless of whether the car is turned on or off. With this solution, you can take advantage of the advanced features of the driving recorder, such as parking mode.

Active parking mode allows you to continuously monitor your car when the engine is turned off.

✅ Battery protection

The main task of the power adapter is to process the voltage of 12-24V to 5V and protect the vehicle battery from complete discharge preventing start-up. If the battery level drops to a certain level, the adapter will automatically turn off the driving recorder.

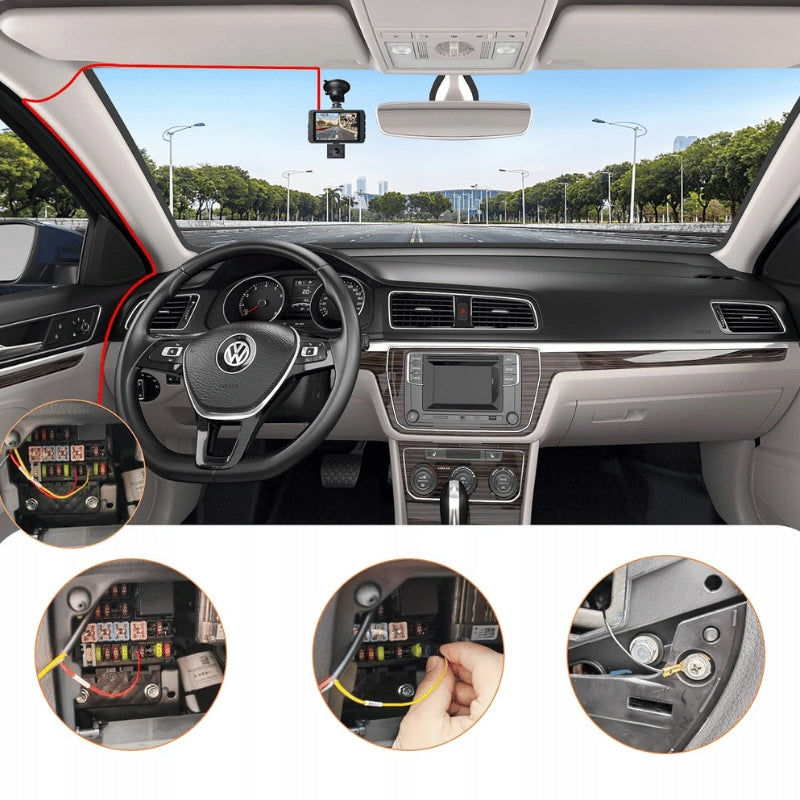

✅ How to connect the adapter in the fuse box

To connect the adapter properly, we must first find a fuse that has power even on the car's ignition off. The adapter has three input wires:

• Battery+ (yellow) - connected to a DC power supply circuit, which provides voltage even after switching off the ignition.
• ACC (red) - connected to the circuit, which is active after turning on the ignition in the car (turning the key in the ignition).
• GND (black) - mass, must be attached e.g. to the car body element.

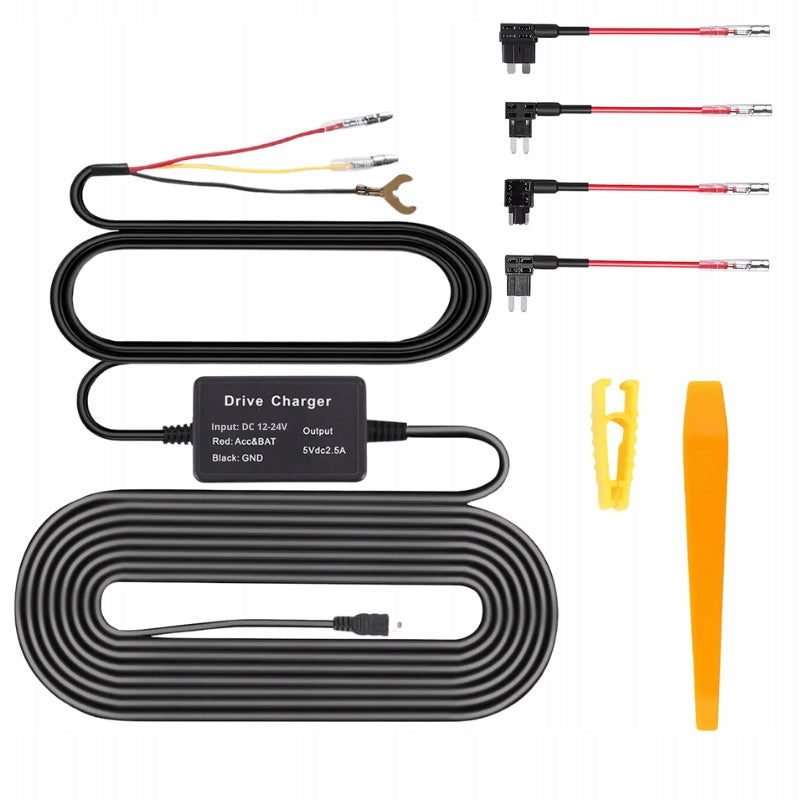

Parameters:

• mini USB tip for connecting a car camera
• Fuse terminals ATS, ATC, MICRO2 and MINI
• Cables for connection to fuses: BAT+, ACC, GWD-
• Input Voltage: DC 12-24V
• Output Voltage: 5V
• Output Current: 2.5A
• Protection against too low battery voltage
• Cable length: 3,5 m

In the absence of experience in automotive electronics, it is recommended to use the services of a specialist or car repair shop to avoid incorrect connection of the adapter, which can lead to damage to the vehicle or accident

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	LEMON
Parametry	Model	P26_mini USB
Parametry	Recording quality	other
Parametry	Power supply	USB
Parametry	Ports	miniUSB
Parametry	Memory card included	none
Parametry	Additional features	automatic start
Parametry	EAN (GTIN)	5906321730501
Parametry	Manufacturer code	mini USB
Parametry	Batteries included	no
