Magnetinis lakštinio metalo keltuvas, 100 kg

Trumpai apie prekę

Prekė: Magnetinis lakštinio metalo keltuvas, 100 kg. Kategorija: Kita.

• Gamintojas: PML
• Modelis: PML100

LIFTING CAPACITY 100 KG

USING NEODYMIUM MAGNET

BREAKING STRENGTH 300 KG

Features:

• for lifting magnetic iron and steel items (and all ferromagnetic materials)
• for use in industrial, manufacturing, and service industries
• for flat items and pipes
• durable, solid construction

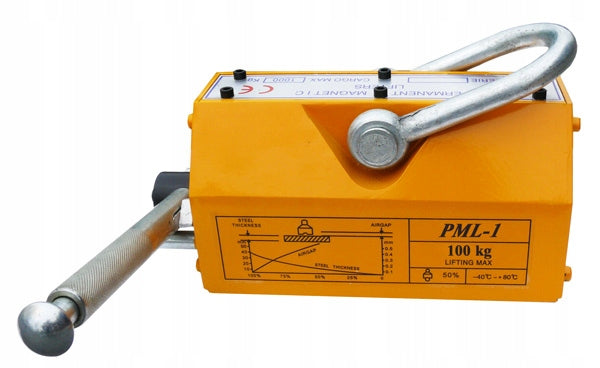

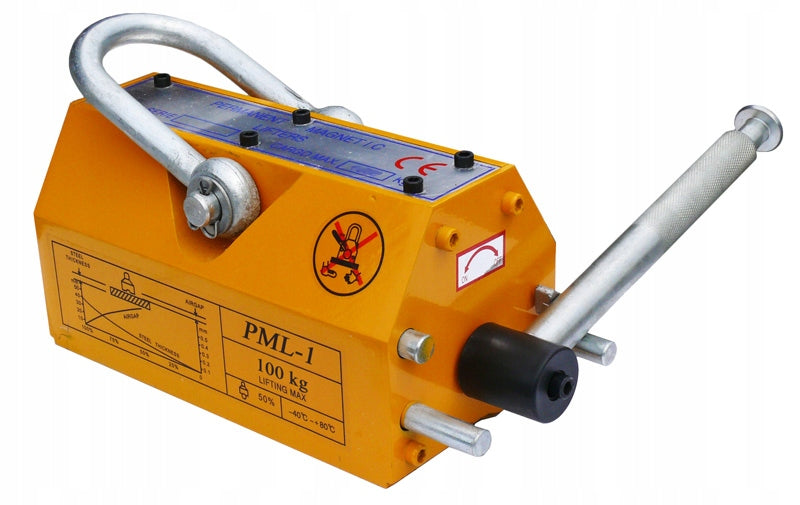

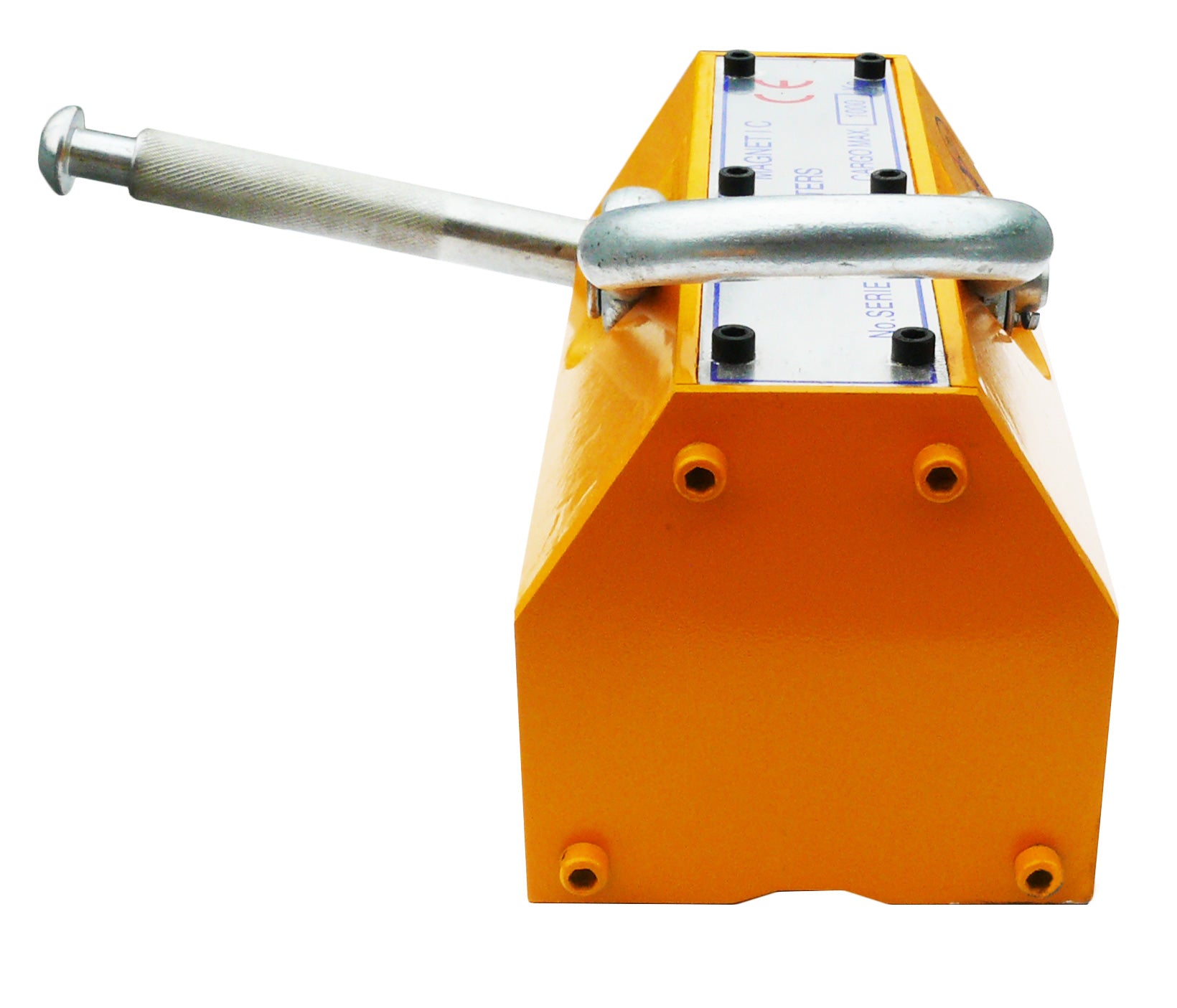

The PML-1 magnetic lifter is a professional tool for use in many industries. It is a durable, strong and robust device designed for professionals.

It is used for lifting iron and steel elements and all other weights with ferromagnetic properties - weights, building elements, reinforcement, scrap, flat sheets and pipes.

It will work in the machinery, metallurgy, shipbuilding industry as well as in car workshops, factories, construction sites and wherever there is a need for efficient movement of iron and steel elements. Since the operating temperature range is very wide, even up to 80 °C, the gripper can be successfully used in steelworks and foundries.

The holder uses neodymium magnets so that is very convenient to use. It is activated by means of an operating lever. With its help, we activate and deactivate the magnet - we turn the lever one way or the other. For increased comfort of use, the operating lever has been made in a way that ensures a secure grip - grooved lever surfaces have been used.

The lifter does not require additional power supply either external or internal. This means zero operating costs. It is an excellent alternative to gripping arms and strollers. The handle is equipped with a shackle that allows you to hang on a crane, traverse, crane or supporting structure.

Safe operation is possible thanks to the use of a safety mechanism that prevents accidental release of the operating lever. In addition, the lift has been designed in such a way that the breaking load is up to 3 times higher than the permissible lifting capacity - nominal load. However, it should be remembered that in everyday use it is not allowed to exceed the nominal load.

Specification:

• Model: PML-1
• housing material - lacquered sheet
• used magnet - neodymium
• permissible load - 100 kg
• breaking load - 300 kg
• max. load for vertical lifting and rounded surfaces - 50 kg
• colour - orange
• operating temperature - from -40 to 80 °C
• shut-off mechanism - manual lever
• length of operating lever - 160 mm
• length - 135 mm
• width - 63 mm
• height -75 mm
• Weight - 2,9 kg
• weight with packaging - 3,6 kg
• package dimensions - 21,5x13,5x14,5 cm

The set includes:

• lift
• wooden box - transport
• warranty card
• instruction manual
