LPG sąsajos CCY USB FTDI jungčių rinkinys, 11 vnt. skirtingoms valdymo plokštėms

Trumpai apie prekę

Prekė: LPG sąsajos CCY USB FTDI jungčių rinkinys, 11 vnt. skirtingoms valdymo plokštėms. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: CCY
• Modelis: 100004

Diagnostic interface dedicated to LPG installations

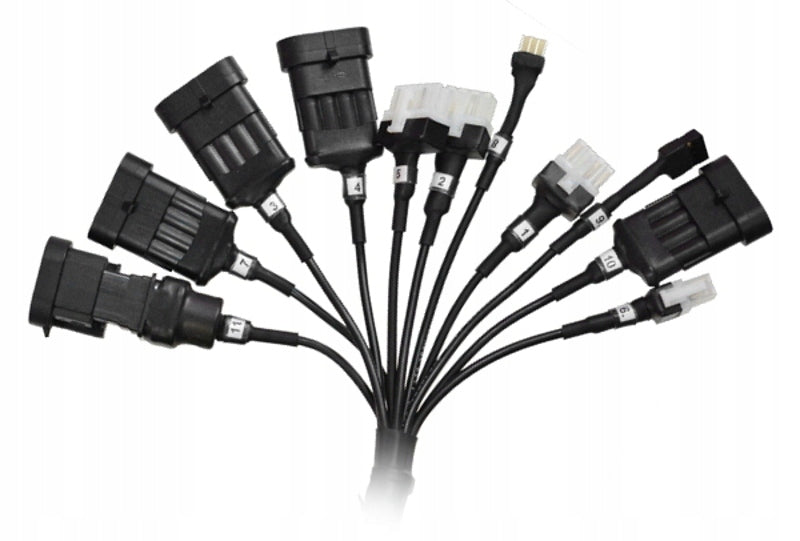

11 different connectors supporting drivers from leading manufacturers.

____________________________________________________

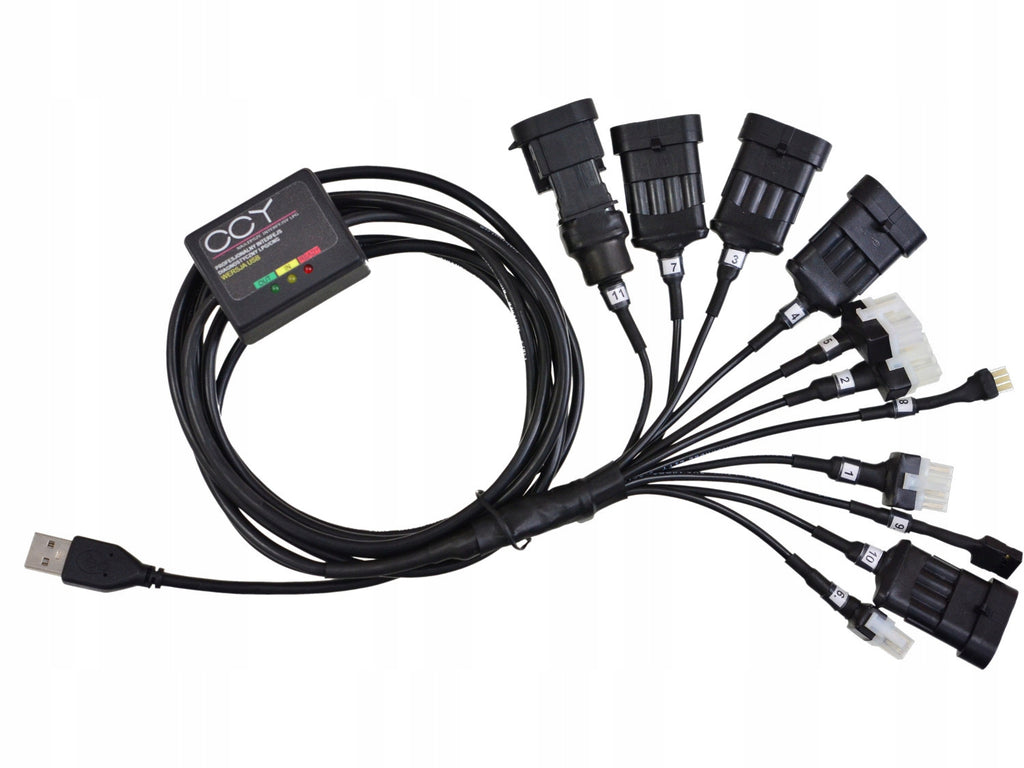

The device is based on the original FTDI chip, which guarantees stable operation and fast operation of the device. The interface is equipped with 3 LEDs for easy diagnostics and a long (4 meters) and thick - double shielded cable to eliminate interference. The kit includes an interface ending with different connectors (11pcs)

The full list of supported models of control panels can be found in the download in pdf in the "Security, compliance and warnings" tab.

THE DEVICE ALLOWS YOU TO PERFORM EXACTLY THE SAME INSTALLATION WORK AS IN A PROFESSIONAL WORKSHOP!

Specification:

• Full 5V voltages on signal lines
• Stability of RS232 FTDI interface
• High quality workmanship
• Shielded cable
• Overall length 4meters
• The interface works under any windows from XP to 12, while programs for most drivers are unfortunately under XP

_____________________________________________________

Connections adapted to LPG installations of major manufacturers

The list can be found in the download in pdf in the "Security, compliance and warnings" tab.

_________________________________________

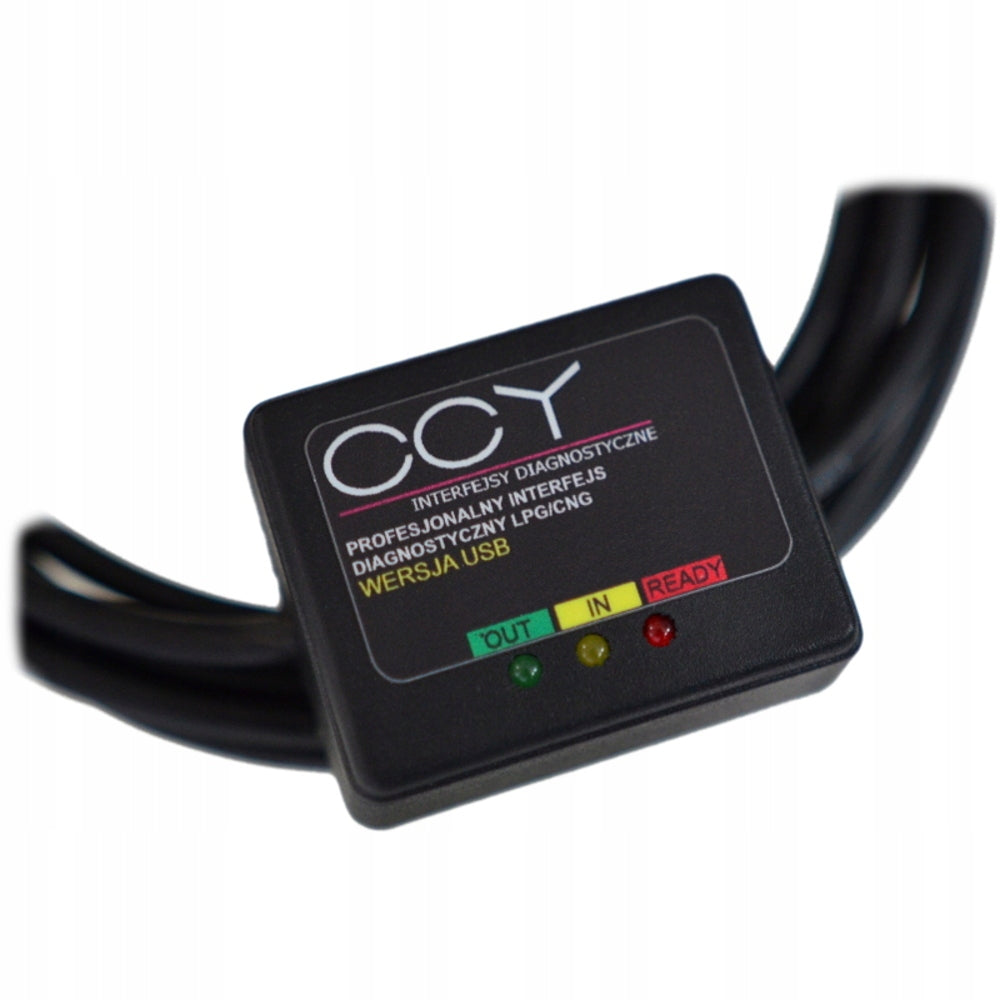

RED LED - informs about the correct connection of the interface with the computer. Lights up only after the drivers are installed correctly and signals the interface's readiness to work

GREEN LED - signals sending data through the interface

YELLOW LED - signals the receipt of data from the LPG control panel

Especially for workshops and people who operate a large number of gas controllers, we have improved the electronic system of our devices. We have made a number of changes eliminating the possibility of damaging the interface electronics by confusing the connector. The connector error usually meant sending a 12V voltage to one of the interface signal pins, which resulted in its damage. The new version of electronics is completely protected against such failures. Several months of testing in gas workshops cooperating with our company allowed us to confirm the reliability of our devices.

Example of screenshots from a program that works with the interface:

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	CCY
Parametry	Product weight with unit packaging	0.242 kg
Parametry	EAN (GTIN)	5908258861037
Parametry	Manufacturer code	100004
Parametry	Batteries included	no
