Litavimo stotelė 2in1 su karšto oro pūtikliu Yihua 706 II, T12, tiksli rankenėlė

Trumpai apie prekę

Prekė: Litavimo stotelė 2in1 su karšto oro pūtikliu Yihua 706 II, T12, tiksli rankenėlė. Kategorija: Lituokliai.

• Gamintojas: Techrebal
• Modelis: BAB3-74395
• Galia: 670 W
• Įtampa: 230 V

Fast, clean and professional soldering – no frustration, no compromises. And all this thanks to the reliable YIHUA 706 II soldering station

This is no ordinary station – it is a powerful and precise tool combining HOT AIR and T12 flask, which will make your work faster, more accurate and more enjoyable.

Why is it worth it?

✔ 670W power ➡ fast heating and stable operation

✔ Grots T12 ➡ precision and durability

✔ Temperature control ➡ ideal control

✔ Antistatic ESD Safe ➡ component safety

✔ HOT AIR with nozzles ➡ easy assembly/disassembly SMD

Technical data

• Power: 670W
• Voltage: 220-240V
• HOT AIR operating temperature: 100-480°C
• Soldering iron operating temperature: 200-480°C
• Air flow: up to 168l/min
• Display: LED
• Resistance between tip and ground: less than 2 Ohms
• ESD Safe enclosure
• Diameter of HOT AIR nozzles supported: 22 mm
• Type of tips: T12
• Length of soldering stock cable: 110 cm
• Dimensions of the station: 25.3x18.6x12.4 cm
• Mainboard system based on Samsung components
• The air flow is produced by the turbine
• Ceramic heating element

⚠ Note after receipt, unscrew the screw marked in red, located on the bottom of the device.

WHAT DO YOU GAIN?

Precise digital adjustment and a clear display make the temperature set in one motion, and the microprocessor ensures its stability even with large thermal drops. The station operates quietly thanks to an efficient air turbine – you can solder in the office, studio or service without annoying noise. ESD-Safe design protects sensitive systems and ensures safety in professional service.

Feel the warmth of precisely directed air, see how the tin binder softens perfectly where you want it. Hear the noise of HOT AIR, which gives you full control over every solder. Work with passion and professionalism that you can see in every detail.

✅ Key features

▶ 2 in 1 – one station, two independent channels: Hot-Air hot air + precision soldering iron in the T12 system. Ideal for SMD, THT, BGA.

▶ Total power 670 W – instant heating and power reserve, which will not be lacking even in continuous operation.

▶ A wide temperature range of 100 – 480 °C on both channels allows soldering of delicate circuits and massive joints.

▶ Sleep + Auto Cooling mode – electronics switch to sleep mode after inactivity, and Hot-Air cools the heater itself, extending its life.

▶ Autocalibration – quick temperature tuning guarantees accuracy of ±1 °C.

▶ Complete set in a box: 3 nozzles 5/7/10 mm, flask 506A with tip T12-I, stand with copper sponge, wet sponge, handle/stand for Hot-Air, PL instruction – you take out of the box and work.

ℹ The Yihua 706 II was produced exclusively for the Techrebal brand. You can be sure that you are buying a version prepared for demanding users – only with us!

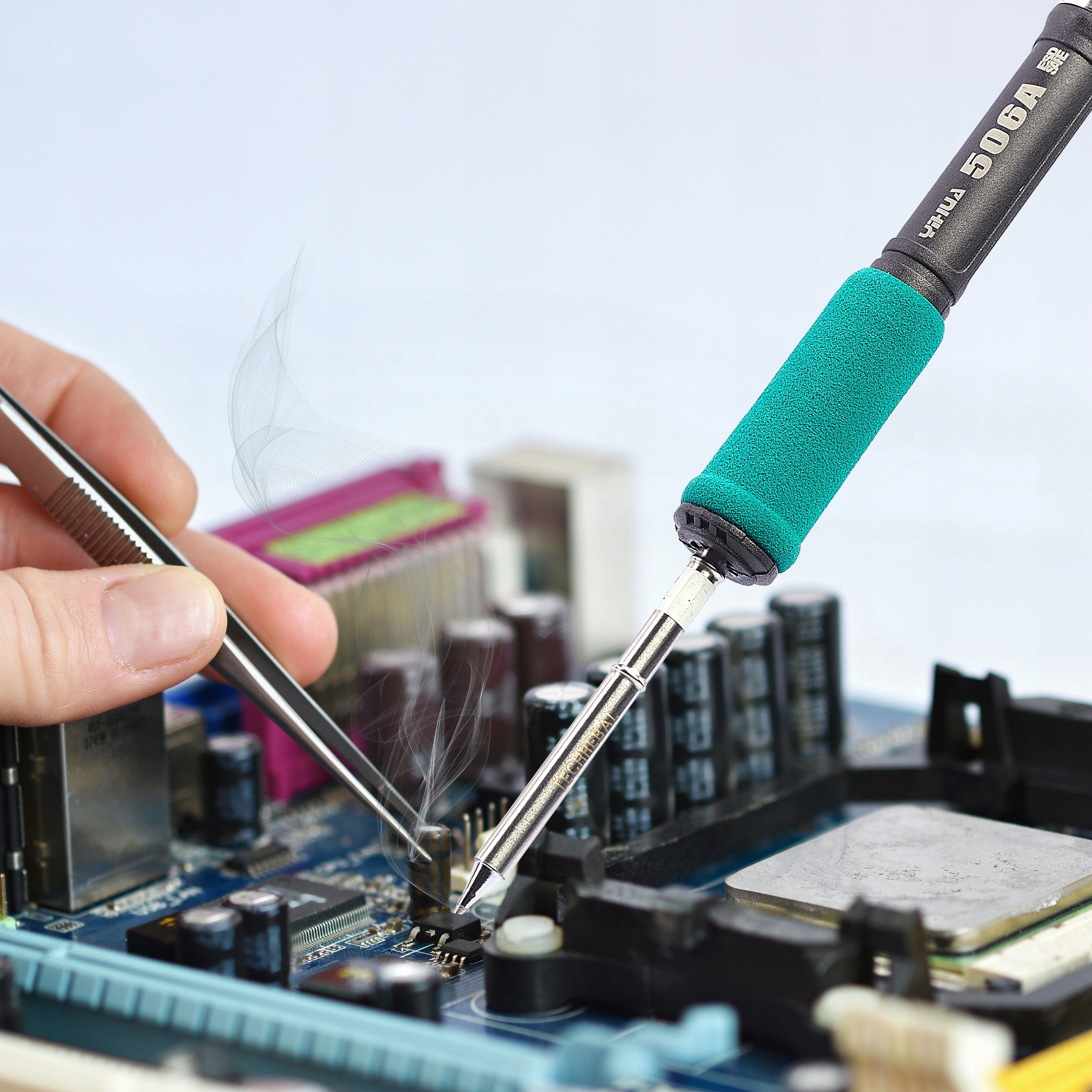

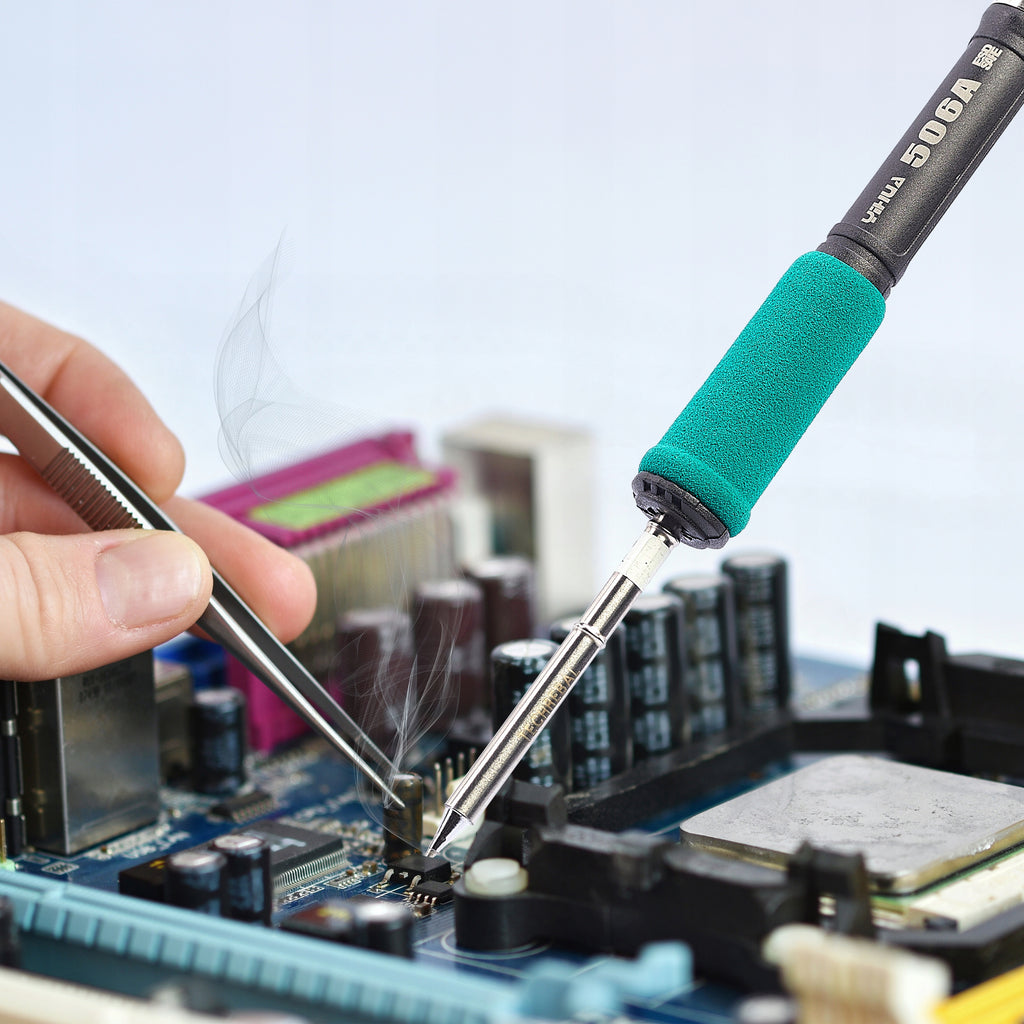

✅ T12 Tips – Precision and Speed That Make a Difference

Thanks to T12 technology, the tip heats up instantly (reaching a temperature of 350°C in as little as 10 seconds) and maintains a stable temperature during intensive work. The tip has a built-in heater and temperature sensor, located right at the tip. Interchangeable tips allow you to adapt to different tasks – from precise SMD circuits to thicker power soldering. This is an indispensable tool for those who expect full control and professional results.

✅ Instant Tip Replacement – No Downtime

The T12 system allows for quick, tool-free tip replacement, enabling you to instantly adapt to a specific task. Change the tip in seconds and get back to work – without cooling down the soldering iron or long waits.

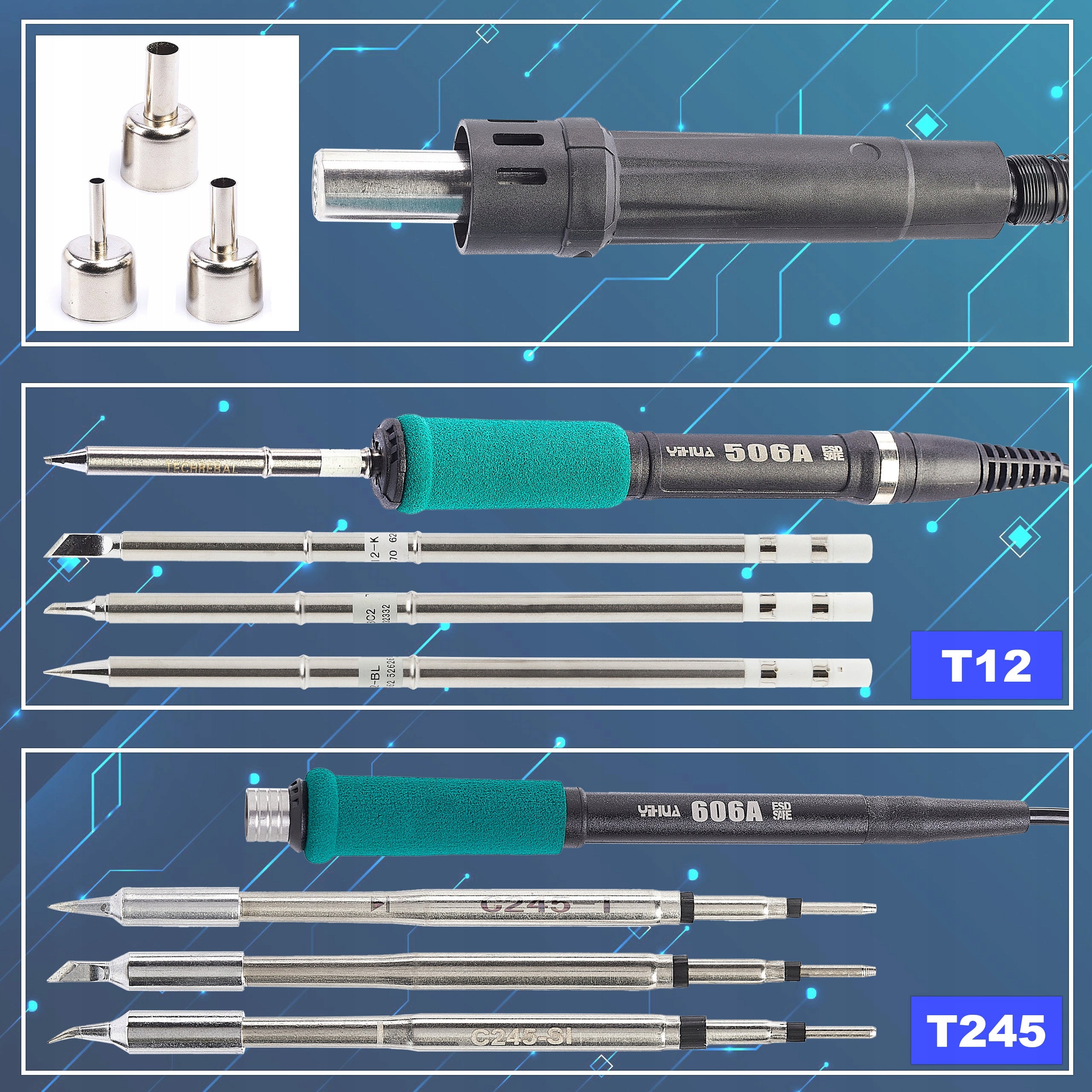

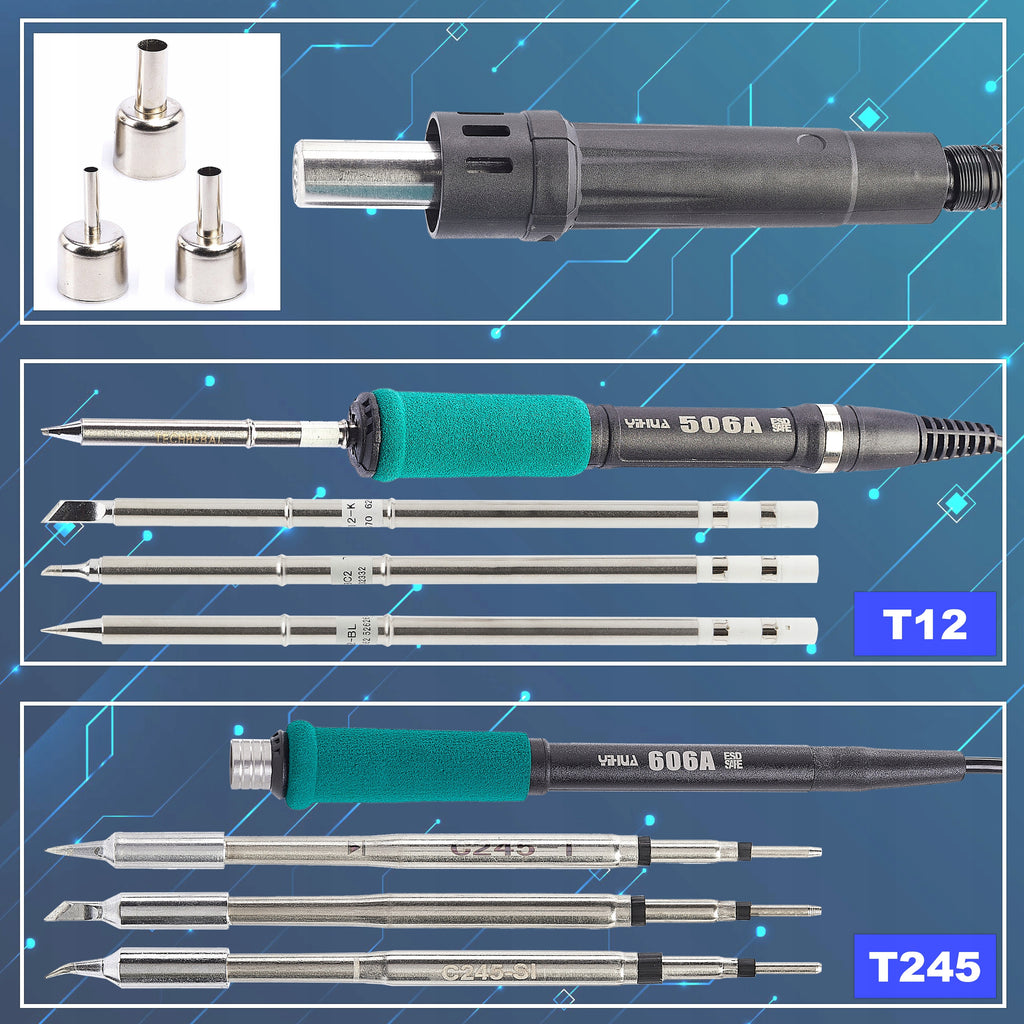

➡ Possibility to connect the 606A flask to the C245 tips (not included)

The station also offers the possibility of connecting bullet 606A, supporting grots of the 245 series. This is an additional flexibility for users who want to customize the equipment to their preferences or work with different types of tips – without having to change the entire station.

✅ Sleep function in Yihua 706 II – why does it make a difference?

• Automatic temperature reduction – after 10 minutes of inactivity, the station lowers the tip temperature to ≈ 200°C, stopping oxidation and prolonging its service life.
• Protection of the heater and electronics – lower temperature in the dormant state relieves the heater and power supply, thanks to which the entire system lasts longer.
• Instant wake-up – just lift the flask; the sensor immediately restores the pre-set temperature, so you don’t waste a second.
• Less energy consumption – Sleep reduces power consumption several times, which you will appreciate during long breaks at work or during long hours of service.
• Safer position – a cooler tip means less risk of accidental burning of wires, mats or elements when the flask is in the stand.

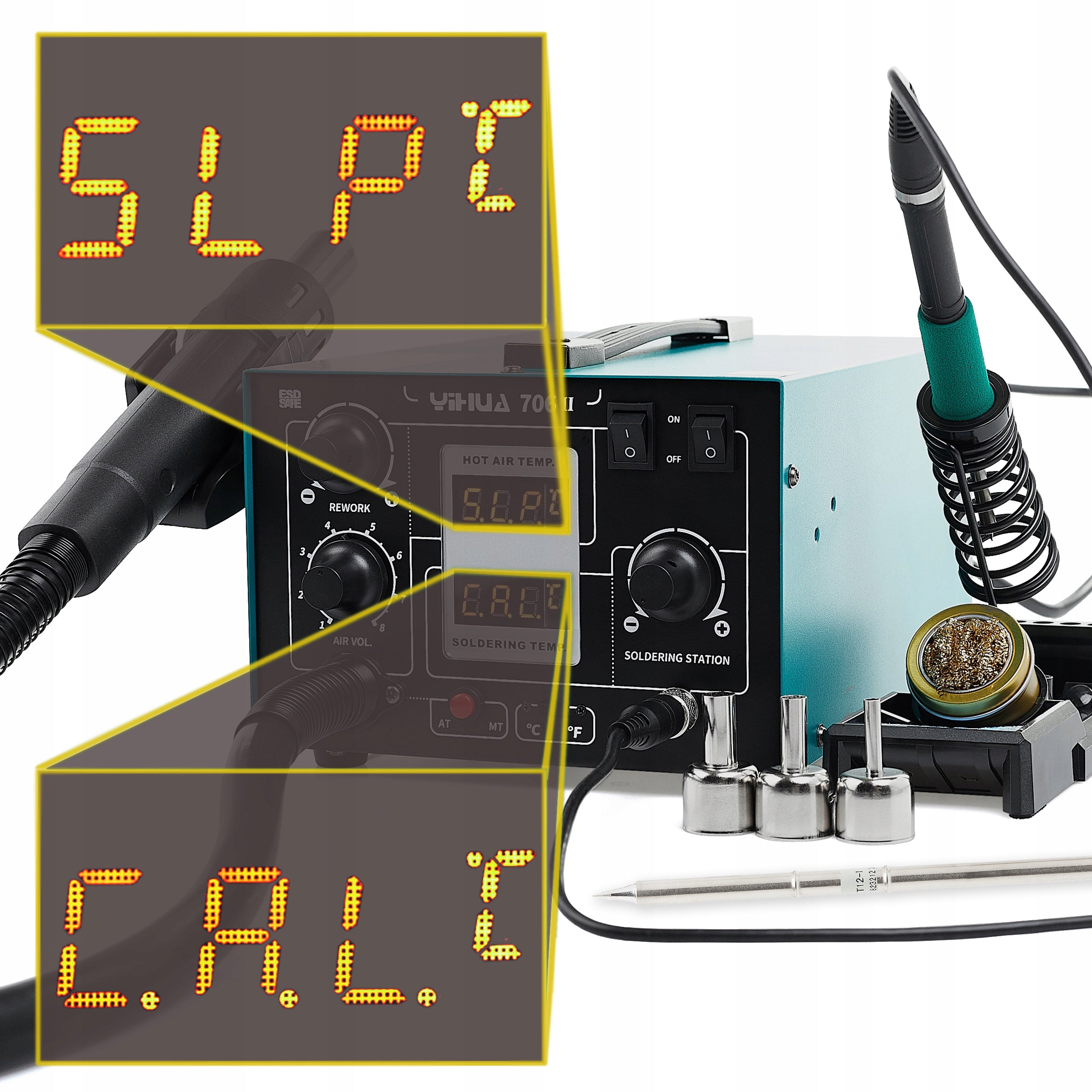

⚙ Fast calibration – what does this mean in practice?

• Menu instead of screwdriver – calibration is started from the station buttons; you do not need to open the housing or spin internal potentiometers, as in older models.
• Two independent channels – separately adjust the temperature of the T12 and Hot-Air flasks so that both tools work with an accuracy of ± 1°C.
• Process in seconds – just one heat-up cycle, correction and recording; after changing the tip or heater, you return to work almost immediately.
• Certainty of reproducible results – the microprocessor with PID compensates for thermal inertia, so each subsequent series of solders is equally precise, and delicate systems are sure of the right temperature.
• Less service, more work – easy calibration translates into longer life of the tip and heater and saves time.

⚡ Samsung's Advanced Temperature Control System

Samsung’s advanced 32-bit microcontroller monitors the temperature of both channels in real time (refreshing every 20 ms), instantly compensating for any drop. The effect is heating in seconds and stability ±1 °C, which gives reliable, repeatable solders even under heavy loads.

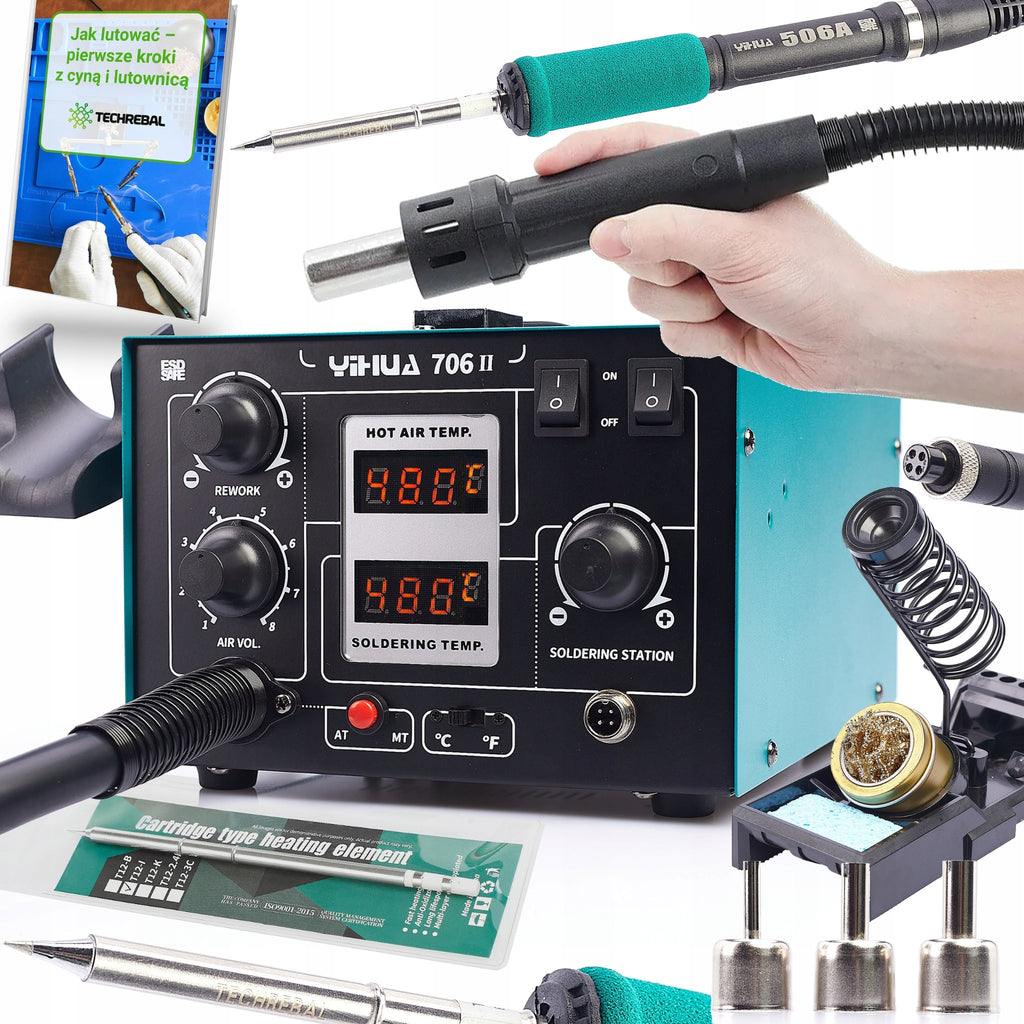

The set includes:

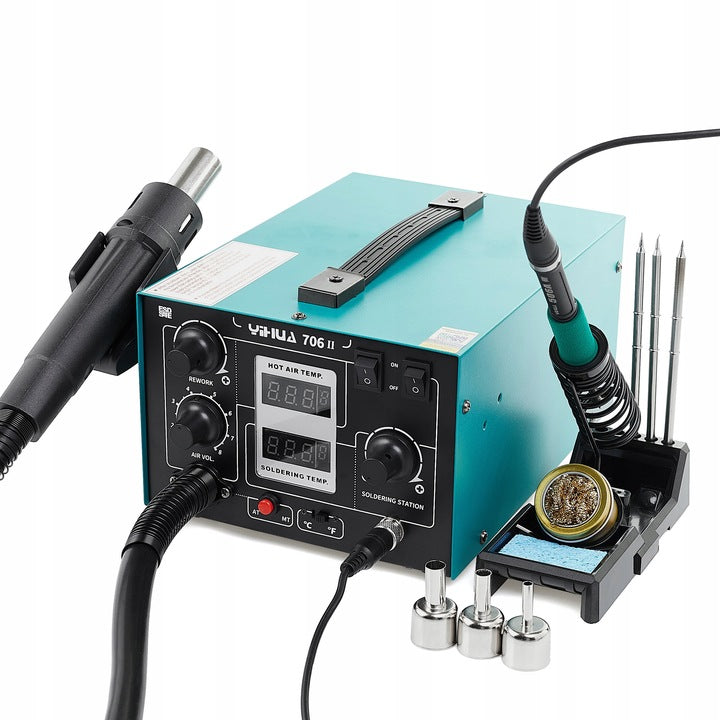

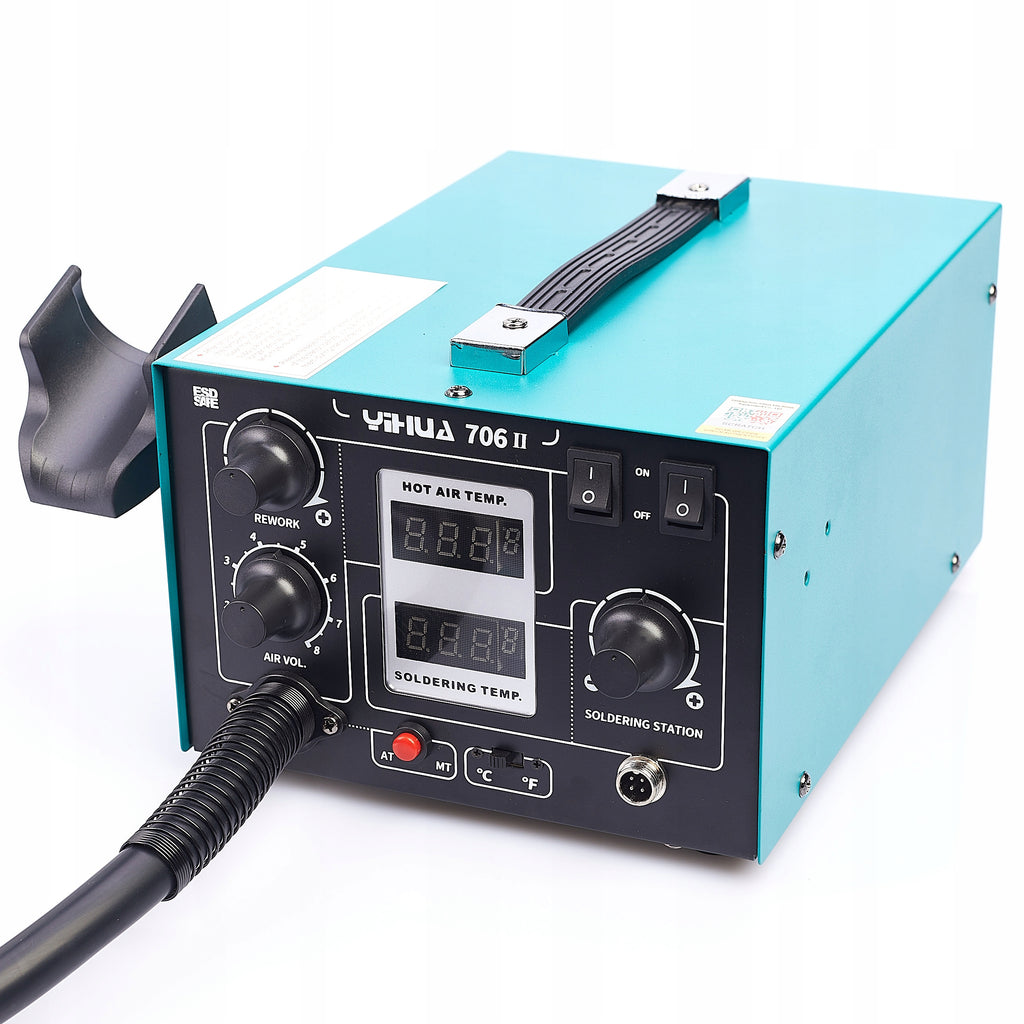

• 2in1 Hot-Air Soldering Station
• Flask 506A with tip T12-I (sharp straight)

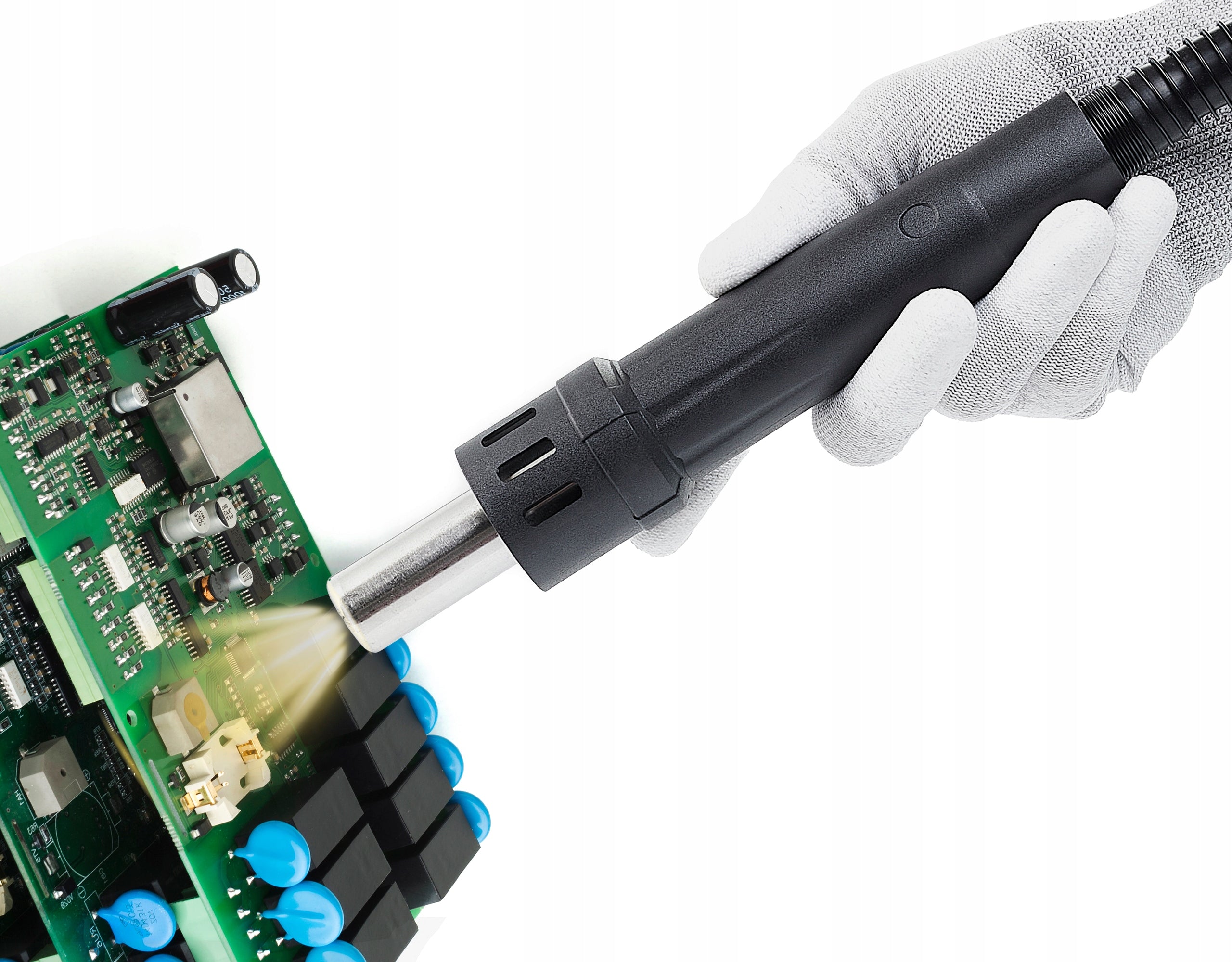

• Hot air flask Q208F
• 3 hot air nozzles: 5/8/10 mm
• Soldering Iron Stand with Sponge, Copper Cleaner and Rosin
• Integrated power cord
• Soldering guide - in electronic version
• Polish manual

FAQ

1. What is the 2-in-1 function?

• The station combines a Hot-Air rework and a flask soldering iron for T12 tips in one housing, so you solder the systems with hot air and immediately solder new elements with a tip.

2. Can I start working immediately after unpacking?

• Yes. The set includes a 506A flask with a T12-I tip, HOT AIR flask, 3 5/8/10 mm nozzles, a stand with a cleaner and a sponge – just connect the station to the network.

3. How much power does the device have and how fast does it heat up?

• The total power is 670 W, thanks to which the set temperature appears in a few seconds.

4. Does the station have Sleep and Auto-Cooling mode?

• Yes. When idle, the flask lowers the temperature and Hot-Air automatically cools the heater, which saves energy and extends the life of the heating elements.

5. Can I connect the 606A flask and work with C245 tips?

• Yes – the station socket supports the optional YIHUA 606A flask, which allows you to use C245 tips with high heat capacity.

6. How stable is the temperature during operation?

• The station is controlled by a 32-bit Samsung controller with a PID algorithm that corrects deviations every 20 ms and maintains stability of ±1 °C.

7. Can I calibrate the temperature myself?

• Yes – the service menu allows quick correction for the flask and Hot-Air separately, without opening the housing.

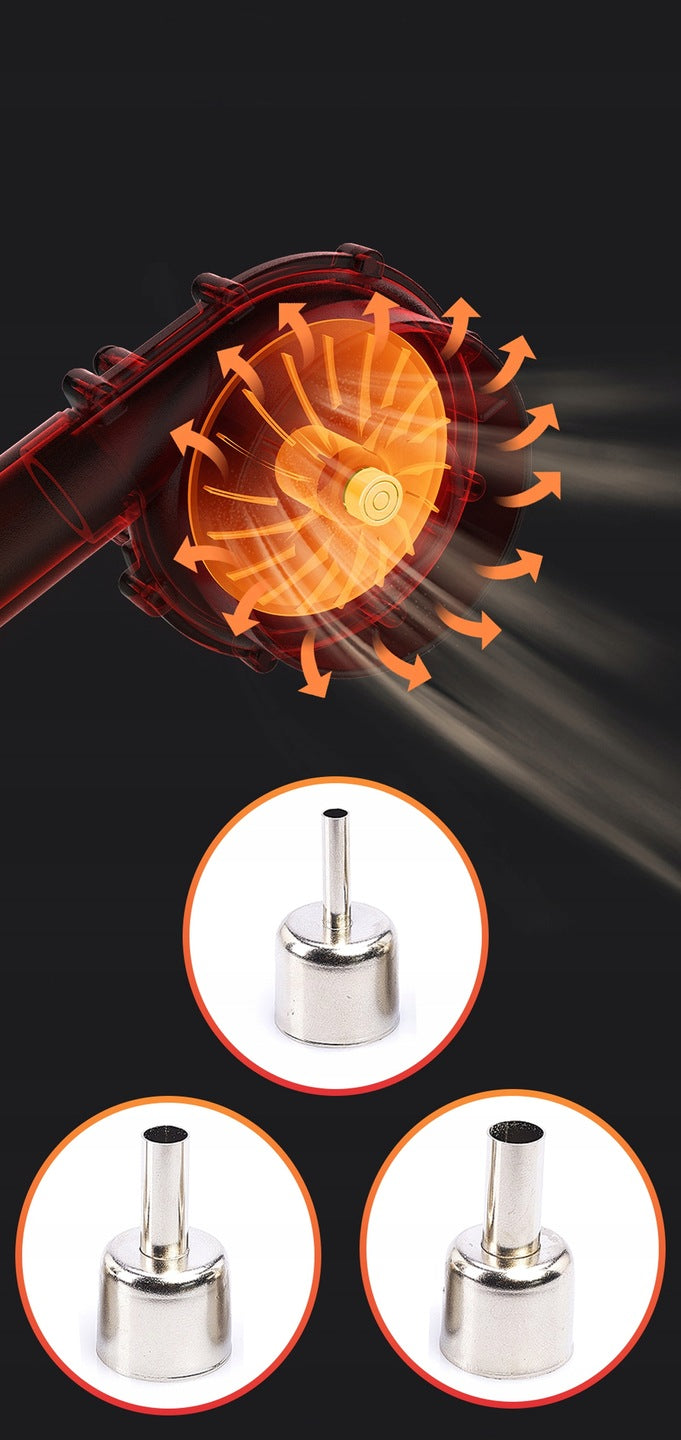

8. Why choose a turbine station instead of a compressor?

• The turbine station provides a stable and even blowing of hot air, which translates into more precise welding and soldering. It is quieter, more energy efficient and does not require frequent maintenance, unlike models with a compressor. Ideal for long, comfortable work.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Power	670 W
Parametry	Manufacturer code	BAB3-74395
Parametry	EAN (GTIN)	5905902300201
Parametry	Maximum operating temperature	480°C
Parametry	Brand	Techrebal
Parametry	Minimum operating temperature	100°C
Parametry	Model	BAB3-74395
Parametry	Supply voltage	230 V
Parametry	Power supply	mains
Parametry	Kind	2-in-1 (hot air and tip)
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
