Trumpai apie prekę

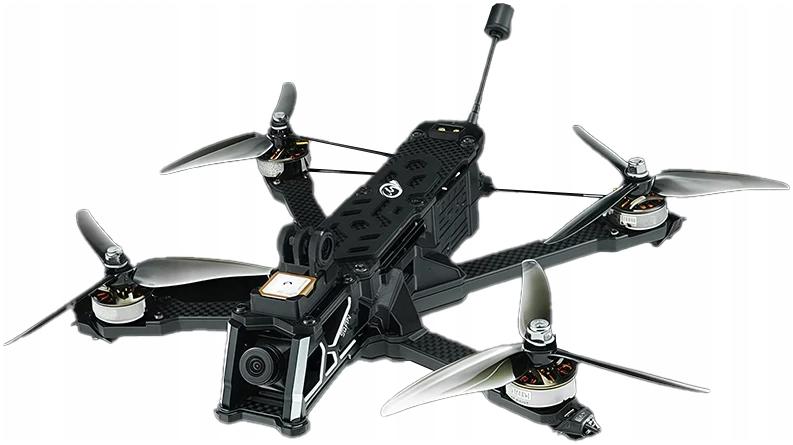

Prekė: Lenktynių dronas SEQURE Heison5X 8S Analog ELRS 915M AM32. Kategorija: Dronai ir multikopteriai.
- Gamintojas: no brand
- Modelis: Heison5D 6S Analog ELRS 2.4G
⬇ See more ⬇
The SEQURE Heison5D 6S Analog 1.3W ELRS 2.4G (AM32) racing drone is an advanced FPV design designed for fast flights, stable handling and high resistance to heavy use. The Heison5D version is distinguished by refined aerodynamics, closed bodywork and efficient equipment for analog flights.
Key features of the product:
- Analog version with VTX 1.3W and ELRS 2.4G receiver
- Efficient flight controller SEQURE H743 V2 with MCU STM32H743
- ICM-42688P gyroscope for precise flight control
- 32-bit ESC 70A 4IN1 controller
- 4-8S power support, optimized for 6S flights
- active cooling system and fan for better heat dissipation
- GPS module SEQURE M10-18 for faster positioning
- Hidden motor wires and reinforced construction improve durability
- USB Type-C port for convenient setup
- LED strips and image projector for enhanced visual effect
The Heison5D is designed for dynamic FPV flights and spectacular shots without visible propellers in the frame. The robust frame, 7075 aluminum components and shock-absorbing TPU components help to better protect the structure and reduce image vibration during flight.
Technical specification:
- wheelbase: 225 mm
- top plate: 3 mm
- bottom plate: 3 mm
- Operating voltage: 4-8S (14V-35V)
- Engines: 1800KV (6S), 1600KV (8S)
- Flight controller: SEQURE H743 V2
- firmware: SEQUREH7V2
- ESC: 32-bit 70A 4IN1
- OSD: AT7456E
- black box: 16MB
- Propellers: Gemfan 51466 V2
- GPS: SEQURE M10-18 GPS
- Camera: Caddx Ratel2
- video transmission: VTX 1.3W
- Weight without batteries: 486,3 g
The kit is ready for further configuration under its own flying style and will work well for users expecting high power, precision control and modern design solutions in the 5-inch FPV platform.
Composition of the set:
- drone SEQURE Heison5D × 1
- Propellers Gemfan 51466 V2, grey × 2 sets
- Battery strap M20 x 270 mm × 2
- Silicone pads for batteries × 2
- instruction × 1
- set of screws and accessories × 1
- 3D printed parts × 1
- VTX 1.3W × 1
- Antenna Maple Black RHCP 8 cm × 1
Package dimensions: 270 x 260 x 110 mm. Packing weight: 820 g.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Model | Heison5D 6S Analog ELRS 2.4G |
| Parametry | EAN (GTIN) | 5907541604023 |
| Parametry | Manufacturer code | CPH5D6SA13WE24GA032 |
