Trumpai apie prekę

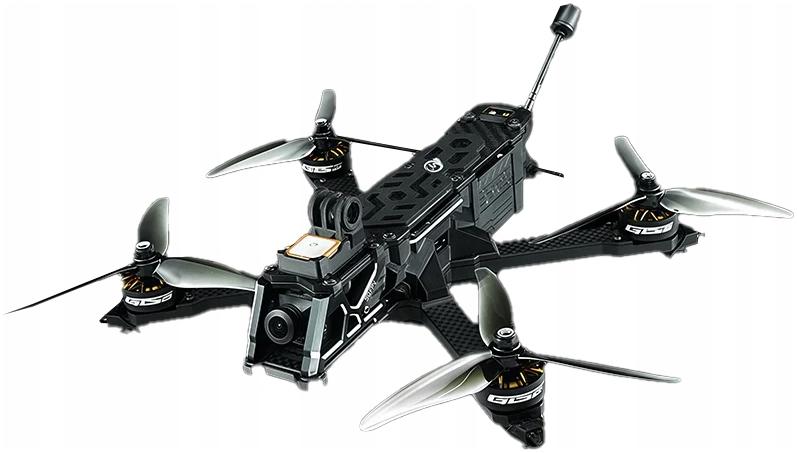

Prekė: Lenktyninis dronas SEQURE Heison5D 8S Analog 1.3W ELRS 2.4G (AM32). Kategorija: Dronai ir multikopteriai.
- Gamintojas: no brand
- Modelis: SEQURE Heison5X 8S ELRS 2.4G AM32 Analog
⬇ See more ⬇
The SEQURE Heison5X 8S Analog 1.3W ELRS 2.4G (AM32) racing drone is an advanced FPV design for demanding pilots. The model is designed for dynamic freestyle and fast flights, offering high performance, a sturdy frame and a refined cooling system.
Key features of the product:
- Heison 5X version with 4-8S power support
- Analog video system with VTX 1.3W transmitter
- ELRS 2.4G receiver for stable and fast control
- SEQURE H743 V2 flight controller with MCU STM32H743
- ICM-42688P gyroscope and 32-bit ESC 70A 4IN1
- active cooling system with fan and air duct
- built-in structure with hull and wire guard
- GPS SEQURE M10-18 and buzzer for increased security
- USB Type-C port for convenient setup and tuning
- LED strips and image projection function for better visibility
The Heison5X model is distinguished by a compact design with a wheelbase of 220 mm and a low weight of 514,5 g without batteries. The 7075 aluminum toe and TPU elements help to better protect the camera and reduce vibrations during flight. This is a proposal for users who expect precise response, durability and large configuration possibilities.
Technical specification:
- wheelbase: 220 mm
- Operating voltage: 4-8S (14V-35V)
- motors: 1600KV for 8S
- Flight controller: SEQURE H743 V2
- ESC: 32-bit 70A 4IN1
- OSD: AT7456E
- black box: 16 MB
- Propellers: Gemfan 51466 V2
- Battery connector: XT60
- GPS: SEQURE M10-18
- Camera: Caddx Ratel2
- video transmission: VTX 1.3W
- Cooling fan: yes
- LED strip: yes
- projector: yes
The analogue version of the kit includes everything you need to start setting up and preparing your drone for flight. It is a complete base for people building an efficient FPV setup for freestyle or racing.
Composition of the set:
- SEQURE Heison 5X drone × 1
- Propellers Gemfan 51466 V2, grey × 2 sets
- Battery strap M20 x 270 mm × 2
- Silicone pads for batteries × 2
- instruction × 1
- set of screws and accessories × 1
- 3D printed parts × 1
- VTX 1.3W × 1
- Antenna Maple Black RHCP 8 cm × 1
Package dimensions: 270 x 260 x 110 mm. Packing weight: 820 g.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Model | SEQURE Heison5X 8S ELRS 2.4G AM32 Analog |
| Parametry | EAN (GTIN) | 5907541604078 |
| Parametry | Manufacturer code | CPH5X8SA13WE24GA032 |
| Parametry | Batteries included | no |
