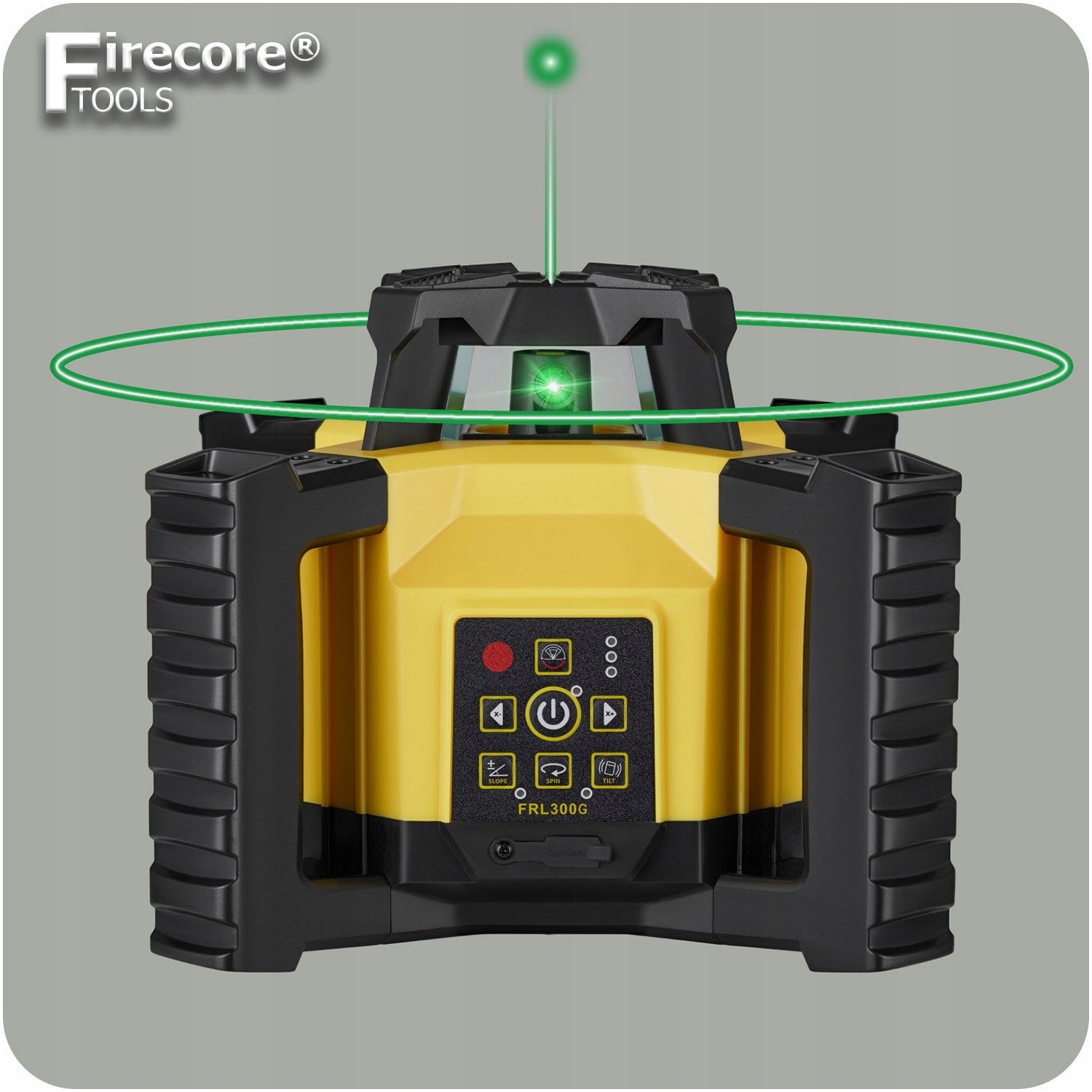

Lazerinis rotacinis nivelyras FIRECORE FRL300G

Trumpai apie prekę

Prekė: Lazerinis rotacinis nivelyras FIRECORE FRL300G. Kategorija: Optiniai nivelyrai.

• Gamintojas: Firecore
• Modelis: FRL300G

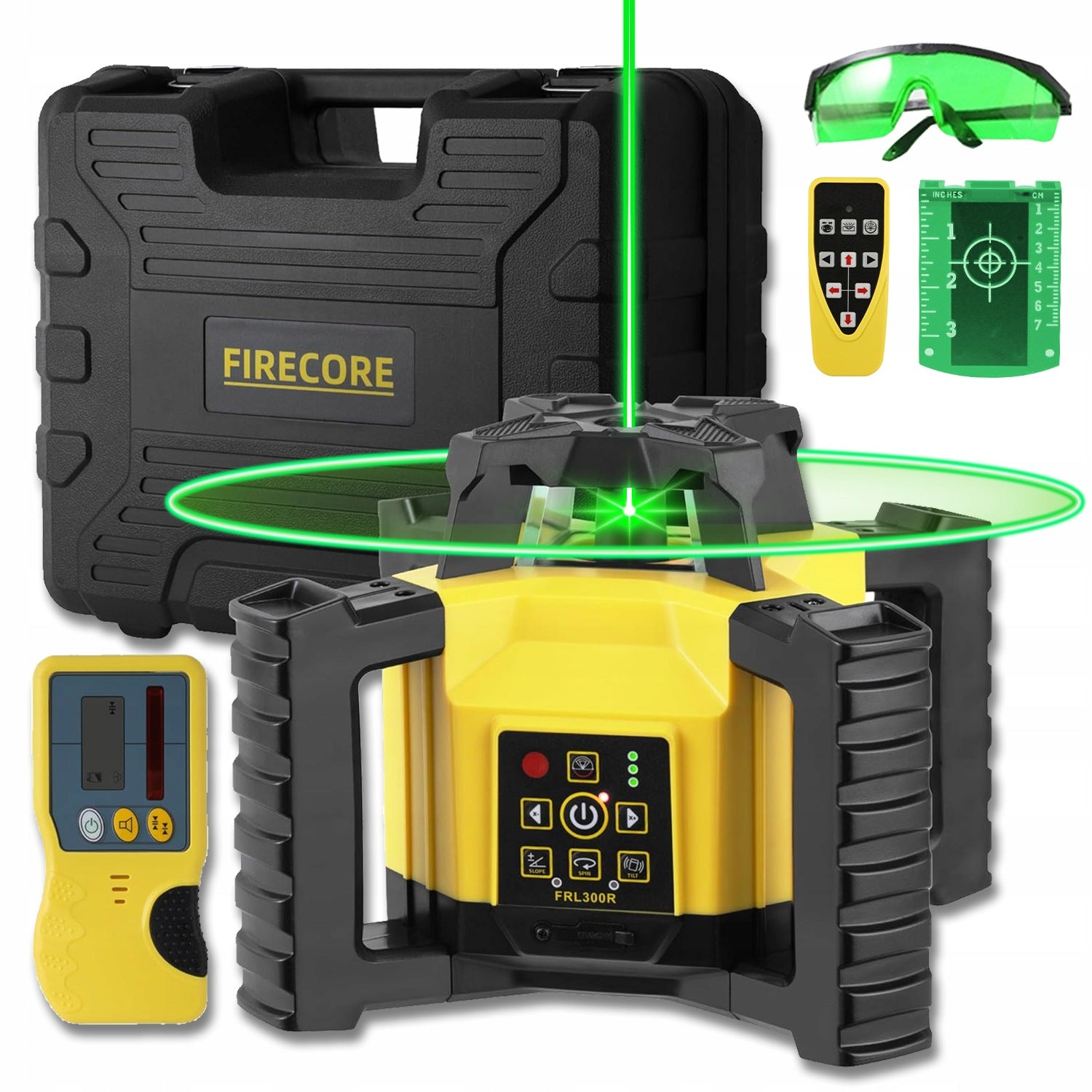

📦Packaging includes

• FRL300G Rotary laser level 1 pc.
• RD700 Digital laser sensor 1 pc.
• Remote control 1 pc.
• Laser target 1pc.
• Lithium-ion rechargeable batteries 1 pc.
• Charger 1 pc.
• Laser glasses 1 pc.
• Patch holder 1 pc.
• User manual 1 pc.
• Transport case 1 pc.

✅Technical data（FRL300G rotary laser）

• Laser beam: Green laser (635-650 nm), class 2
• Accuracy: ±1,0mm/10m
• Working diameter: 60m (600 m with receiver)
• Space inclination: ± 10% (X-axis, Y-axis), manual
• Self-leveling range: ±5°
• Generated planes: 1 x horizontally (360°), 1 x vertically (360°)
• Head spin speed: variable, max. 600 rpm Display Built-in

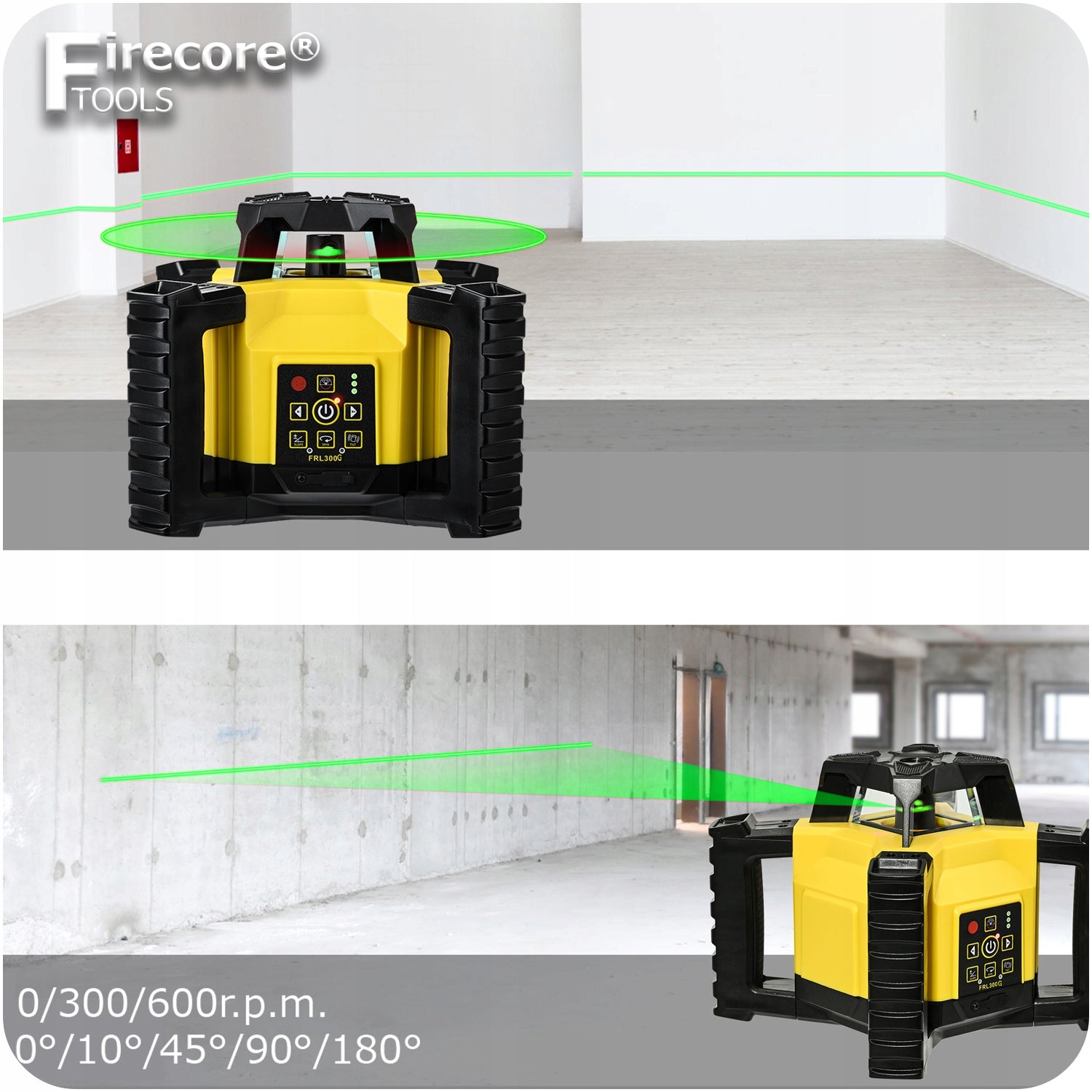

• Scanning: 0-10°-45°-90°-180°
• Remote control: yes (infrared)
• Power supply:  7.4V 2600mA Li-ion battery
• Resilience class: IP55
• Working temperature range: -10°C to +50°C

✅Technical data（FRD100 Detector）

• Detection range: 1-300m(radius)
• Accuracy): Within ±1.0mm
• Resilience class: IP54
• Automatic shutdown: after 7 minutes.
• Power Supply: 9V Alkaline Battery
• Operating temperature range: -10°C – +50°C

✅FRD100 Detector

1. ON/OFF Button

2. Datum Line

3. Sensing Area (Front)

4.Sensing Area (Back)

5. Battery Compartment

6. Buzzer Window

7. Power Display

8. Sound Button

9. Coarse and Fine Mode

10. 1/4" Threaded Mount

11. Blister

✅Control Keypad

1. ON/OFF Button

2. Slope Adjustment Buttons in X+ axis

3. Manual/Slope Mode Button

4. Manual/Slope Mode Indicator

5. ADS Mode Indicator

6. ADS Button

7. Variable Rotation Speed Button

8. Slope Adjustment Buttons in X- axis

9. Power ON Indicator

10. Battery Capacity Indicators

11. Scanning Angle Selection

✅Remote Control

1. Indicator

2. Rotating Speed Selection

3. Manual/Slope Mode

4. Scanning Mode

5. Anti-Clockwise Spin

6. Clockwise Spin

7. X Axis

8. X Axis

9. Y Axis

10. Y Axis

✅Remote control available

Firecore laser leveler supports remote control via a included remote, enabling operation from a distance. Slope measurement is possible with the remote control. Suitable for a wide range of work environments from general civil engineering to construction and machine control

✅Tough and impact resistant design:

This auto leveling rotary laser level with robust design is designed to withstand drops from a height of 1m to concrete surfaces, IP55 dust and water resistance. The body is resistant to vibrations and shocks, and the new 4 handle ergonomic design. In addition, the alignment system has been completely improved to enhance vibration and shock resistance

✅Wide applications

Designed for general construction, the Firecore FRL300G construction laser level equipped with rechargeable Li-ion battery and providing up to 20 hours of continuous working time, can tackle a wide range of applications. The rotary laser system is suitable for grading, excavating and eneral construction projects, including patio decks, terraces, swimming pools, landscaping, septic systems, and more

Firecore Tools is a brand created for people who enjoy DIY projects, whether in their free time or as part of their daily routine. We prioritize user comfort, offering tools that combine an attractive design with exceptional durability. For many years, we have been striving to provide you with tools that make repairs easier and save you time, while also meeting the highest quality standards and exceeding user expectations.
