Lazerinis nivelyras NL320R raudonas spindulys, skaitmeninis rinkinys

Trumpai apie prekę

Prekė: Lazerinis nivelyras NL320R raudonas spindulys, skaitmeninis rinkinys. Kategorija: Optiniai nivelyrai.

• Gamintojas: Nivel System
• Modelis: NL320R + łata + SJJ1 +RD300

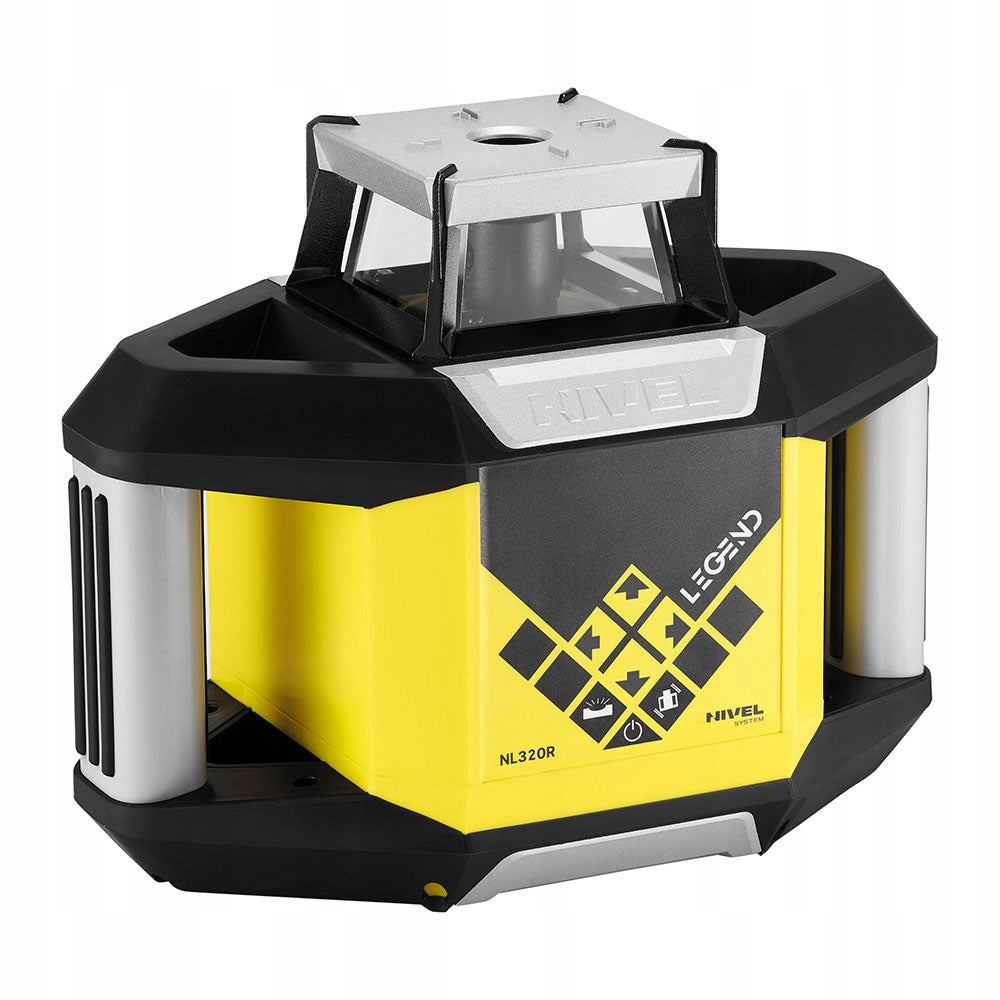

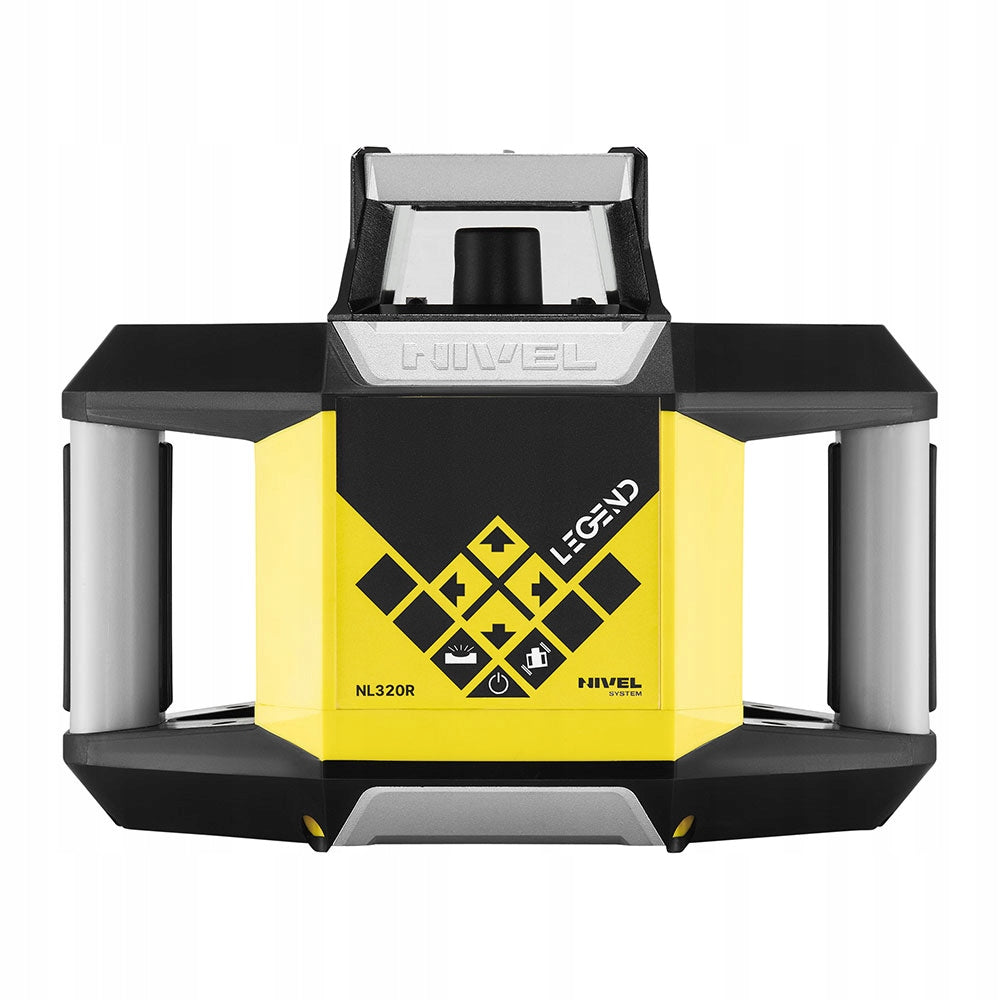

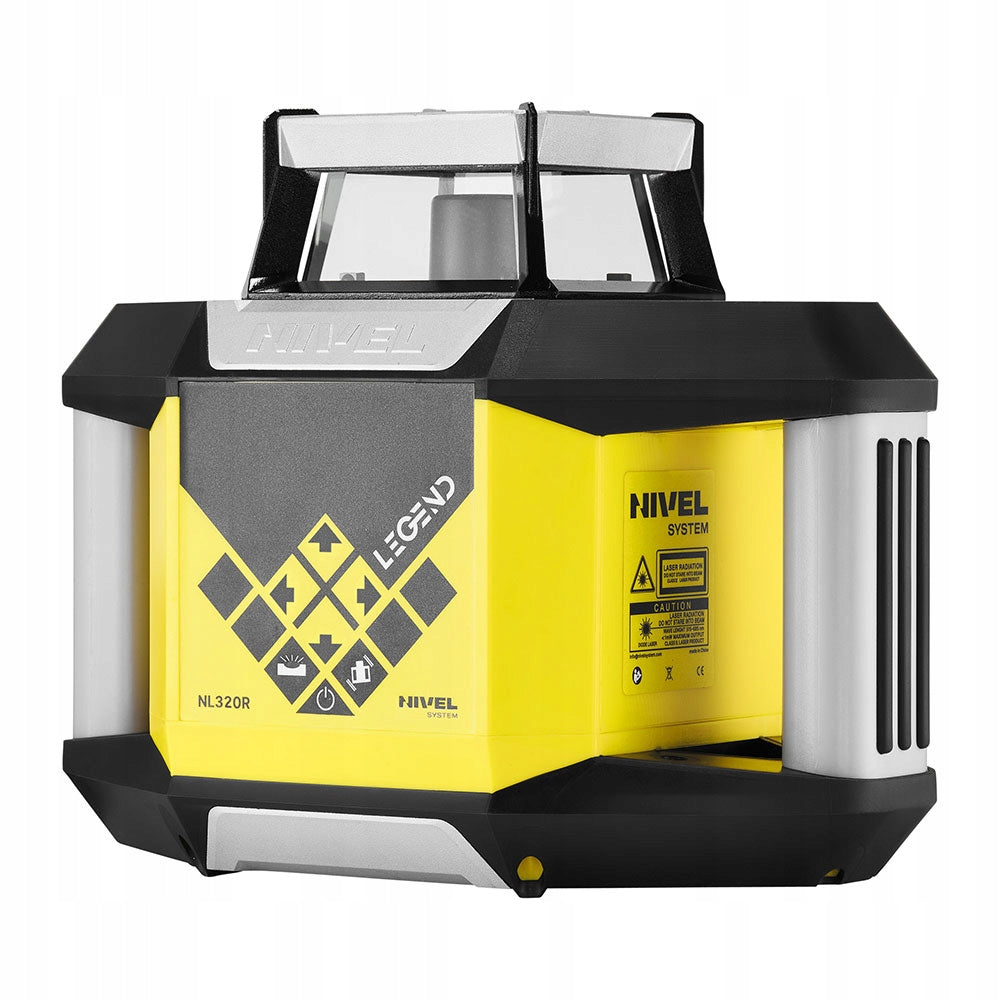

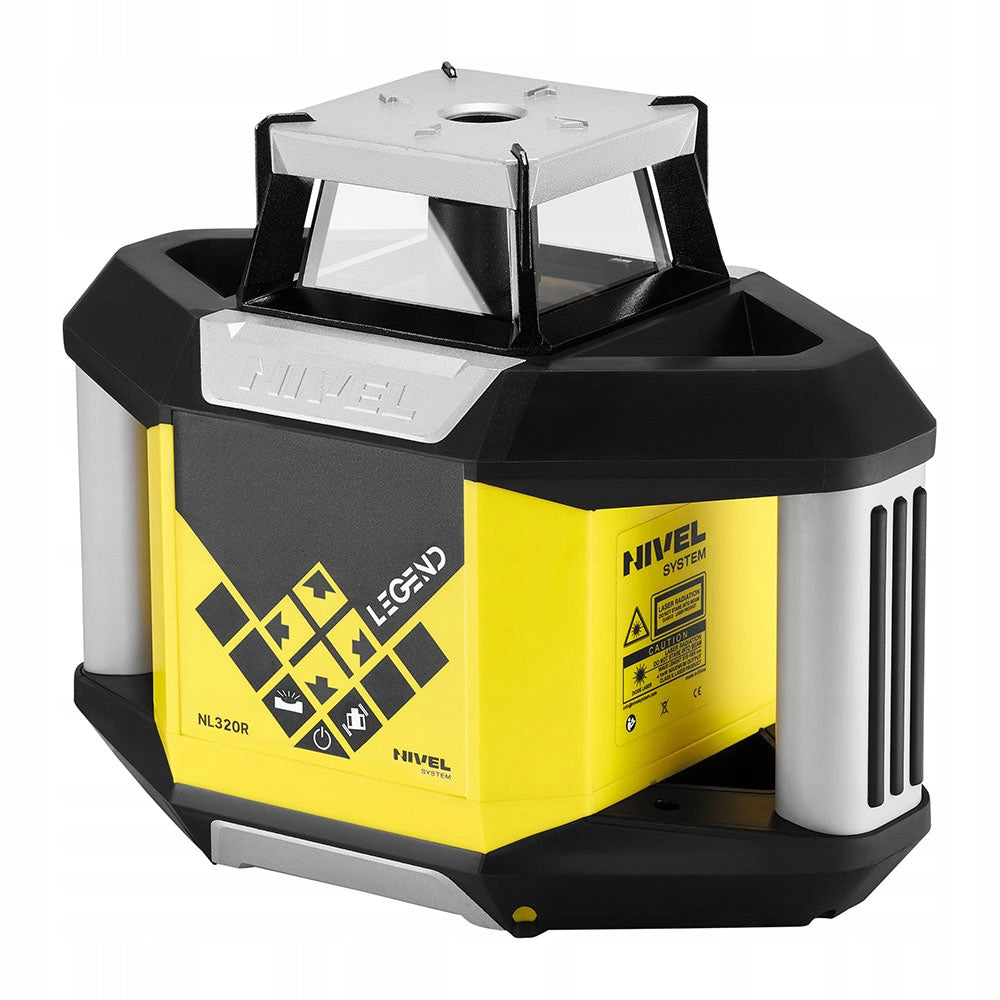

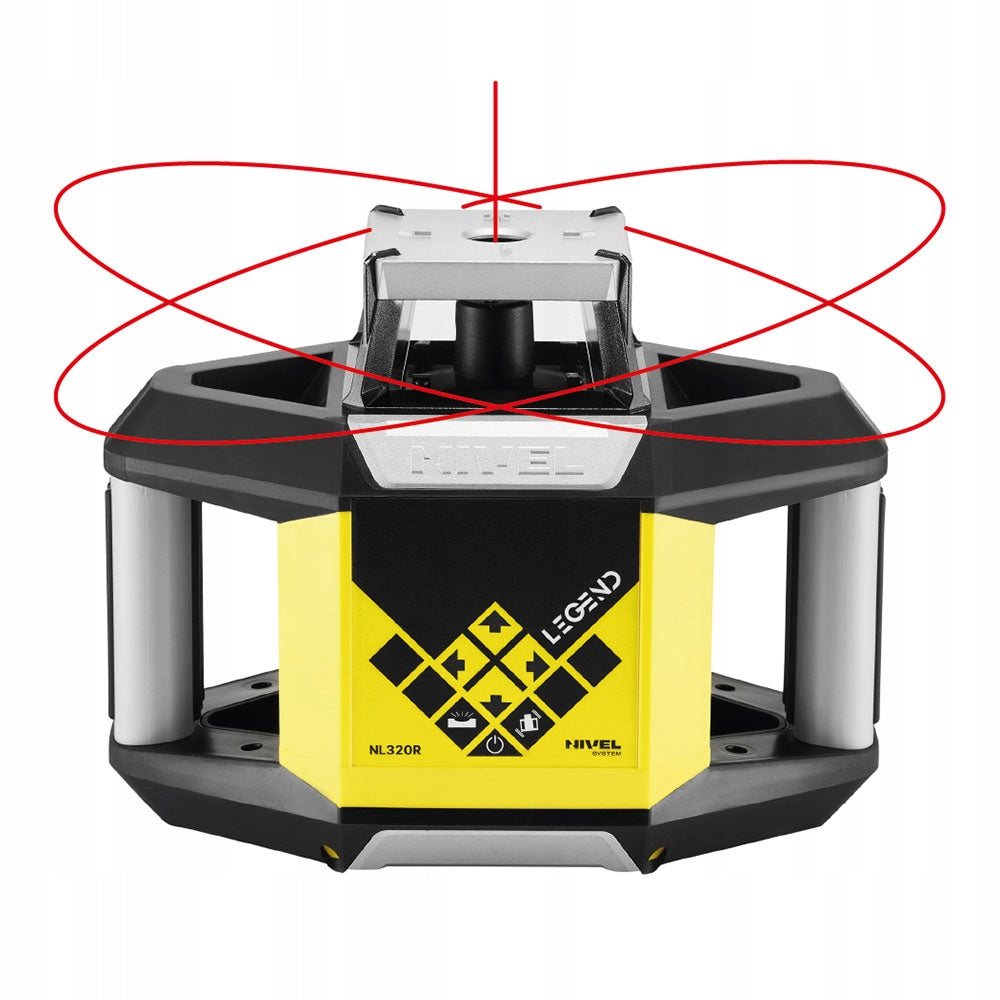

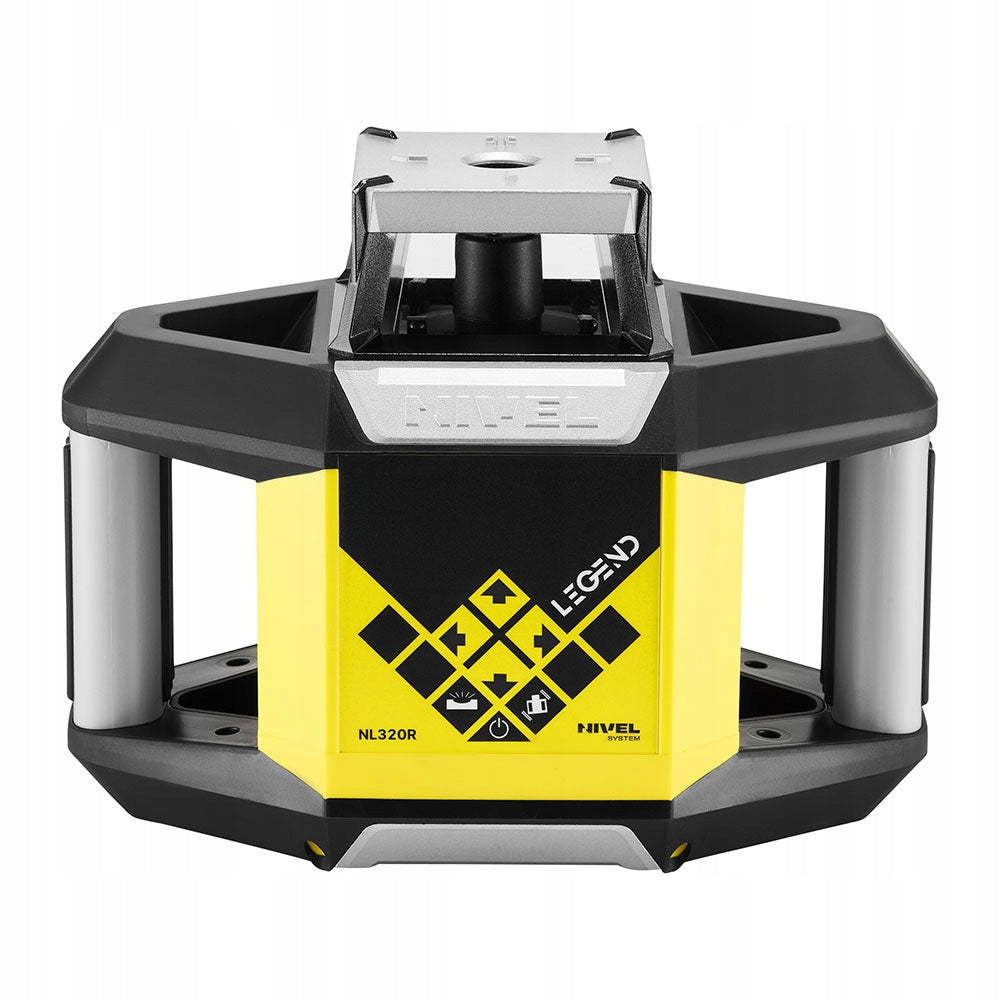

NIVEL SYSTEM DIGITAL LASER LEVELER

NL320R SET

• Drops in two axes (X and Y) – precise control of inclinations

• Determines the horizontal plane, inclined and thanks to the vertical, allows you to determine the vertical or right angles

• Versatility and modernity, levels, also with a decrease, range 500m

• Automation of the leveling process – digital leveling with RD300 Digital sensor

• High precision measurements of 1,0mm/10m

• Working comfort, red laser beam, readable MENU

• IP65 housing – resistance to dust, moisture and shock

• AKU CL 8000 mAh battery – long working time, USB-C charging

✅EASY AND FAST MEASUREMENTS

The NL320R laser has an auto-leveling function. When turned on, the device will automatically level and is ready to go. The generated red laser beam creates a reference line on the wall, ideal for horizontal work. In work with the sensor and laser patch, measurements can be performed single-person.

✅UNIVERSAL APPLICATION

The equipment allows you to work with a horizontal beam. The plane can be tilted in one or two directions, which makes it ideal for work such as pouring floors, leveling the surface under paving stones, pitches or road. Thanks to the laser verticalizer function, it is possible to precisely position the laser for perpendicular work and point transfer.

✅ACCURATE AND RELIABLE EQUIPMENT

The NL320R laser is built on the basis of an electronic compensator that eliminates vibrations, ensuring precise leveling of the plane. The electronic compensator is more accurate in difficult construction conditions, where the terrain can vibrate due to the work of heavy equipment. The leveler is dust and water resistant, IP54 certified. The rotary head is covered with a glass body and the laser housing is protected with rubber covers.

✅EASY, CONVENIENT OPERATION

The NL320R laser is easy to use thanks to its intuitive control panel. Functions such as declines are done manually. The laser is powered by a 8000mAh lithium-ion battery. The batteries have no memory effect, which means that they do not damage themselves when overcharging. The laser can also be powered directly from the mains, and its compact housing makes it handy and easy to transport.

Applications:

• terrain equation – leveling
• masonry works – internal and external (foundations, walls, stairs, screeds, formwork)
• paver works – making parking lots, driveways, terraces
• assembly and finishing works – installation of wooden and aluminum structures, suspended ceilings, glazing
• installation works – determination of wire lines, transfer of points
• carpentry works – furniture, buildings
• laser machine control systems
• water-can works – control of the depth of the excavation and laid pipeline (also with a decrease)
• horticulture and agriculture

Technical data:

• Laser beam: red laser (635 nm), class 2
• Accuracy: ± 1,0 mm/10 m
• Operating range: 500 m (with sensor) – diameter
• Plane inclination: ± 10% (X-axis, Y-axis), manual
• Self-leveling range: ±5°
• Generated planes: 1 x horizontally (360°)
• Head Spin Speed: 600 RPM /min
• Power supply: 3,7 V (Li-ion, 8000 mAh)
• Resistance Class: IP54
• Operating temperature range: -20°C to +50°C
• Dimensions: 206 x 206 x 211 mm
• Weight: 3,0 kg

NIVEL SYSTEM LASER SENSOR RD300R

Nivel System RD300R is a reliable, high-precision laser sensor designed to work with rotary laser levelers emitting red beam. It allows you to quickly and conveniently capture the beam, even over long distances, significantly accelerating and facilitating leveling in the field.

The most important advantages:

• Double-sided, backlit LCD display – convenient reading regardless of lighting conditions.
• Accuracy adjustment – the ability to adjust the measurement mode depending on the task requirements.
• Sound signal – facilitates the location of the laser beam without having to look at the screen.
• Auto-off function – energy saving and longer battery life.
• Solid, durable housing – resistant to dust and construction conditions, ideal for working in difficult terrain.
• Pattern holder included – convenient installation and stability during measurements.

RD300R is an excellent choice for construction teams, pavers, installers and anyone who values accuracy, speed and ease of use.

NIVEL SYSTEM LASER PATCH LS-24

Nivel System LS-24 is a robust aluminum telescopic patch designed to work with cross lasers and laser sensors. Thanks to it, you can easily turn a cross laser into a functional leveler. Ideal for precise height measurements in the field and indoors.

The most important advantages:

• Practical mounting slider – for convenient sensor attachment
• Millimeter pitch – ensures the highest accuracy of measurements
• Color height markings – red = too high, silver = too low
• Solid construction – lightweight but durable aluminium construction
• Working length: 240 cm | folded: approx. 130 cm
• FREE cover – easy transport and protection included

NIVEL SYSTEM ALUMINIUM TRIPOD SJJ1

Nivel System SJJ1 is a professional construction tripod made of lightweight but durable aluminum. Equipped with a flat head and eccentric clamps, it ensures quick installation and stability when working with optical levelers, rotary lasers and theodolites.

Thanks to its weather resistance, the SJJ1 works well both indoors and in the field – even under heavy use.

Most important features:

• Light aluminium construction – easy transport and convenient to use
• Flat spherical head – allows quick and precise leveling of the instrument
• Eccentric clamps – quick leg lock, instant folding and unfolding of the tripod
• Universal application – compatible with optical, laser and theodolite levelers
• Resistance to weather conditions – rain, sun, dust – without affecting the precision of work
• Stable design – guarantees accuracy of measurements in all terrain conditionsC X

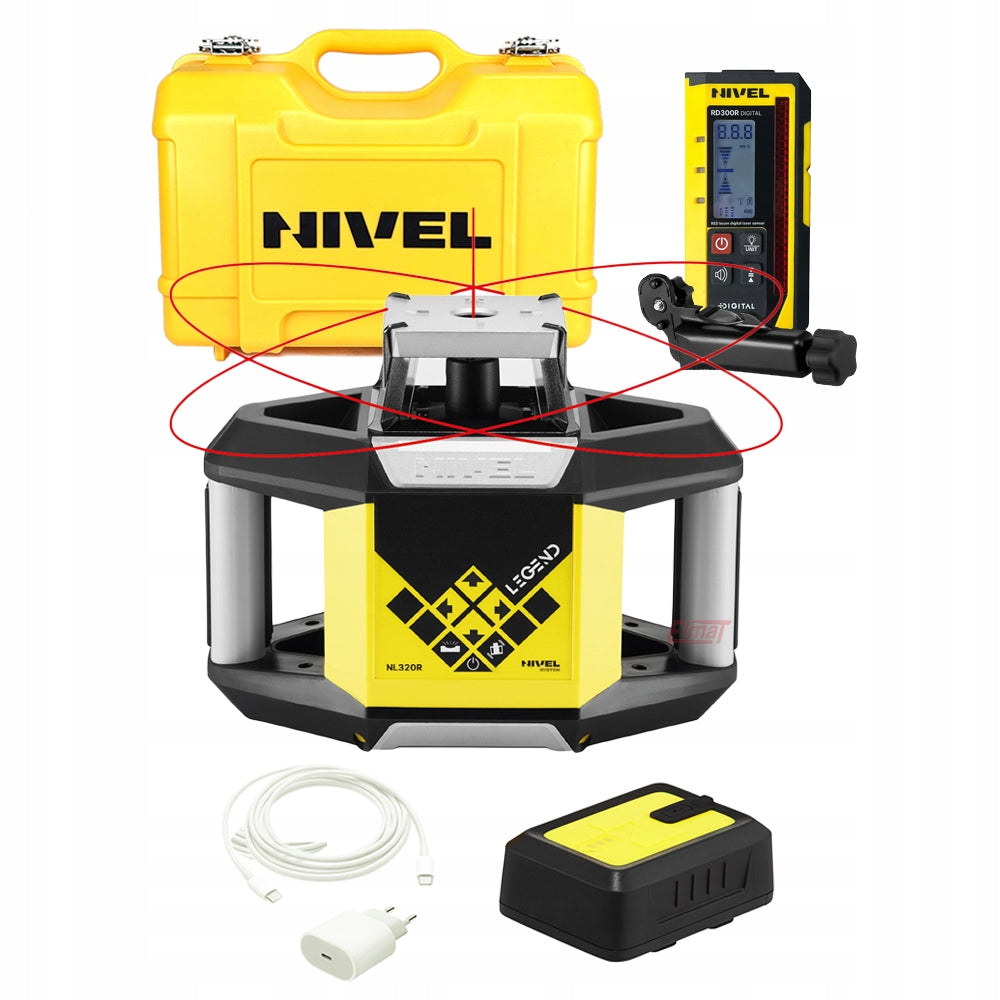

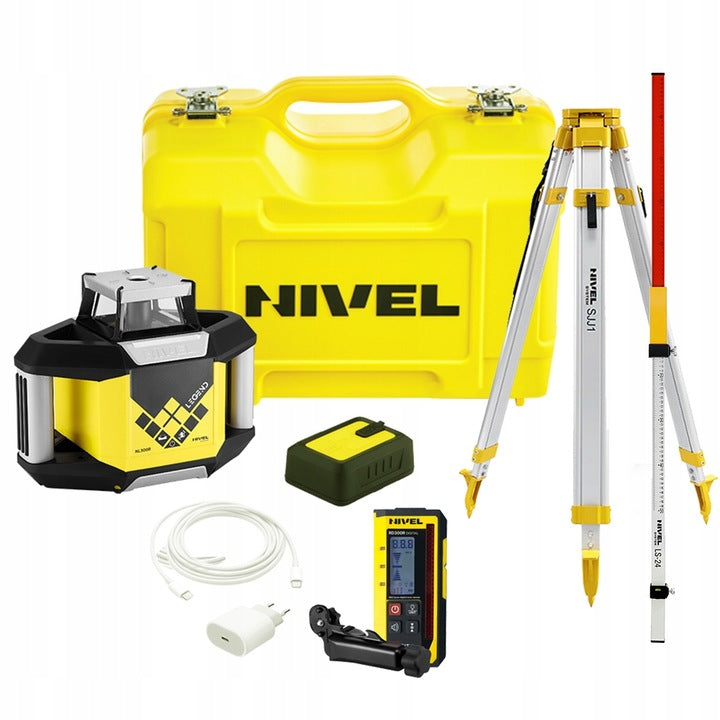

Included:

• NL320R – laser leveler – 1 pc.
• RD300R – laser sensor 1 pc.
• NL-BR 300 – sensor holder – 1 pc.
• AKU CL 8000 – battery – 1 unit
• CH-CL USB C – charger with cable – 1 set
• Transport case – 1 pc.
• SJJ1
• Latin LS-24

Specifications
