Lazerinis nivelyras Leica Rugby 640 su detektoriumi

Trumpai apie prekę

Prekė: Lazerinis nivelyras Leica Rugby 640 su detektoriumi. Kategorija: Optiniai nivelyrai.

• Gamintojas: Leica
• Modelis: Rugby 640

• Simple operation
• Manual determination of inheritances
• Ability to work vertically
• Long range of operation
• High accuracy
• Variable rotational speed
• Scanning mode
• IP67 resistance class
• Self-leveling

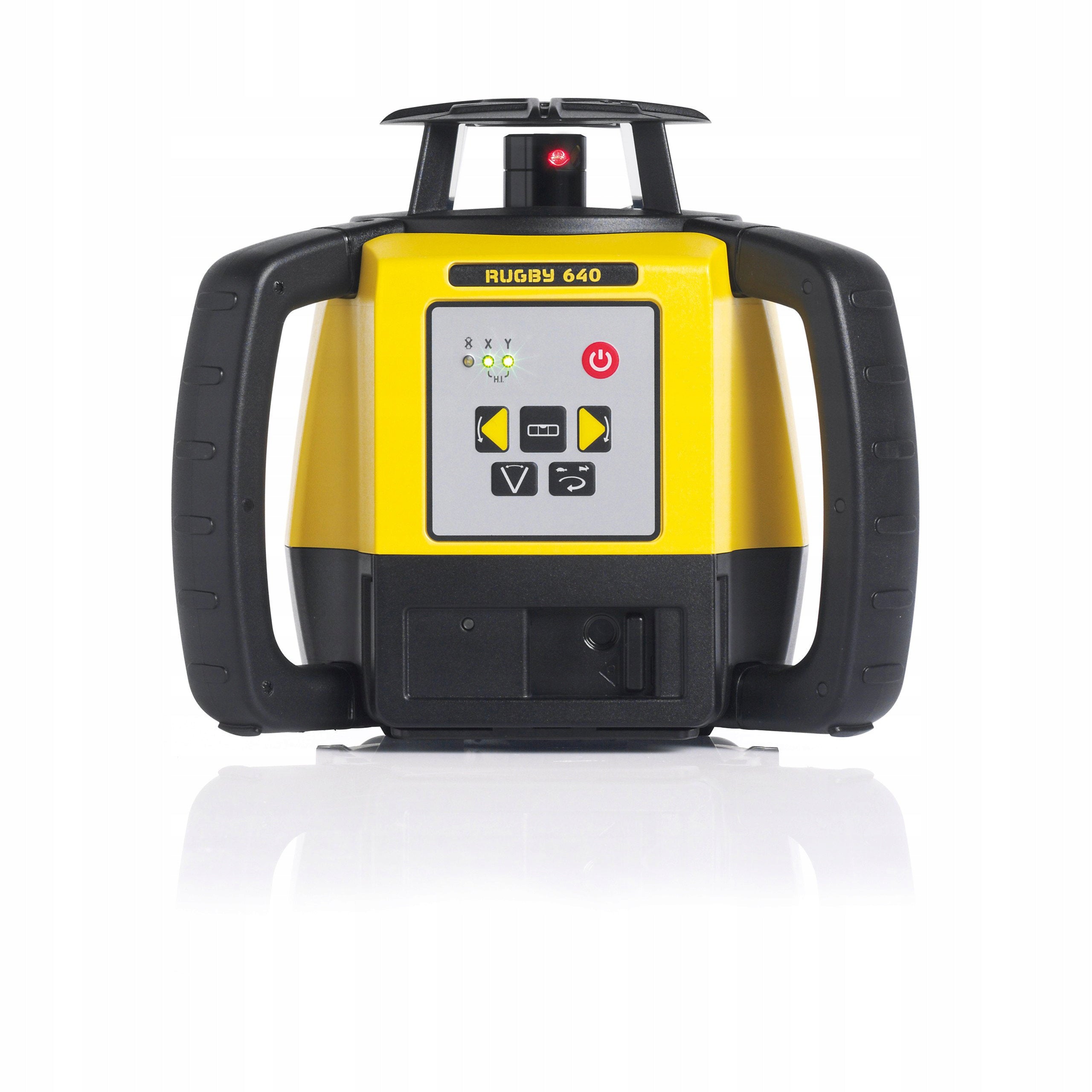

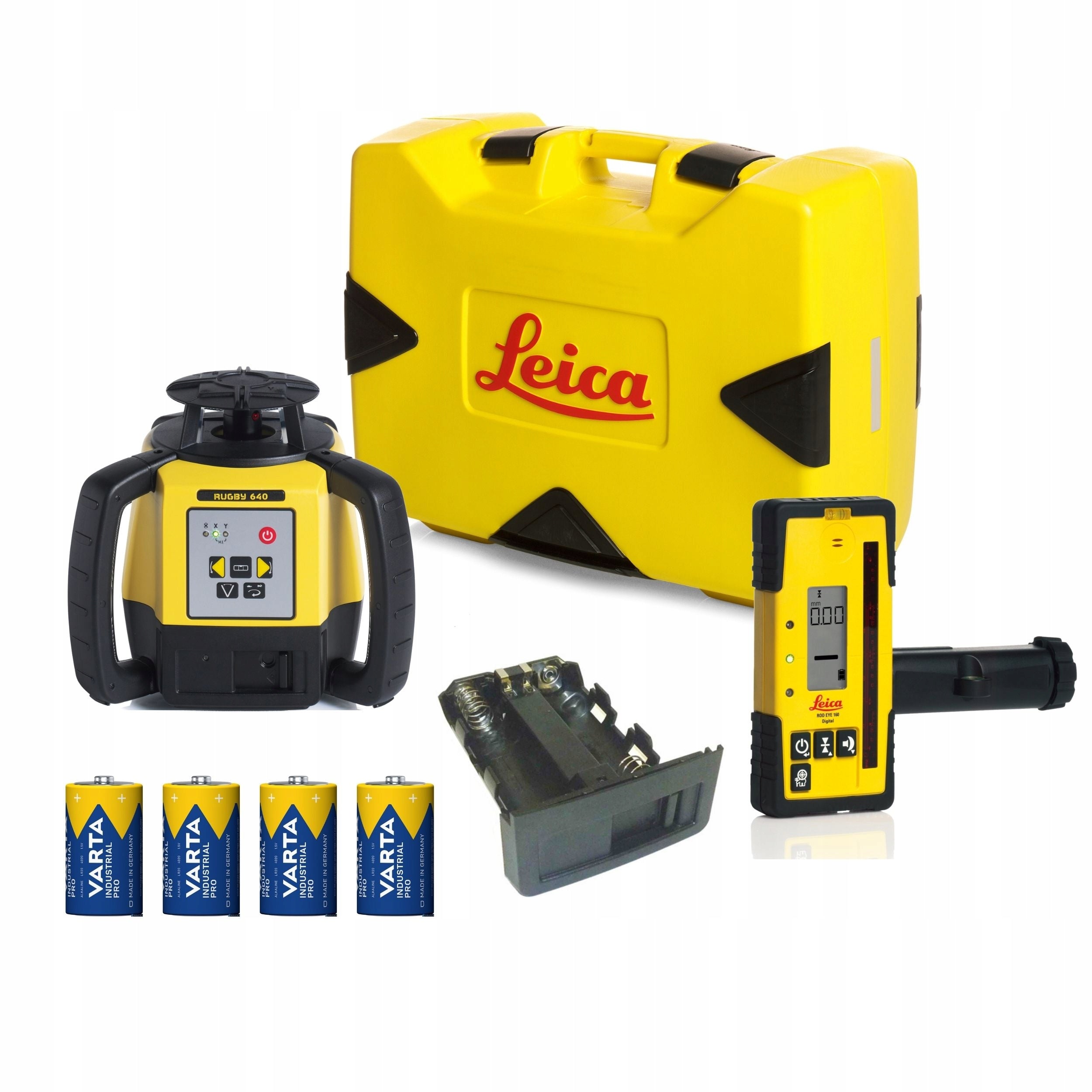

• Rugby 640 Laser Leveler
• Transport case
• Rod Eye 160 Digital Detector
• Patch holder
• Alkaline batteries
• Battery-operated container
• User manual
• Online technical support

Article No. - 600 5989

Original products, expert advice, technical support.

Working with vertical horizontal plane and on the slope. Tying of structural axes and right angles.

using the Rod Eye detector. Work over long distances even when you cannot see the laser line.

in blocks of 10, 45, 90 degrees. Enhances the visibility of the laser beam during operation.

A feature that makes it easy to accurately position the laser leveler over the reference point.

• Range (diameter): 600 m with detector
• Accuracy: +/- 2,2 mm at 30 m
• Laser class: II
• Laser type: 635 nm (visible)
• Self-leveling: Yes, horizontal and vertical
• Vertical beam: Yes, for accurate setting
• Drops: Manual, X and Y axis
• Head rotation speed: 0, 2, 5, 10 (rpm. /s)
• Scan mode - degrees: 10, 45, 90
• Scan 90: Yes
• Downward beam: Yes
• Sleep mode: Yes
• Remote control (diameter): 200 m
• Resilience class: IP67
• Temperature range work: -20 to +50°C
• Whip. alkaline / hour work: 60+
• Dimensions: 212 x 239 x 192 mm
• Weight: 2,56 kg

• Range (diameter): 1350 m
• Beam detection window: 120 mm
• height digit windows. reading: 90 mm
• Detected spectrum: 600 nm to 800 nm
• Detection accuracy: 0,5 mm, 1 mm, 2 mm, 3 mm, 5 mm

Specifications
