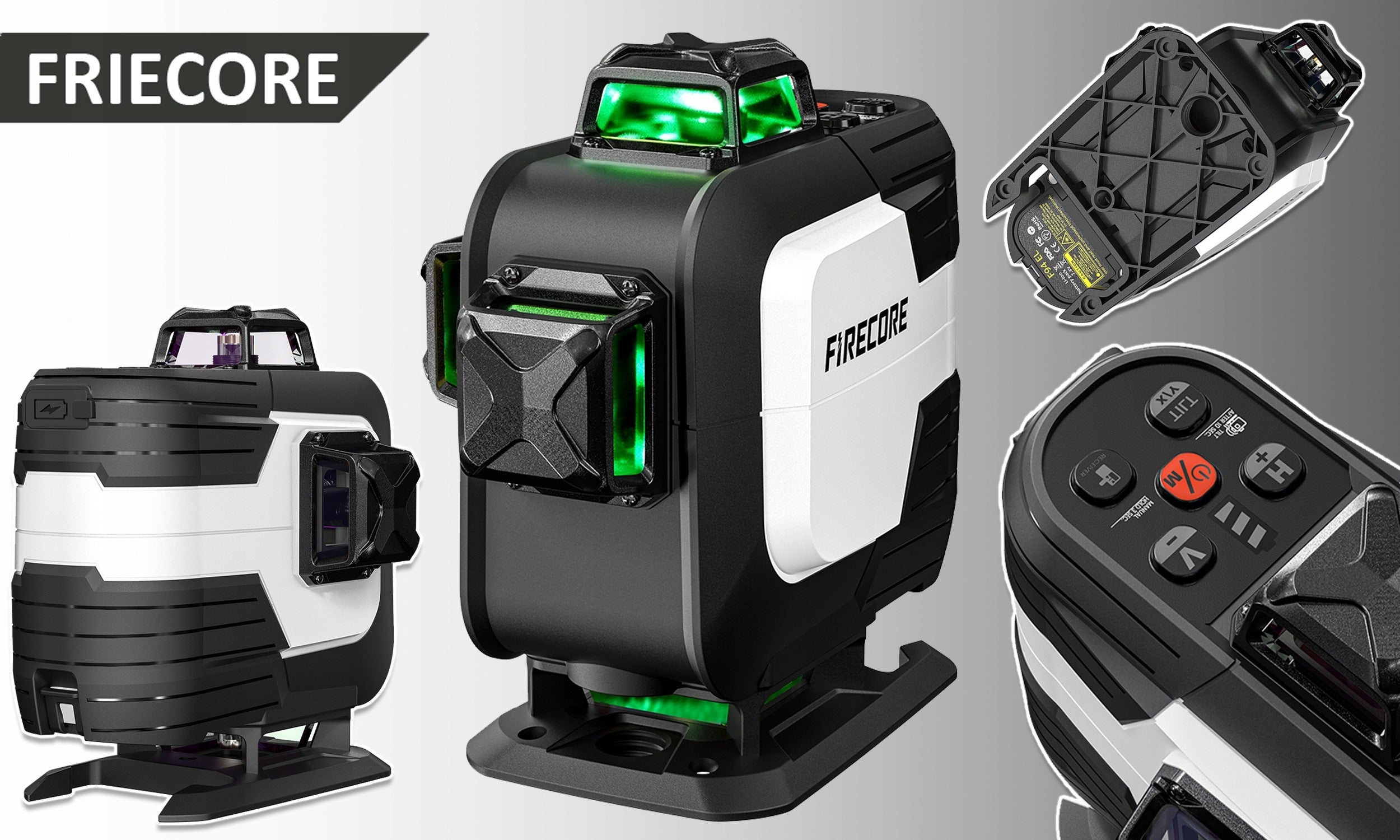

Lazerinis nivelyras FIRECORE F94 EL, 16 linijų, 360°, savaime išsilyginantis

Trumpai apie prekę

Prekė: Lazerinis nivelyras FIRECORE F94 EL, 16 linijų, 360°, savaime išsilyginantis. Kategorija: Lazeriniai lygiai.

• Gamintojas: Firecore
• Modelis: F94 EL
• Ilgis: 14.5 cm
• Svoris: 0.87 kg

🏆FIRECORE 2026 - THE LATEST FLAGSHIP MODEL

✅ 4D 360° line range

✅ Accuracy 0,15 MM/M

✅ Electronic Self-Leveling

✅ IP64 rating – shock, dust and water resistance

✅ Slanted mode

✅ Self-leveling

✅ Adjustable magnetic holder

✅ High visibility green beam

✅ Working range up to 30 meters

✅ Work with detector (up to 60 meters)

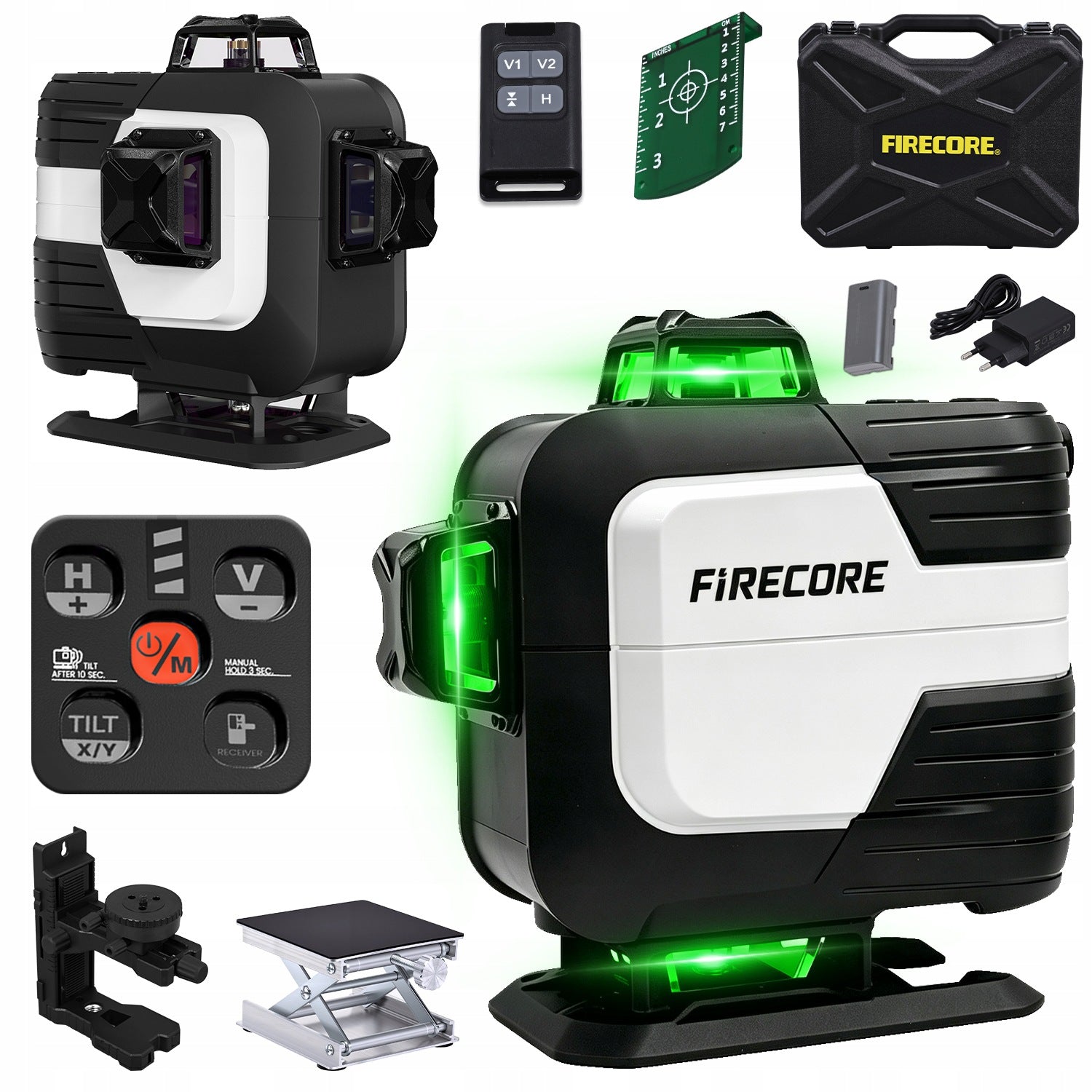

📦 CONTENTS OF THE PACK:

1× Laser level 16 lines

1× 7,4V 2600mAh battery

1× Multifunctional magnetic holder

1× Remote control

1× Charger

1× Targeting Shield

1× Suitcase

1× User Manual

✅ Parameter:

Model: F94 EL

Leveling Type: Electronic Self-Leveling

Horizontal/Vertical Accuracy: ±1.5mm/10m

Self-leveling Range: ±3.5°

IP Rating: IP64

Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW

Laser Wavelength: 505-520nm

Mount Size: 1/4'' & 5/8''

Working time (with all laser beams on): About 5 hours

Working range (Radius): 30m/(2-60m with FD30)

Power supply:Rechargeable 7.4 V 2600mAh lithium battery

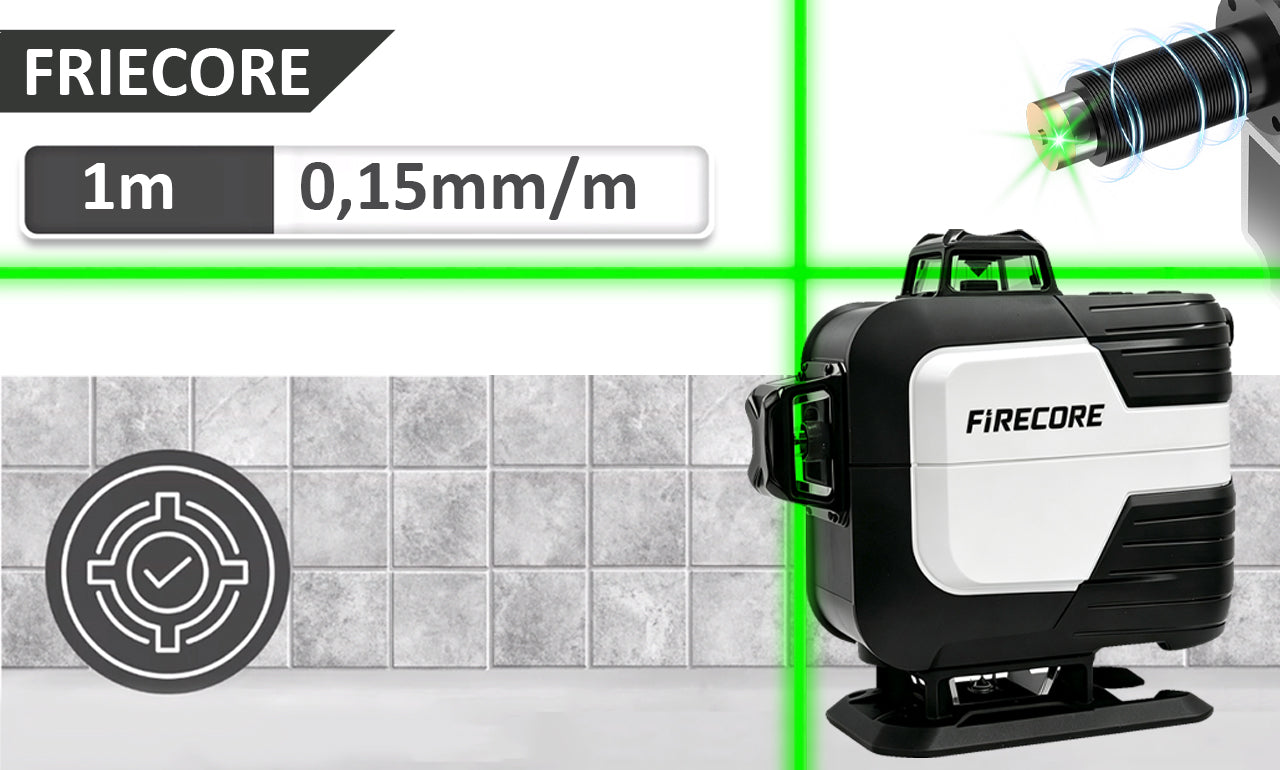

✅ ACCURACY 0.15 MM/M — PRECISION THAT LEAVES NO ROOM FOR GUESSWORK

0.15 mm per meter might sound small, but in practice, it makes a huge difference. This is a deviation less than the thickness of a piece of paper spread over 1 meter. In other words: the line is so straight that walls, tiles, or built-in units will "hold their geometry" from start to finish.

The result in practice:

• Tiles meet perfectly without any "steps,"
• Cabinets hang straight, without needing wedges or shims,
• Profiles, trims, and built-in elements don't "drift" over their length.

✅ “SOMEHOW IT WILL BE”? IT'S NOT HERE! ELECTRONIC SELF-LEVELING ELIMINATES HUMAN ERROR FROM YOUR CONSTRUCTION SITE.

You know that feeling when you apply a traditional level, the bubble is “almost” in the middle, so you find it simple? This is the trap of “human error.” On a short stretch you do not see it, but when you get with the tiles to the corner of the bathroom, suddenly it turns out that the last strip has a 2 cm difference.

🤔Effect?

The whole tear wall, wasted material and ragged nerves.

⚙ Electronic Self-Leveling: Rather than relying on a gravity-driven pendulum, it uses high-precision electronic sensors to detect the instrument’s tilt. As soon as a deviation from the horizontal is detected, the system activates a precision servo motor to actively adjust the position of the laser assembly until it is perfectly level.

🔔 Smart Auto-Leveling with Alarm Function (±3.5°): Using high-precision electronic sensors, the device can automatically correct floor unevenness of up to 3.5° within 3 seconds. If the deviation exceeds this range, the device will immediately alert you by flashing the laser beam.

✅ 60 M RANGE? IT’S LIKE A 20-STORY BUILDING IN THE LASER’S SIGHT — YOU DON’T MULTIPLY MEASUREMENTS, YOU DON’T MULTIPLY ERRORS.

Range up to 60 meters (with detector) is one continuous line covering the entire working surface

• from the foundation to the roof or from one end of the square to the other. You set the laser once and you have one fixed reference for the entire order.

Why is this so important?

• When you have to move the laser every few meters, each setting change introduces a new benchmark — and a new risk of discrepancies.
• A small error at the first setting multiplies at the next, and at the third it becomes visible as a crooked hole, a shifted profile or uneven grout. It’s not a theory — it’s everyday life on a construction site where “millimeters” accumulate into an expensive fix.

⚙ 4 OPERATING MODES:

🎯 Self-leveling mode

✋ Manual mode

🛡 Anti-shock mode

📡 Detector mode

⚙ PROFESSIONAL MANUAL MODE

After turning on and leveling the device, hold [M] for approx. 3 seconds. The indicator will start flashing. In this mode, the laser works at any angle (without alarm). To exit, hold [M] again.

Drop adjustment (X/Y axis):

Press briefly [TILT X/Y] to enable the double drop function (useful for drainage, terraces and slope work).

⚡ Fast LED flashing: Hold [H+] or [V-] to adjust the angle of the Y axis.

🐢 Slow flashing diode: Hold [:H+] or [V-] to adjust the angle of the X axis.

✅ ANTI-SHOCK / TILT MODE

After turning on and automatically leveling the device, press [TILT X/Y]. When the LED stops flashing, the mode will be activated. To exit, press [TILT X/Y] again.

Principle of operation:

In this mode, any vibration, tilt or shift of the equipment will cause the beam and diode to flash continuously. This protects against measurement errors caused, e.g. wind or vibrations on the construction site.

💡 Note: In this mode, you can use the detector (receiver) mode in parallel.

✅ IP64 TIGHTNESS CLASS

• Full dust protection and splash and rain resistance from any direction. Ideal equipment for harsh conditions on the construction site.
• Housing designed for special tasks – effectively protects sensitive optics from construction dust and unexpected rain, which significantly extends the life of the device.

🟪 MAXIMUM BRIGHTNESS AND RANGE THANKS TO OPTICAL COATING

The purple anti-reflective coating on the laser windows better focuses the diode beam, increasing the range and improving its visibility in difficult lighting conditions.

💡 LACK OF ELECTRICITY? NO PROBLEM — BATTERY WITH TYPE-C PORT AND ENERGY INDICATOR

⚡ Direct USB-C charging: You charge from a network, car charger or powerbank. The lack of active electrical installation on the construction site ceases to be an obstacle, and you do not lose the rhythm of work.

🔋 Precise charge level indicator: Thanks to it, you can control the battery status at any time and plan the working time. You avoid unexpected equipment discharge and unnecessary downtime.

✅ Simplicity and convenience: One universal USB-C cable instead of a tangle of chargers means order and more space in the toolbox.

✅ PRECISION IN 360° SPACE — 16 LINES / 4D AND 4 INDEPENDENT SYSTEM HEADS. IT'S LIKE FOUR LEVELS IN ONE TOOL!

Four independent laser modules form 16 lines (4D) simultaneously — a full physical reference grid in 4 planes around the entire room.

Instead of folding the measuring sections and measuring “in installments”, you work on a ready-made geometric grid. Simple equation: more fixed reference points = zero cumulative errors.

Why does this change the rules of the game?

📐 Full space control: You can see risers and levels on each side at the same time, eliminating any guesswork during assembly.

🎯 No accumulation of errors: One starting point for the entire room means zero overlapping deviations.

🏢 Confidence in large projects: Efficient installation of frames, G-K bodies, large format boards and suspended ceilings – you can be sure that everything fits together perfectly the first time.

Firecore is a brand created for both DIY enthusiasts and professionals working on construction sites on a daily basis. We focus on high comfort of use of equipment, which in addition to modern design is characterized by exceptional durability. For years, we have been providing reliable tools that streamline your work, save your time and meet the highest quality standards – often exceeding the expectations of users.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Firecore
Parametry	Model	F94 EL
Parametry	Power supply	rechargeable battery
Parametry	Maximum working range	30 m
Parametry	Measurement accuracy (+/-)	1.5 mm
Parametry	Number of laser beams	16
Parametry	Laser color	green
Parametry	Horizontal line display angle	360°
Parametry	Vertical line display angle	360°
Parametry	Protection rating	other
Parametry	Product height	10 cm
Parametry	Product width	16 cm
Parametry	Length	14.5 cm
Parametry	Weight	0.87 kg
Parametry	Manufacturer code	F94 EL
Parametry	EAN (GTIN)	754290142765
Parametry	Product weight with unit packaging	2.9 kg
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Additional features	pendulum lock,360° laser,works below zero degrees Celsius,touchpad,cover included,self-leveling,target plate included,handle included
Parametry	Certificates of conformity	CE,WEEE
