Lazerinis atstumo matuoklis Leica Disto X6 su P2P matavimams [2D, 3D, DXF]

Trumpai apie prekę

Prekė: Lazerinis atstumo matuoklis Leica Disto X6 su P2P matavimams [2D, 3D, DXF]. Kategorija: Atstumo matuokliai.

• Gamintojas: Leica Geosystems
• Modelis: 950878

Leica Disto X6 P2P laser rangefinder kit:

Leica Advanced Laser Rangefinder for Outdoor Applications with P2P Functionality

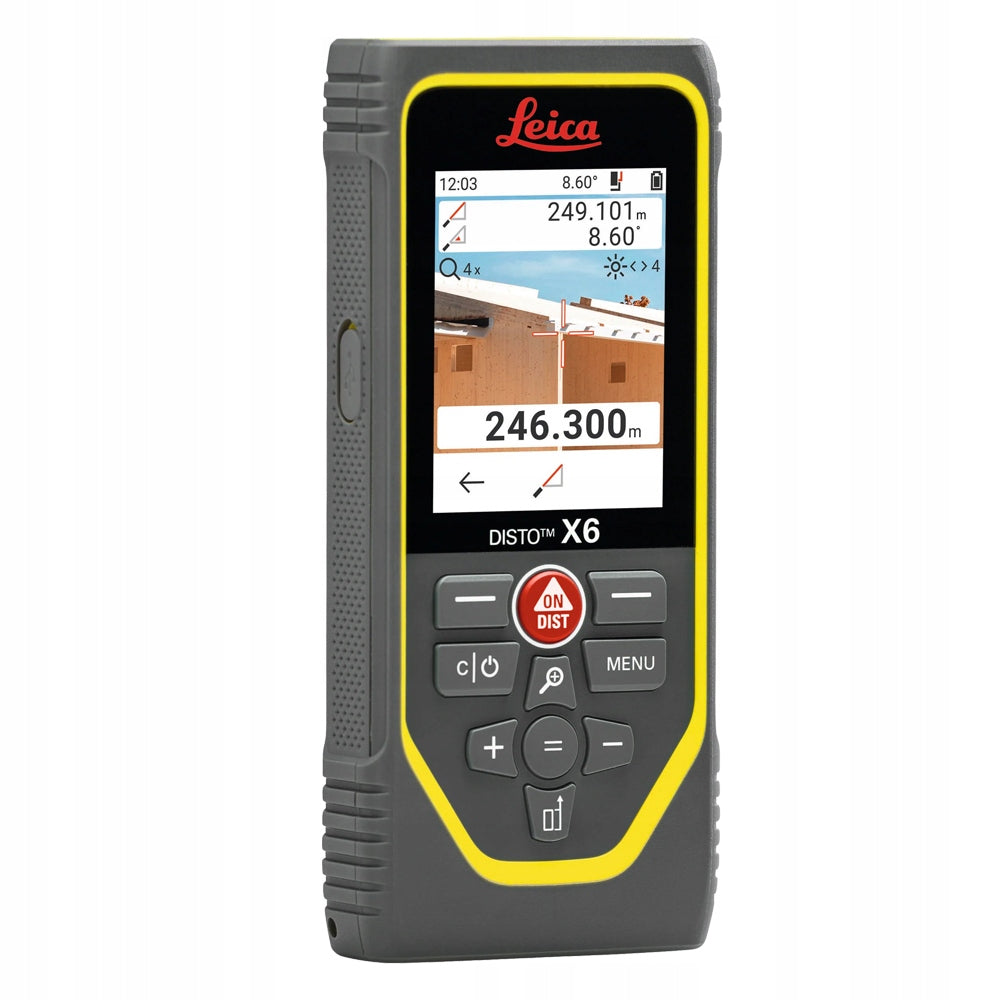

Experience a new era in measuring with the Leica DISTO™ X6 rangefinder, a next-generation device that delivers reliable measurement results even in the most challenging outdoor conditions. The rugged design of this device ensures accuracy and reliability in any situation.

The innovative technology from Leica Geosystems in the Leica DISTO™ X6 offers P2P measurement functions, enabling precise spatial measurements in both 2D and 3D from anywhere. Thanks to the integrated camera, this device makes it easier to take measurements in open spaces, and a modern, bright IPS display with a touch control panel further streamlines the aiming process, increasing the accuracy of measurements.

Integration with the Leica DST 360-X adapter extends the range of P2P measurements, allowing you to precisely determine the distance between selected points or areas, even in hard-to-reach areas. The results can then be easily converted into structured DXF files for use in any CAD program, supporting digitization and contributing to time and cost savings.

The DISTO Plan application allows you to directly visualize data on site, which facilitates ongoing verification and completion of measurements. This contributes to digital transformation by shortening work processes, reducing the possibility of errors and guaranteeing incomparable accuracy in measurements. With the Leica DISTO™ X6, you will discover a new dimension of precise field measurements.

Experience a new dimension of opportunity with the Leica DISTO™ X6 rangefinder:

• Simple and intuitive operation: One touch is enough! The extended touch screen provides smooth and instinctive control. Intuitive measurement functions and familiar gestures, such as dragging or zooming with two fingers, facilitate and accelerate the measurement process.
• Advanced digital sight: The Leica DISTO™ X6 rangefinder with digital sight provides exceptional precision, ideal in strong sunlight or long-distance measurements, guaranteeing accuracy in all conditions.
• Transparent measurement reports: The ability to conveniently present measurement results in the form of reports on the Leica DISTO™ X6 and export them via USB port, making it easier to analyze and share data. Ability to import data into Excel for more advanced processing.
• Extensive internal memory: The large memory of the device allows you to maintain numerous measurement reports, making it easier to manage documentation and data.
• 3D measurement capabilities: With the ability to convert to a measuring station with a Leica DST 360-X adapter, the rangefinder enables the collection of 2D and 3D spatial data, which can then be processed using the DISTO™ Plan application or CAD software.
• Eco-friendly power source: The lithium-ion battery power supply is durable and eco-friendly, with the option to use the device while charging.
• Smart Horizontal Mode: The combination of distance and tilt angle measurements allows you to precisely determine the horizontal distance with excellent accuracy, even through obstacles.
• Smart Room Function: Using the DISTO™ Plan app and Leica DISTO™ X6 rangefinder data, you can automatically create realistic room plans at the right scale.
• Screen auto-rotation: The image on the screen automatically rotates as the device rotates, providing a convenient reading of measurements from any perspective.

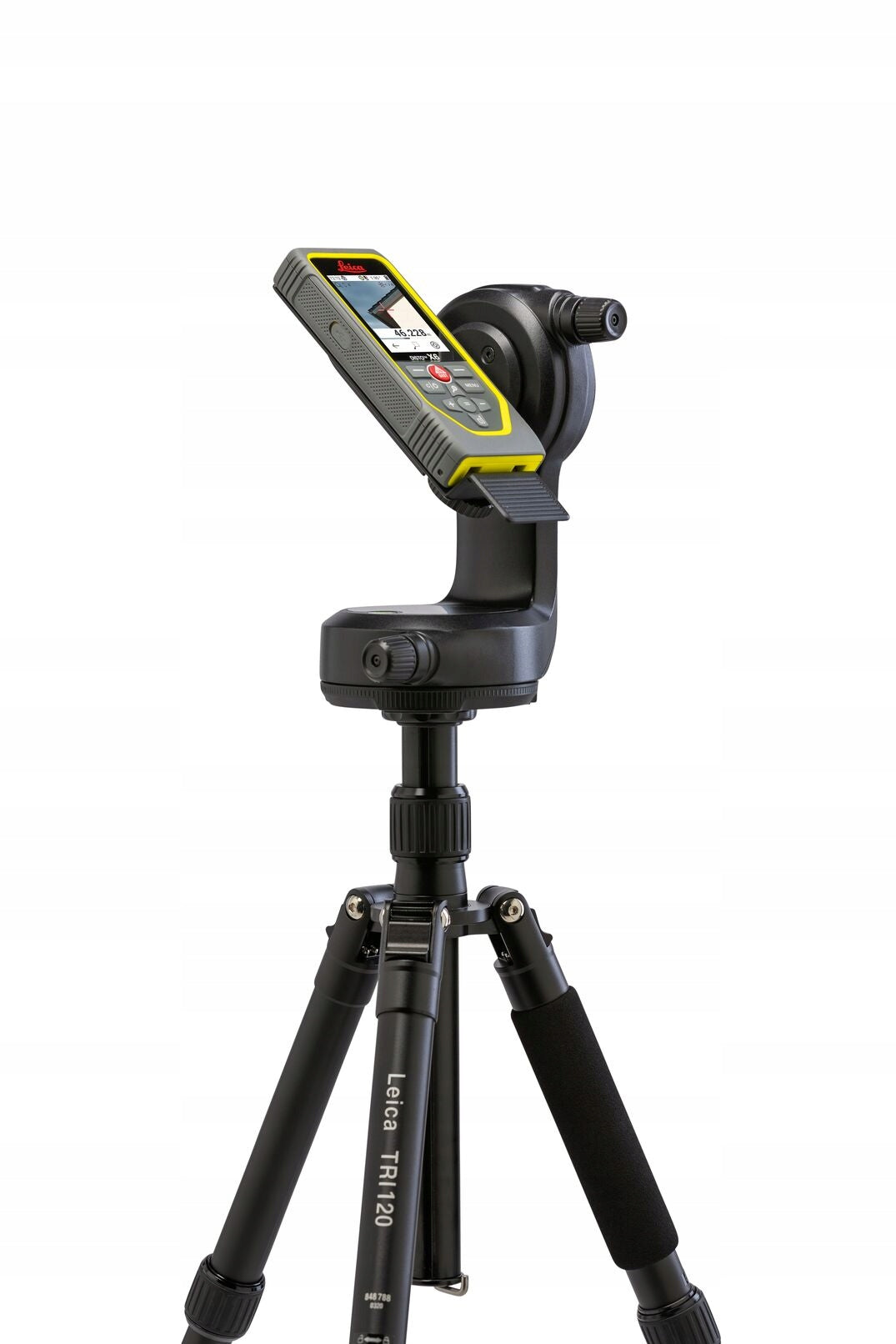

• The Leica DST 360-X adapter is the perfect addition to your Leica DISTO™ X6 rangefinder. Using this robust measuring station, it is possible to measure the distance between any two points. Connection to the Leica DISTO™ Plan app enables the creation of as-built plans, which can then be processed in CAD software.

• Perfect data preparation for CAD software: Measurements made using P2P technology can be saved in the Leica DISTO™ X6 in DXF format and then exported via USB port for further editing in CAD programs. They are available in the form of projections or sketches (DXF 2D files) and spatial models (DXF 3D files). It is also possible to directly transfer measurement data from the measurement site to the laptop on the construction site, which enables their processing in the selected CAD software.

• P2P measurement: volume calculation: Using P2P technology together with the DISTO™ Plan application, it is possible to make volume measurements, such as estimating the size of excavations by using the "Earthwork" function.

Measurement function relative to the line: capabilities that until now only offered advanced total stations are now available in a compact, easy-to-carry device. It allows you to specify any point relative to any straight line. A practical application may be, for example, to determine the position of a partition wall parallel to an existing wall.

Technical data:

• No. Article: 950909
• Distance measurement accuracy: ± 1.0 mm
• Range: 0,05 to 250 m
• Units of measurement: m, ft, in
• Incline Sensor: Yes
• Incline sensor accuracy relative to the device: ± 0,2°
• Units in tilt sensor: 0,0°, 0,00 %
• Smart Base measuring range: level- 360°* vertical- 64° to > 90° *
• P2P measurement accuracy: 2, 5, 10 m (± 2, 5, 10 mm)
• Leveling range: ± 5°
• Camera with zoom: 4x
• Image File Format: JPG
• CAD data format on the device: DXF, CSV
• Memory of recent measurements: 300
• Memory for CAD files on the device: 1000
• Display backlight: yes
• Free software for Windows®: yes
• iOS and Android app: yes
• Smart Room: yes
• Data Interface: Bluetooth® 5
• USB-C port for charging and downloading data: yes
• Number of measurements on 1 charge 4000
• Battery Life: 8 hours
• Multifunctional foot: yes
• Automatic detection of the reference point for the footer: yes
• Tripod Thread: 1/4"
• Power Supply: Li-Ion Battery
• Charging time: 3 hours
• Protection Class: IP65
• Tested for fall from 2 m: yes
• Dimensions: 155 x 68 x 25 mm
• Weight with batteries: 230 g

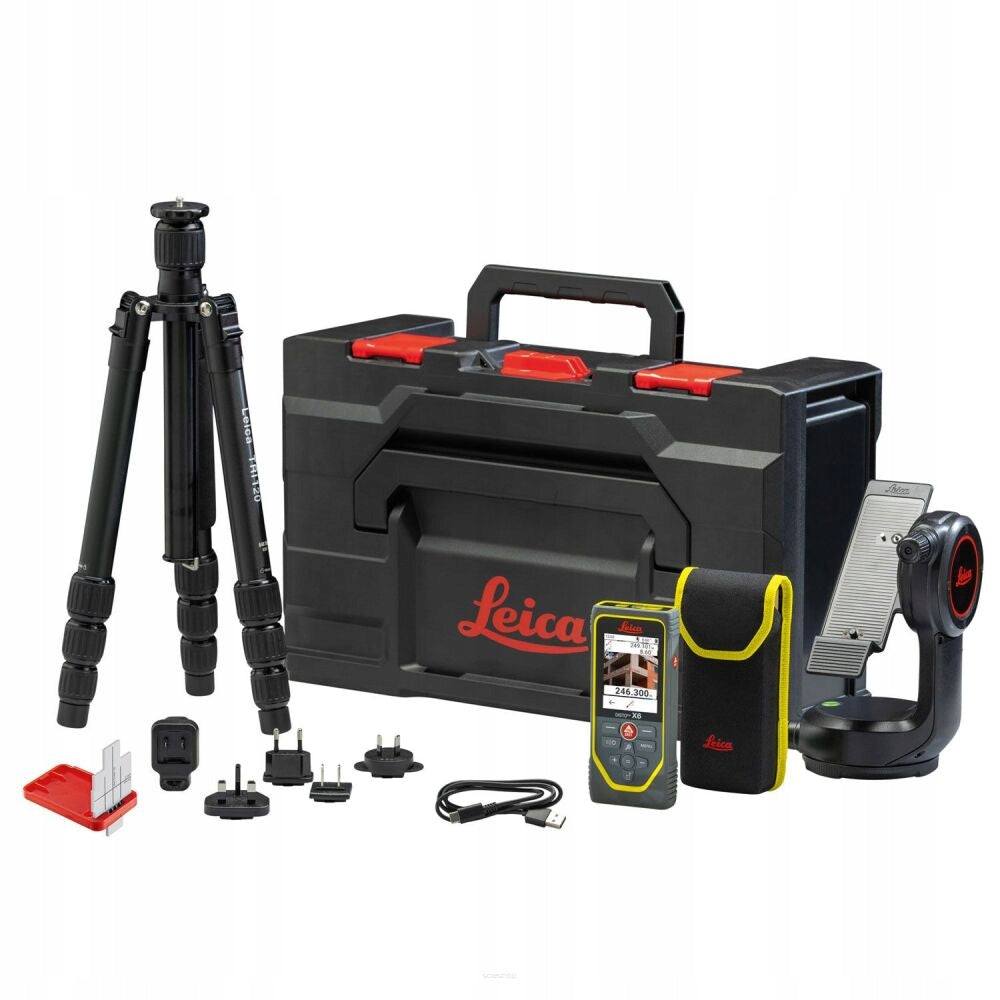

• Laser rangefinder Leica DISTO™ X6
• Angle adapter Leica DST 360-X
• Leica TRI120 Folding Tripod
• Leica GZM3 targeting disc
• New metaBOX suitcase
• Case for rangefinder
• Wrist strap
• Charger and USB cable
• Calibration Certificate - SILVER
• User manual
