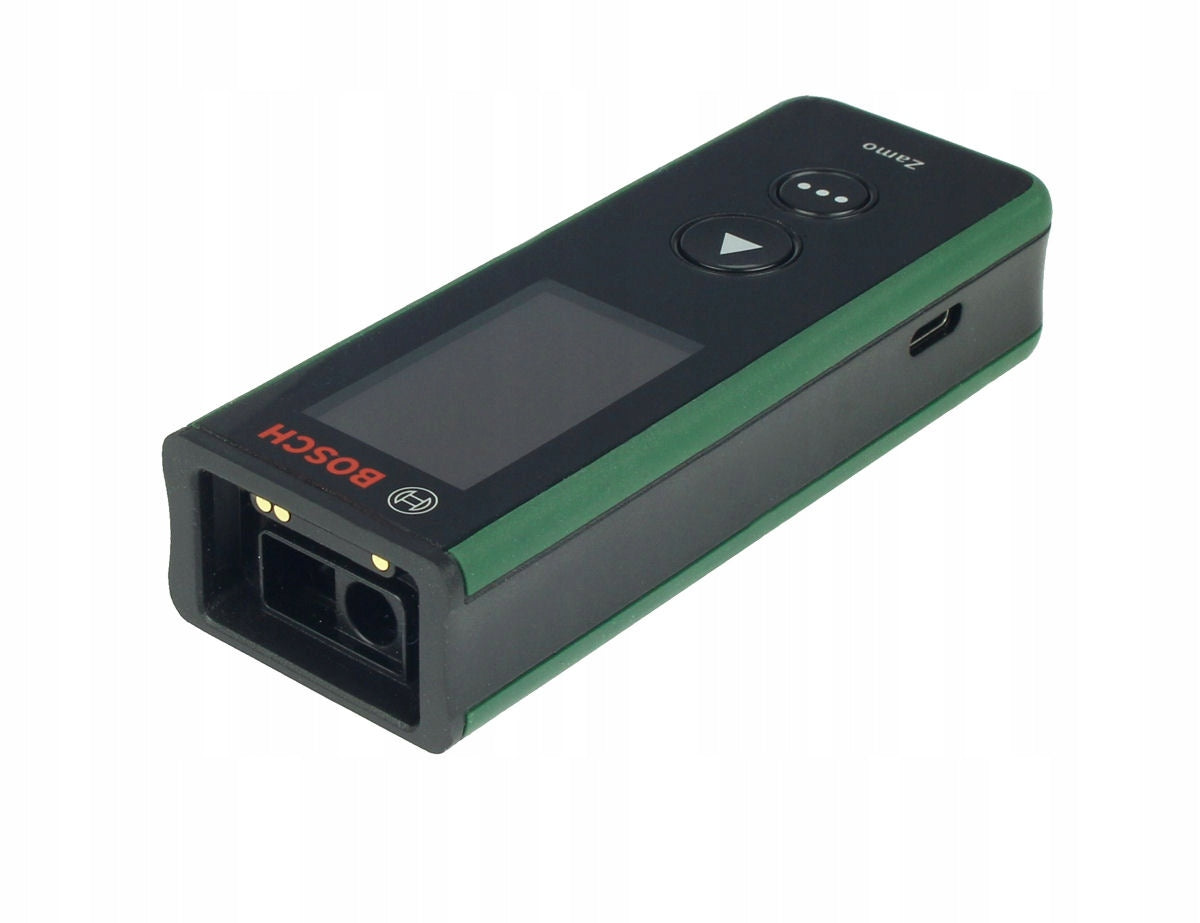

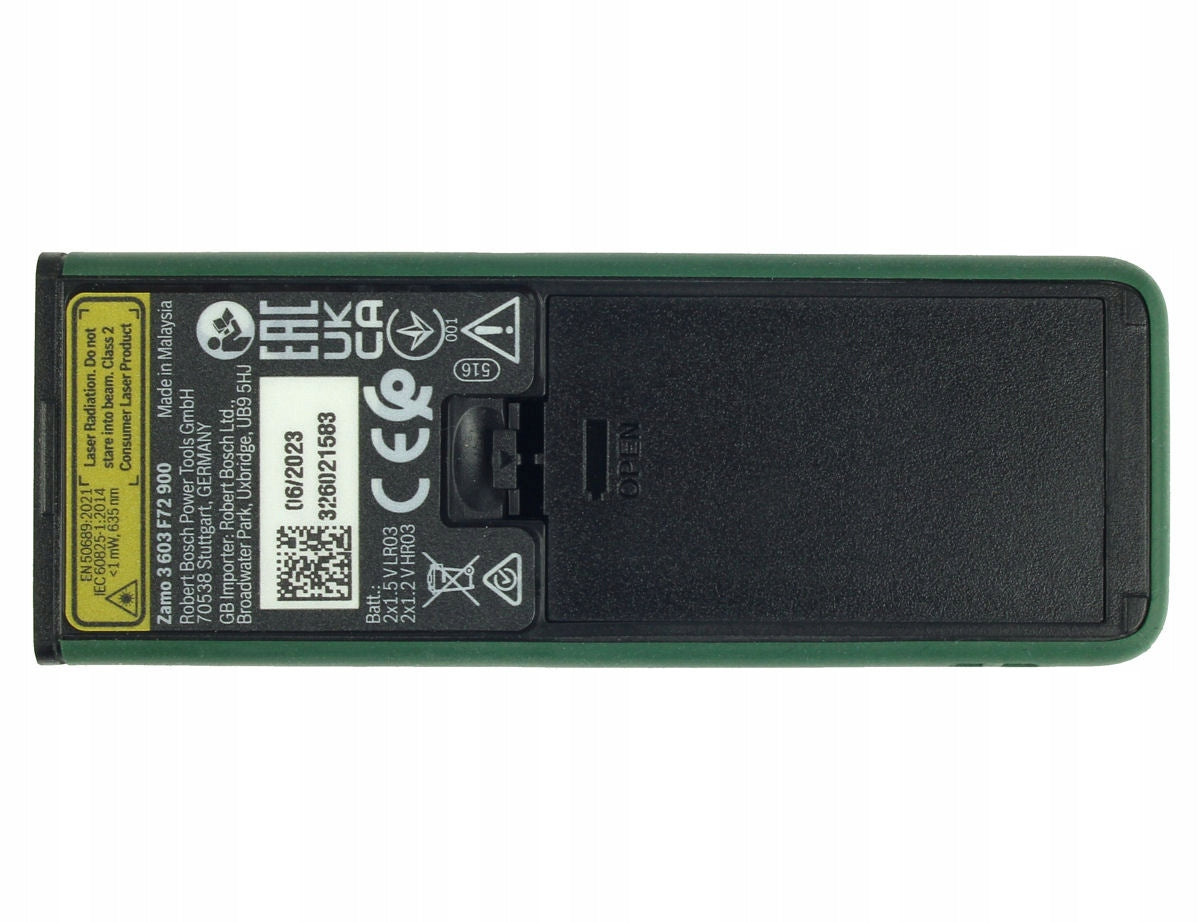

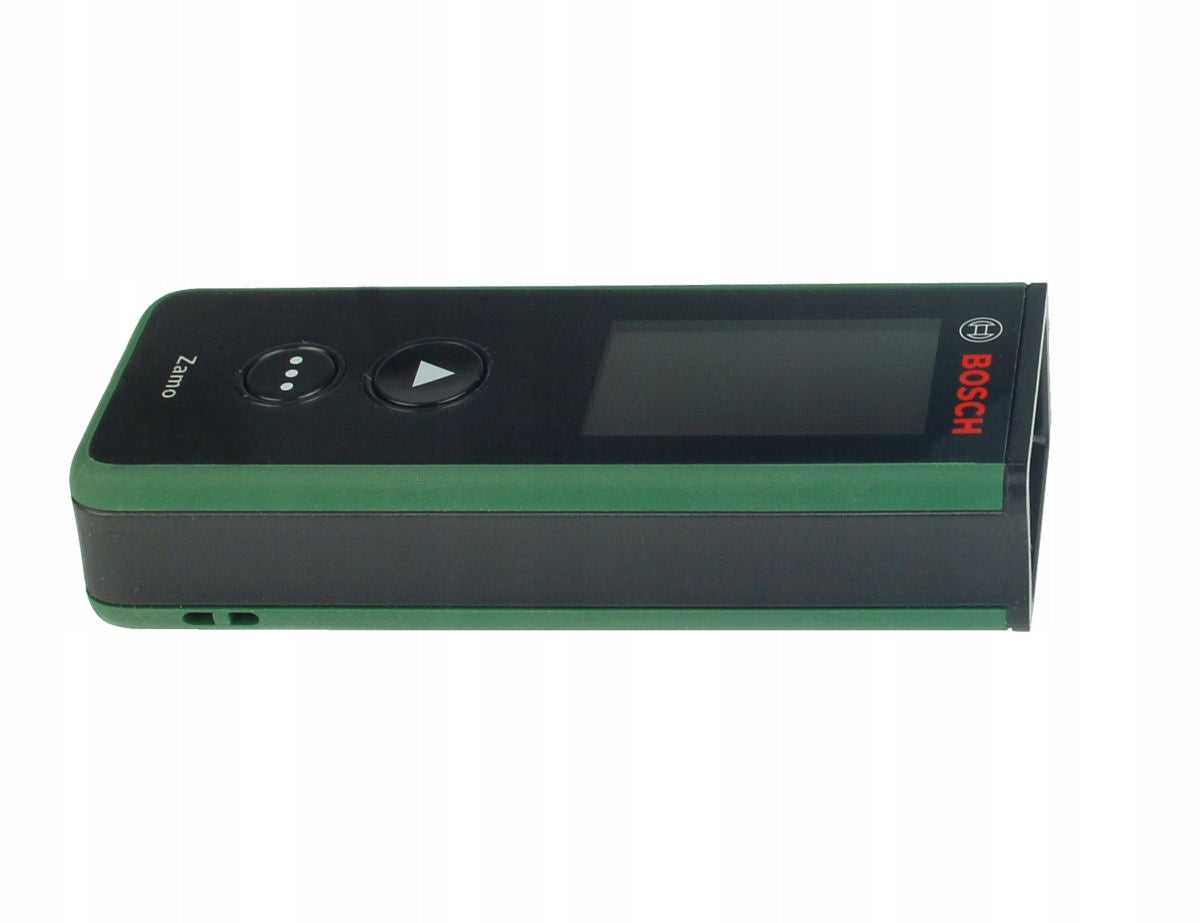

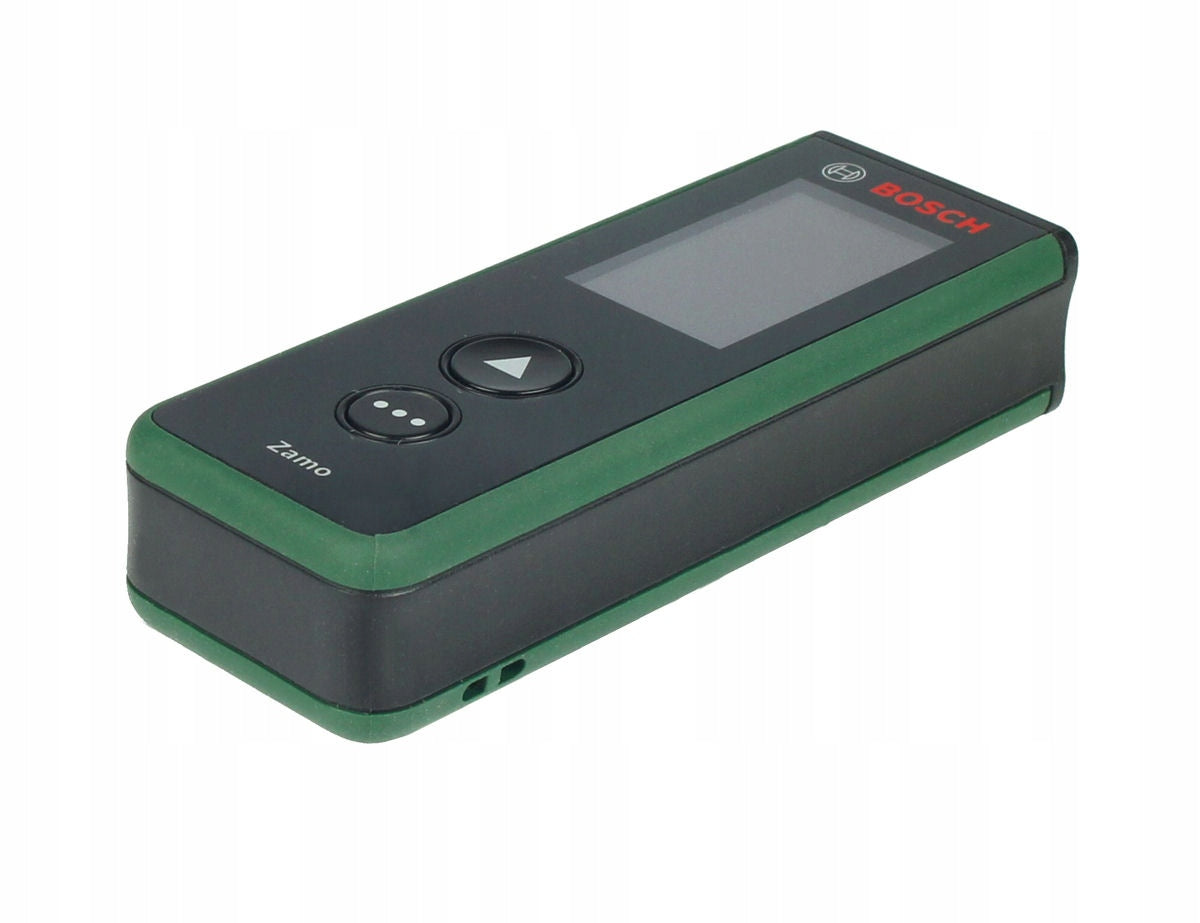

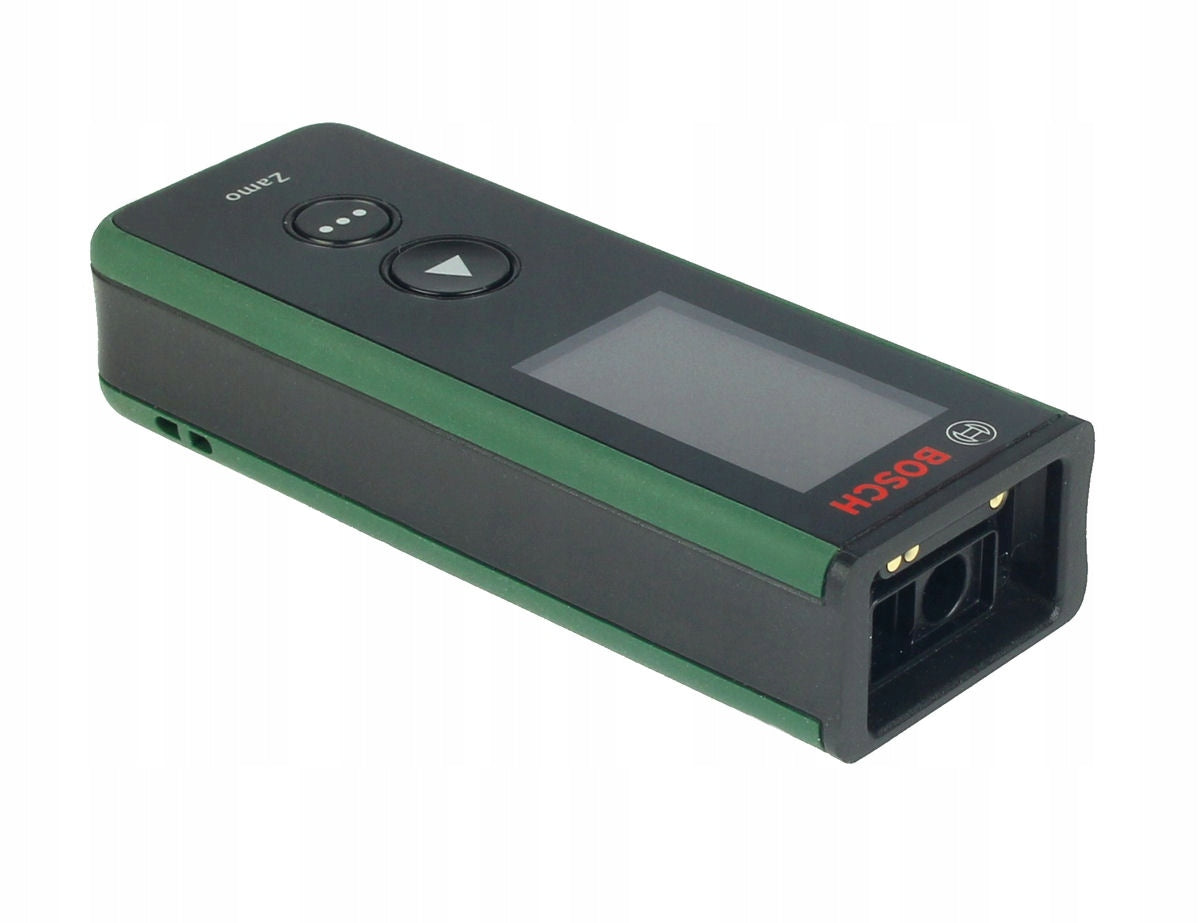

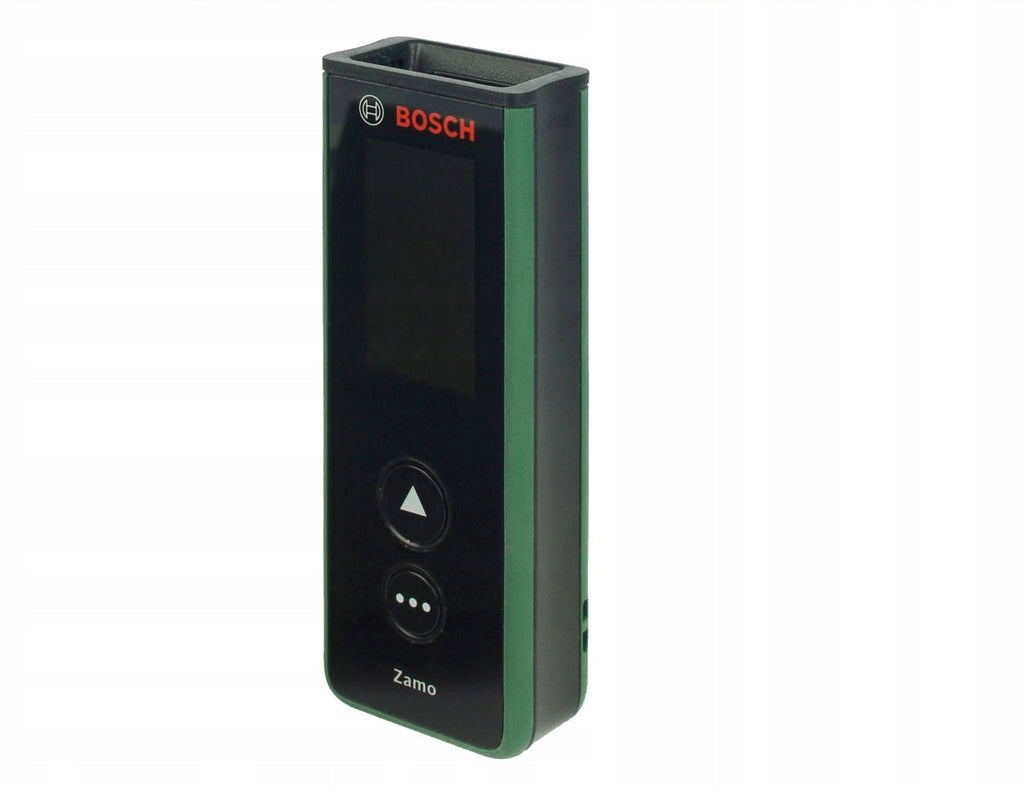

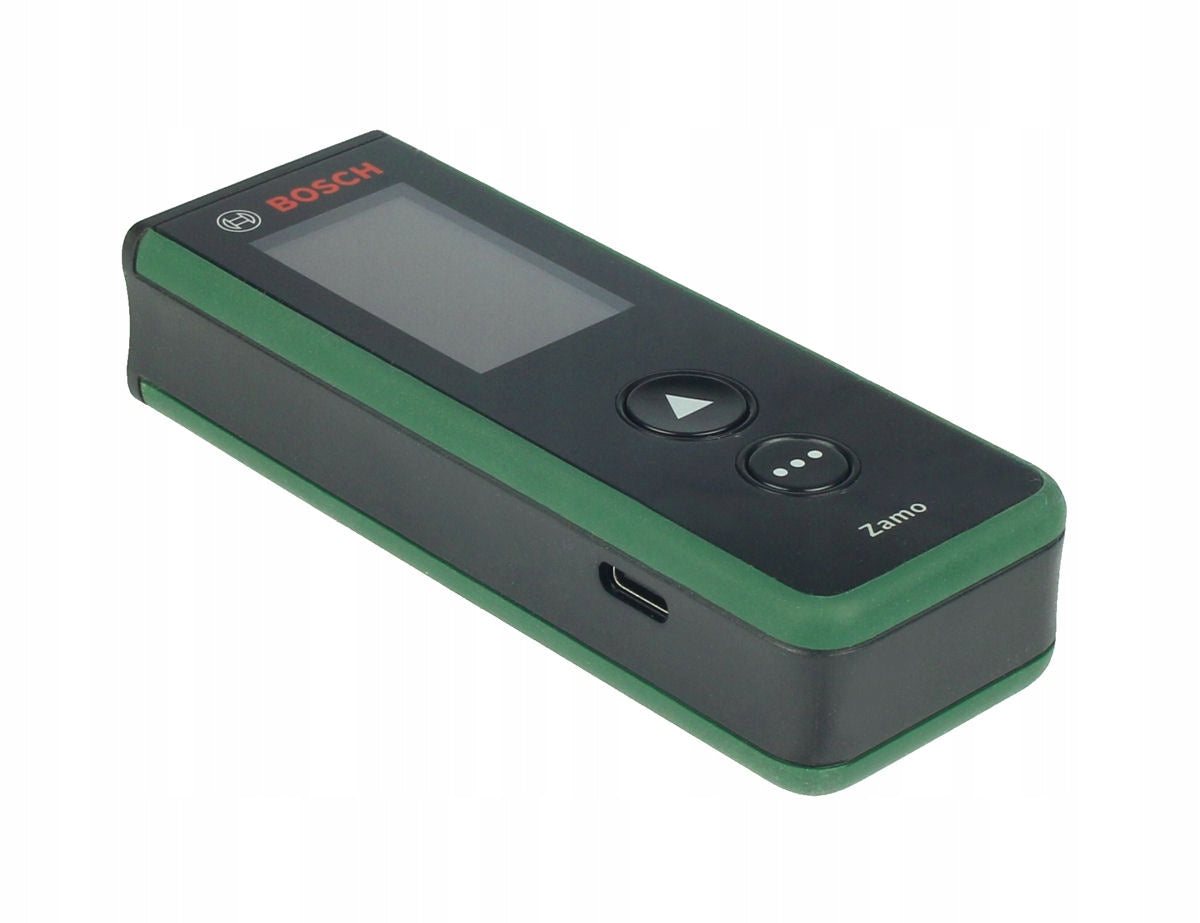

Lazerinis atstumo matuoklis BOSCH ZAMO 4, iki 25 m

Trumpai apie prekę

Prekė: Lazerinis atstumo matuoklis BOSCH ZAMO 4, iki 25 m. Kategorija: Atstumo matuokliai.

• Gamintojas: Bosch
• Modelis: 0603672900

Technical parameters:

• Measuring range: from 0,15 to 25 m
• Measuring accuracy: +/- 2,0 mm
• The smallest measurement indication on the display: 1,0 mm
• Measurement time (typical): 0,5 seconds
• Measurement time (maximum): 4,15 seconds
• Laser type: 635 nm, < 1 mW
• Laser class: 2
• Automatic rangefinder switch: after 5 minutes of inactivity
• Power supply: 2 x R3 battery (AAA)
• Weight of the device: 0,080 kg
• Dimensions: 104 x 38 x 23 mm

Additional advantages:

• possibility of using 3 special measuring adapters

Quick and easy length measurements.

Large measuring range and high measurement precision.

The laser rangefinder from BOSCH model Zamo is designed for quick, easy and accurate measurements using a laser beam. At the touch of a button, it measures the length, and the measurement result is shown on a large, liquid crystal display of the rangefinder.

The Zamo rangefinder performs measurements with high precision: at a distance of up to 25 meters it measures with an accuracy of +/- 2,0mm.

Continuous length measurement.

The Zamo rangefinder has the function of continuous length measurement. During continuous measurement, the measuring device can be approximated relative to the target, with the current measurement value updated approximately every 0,5 seconds in the lower display bar, and the graphical indication of the laser beam switched on flashes on the display.

Quick and easy surface measurements.

The Zamo rangefinder is also equipped with the function of performing quick surface measurements. Just take two measurements of the length (length and width) and pressing the switch button twice will quickly calculate the measured surface, and the result and surface icon will appear on the display, pressing the button twice will return to the last two indicated measurement values.

Very small and resistant to damage.

The Zamo laser rangefinder is so small that it can easily fit in the pocket of a shirt or trousers, so that the instrument can always be at hand. Softgrip grip surfaces ensure that the rangefinder not only fits perfectly in the hand, but also protect it from damage as a result of falling on a hard surface. The rangefinder design makes it resistant to damage even when falling on concrete from a height of 1 meter, and the high protection against dust and moisture means that it can also be used in harsh construction conditions.

Simple and instinctive operation.

The Zamo laser rangefinder is equipped with only one button, thanks to which we can turn the rangefinder on or off and make a measurement, and understandable graphic symbols displayed on the display guarantee simplicity of use.

Two-line display with backlight function.

The Zamo laser rangefinder has a 2-line liquid crystal display on which the most useful information is displayed, such as: current measurement value, previous measurement value, length measurement, continuous length measurement, laser switching on, information about incorrect measurement, low battery level and too low or too high operating temperature and information about the mounted measuring adapter.

The Zamo rangefinder is also equipped with a white display backlight function, which greatly facilitates measurements in darkened areas.

Long run time on one set of batteries.

The Zamo laser rangefinder is powered by two R3 1,5V batteries, which allow for 5 hours of continuous operation, which translates into more than 5000 measurements.

Adapter - MEASURING TAPE (optional equipment).

The adapter is used to take measurements using a tape measure. After mounting the adapter and turning on the rangefinder, continuous length measurement with tape begins. The length of the tape is 1,5 meters and this can be measured the maximum length.

The tape allows you to make a variety of different complex measurements, e.g. circumference of round objects, width, length or height of objects not exceeding 1,5 meters and many others.

The adapter can also be used to measure the surface of measured objects.

ADAPTER IS NOT INCLUDED IN THE EQUIPMENT - it is available in our other offer on Allegro.

Adapter - MEASURING WHEEL (optional equipment).

The adapter is used to take measurements using a measuring wheel. After installing the adapter and turning on the rangefinder, continuous length measurement with a wheel begins. The current measurement value is displayed in the bottom row of the display.

When measuring continuously, the wheel can be moved forward or backward. Regardless of the direction of travel, the measurement values are positive. When changing direction during measurement, the value decreases until the zero point is reached.

After passing the zero point, a positive value will appear on the display again. The current measurement value is displayed in the bottom row of the display. The measurement is completed when the wheel stops, and the current measurement value is shown on the display.

The maximum measured length by means of a measuring wheel is 20 meters (i.e. the maximum measuring range of the rangefinder).

The wheel allows you to make many different complex measurements, e.g. circumference of round objects, width, length or height of objects of regular and irregular shapes.

The adapter can also be used to measure the surface of measured objects.

ADAPTER IS NOT INCLUDED IN THE EQUIPMENT - it is available in our other offer on Allegro.

Adapter - LASER LEVEL (optional equipment).

The adapter is used to display (project) a horizontal or vertical laser line on various types of surfaces, e.g. on the wall.

Two very accurate built-in level libels are used to set the level or vertical. For precise adjustment of the laser line, the adapter head can be rotated +/- 10 degrees around the laser line.

The length of the laser line displayed (thrown) on the wall surface is a minimum of 1 meter, assuming that the rangefinder is located at a distance of 2 meters from the wall, while with this setting the rangefinder, the diameter (width) of the laser line will be approx. 2 mm.

The measurement accuracy of the adapter is +/- 1mm/m.

ADAPTER IS NOT INCLUDED IN THE EQUIPMENT - it is available in our other offer on Allegro.

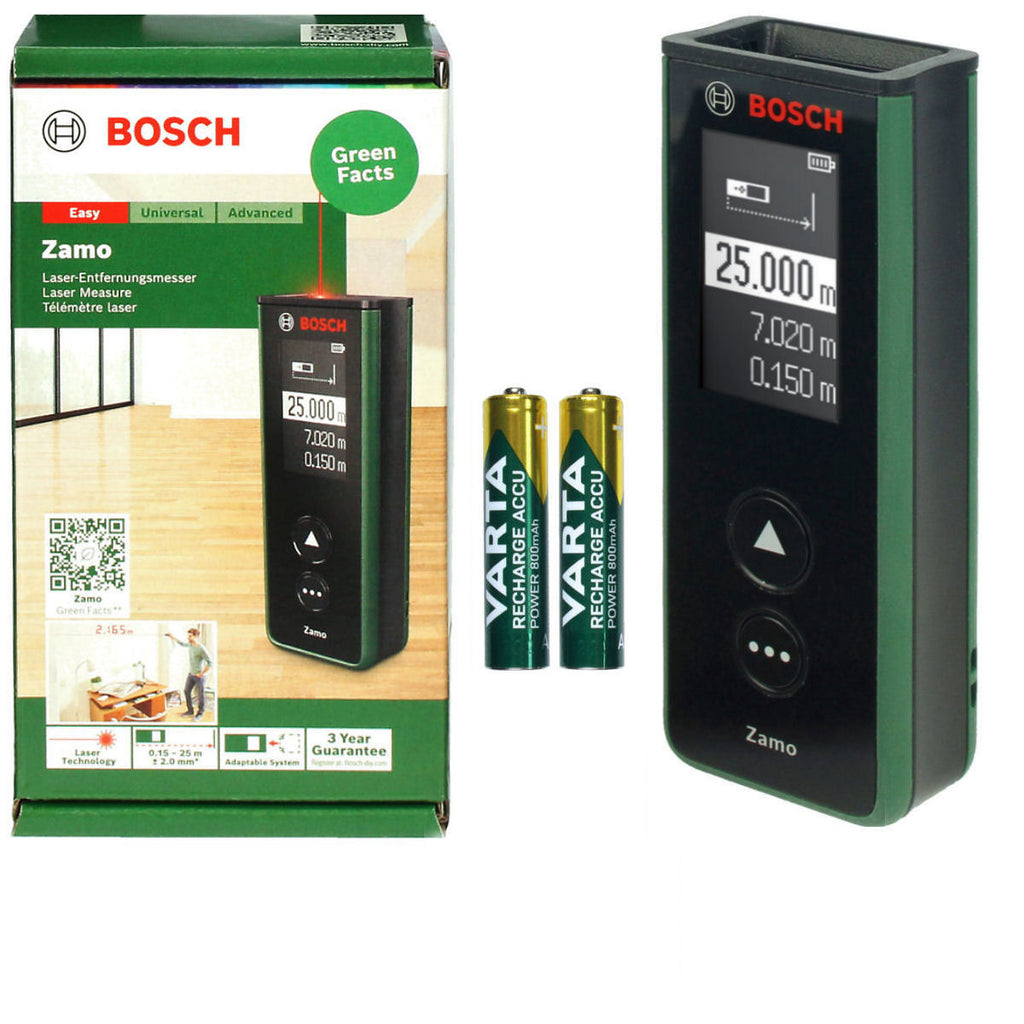

Delivery includes:

• Laser rangefinder from BOSCH
• Set of power batteries
• Instruction manual in Polish
