Lazerinis atstumo matuoklis 60 m, IP65, LCD ekranas

Trumpai apie prekę

Prekė: Lazerinis atstumo matuoklis 60 m, IP65, LCD ekranas. Kategorija: Atstumo matuokliai.

• Gamintojas: Mileseey
• Modelis: S7-60m

RANGEFINDER - LASER DISTANCE METER

MILESEEY S7-60M

• Accuracy: ±(2mm+5x10-5D)
• Measured distance: 0-60 m
• Units: meters / inches / feet / feet + inches
• Laser: 630-670 nm, < 1 mW, Class II
• Measurement: continuous or instantaneous
• Automatic calibration
• Recording of measurements: 20
• Buzzer
• Number of measurements on one battery charge: 8000
• Measurement of length from Pythagorean theorem (e.g. height )
• Calculation of area (m²) and volume (volumes in m³).
• Add/Subtract Function
• Automatic laser shutdown: after 30 seconds.
• Automatic shutdown of the device: after 180 seconds.
• Indicator of incorrect measurement
• Measurement angle indicator
• Material of buttons: soft rubber material
• Selectable reference level (front, rear, tripod)
• Measurement of max. /min.
• Power supply: 3 x AAA rechargeable batteries 1,2V 800 mAh (included)
• Product Dimensions: 115x 49 x 26 mm
• Product weight: 137 g (range with batteries)

EXCELLENT BUILD QUALITY AND PRECISION

The MILESEEY S7 laser distance meter is a reliable measuring tool for determining distance. It is characterized by exceptional accuracy, fast response and long range (60m).

Solid rubberized housing: material with high abrasion and fall resistance, it is ideal for industrial applications.

Combined with a skeleton housing, it can withstand falling from a height of 2 m.

Water resistance: the S7 meets IP65 - standards for water and dust resistance.

The rangefinder is perfect for:

• Construction industry,
• real estate,
• transport,
• designing,
• urban planning,
• gardening,
• For home use.

MEASUREMENT FUNCTIONS:

• Measurement range: 60 m ± (2mm+5x10-5D)
• ☑ Continuous measurement
• ☑ Measurement of the surface area
• ☑ Volume measurement
• ☑ Measurement of rectangles
• ☑ Measurements using the Pythagorean theorem:
• ☑ Measurement of the section
• ☑ Angle measurement
• ☑ Measurement of deviation from the level
• ☑ Measurement of vertical deviation
• ☑ Add/Subtract Function

Power supply - 2 types of batteries

The device can be powered in two ways, by Ni-MH batteries (included) and regular AAA batteries.

If you use regular batteries, do not charge them, as this could damage your device and pose a threat.

How to properly install batteries:

Open the lid from the battery compartment, then place the batteries or accumulators paying attention to polarity ( + / - ).

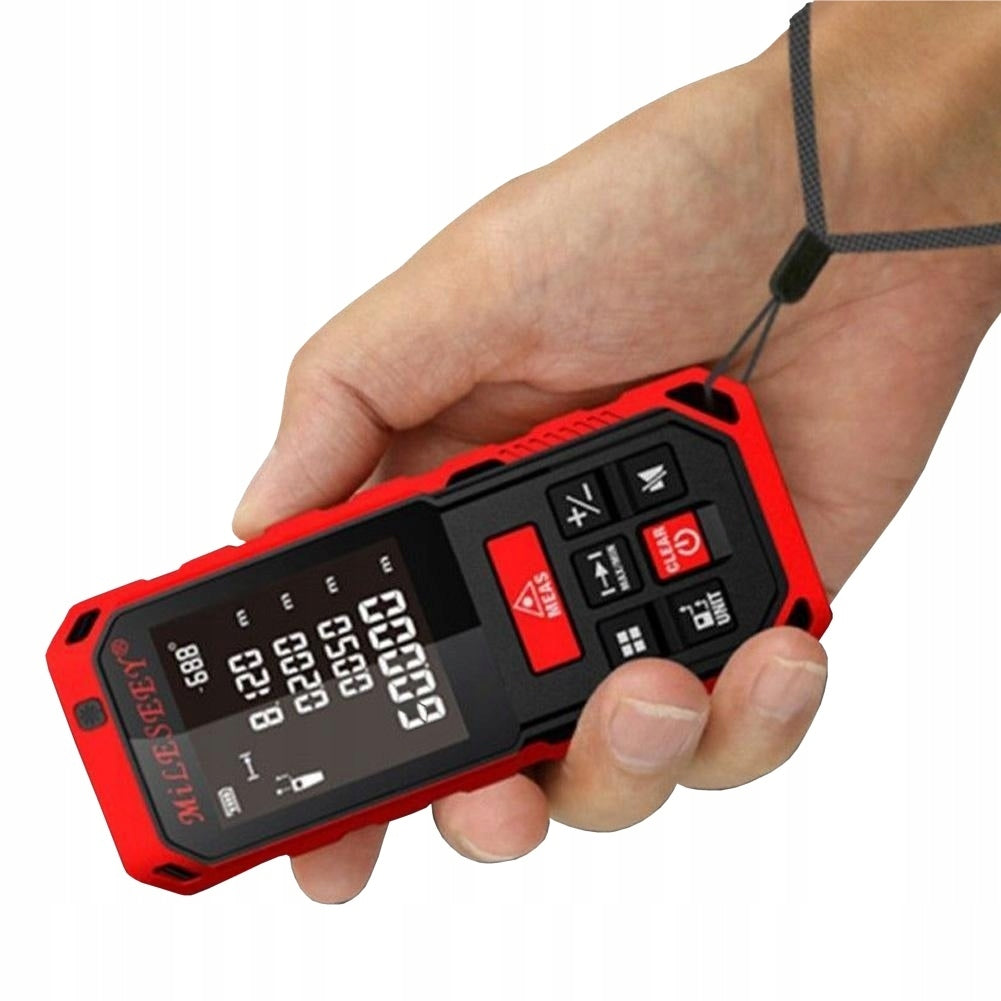

Handy and convenient to operate with one hand.

The set includes a lanyard, thanks to which you can hang the rangefinder on your hand.

CONTENTS OF THE SET:

• Laser rangefinder,
• USB cable for charging batteries,
• Leash,
• Material case - cover,
• Original manufacturer's packaging,
• User manual in Polish and English.
• 3 x AAA 1.2V (800 mAh) batteries.

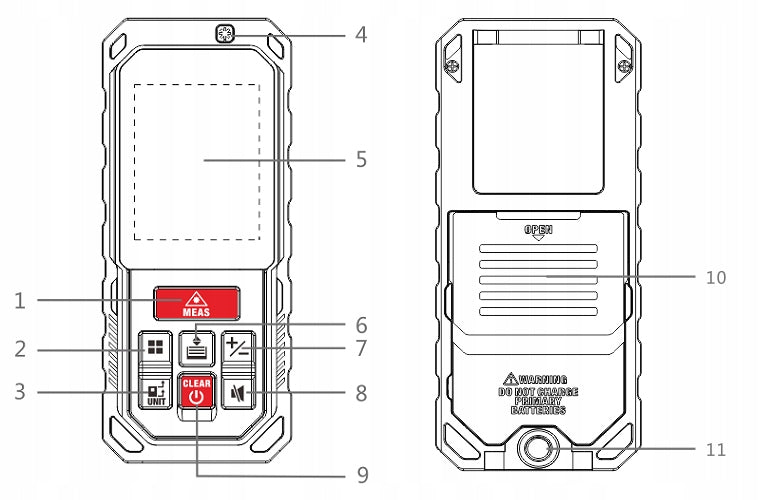

1. Measurement button - start measurement in single or continuous mode
2. Menu button - button used to change the measurement mode: measurement of distance, area, volume, Pythagorean, angle of inclination, height.
3. Button for setting the reference point and units: the possibility of measuring from the front, from the back and from the tripod mount. For units to choose from are: meters, feet, inches, feet + inches.
4. Icon indicating the point where the laser comes out.
5. Screen: 2,0-inch, white and clear content on black makes the display clear and transparent.
6. Memory button: is used to recall previous measurement results.
7. Button activating the function of adding/subtracting values for measurements in distance, area and volume mode.
8. Buzzer sound off button
9. On/off/clean/return button.

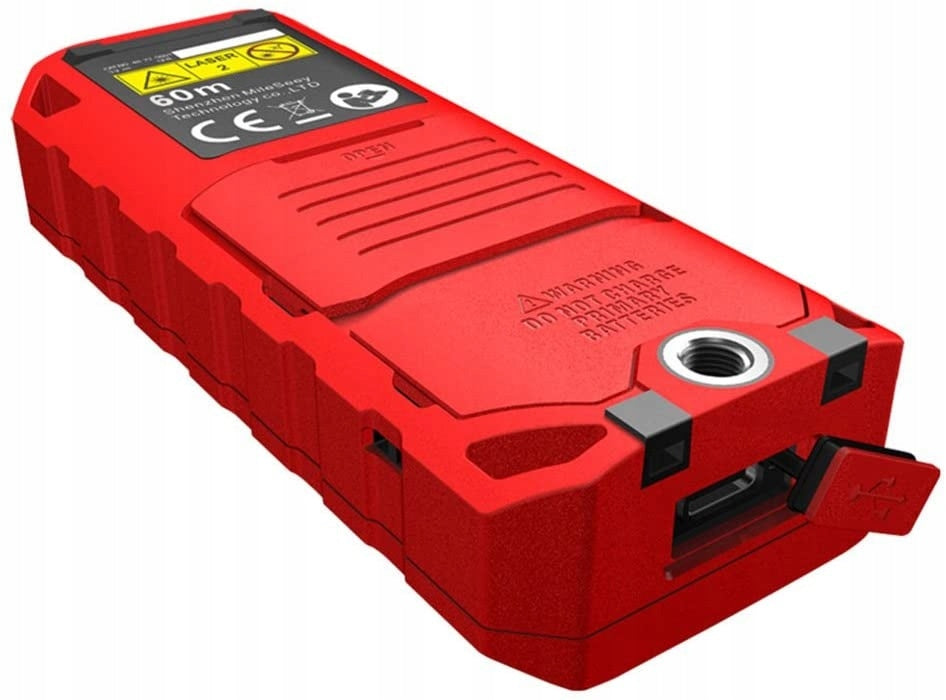

10. Battery compartment
11. Tripod screw hole

1. The status of the battery.
2. Measurement distance icon.
3. Active laser sight icon.
4. The reference point (front).
5. Reference point (tripod mount).
6. Reference point (back).
7. Measurement mode indicator
8. Tilt angle indicator.
9. Icon to recall the results of previous measurements.
10. The first value.
11. Second value/minimum value.
12. Third value/maximum value.
13. Summary line / last reading / calculation result

Additional measurement functions:

1. Measurement using the Pythagorean theorem (2 points).

2. Measurement using the Pythagorean theorem (3 points - variant 1).

3. Measurement using the Pythagorean theorem (3 points - variant 2).

4. Measurement of rectangle lengths based on the dilation kata.

5. Measurement of height based on the dilation kata between points 1 and 2.

6. Setting the measurement reference point: front, back, tripod mounting place.

FUNCTION OF MEASURING MINIMUM AND MAXIMUM VALUES

With this feature, you can easily measure:

• the smallest noted value, as shown in Figure min.
• as well as the largest noted value, as shown in Figure max.

A detailed description can be found in the attached instruction manual.

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Maximum range	31-60 m
Parametry	Maximum number of measurements in memory	20
Parametry	Measurement accuracy (+/- mm)	2
Parametry	Protection rating	IP65
Parametry	Laser class	class 2
Parametry	Additional information	calculation of cubic capacity
Parametry	Product weight with unit packaging	0.275 kg
Parametry	Manufacturer code	S7-60m
Parametry	EAN (GTIN)	5903738810987
Parametry	Brand	Mileseey
Parametry	Batteries included	yes
