Lazerinis atstumo matuoklis (>100 m), dvipusis skaitmeninis kampų matuoklis ir lazerinis lygis

Trumpai apie prekę

Prekė: Lazerinis atstumo matuoklis (>100 m), dvipusis skaitmeninis kampų matuoklis ir lazerinis lygis. Kategorija: Atstumo matuokliai.

• Gamintojas: TECHTOOL
• Modelis: TTDM01

📢Buy from the product set - we add something useful for every DIYer! 🆓🎁

► Bilateral

► Vertical laser pointer

► Measurement Modes: ✔ Right/Left Distance ✔ Pythagoras ✔ Double Pythagoras ✔ Area ✔ Volume

► Units of measurement m/inch

► Digital protractor

► High accuracy

► Automatic sleep mode

► Practical case

✅ A new generation of measurement technology

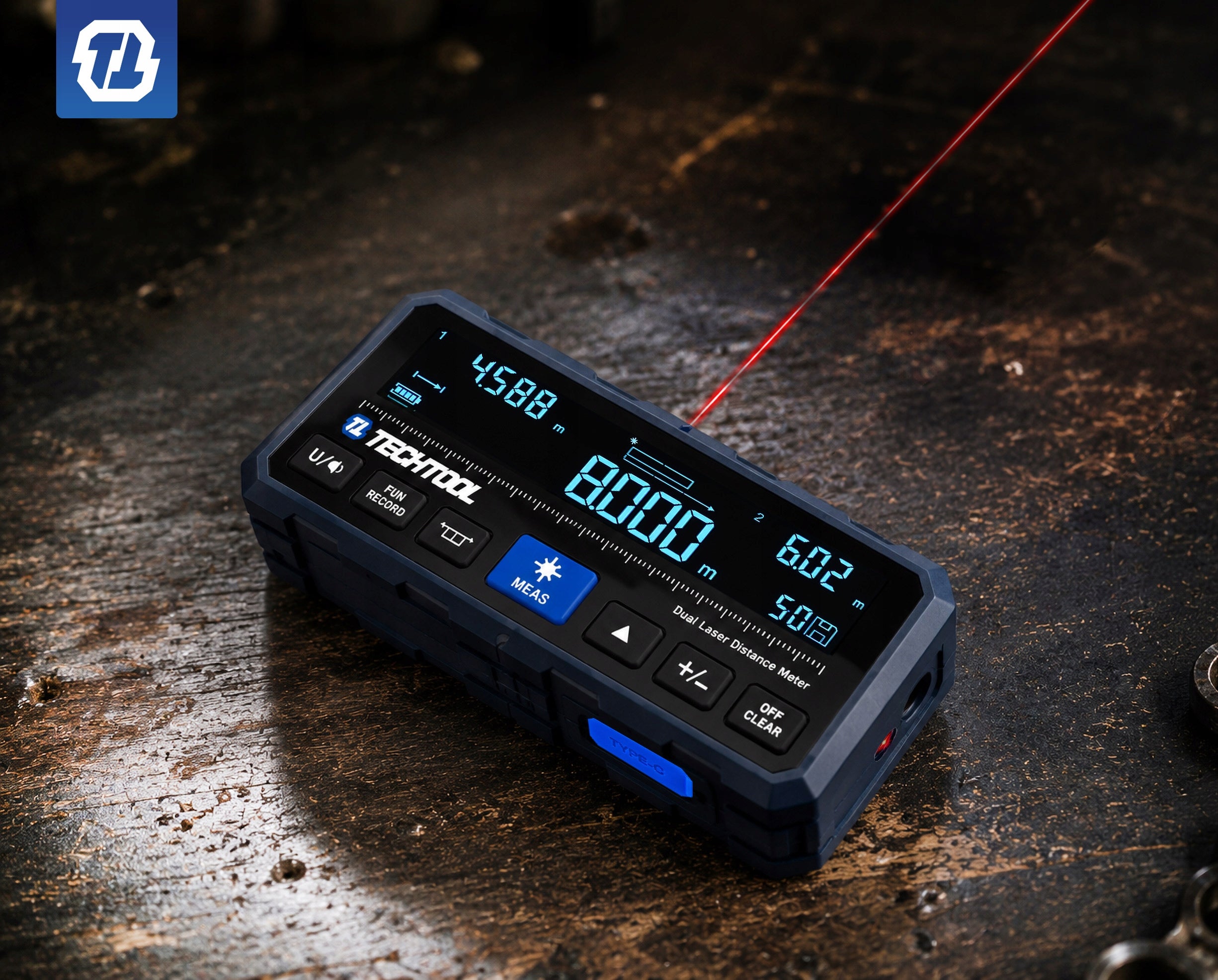

• TECHTOOL TTDM01 is a modern laser rangefinder designed for FAST AND CONVENIENT MEASUREMENT in all conditions. Its biggest advantage is the innovative TWO-WAY MEASUREMENT – the device simultaneously measures the distance to the right and left of the setting point. Thanks to this, the user can quickly determine the total width of the room, passage or space without having to change the position of the device or perform several separate measurements.

• In addition, the rangefinder is equipped with a VERTICAL LASER AXIS, which can serve as an indicative reference point during measurements without having to approach the device to the wall. The function also facilitates setting the device, determining one measuring line and indicative positioning of elements during renovation, assembly and construction works. Advanced laser technology ensures high accuracy of measurements both indoors and outdoors.

• The rangefinder significantly accelerates work, reduces the risk of measurement errors and allows you to perform measurements more conveniently than with a traditional measuring cup – especially where SPEED, PRECISION AND THE ABILITY TO WORK ALONE counts.

Technical data:

• Brand: TECHTOOL
• Model: TTDM01
• Purpose: for interiors
• Working range: 0.2 - 100 m
• Accuracy: 1.5 mm
• Number of LCD lines: 3
• Measurement modes: right/left distance, Pythagoras, double Pythagoras, area, volume
• Mounting socket: 1/4''
• Memory: Yes, up to 50 measurements
• Laser type: Class II, 650 nm < 1 mW
• Power supply: 3.7 V 800 mAh, lithium-ion battery

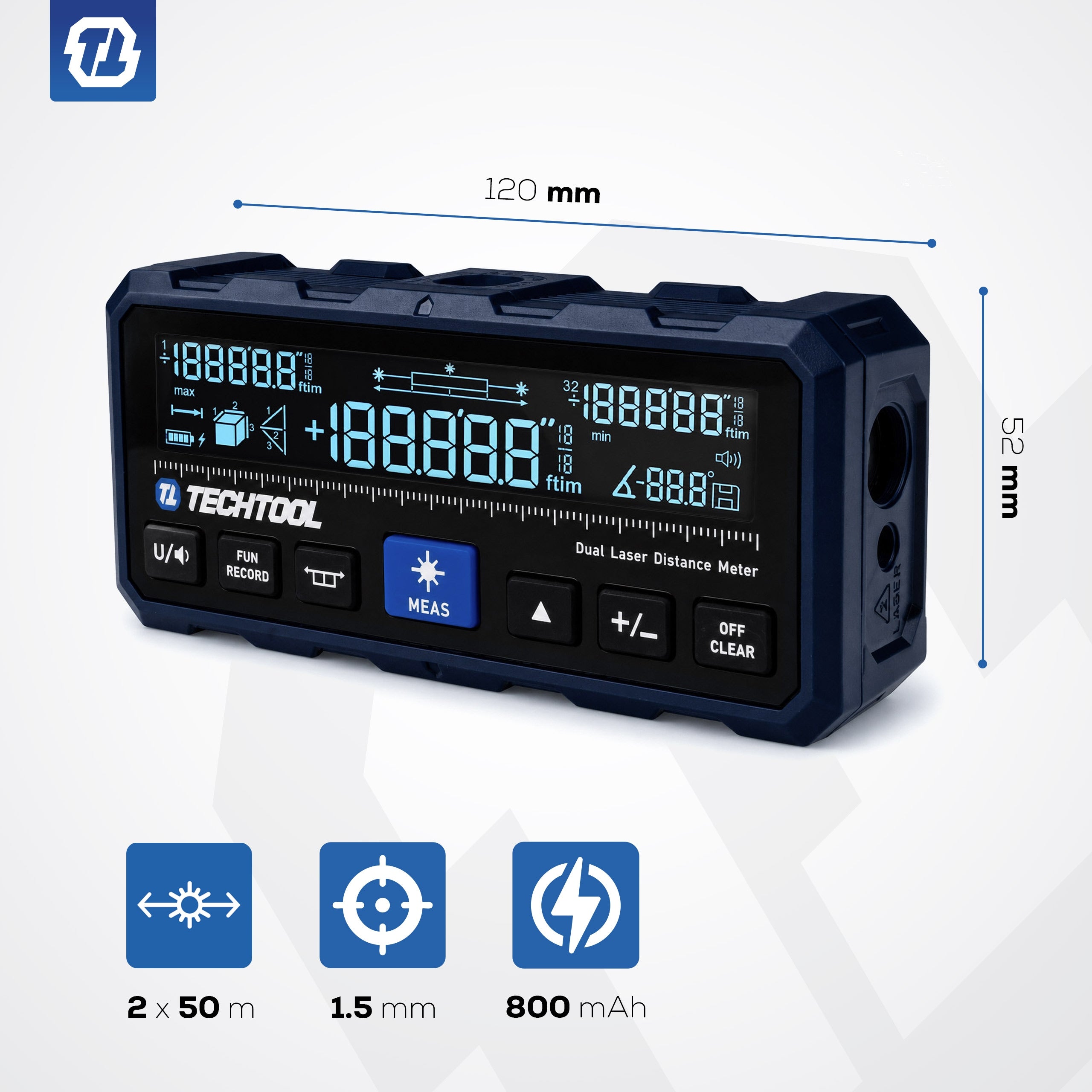

• Dimensions: 120 mm x 52 mm x 27 mm
• Weight: 0.11 kg
• Equipment: storage pouch, hanging strap, USB-C charging cable, sight plate, instruction manual in Polish, original manufacturer's packaging.

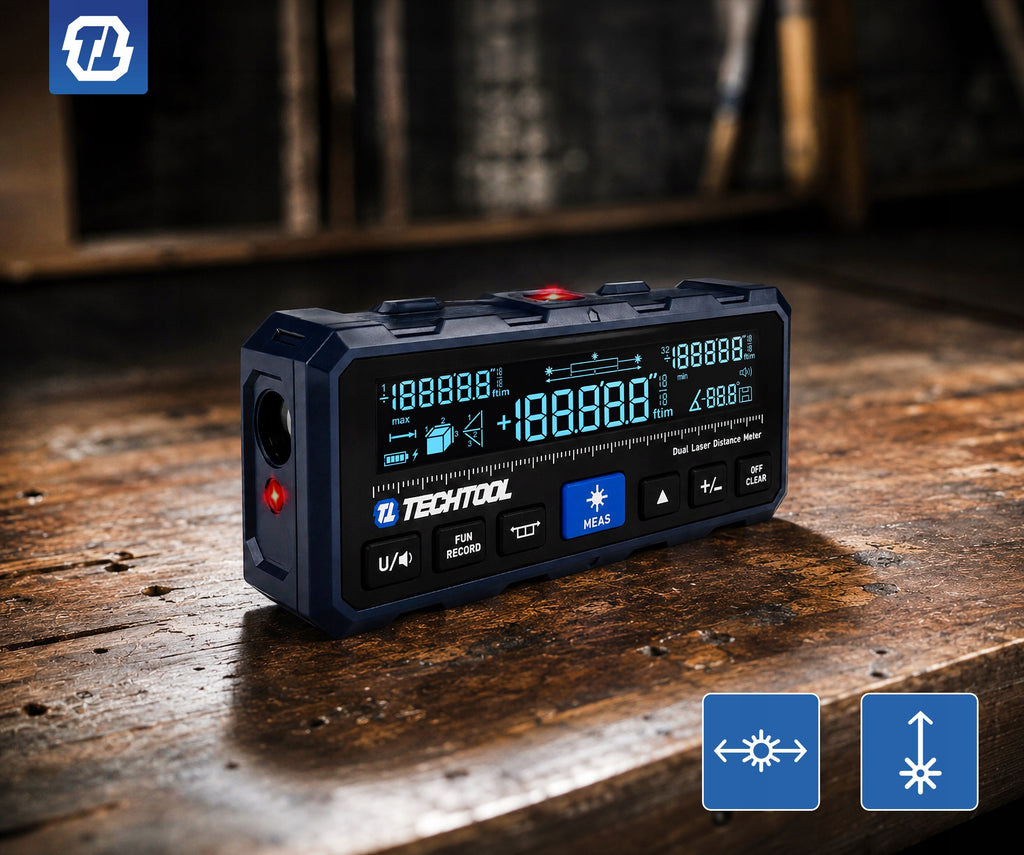

✅ Bidirectional laser measurement – faster, more convenient, more accurate

• TECHTOOL TTDM01 is an innovative next-generation laser rangefinder, equipped with advanced TWO-WAY MEASUREMENT SYSTEM – a solution that significantly increases convenience and speed of work.

• Thanks to this, the user can instantly determine the total width of the room or space without having to rearrange the rangefinder and perform several separate measurements.

• The device offers a MEASUREMENT RANGE FROM 0.2 to 100 METERS with HIGH ACCURACY ±1,5 mm, providing precision far exceeding the capabilities of traditional measuring cups.

• In practice, this means faster work, greater comfort of use and reduced risk of measurement errors – especially during measurements of interiors, corridors, bodies and finishing and assembly works.

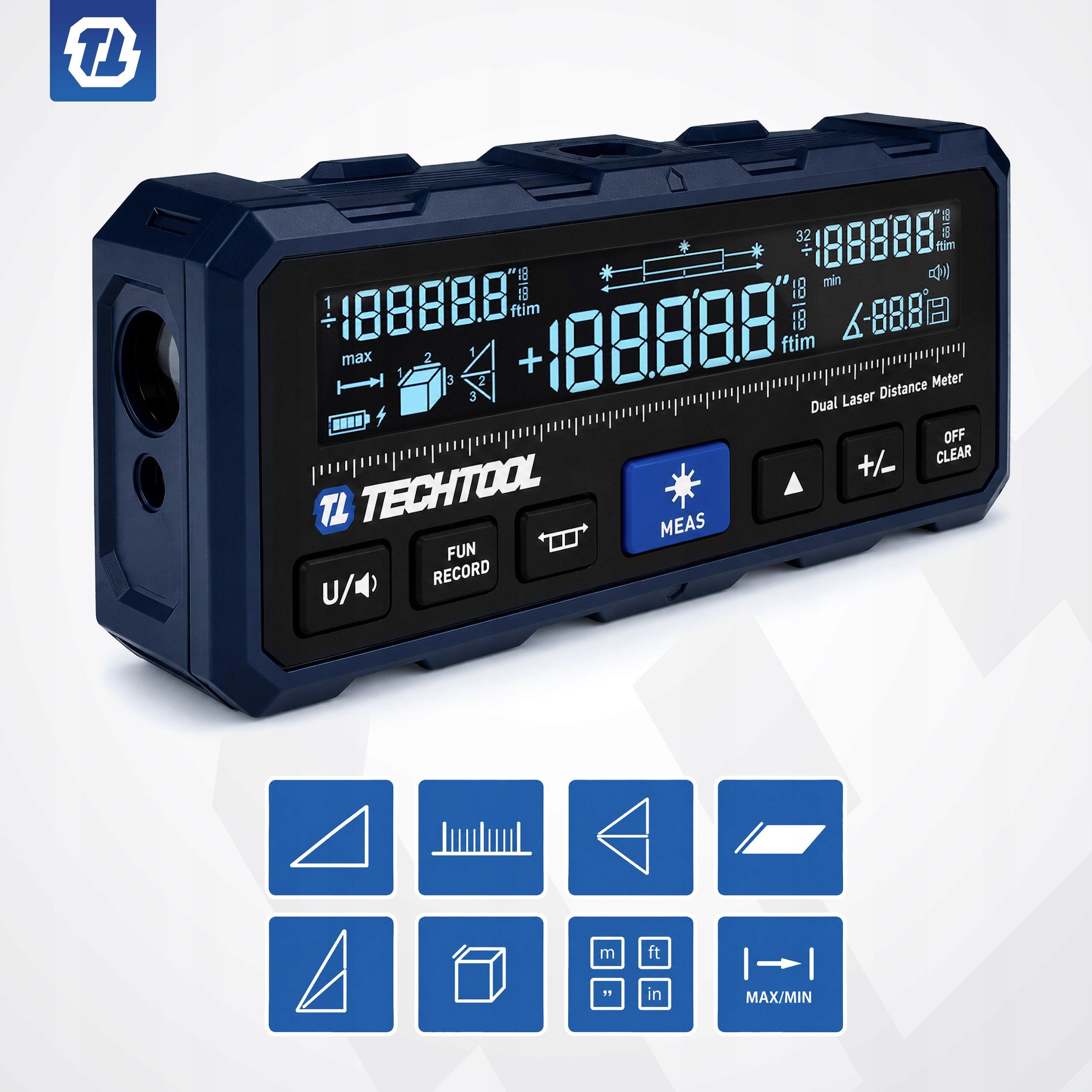

✅ Multi-functional measurement modes

TECHTOOL TTDM01 is equipped with advanced measurement functions, which really accelerate everyday work:

► RIGHT/LEFT DISTANCE MEASUREMENT

It enables simultaneous measurement in two directions without changing the position of the device – an ideal solution for quickly determining the width of rooms and workspaces.

► SURFACE MEASUREMENT

Automatically calculates room area based on length and width — saving time when calculating materials.

► VOLUME MEASUREMENT

Quick calculation of room volume, useful m.in. for air conditioning, heating or planning finishing works.

► HEIGHT MEASUREMENT BY THE PYTHAGOREAN METHOD

It allows to determine intermediate heights in places where direct measurement is difficult or impossible.

► DOUBLE PYTHAGORAS

It provides even more accurate determination of height and distance for more demanding field and construction measurements.

► DIGITAL PROTRACTOR

It allows you to precisely measure the angle of inclination and control the level and vertical during assembly, finishing and construction works. The function is particularly useful when setting structures, guides, stairs, roofs and elements requiring accurate leveling.

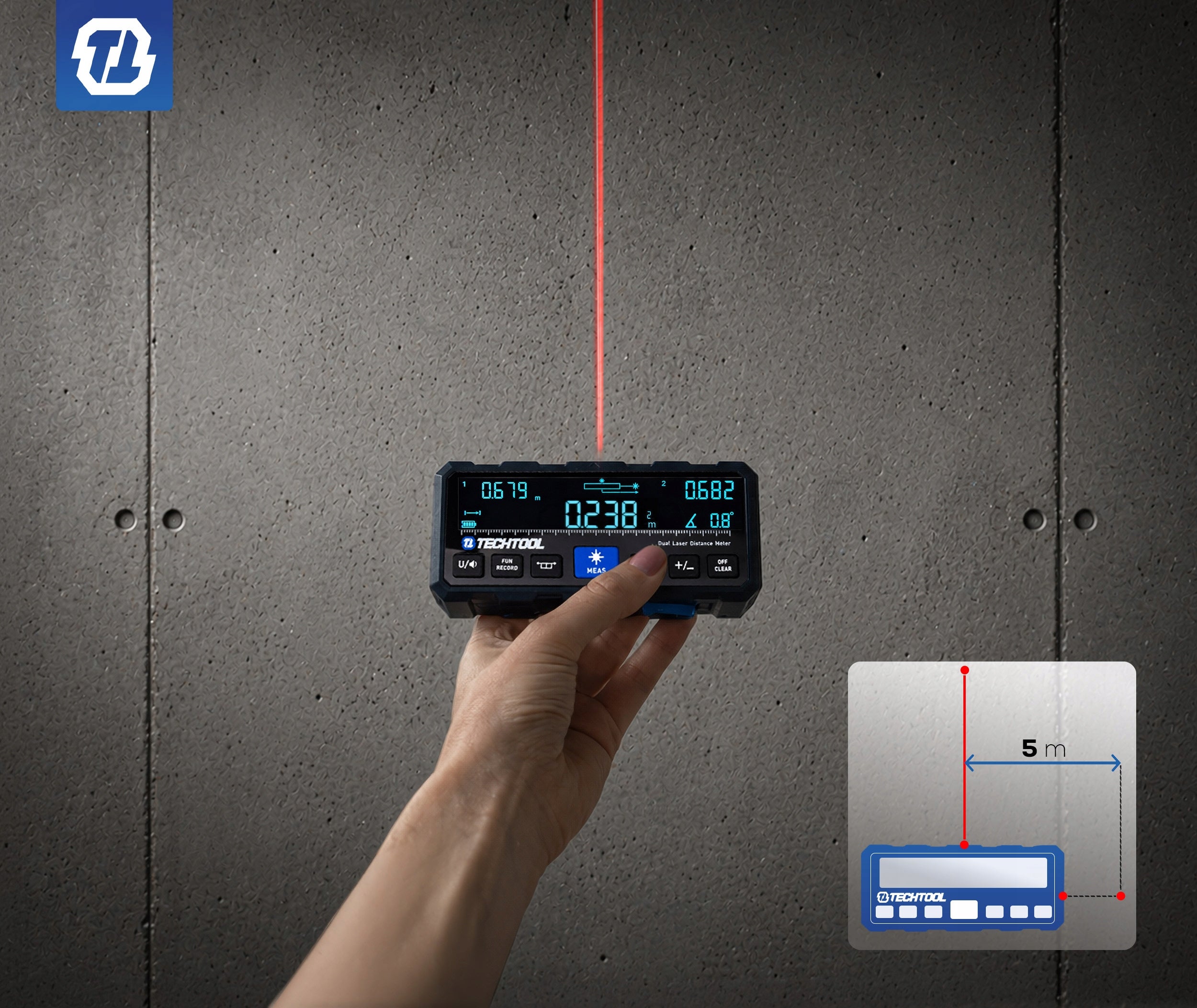

✅ Measurement with additional vertical laser axis

• The rangefinder is equipped with an additional VERTICAL LASER AXIS, which can serve as an indicative reference point when taking measurements without having to approach directly to the wall or the measured element.

• The function facilitates the setting of the device, the maintenance of one measuring line and the indicative positioning during renovation, assembly and construction works.

✅ Continuous measurement mode and reference point selection

• The rangefinder is equipped with a CONTINUOUS MEASUREMENT FUNCTION, which allows current tracking of the result when moving the device, which allows to quickly and conveniently control the changing distance when taking measurements in real time.

• The device also allows you to select the MEASUREMENT REFERENCE POINT — from the front of the device, the middle, the rear edge or in double-sided mode — so you can conveniently adjust the measurement method to the type of work performed and the measurement conditions.

✅ High precision and measurement memory

The TECHTOOL rangefinder provides MEASUREMENT ACCURACY OF ±1.5 MM, allowing you to take precise measurements even at longer distances.

An additional convenience is BUILT MEMORY UP TO 50 MEASUREMENTS, which allows you to quickly view previously saved results without the need for manual quotation.

The rangefinder supports METRIC AND IMPERIAL UNITS, thanks to which it will also work well with foreign documentation or projects carried out in an inch system.

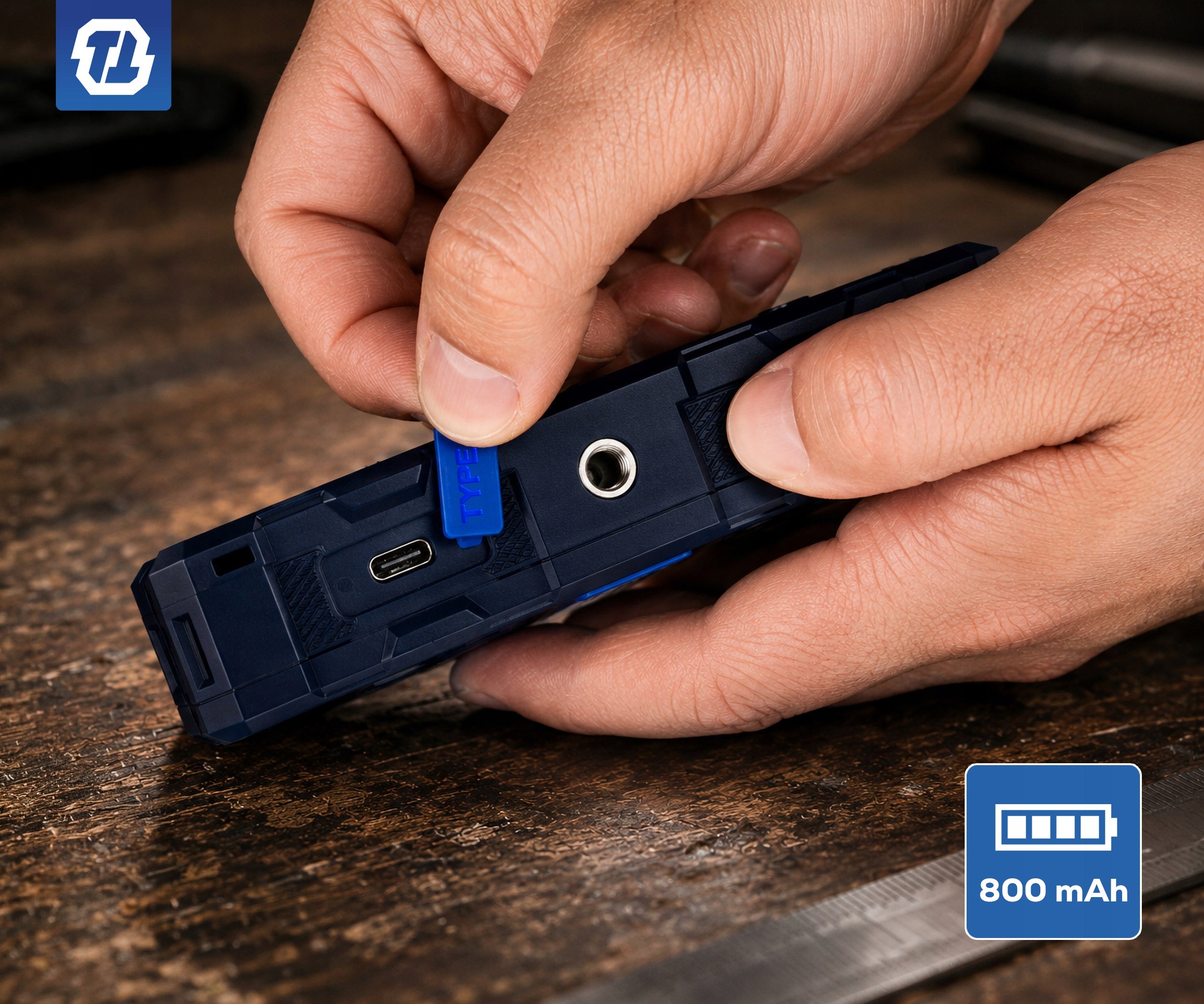

✅ Powerful battery and modern USB-C charging

• TECHTOOL TTDM01 is equipped with a CAPACITY 800 mAh lithium-ion battery, which provides a long working time and allows you to take multiple measurements without the need for charging.

• Modern USB-C CONNECTOR enables fast and convenient charging of the device – exactly the same as in modern smartphones or laptops.

• Thanks to this, the rangefinder can be EASILY CHARGED from a network charger, powerbank, computer or in the car, without the need for special cables or battery replacement.

• In addition, the device is equipped with a standard 1/4" MOUNTING THREAD, enabling stable attachment of the rangefinder on a tripod during precise measurements.

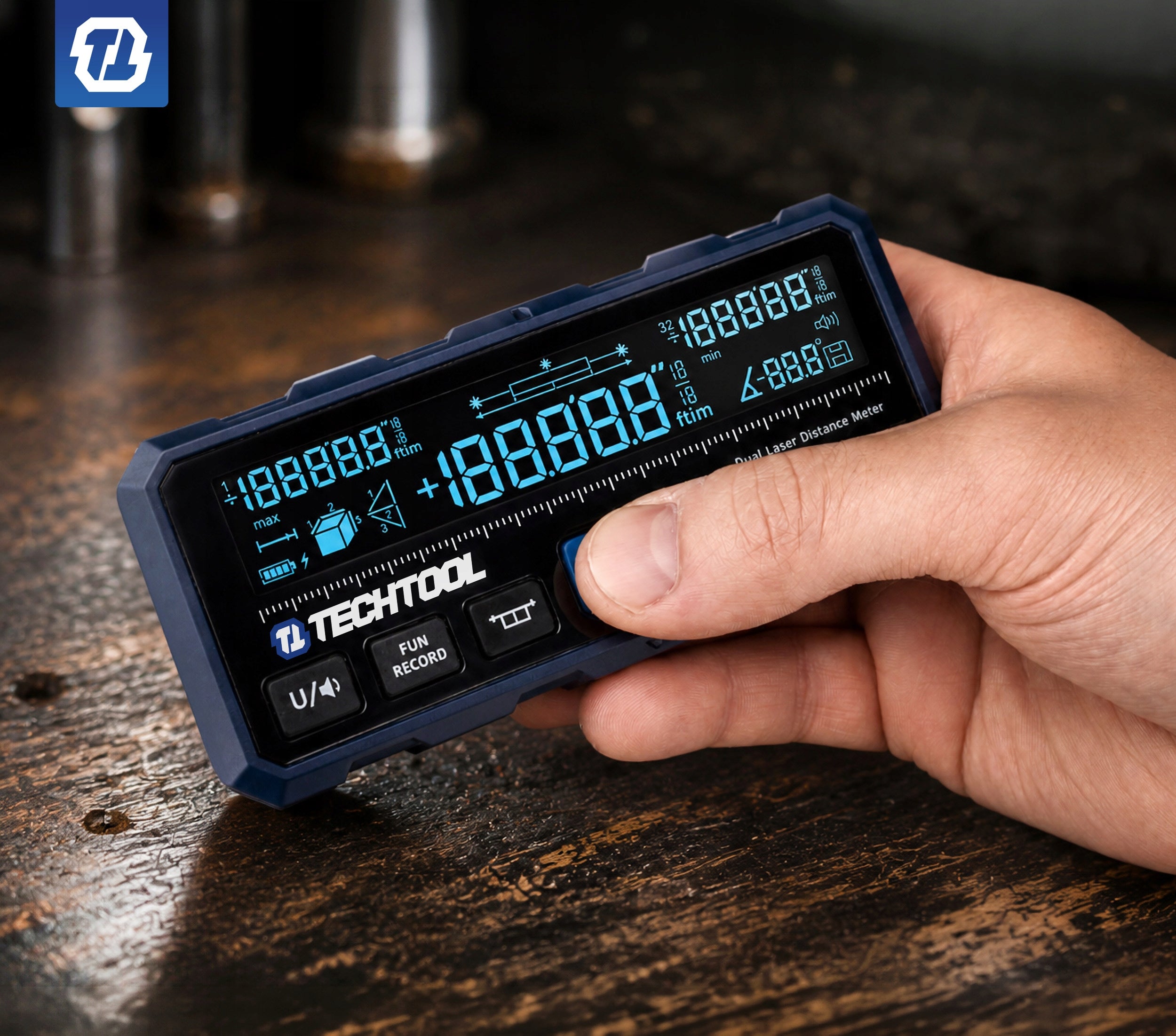

✅ The rangefinder is equipped with a high-quality LCD screen made in High Contrast Display technology

The screen is designed to provide very excellent readability both in darkened and heavily sunlit rooms, as well as when working outdoors.

The High Contrast Display technology improves the contrast and readability of the displayed measurements, thanks to which the results remain well visible in various lighting conditions.

✅ Simple and intuitive operation

The TECHTOOL rangefinder has been designed so that operation of the device is FAST, CONVENIENT AND TROUBLE-FREE OPERATION even for people who have not used a laser rangefinder before.

Intuitive menu, readable LCD display and convenient button layout allow you to efficiently take measurements from the first use.

The set comes with a detailed instruction manual in Polish, in which we described step by step all the functions of the device, measurement modes and how to configure the rangefinder.

Thanks to this, every user can quickly use the full capabilities of the device.

✅ Durable Construction & Practical Features

The rangefinder is made from high-quality materials, ensuring durability and resistance to daily use.

Its compact design and light weight make the device comfortable to hold and easy to keep on hand during work.

• The set includes a practical storage pouch to protect the device during transport and storage, as well as a hanging strap for increased convenience when working outdoors or at heights.

• By choosing high-quality measuring equipment, you invest in precision, work comfort, and a reliable tool that will serve you for a long time.

✅ Every rangefinder undergoes inspection and calibration before shipment

► Each pcopy undergoes a process of inspection and precise calibration, which allows to ensure high accuracy and reliability of measurements from the first start of the device.

► Thanks to this, the user can be sure that he receives equipment ready for operation, ensuring stable and repeatable measurement results in everyday use.

► TECHTOOL TTDM01 is perfect for home DIYers, repair teams, fitters and installers, as well as professionals in the construction and finishing industries – wherever speed of operation and precision of measurement counts.

► High quality of workmanship, modern measurement technology and functionality of the device are confirmed by positive opinions of users who appreciate the convenience of work, accuracy and reliability of TECHTOOL rangefinders.

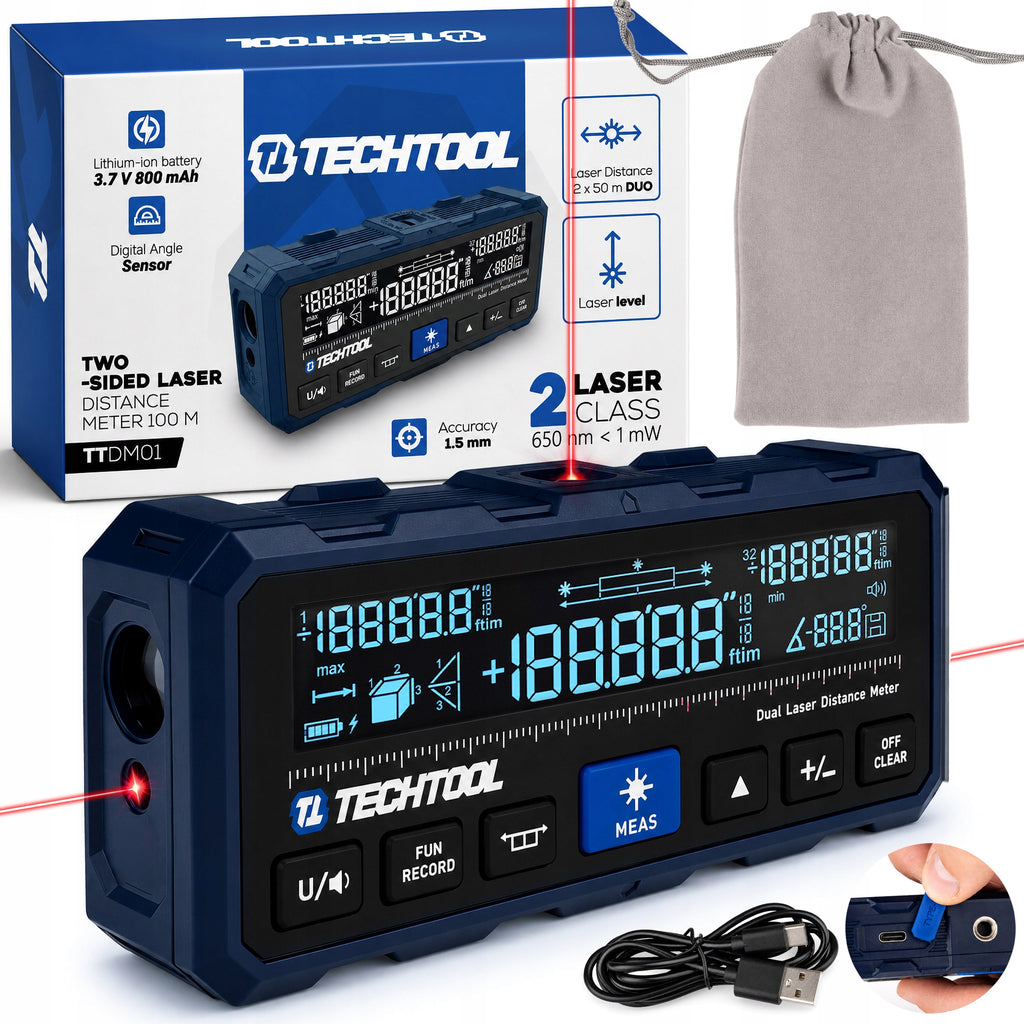

THE SET INCLUDES:

• Two-way laser rangefinder TTDM01,
• storage bag,
• strap for hanging,
• USB-C charging cable,
• targeting plate,
• instruction manual in Polish,
• original manufacturer's packaging.
