Lazerinio graviravimo modulis 33W su 32 bitų 1D

Trumpai apie prekę

Prekė: Lazerinio graviravimo modulis 33W su 32 bitų 1D. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 3073TECJ

Function:

1. Compatibility Design: The update kit is designed to maintain a specific compatibility, it can also be upgraded to a Sculpfun S9 laser engraver. All accessories are included in the package.

2. Improved Laser: The S9 laser machine upgrade kit adopts a single improved 6W diode, which increases its actual laser power and cutting ability. Compared with S9 laser engraving (5,5W balsa wood cutting 3mm and plywood cutting 3mm in one pass), the S9 33W upgrade kit can cut 20mm balsa wood and 15mm plywood in one pass.

3. Improved 32-bit Assist motherboard: The latest 32-bit motherboard has stronger calculations and greatly improves overall performance compared to the S9 (8-bit) main control board, which can realize faster cutting speed and more stable cutting effect. It supports automatic air assistant control function, supports BT wireless connection to control the machine, and is not limited by USB cable distance.

4. High-speed air assistance pump: greatly improves cutting penetration and cutting efficiency with faster cutting speed and cleaner cutting surfaces. The high-speed air flow of 13,5 m/s with high-pressure air assist nozzle means that it can cut plywood and MDF panels more than 5 times faster, and the cutting surfaces are cleaner and there is no smoky.

5. Standard S9 XY Axis Limit Switch: It is ideally suited for S9 laser device and can be installed and used directly. After installing the limit switch, the machine will open the homing and positioning function, which is very suitable for repeated positioning or batch production.

6. Protective Lens Replacement Kit: The S9 machine upgrade kit adopts an innovative interchangeable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after prolonged use, the lens can be replaced to restore its cutting power. One free lens is included in the package with the purchase, the lenses are very cheap and can be easily purchased at Sculpfun.

7. New Laser Eye Shield Update: The Sculpfun S9 upgrade kit comes with a detachable glass eye shield that won't be dazzling even if you don't wear glasses. Plus, you can easily disassemble it if you don't need it.

8. Compatibility Design: The S9 upgrade kit is designed to maintain some compatibility, and with the exception of the S9 machine, it can also be upgraded to similar 2-axis laser machines.

Specification:

• Product Model: S30 Ultra 33W
• Applicable machines: for S9/s6/s6pro/s30/s30pro/s30pro maximum
• Laser Information
• LED laser output power: 33 W
• Laser focus: 0,08x0,10 mm
• Laser wavelength: 455 ± 5 nm
• Focus method: 40 mm fixed focus column + sliding device
• Laser protective cover: equipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down or remove the eye shield.
• Laser shell: 6063 Aluminium

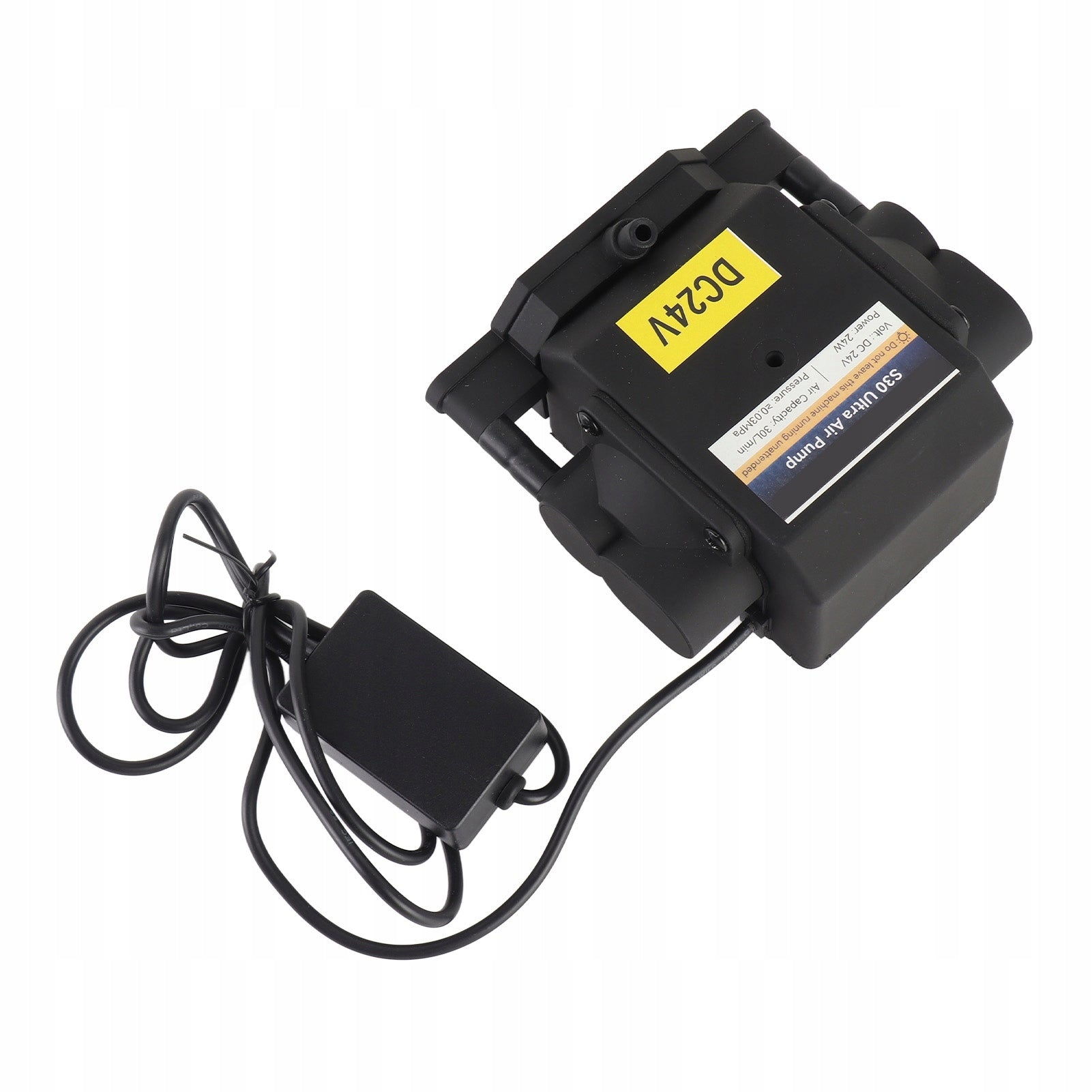

• Air pump
• Type: Mainboard controlled air pump, 24 V voltage, 30 l/min flow rate
• Inner diameter of air hose: 7,5 mm

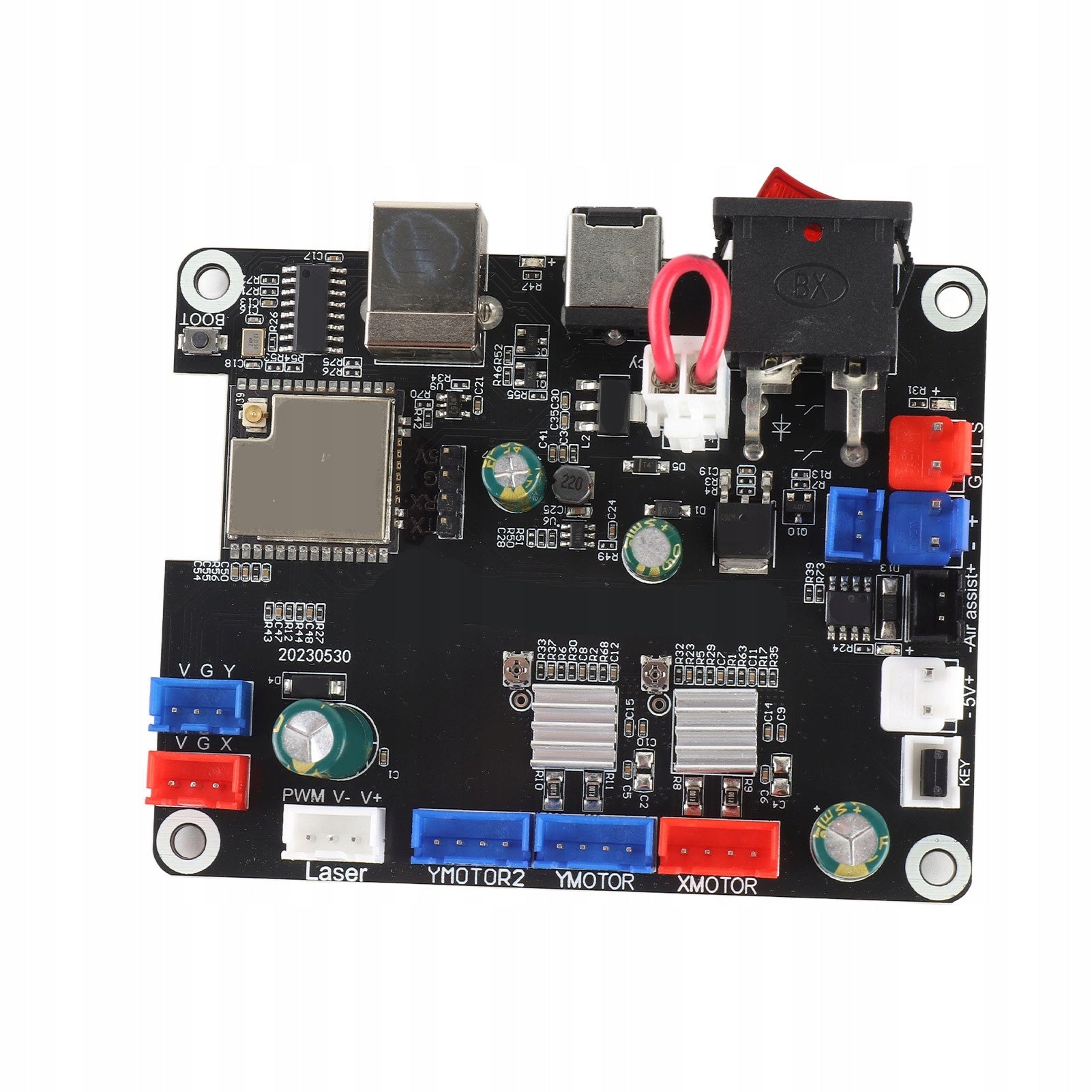

• Motherboard
• 32-bit air assistance motherboard, supports BT wireless connection to control machine, not limited USB cable distance
• Cutting Materials: All kinds of wood (including walnut, cherry wood and other high density wood), MDF, black acrylic board, cardboard, bamboo chips, leather, some plastic boards, fiberglass board
• Carved materials: All kinds of wood (including walnut, cherry wood and other high density wood), MDF, Bamboo, cardboard, plastic, leather, fiberglass board, aluminum oxide, stainless steel (non-specular surface), ceramic, dark stone
• Output: 24 V 7A
• Operating software: for Lightburn (with Air Assist M8 function), for Lasergrbl, for Benbox, for GrblController, for Litefire, Win system support, for operating system. File formats that support NC, BMP, JPG, PNG, DXF and other photo formats.
• Data transmission method: USB connection or BT wireless connection

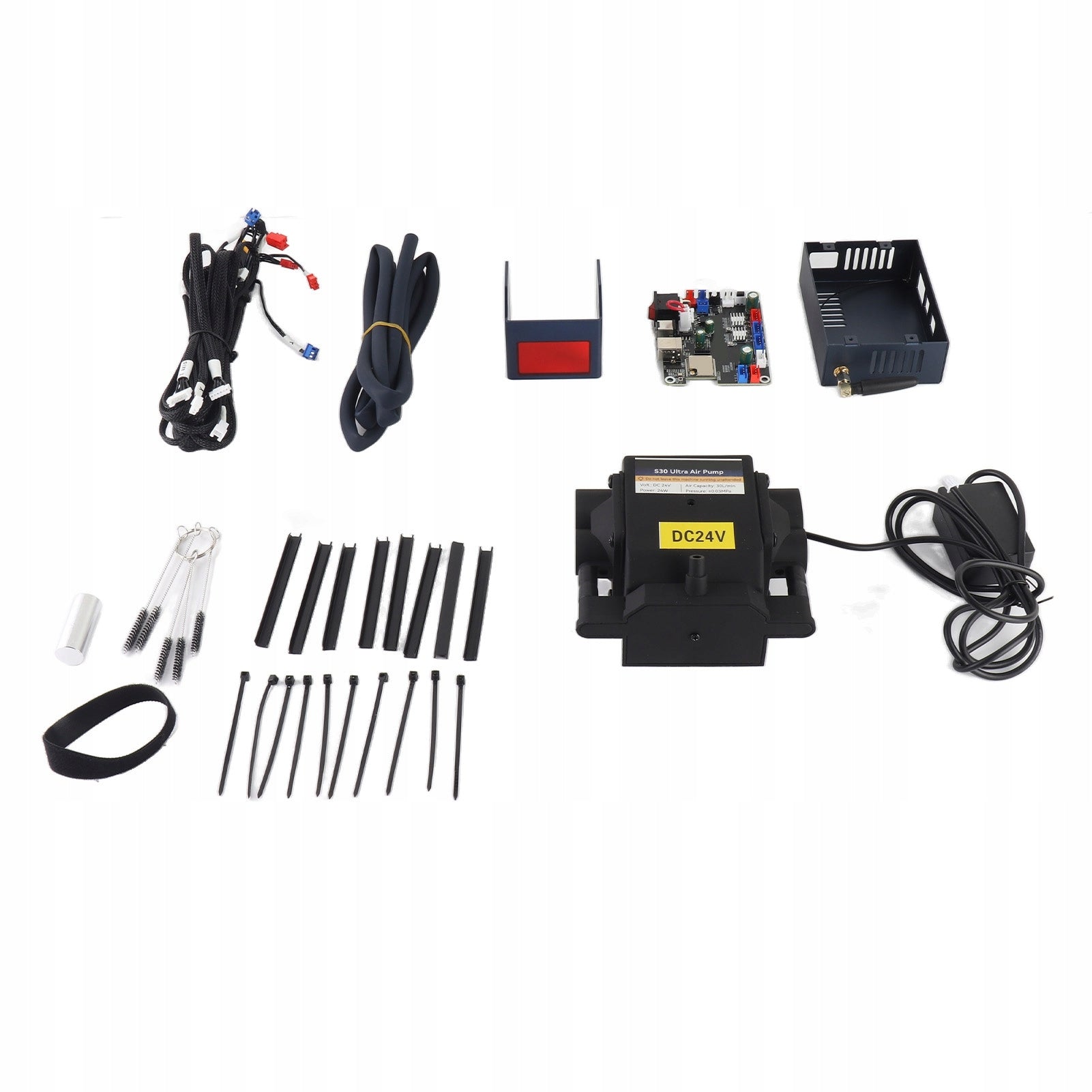

List of packages:

• Laser head 1 x 33 W (with installation plate)
• 1x metal laser cover
• Air pump 1 x 24 V
• 1 x Air Tube
• 2 x Limit Switch
• 1 x 32-bit motherboard
• 1 x Motherboard (with BT antenna)
• 1 x Terminal Data Cable
• Power adapter 1 x 24 V 7A
• 1 x x-Motor Extended Cable (for machines that have been updated with a Linear Guide)
• 1 x Laser Repair Kit
• 1 x Laser Bag
• 1 x Material Bag
• 1 x Installation Instructions
