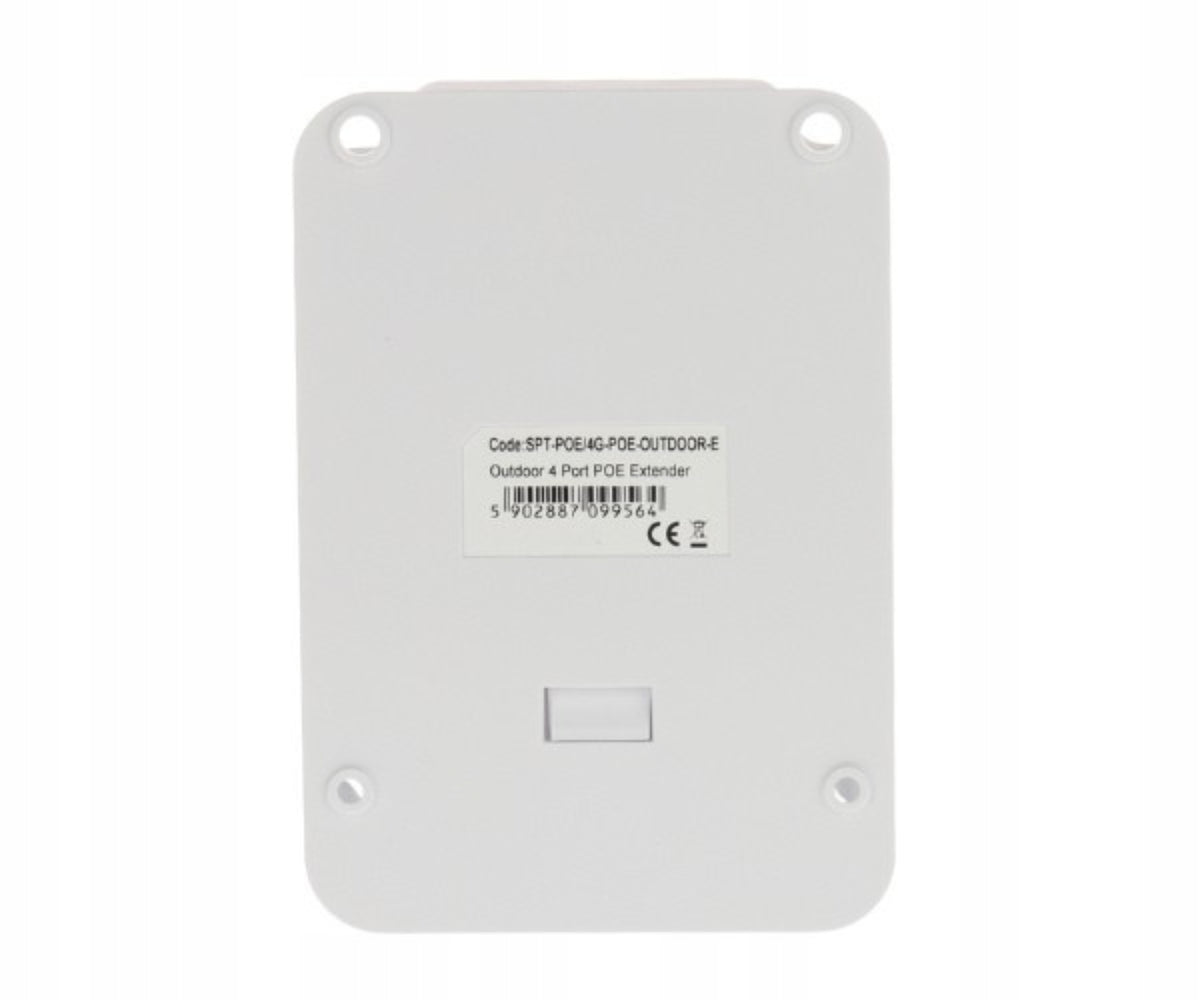

Lauko PoE jungiklis / ilgintuvas SPT-POE/4G-POE-OUTDOOR-E

Trumpai apie prekę

Prekė: Lauko PoE jungiklis / ilgintuvas SPT-POE/4G-POE-OUTDOOR-E. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Delta
• Modelis: SPT-POE/4G-POE-OUTDOOR-E

Product Code: SPT-POE/4G-POE-OUT-E

The SPT-POE/4G-POE-OUTDOOR-E is a 5-port gigabit PoE switch/extender designed for outdoor applications that extends power supply and IP transmission. It is powered by an Uplink port from a 802.3af/at/bt PoE power supply, and 4 output ports provide PoE power for connected devices.

Technical data:

• LAN ports:
• 3 x RJ45 10/100/1000 Base-T + PoE (802.3af/at),
• 1 x RJ45 10/100/1000 Base-T + PoE (802.3af/at/bt),
• 1 x RJ45 10/100/1000 Base-T - Uplink + power input
• Management: no
• LEDs: Link/Act
• Transmission speed:
• 10 / 100 / 1000 Mbps : 4 RJ-45 + PoE OUT ports,
• 10 / 100 / 1000 Mbps : 1 RJ45 Port (Uplink) + PoE IN
• Maximum output power:
• 30 IN @ LAN 2 ... LAN 4
• 60 IN @ LAN 1
• Maximum total power: 90 W
• MAC address table: 2k
• Selected features:
• The device can act as a LAN extender and PoE power supply
• PoE output voltage is equal to the input voltage
• PoE Power Supply - The device supports 8-pin power supply
• Can be mounted on the wall
• For outdoor applications
• Housing: Plastic - Wall-mounted, hanging
• Power supply: 48 ... 56 V DC - Hi-PoE (802.3af/at/bt)
• Working temperature: -10 °C ... 55 °C
• Weight: 0.13 kg
• Dimensions: 129 x 90 x 31 mm
