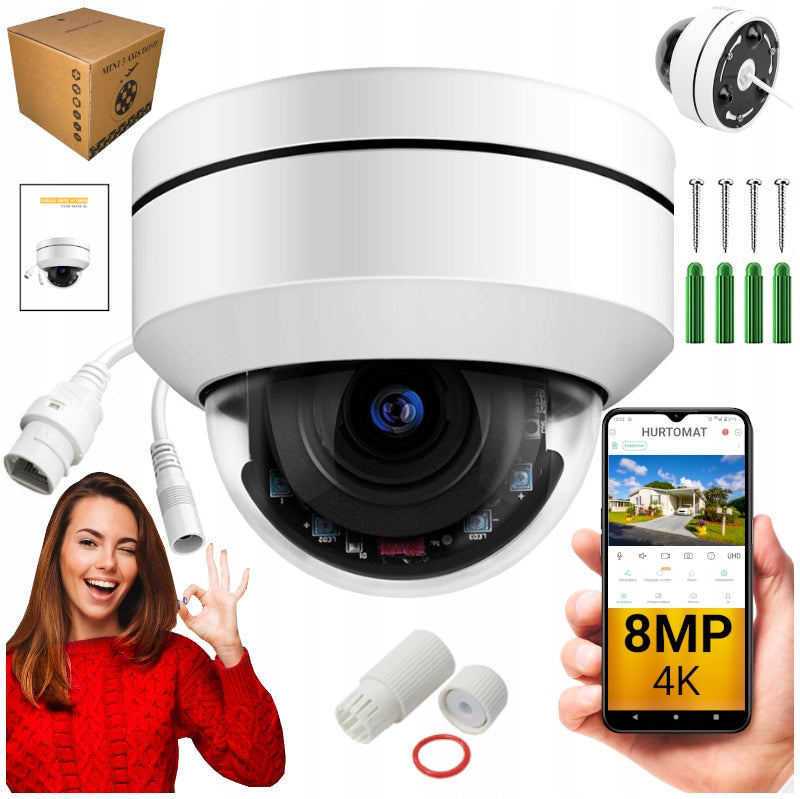

Lauko IP vaizdo kamera 8MP, 4x priartinimas, POE, PTZ

Trumpai apie prekę

Prekė: Lauko IP vaizdo kamera 8MP, 4x priartinimas, POE, PTZ. Kategorija: IP kameros.

• Gamintojas: Labra
• Modelis: IP46F

The 8MP 4K UltraHD PTZ dome camera is the ideal solution for monitoring residential buildings, offices, shops, plots and many other objects. The camera is characterized by compact sizes, thanks to which it provides discretion of monitoring. Solid metal housing and made of strong glass dome protecting the lens provide adequate protection against vandals.

The most important advantages:

• high-quality lens with 4x optical zoom!
• very high resolution 3840*2160 8MP for a highly detailed image
• built-in IR diodes operating in infrared mode ensuring visibility at night or in conditions of insufficient lighting
• motion detection system
• intelligent system of detection of human silhouettes
• notification on the phone
• Image recording
• PoE - option to power the camera using the LAN cable itself
• free XMEye PRO (recommended) and iCSee apps
• ability to store data in the cloud
• remote access P2P
• ONVIF protocol - possibility of connecting cameras to external recorder
• solid construction resistant to acts of vandalism
• waterproof
• universality of applications
• easy installation

Detection and tracking of human silhouettes

The camera is equipped with an innovative algorithm for detecting human silhouettes and tracking them. When tracking mode is enabled - the camera will start recording only when a human is detected. This saves card space, and notifications will only come when people are detected.

Vertical and horizontal rotation

The camera can be rotated 355 degrees horizontally and 70 degrees vertically through the mobile application on your phone. Regardless of where you place it, you can capture the image anywhere you see it!

Optical Zoom

The camera has 4x zoom, so you can zoom in on the frame without losing image quality.

Lighting at night

The camera has the function of illumination at night with visibility - up to 30m!

A) daily view - color image

B) night view - infrared, LEDs that illuminate the frame at night - black and white image

Waterproof

The camera has an IP66 rating, making it resistant to adverse weather conditions, such as:

• frost
• heat
• rain
• snow
• pollination

The included connector caps provide additional protection against external factors.

8MP 4K resolution

The 3840*2160 resolution (UHD - Ultra HD) guarantees very high quality and significantly greater image detail compared to Full HD cameras.

Android and iOS mobile app

The camera has a dedicated ICSEE mobile application (for Android/iOS) for remote viewing. You can control it from anywhere in the world (with Internet access).

The Android application has the Polish language option, while the iOS English application. There is an instructional video that presents all the options so there will be no problem with its operation. Everything is intuitive and in most cases in the form of icons.

The camera can also be viewed from the website via PC as well as through the built-in applications of ONVIF recorders.

Different methods of power supply

The camera can be powered in two ways:

A) via Internet Cable (PoE)

B) in the traditional way using a DC12V power supply

Power Over Ethernet (PoE) is an advanced technology that enables to use a single network cable for both audio-video and power data transmission. This method of power supply significantly simplifies the wiring system and facilitates the use of the camera.

Construction of the device:

1. Metal housing
2. Mounting bracket
3. RJ45 POE LAN Socket
4. DC12V power socket
5. Glass lampshade
6. Lens

Technical specification:

• resolution: 8MP
• video compression: H.265
• processor: NT98566+SC8239
• lens: 2.8-12mm (zoom)
• zoom: 4X
• Output resolutions: 3840*2160, 2592x1944, 2592x1520, 2304x1296, 1920x1080, 1280x960, 1280×720, 720×576, 640×480
• white balance: automatic
• twilight sensor: automatic
• communication protocols: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, PPPoE, P2P
• Support for memory cards: no
• observation angle: 90°
• LEDs: infrared
• IR illumination range: 30 meters
• Power supply: POE 48V or DC12V 1A (power supply not included)
• systems: Android, iOS
• horizontal rotation: 0º-355º
• Horizontal rotation speed: 0-25°/s
• vertical rotation: 0º~70º
• vertical rotation speed: 0-20º/s
• patrol mode: YES (up to 3 scenarios can be programmed)
• patrol points: maximum 16
• IR illumination range: up to 30 meters
• number of frames/second: 15 FPS
• power consumption: < 10W
• minimum lighting: 0.01 lux
• sensor: CMOS
• night mode: yes (automatic startup)
• infrared filter: yes
• motion detection: yes
• Detection of human silhouettes: yes
• notifications on the phone: yes
• notifications by email: yes
• sound recording: yes
• Application: iCSee and Xmeye (free)
• connectors: LAN socket, DC12V power cable
• wire length: 55cm
• dimensions: 10,5cm x 9cm
• material: metal, glass
• operating temperature: -30℃ ~ +60℃
• model: IP46F

NOTE: XMEye PRO user manual can be downloaded below in the "Additional information" field

Set Contents:

1. Camera with mounting bracket
2. Mounting pins
3. Wire sealing angina
4. User manual
5. Original packaging
