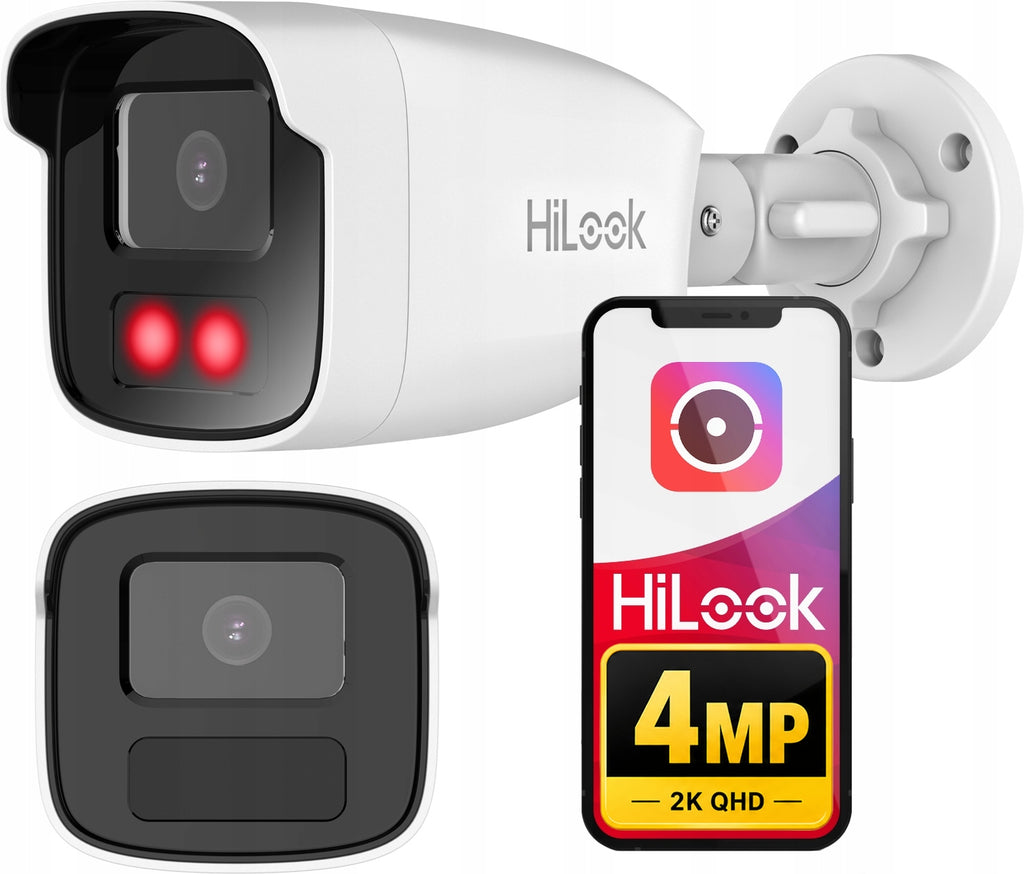

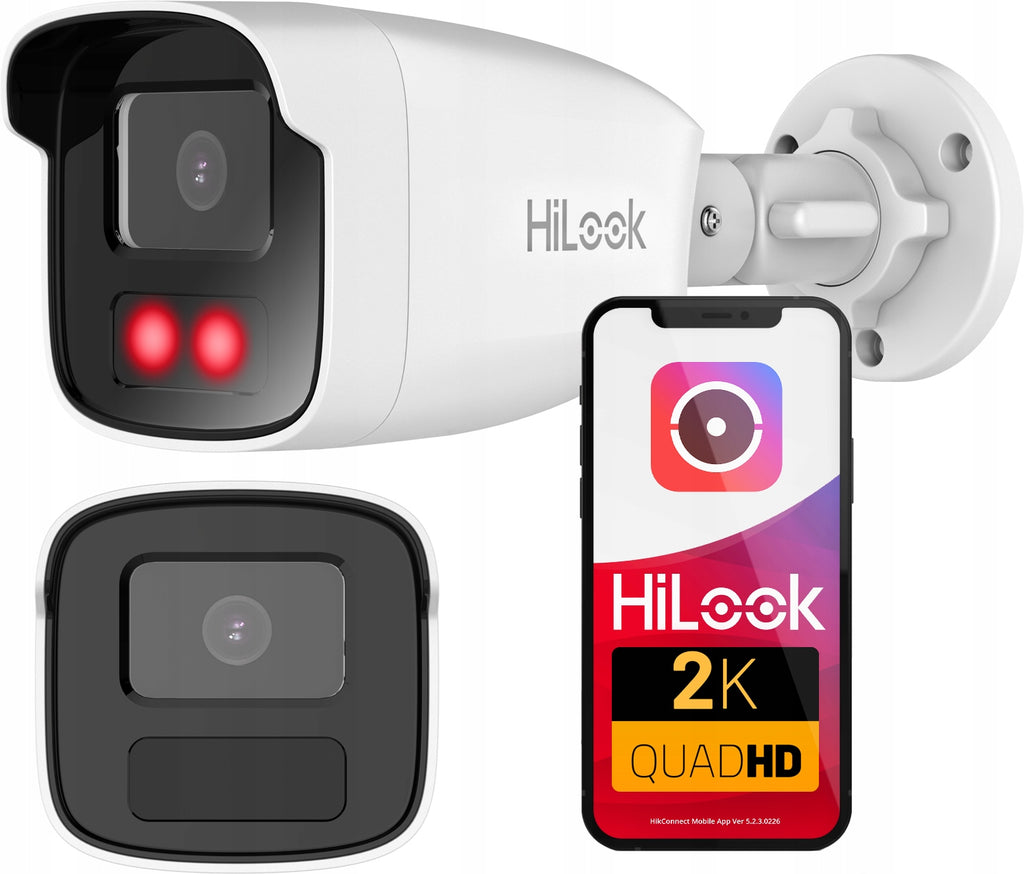

Lauko IP kamera HiLook IPC-B440H, 4MP, 4 mm, PoE, IR iki 50 m

Trumpai apie prekę

Prekė: Lauko IP kamera HiLook IPC-B440H, 4MP, 4 mm, PoE, IR iki 50 m. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: HWI-B440H

IP / 4Mpx / 4mm / IR50m / IP67 / H.265+ / PoE / Application

The HiLook IPC-B440H is a high-quality IP camera, with a resolution of 4MPx, dedicated to small and medium-sized monitoring installations in locations such as home, business or store.

The camera has a built-in IR infrared illuminator from high power (range up to 50m)

Most important features:

• High image resolution in 4MPx 2K - 2560x1440 pixels
• Infrared illuminator with a range of up to 50m
• Tight outer casing IP67
• Convenient power supply via PoE
• Remote access via the HikConnect app
• Easy installation and operation

• Converter: 1/3” 4MPx CMOS
• Recording resolution: 2560×1440 @20FPS
• Lens: wide-angle 4 mm
• Recording angle: ~83,2°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: True WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Night mode: Yes - infrared
• Infrared range: up to 50 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in Hik-Connect: Yes
• Remote support: iVMS-4200, WEB interface, Application
• Assembly: external or internal
• Power Supply: 12V orPoE
• Protection class: IP67

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

HiLook monitoring systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, as well as the iVMS-4200 software for PCs. This allows users to have constant control and oversight of the monitored area from anywhere in the world with internet access. The app and software enable:

• Live view
• Remote playback of recordings
• Creation of motion detection scenarios and rules
• Control of PTZ (Pan-Tilt-Zoom) cameras
• Receiving event notifications within the system

The application uses P2P cloud for operation, so the system does not require port forwarding on your router.

The camera is equipped with an extremely efficient IR illuminator, generating a light beam with an operating range of up to 50m. Thanks to such a powerful illuminator, the camera effectively captures all objects even in complete darkness.

The camera has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The camera uses an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Camera

• Sensor: 1/3" CMOS Progressive Scan
• Transmission Standard: IP
• Max. Resolution: 4MP @ 2560x1440
• Sensitivity: Color: 0.01 Lux
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter Mode: Supported
• Lens: 4 mm
• Recording Angle (Horizontal): horizontal FOV 83.2°, vertical FOV 45.5°, diagonal FOV 98.3°
• Head Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Illuminators

• IR Range: up to 50m
• IR Wavelength: 850 nm

Image Compression

• Video Compression: Main Stream: H.265+/H.264+/H.265/H.264 | Sub Stream: H.265/H.264/MJPEG
• H.264: Baseline Profile / Main Profile / High Profile
• H.264+: Main Stream
• H.265: Main Profile
• H.265+: Main Stream
• Video Bitrate: 32 Kbps to 8 Mbps

Smart Functions

• ROI: 1 fixed region for two streams


• Main Stream - Max. Frame Rate: 50Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) | 60Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Sub Stream - Max. Frame Rate: 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Image Functions: BLC, HLC, 3D DNR
• Wide Dynamic Range: WDR 120dB
• Image Settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/Night Mode: Auto / Manual switch

Network

• Network Interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Compatibility: ONVIF, ISAPI
• Simultaneous Live View: up to 6 channels
• Alarm Trigger: Motion detection, video tampering, unauthorized login
• Number of Users / Hosts: up to 32 users, 3 permission levels: Administrator, Operator, User
• Client Software: iVMS-4200, HiLook App, HiLookVision

General

• Power Supply: 12V DC or PoE (802.3af, Class 3)
• Material: Metal + Plastic
• Ingress Protection Rating: IP67
• Dimensions: 184.1 × 66 × 69.1 mm
• Weight: 0.43 kg
