Lauko IP kamera Hikvision HiLook IPC-B140HAP-LUF/SL, 4MPx, su LED ir garsu

Trumpai apie prekę

Prekė: Lauko IP kamera Hikvision HiLook IPC-B140HAP-LUF/SL, 4MPx, su LED ir garsu. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: PC-B140HAP-LUF/SL HiLook by Hikvision

Camera with LiveGuard active protection system (morophone + speaker + red/blue LEDs).

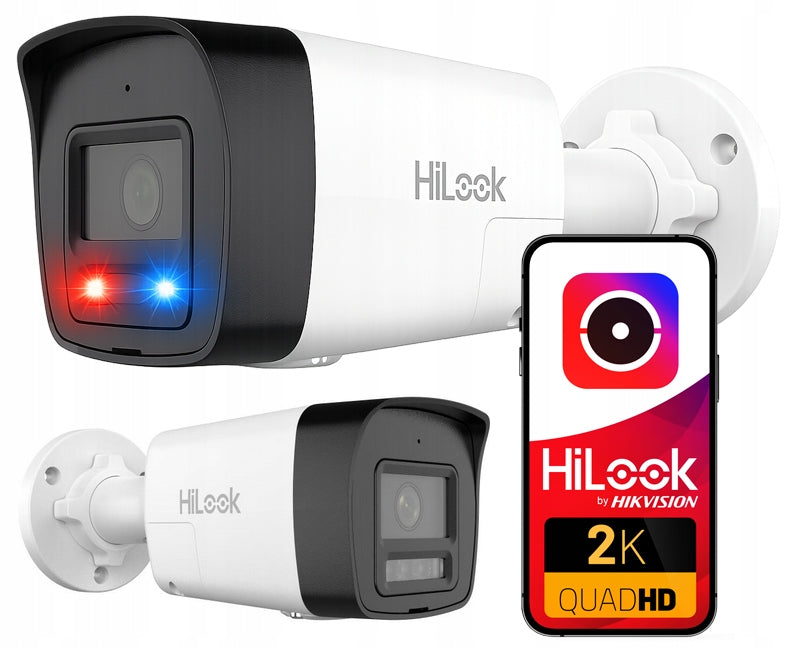

The IP camera IPC-B140HAP-LUF/SL is a modern IP camera designed for effective monitoring of homes, businesses, and properties. The device records images in high resolution 4MP (2560x1440p), ensuring detailed recordings that make it easy to identify people, vehicles, and important scene details.

This model is equipped with Smart Hybrid Light technology, which intelligently combines infrared and white light. The camera can automatically switch night modes – from discreet IR monitoring to full-color images when an event is detected.

A key feature of this camera is the built-in Live Guard active protection system, which uses LED lights (red+blue) and a speaker to effectively deter potential intruders.

✅ 4MPx resolution (2560×1440p) – highly detailed image for easy identification of people, vehicles and events

✅ Smart Hybrid Light technology – automatic switching between infrared and white light for better visibility at night

✅ Colour night vision – the possibility of obtaining a colour recording after dark thanks to LED illumination with a range of 30m

✅ Intelligent motion detection of people and vehicles – limiting false alarms caused by animals or plant movement

✅ Live Guard - Active deterrence of the intruder – built-in light and sound alarm when a threat is detected

✅ Two-way audio communication – microphone and speaker allow you to talk through the camera

✅ Recording to microSD card up to 512 GB – the ability to save recordings without a recorder

✅ PoE or 12 V DC power supply – flexible installation in various monitoring systems

✅ IP67 resistance – safe outdoor work in rain, snow and dust all year round

The HiLook IPC-B140HAP-LUF/SL camera uses Smart Hybrid Light technology, which combines the advantages of classic infrared (IR) illumination with white LED light.

In standard mode, the camera can work discreetly in infrared, providing night monitoring without visible light. However, when the system detects the movement of a person or vehicle, the camera can automatically turn on the white LED lighting, switching to color night vision mode. Thanks to this, the recordings are more detailed and allow you to more easily recognize the important details of the event, and the inclusion of light also works preventively, deterring potential intruders.

The HiLook IPC-B140HAP-LUF/SL camera is equipped with the active intruder deterrence function, which significantly increases the effectiveness of monitoring. When an unwanted presence is detected, the camera can automatically activate red-blue warning diodes, which attract attention and clearly indicate that the area is being monitored.

In addition, the built-in speaker allows you to emit an audible signal or warning message, which works preventively and often effectively discourages potential burglars even before they try to act. Thanks to this, the camera not only records events, but also actively protects the monitored area.

The IPC-B140HAP-LUF/SL camera is equipped with a microSD card slot, which allows direct recording of recordings in the device itself. Thanks to this, you can use monitoring without having to install a recorder – the camera independently archives events and continuous recordings.

This solution is particularly suitable for smaller installations or as backup protection – even if you lose your connection to the network, the video remains stored locally. The high-capacity card support allows you to store your recordings for extended periods of time without having to overwrite them frequently.

HiLook by Hikvision cameras can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings from the recorder
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

Technical parameters – HiLook IPC-B140HAD-LUF/SL

Camera

• Image sensor: 1/,3" Progressive Scan CMOS
• Maximum resolution: 2560 × 1440p (4 MP)
• Minimum lighting: •Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1/3 s – 1/100000 s
• Day/night mode: mechanical IR-cut filter
• Setting adjustment:
• Pan: 0° – 360°
• Tilt: 0° – 75°
• Rotate: 0° – 360°

Objective

• • Lens type: fixed focal length
• • Focal length: 2.8 mm
• • Aperture: F1.6
• • Lens mount: M12

Field of view (FOV):

• • 2.8 mm
• • horizontal: 105°
• • vertical: 55°
• • diagonal: 127°

Lighting

• • Lighting type: IR + white light (Smart Hybrid Light) / red and blue LEDs for active protection
• • Lighting range: up to 30 m
• • Intelligent lighting: yes
• • IR wavelength: 850 nm

Video

• •Sidestream: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• • Main stream:

  20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

• • Video compression: H.265+ / H.265 / H.264+ / H.264
• Bitrate: 32 Kbps – 16 Mbps
• Bit rate control: CBR / VBR

Image functions

• WDR: 120 dB
• SNR: ≥ 52 dB
• • Noise reduction: 3D DNR
• • Image enhancement features: BLC, HLC
• • Image settings: brightness, contrast, sharpness, saturation, white balance
• • Privacy masks: 4 zones

Audio

• • Built-in microphone: yes
• • Built-in speaker:
• • max. Power Consumption: 2 W
• • max. Sound level: 97 dB (10 cm)

Network

• • Network interface: 1 × RJ45 (10/100 Mbps)
• • Protocols:
• TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, UDP, QoS, FTP, SMTP
• • Maximum number of users: 32
• • Application support: iVMS-4200, HiLookVision

Memory

• • Memory card slot: microSD / microSDHC / microSDXC
• • Maximum capacity: 512 GB

Power supply

• • 12 V DC ±25%
• • PoE IEEE 802.3af (Class 3)
• • Maximum power consumption: 8 W (DC), 9.5 W (PoE)

Construction

• • Housing material: metal + plastic
• • Dimensions: 179 mm × 67.4 mm × 69.1 mm
• • Weight: approx. 450 g

Working conditions

• • Operating temperature: -30°C to +60°C
• • Humidity: up to 95% (non-condensing)
• • Leak-proof class: IP67
