Lauko IP kamera 5MPx PoE, 25 m IR, 2.8 mm, garsas, IP67, metalinė, ONVIF

Trumpai apie prekę

Prekė: Lauko IP kamera 5MPx PoE, 25 m IR, 2.8 mm, garsas, IP67, metalinė, ONVIF. Kategorija: IP kameros.

• Gamintojas: Blow
• Modelis: BL-I5IS28BWM/SD/PoE

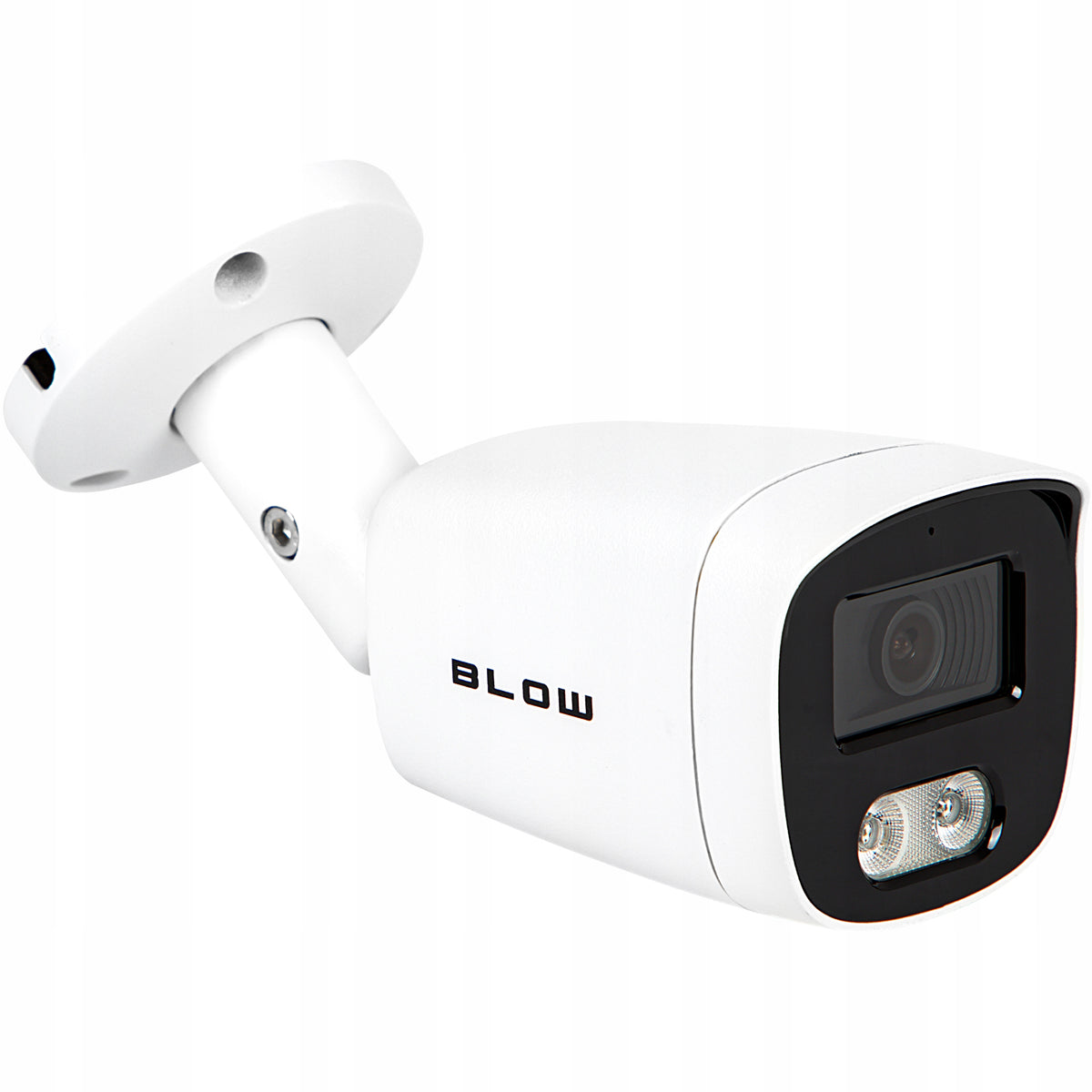

BLOW IP CAMERA BL-I5IS28BWM/SD/PoE

IP cameras in the era of public internet become the most convenient tool for remote monitoring of objects of interest to us: apartment, house, yard, garage or office or workplace. Installing the camera and software is quick and easy.

• External IP camera
• Resolution: 5MPx - 2880*1620 @ 30fps
• Converter: 1/2.8" Sony Starvis Back-illuminated Sensor
• Infrared: IR-CUT
• Range: 25m!
• Compression of data recording: H.265+ / H.265 / H.264+ / H.264
• Horizontal viewing angle: 100°
• Emergency notifications in the mobile application
• Motion detection with notifications
• Motion detection based on human detection!
• Intruder detection, line crossing detection, gathering detection,
• Alarm when motion is detected: Yes
• Phone app: Yes (BitVision)
• Software for Windows/iOS
• Remote preview using an application or computer
• Play recordings using a smartphone or computer
• POE system - Power supply with Ethernet cable
• Precision: IP67
• ONVIF

✅ Detection and notifications

The product has a number of image detection - in the event of a violation of the field observed by the camera or AI events (artificial intelligence), the system will inform us about it by notification in the mobile application BitVision or a message to the selected e-mail address. Setting up these features is extremely simple and quick, and can keep you from the unpleasant consequences. With a notification in case of an attempt to loot your valuables, you can start acting much earlier!

✅ Support for cameras from multiple platforms

Thanks to the BitVision mobile application or the iVMS-320 computer software, you get the ability to set basic parameters, remote preview and playback of recordings - all you need is an Internet connection. Regardless of the place and time, you can preview any monitored fragment within the range of the camera. Using a web browser, it is possible to configure advanced settings of camera parameters.

✅ Works day and night

The camera is equipped with advanced day-night mode, which ensures effective monitoring around the clock.

During the night, thanks to infrared (IR), it automatically switches to night mode, allowing you to see in the dark.

This makes the camera work efficiently both in full light and in complete darkness, providing reliable 24/7 supervision.

✅ Resistant to various weather conditions

The camera meets IP67 protection standards, making it resistant to various weather conditions:

• when it rains heavily;
• when it is winter and it is snowing;
• during cold evenings;
• when there is a very high heat;

✅ Camera durability

The Blow camera is made of extremely durable and durable metal. Metal housing of the camera is not susceptible to distortion resulting from temperature changes or high humidity, so you can be sure that the device exposed to adverse conditions will not leak and will work for years. This parameter is distinguished by high quality equipment!

✅ AI Events

The camera has intelligent functions:

• Detection of intrusions
• Detection of the intruder,
• detection of line crossing,
• detection of accumulation,
• motion detection based on human shape detection

Configuration can be carried out via IP address, or by adding a camera to the CCTV system (NVR/XVR recorder must support intelligent events)

✅ High image quality

High resolution in the camera with fixed-focal lens will ensure the reception of the preview in very good quality and will allow you to see even small details in the recording location.

IR LED infrared range is 25m!

At the same time, good viewing angle parameters should allow to cover a sufficiently wide picture of the observed surfaces.

✅ POE system

The Power over Ethernet system allows you to connect the camera to the network with one cable and power it at the same time. The IEEE 802.3af standard assumes that the device will be powered by DC voltage in the range of 48-52V. The wiring used in this standard is UTP cables of categories 5,5e, 6. The power supply is transmitted through these cable conductors, which are not used for data transfer.

✅ Wide Dynamic Range

WDR stands for Wide Dynamic Range, which stands for wide dynamic range. It is an image processing feature that allows you to record both in the dark and in bright, often blinding light. The result is a more accurate representation of the environment, irradiation and illumination of omitted elements. This function has a positive effect on a more reliable and effective identification of hard-to-reach elements of the image and the ability to accurately record the scene despite high contrast.

✅ H.265 encoding

H.265 encoding in relation to H.264 encoding is distinguished by better data transfer (video bitrate) and lower file storage, i.e. its better compression. For monitoring purposes, it saves the use of network bandwidth and disk space. H.265 saves 50% of disk space without losing the quality of the recorded image. Using the H.265 encoding compared to H.264 on a disk of the same capacity, we can save twice as many video recordings.

✅ Saving files

The IP camera has a built-in internal microSD slot, which will facilitate the installation of the SD card. In addition to saving data to a microSD card, the product also allows you to send files to the cloud.

Maximum SD card capacity: 512GB

Full specification:

Video parameters:

• Resolution: 5MP
• Converter: 1/2.8" Sony Starvis Back-illuminated Sensor
• Compression - Codec: H.264/H.264+/H.265/H.265+/JPEG/AVI
• Effective pixels: 2608(H)*1952(V)
• Image adjustment: Saturation / Brightness / Contrast / Focus, mirror, 3D NR, white balance, FLK (flash control), Video Tampering, HLC, Distortion
• Microphone: /

Lens:

• Focal type Ø: Fixed
• Focal f: 2,8
• ZOOM: /
• S/N ratio: >52dB
• Minimum lighting: 0,005 lux without IR diodes
• Switch day/night mode: Automatically

Network parameters:

• Network connection: RJ45, support 10M/100M IP DATA
• WiFi: none
• Supported protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP
• ONVIF: Yes
• P2P: Yes, QR code support
• Mobile devices: iPhone, iPad, Android
• Video delay: 0,35s (via LAN)
• Main stream 1: 2880*1620@30fps
• Main stream 2: 2592*1536@30fps / 2560*1440@30fps
• Main stream 3: 1920*1080@30fps / 1280*720@30fps
• Substream 1: 720*480@20fps / 720*480@30fps
• Supported browsers: IE8-11, Google Chrome (IE-TAB), Firefox (IE-TAB), Mac Safari(version lower than ver.12)

White light streamer

• IR filter: Yes
• Construction: 2 diodes
• Backlight range: 25m
• IR-CUT - infrared filter: Manually controlled / automatically/schedule

Additional Features:

• Corridor function: Yes
• ROI: Yes
• BLC: Yes
• HDR: Yes
• Fog mode: Yes
• Motion detection: Yes
• Privacy zones: Yes, 3 zones
• WDR (visibility of underexposed elements): Yes, 120dB
• SD card slot: Yes (internal)
• Maximum SD card capacity: 512Gb
• Alarm: No

General information:

• Housing: Metal, IP67
• Working temperature: -20ºC ~ +60ºC
• Moisture: RH95% Max
• Power supply: DC12V±10%,1000mA, DC/PoE socket
• Dimensions: 171(W) x 73(H) x 73(D)mm
• Weight: 750g

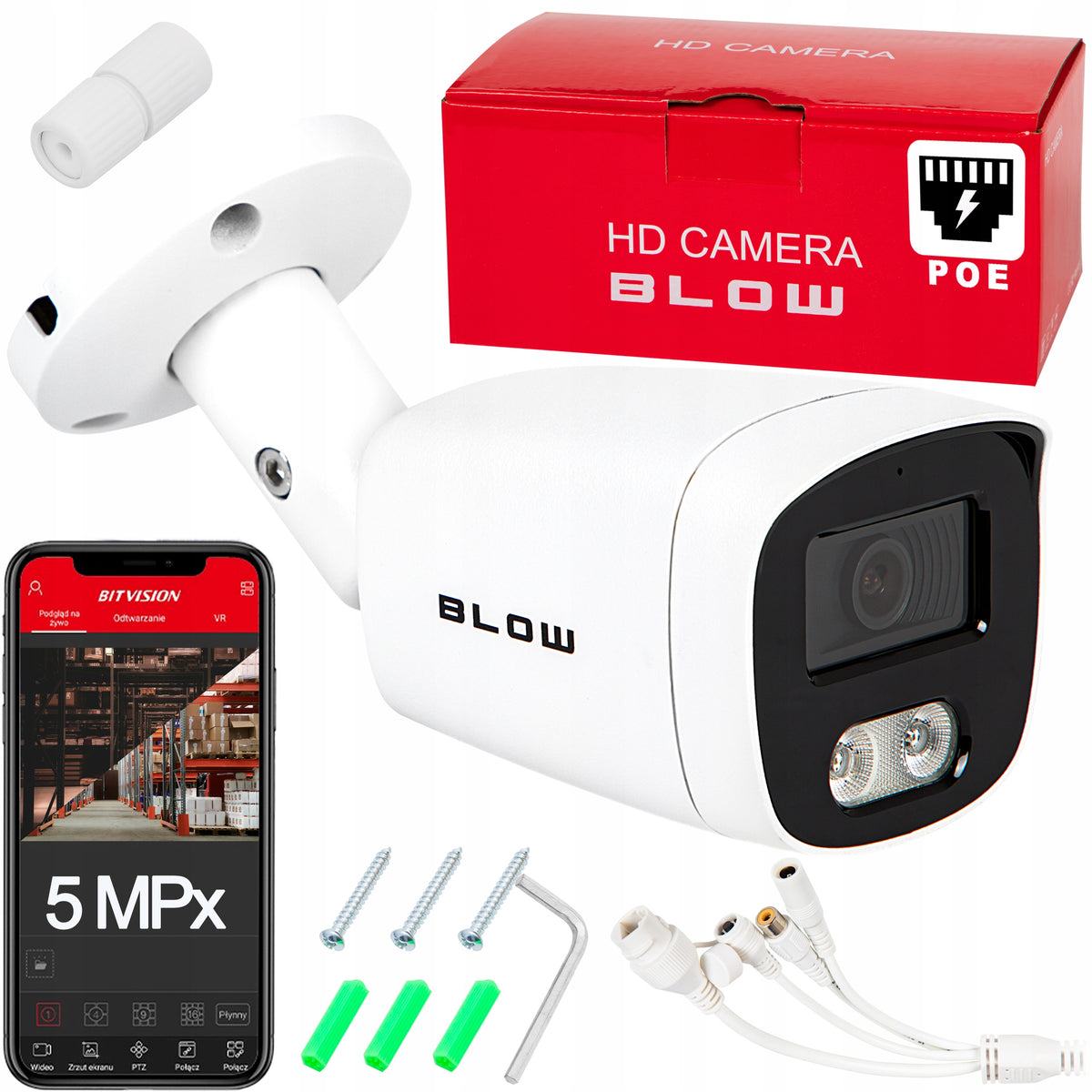

• Set contents: Camera, assembly instructions, mounting template, mounting screws, LAN cable cover
• Compatible distance: BL-D31W (not included)

CE and RoHS certified

BLOW products are CE and RoHS certified. These certificates confirm compliance with fully stringent European Union standards regarding, among others, health safety and environmental protection.
