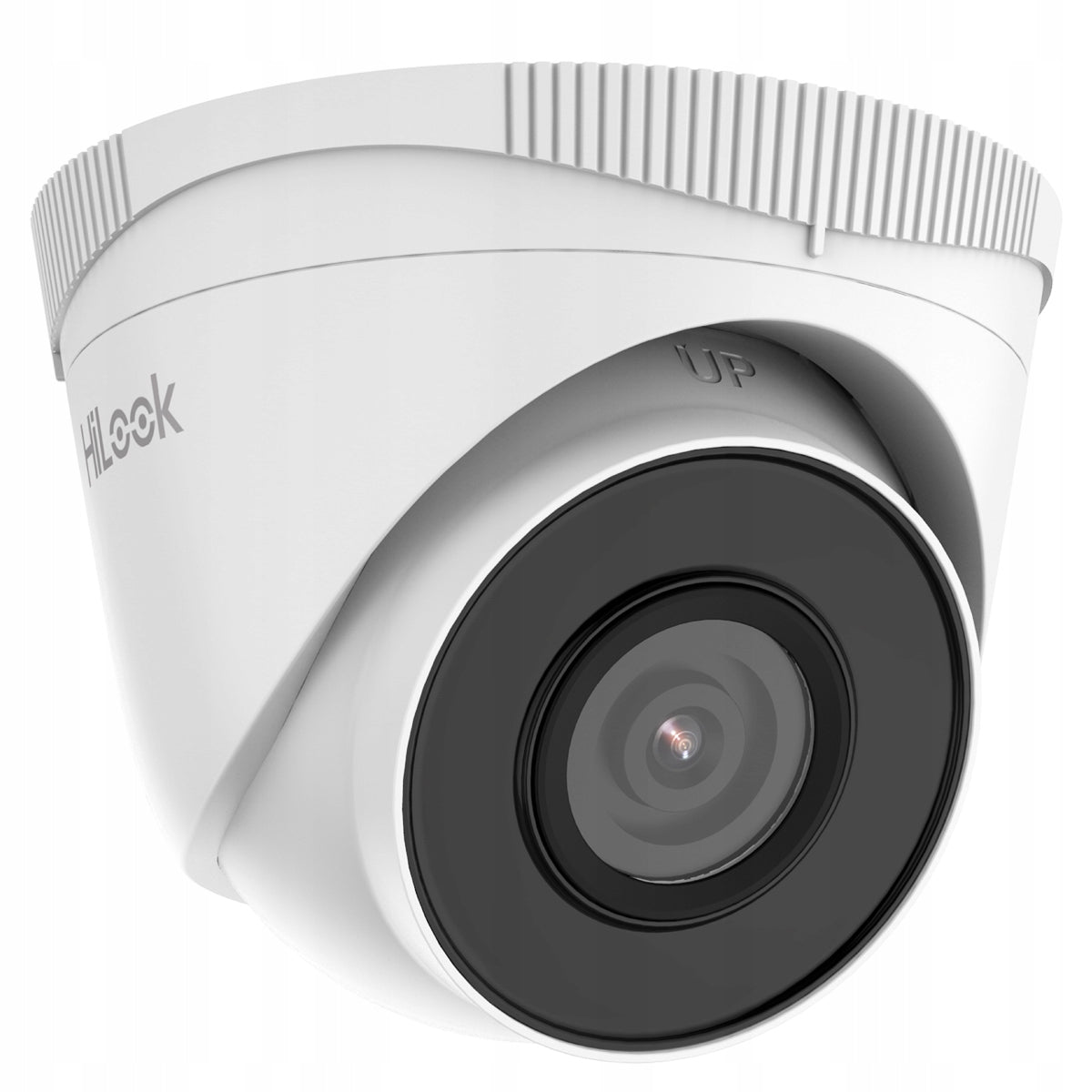

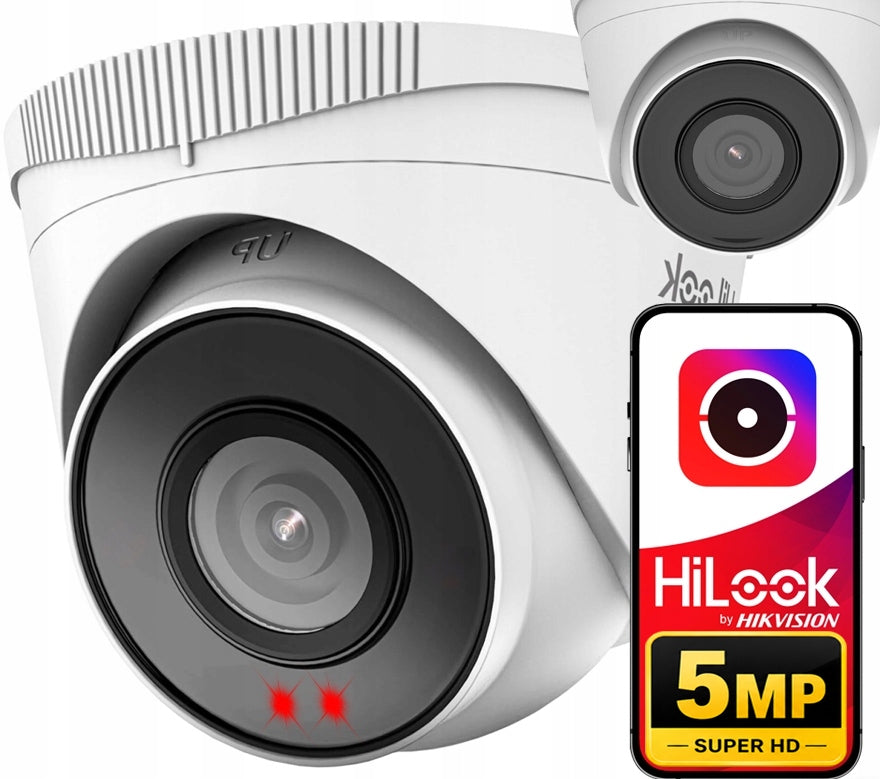

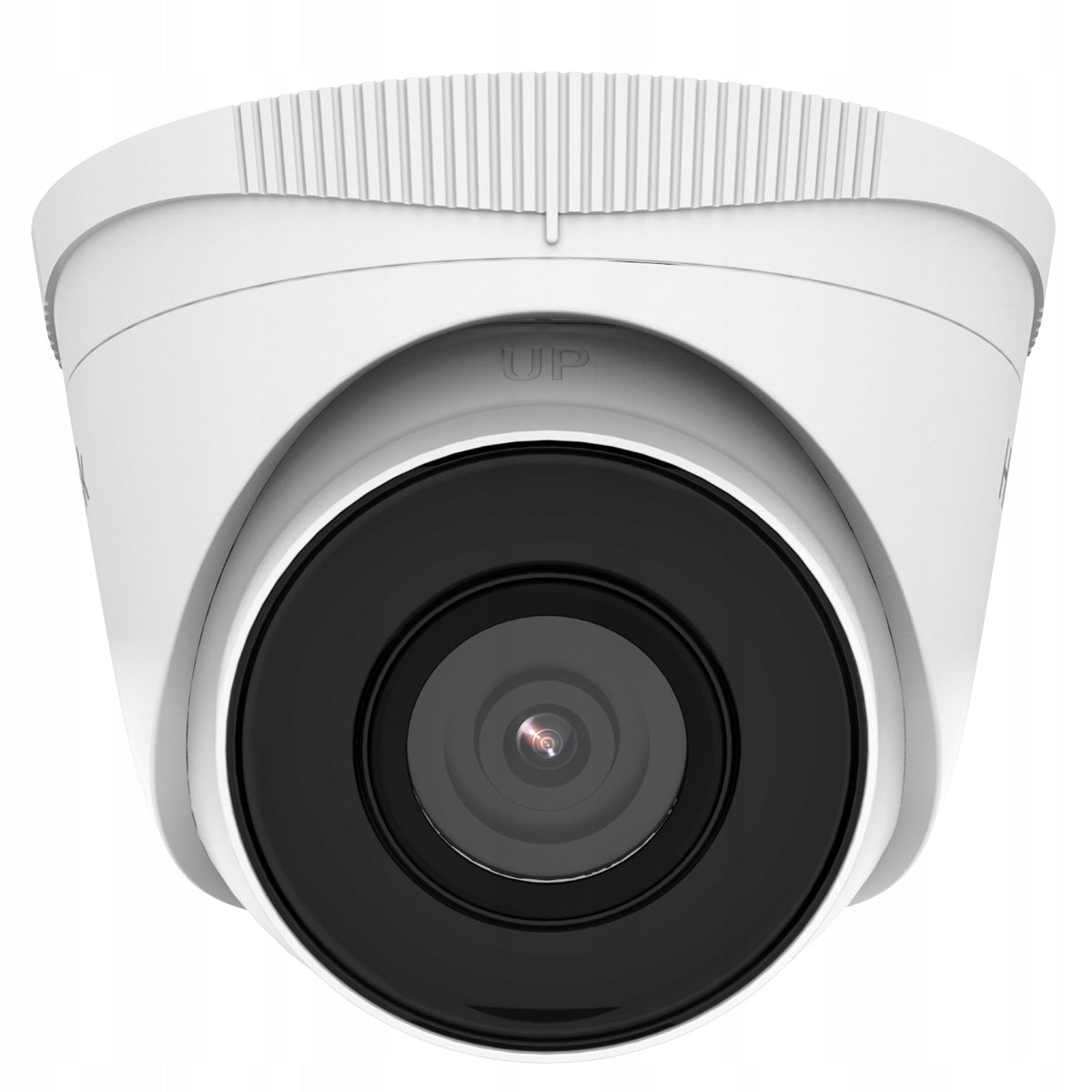

Lauko IP kamera 5MPx HiLook PoE, IR 30 m, APKA, HIKVISION, HIK-CONNECT

Trumpai apie prekę

Prekė: Lauko IP kamera 5MPx HiLook PoE, IR 30 m, APKA, HIKVISION, HIK-CONNECT. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: IPCAM Turret 5MPX

5Mpx / 2,8mm / IR30m / PoE / IP67 / P2P cloud

The most important features of the camera:

✅ High image resolution and wide recording angle - 2560 × 1920p (5Mpx) and 98 degrees

✅ IR illuminator with a range of 30 meters, made in black glass technology

✅ Motion detection function, allowing for precise viewing of recordings and saving disk space

✅ Cooperation with IP systems Hikvision and others via ONVIF protocol

✅ Easy installation and operation from the browser WEB, iVMS-4200 or smartphone app

✅ Simple and intuitive menu in Polish

✅ IP67 sealed housing, providing full protection against dust and moisture, allowing the camera to be mounted outdoors

• Model: IPCAM-T5
• Converter: CMOS 1/2,7” 5MPx
• Image resolution: 2560 × 1920p @25fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~98 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: True WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 30 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB, HiLook App
• Assembly: external or internal
• Housing: metal + plastic
• Power Supply: 12v or PoE
• Protection class: IP67

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465

HiLook surveillance systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, as well as the iVMS-4200 software for PCs. This allows users to have constant control and monitoring of the surveilled area from anywhere in the world with internet access. The app and software enable:

• Live view
• Remote playback of recordings
• Creation of motion detection scenarios and rules
• Control of PTZ (Pan-Tilt-Zoom) cameras
• Receiving event notifications within the system

The application uses P2P cloud for operation, so the system does not require port forwarding on the router.

The presented model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard disk, which positively affects its lifespan.

The IPCAM-T5 camera is equipped with automatic night mode - this means that when the lighting in the environment drops, the cameras go into black and white mode, supported by an infrared illuminator. This function allows you to record images via 24/7 in any lighting conditions.

Camera

• Sensor: 1/2.7" CMOS Progressive Scan
• Transmission Standard: IP
• Max. Resolution: 5Mpx @2560x1920
• Sensitivity: Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter Mode: Supported
• Lens: 2.8 mm (4mm optional)
• Recording Angle (Horizontal): Horizontal FOV 100°, Vertical FOV 74°, Diagonal FOV 130°
• Gimbal Adjustment Range: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

IR Illuminator

• IR Range: IR Wavelength
• Up to 30m: 850 nm

Image Compression

• Video Compression: Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
• H.264: Baseline Profile / Main Profile / High Profile
• H.264+: Main Stream
• H.265: Main Profile
• H.265+: Main Stream
• Video Bitrate: 32 Kbps to 8 Mbps

Smart Functions

• ROI: 1 fixed region for two streams


• Main Stream - Max. Frame Rate: 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720); 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
• Sub-Stream - Max. Frame Rate: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Functions: BLC, 3D-DNR
• Wide Dynamic Range: WDR 120dB
• Image Settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/Night Mode: Auto/Manual switching

Network

• Network Interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
• Network Storage: NAS (NFS, SMB/CIFS)
• Compatibility: ONVIF (PROFILE S, PROFILE G), ISAPI
• Selected Functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous Live View: Up to 6 channels
• Alarm Trigger: Motion detection, video tampering, unauthorized login
• Number of Users / Hosts: Up to 32 users; 3 permission levels: Administrator, Operator, User
• Client Software: HiLookVision PC Client, HiLookVision App, iVMS-4200, HikConnect
• Supported WEB Browsers: IE8+, Chrome 41.0-44+, Firefox 30.0-51, Safari 8.0-11

General

Power Supply

• 12 VDC
• PoE (802.3af, Class 3)

Power Consumption

• 12 VDC, 0.4A, Max: 3.5W; PoE: (802.3af, 36V to 57V), 0.2A to 0.1A, Max: 4.5W

Material

Metal + Plastic

Ingress Protection Rating

IP67

Operating Temperature / Humidity

• -30 °C to 60 °C
• < 95% (non-condensing)

Dimensions

Ø 112 mm × 81.4 mm

Weight

400g
