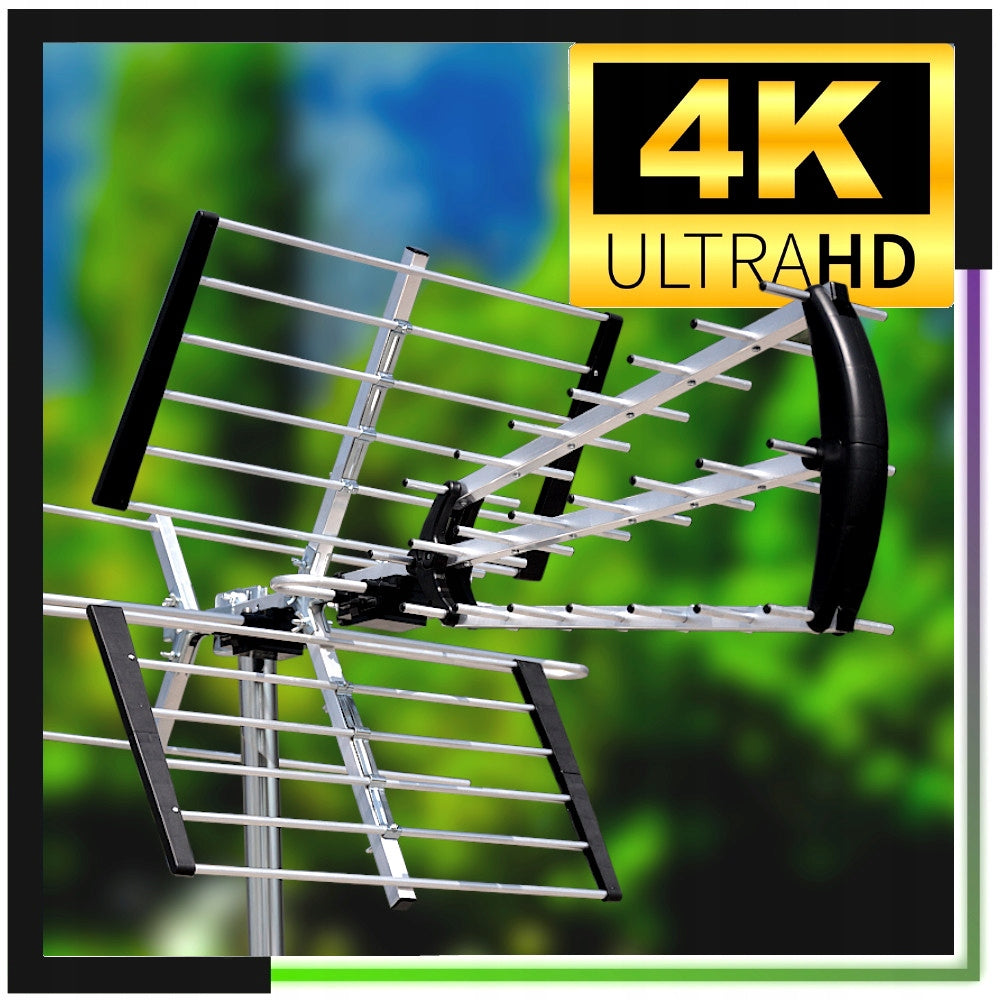

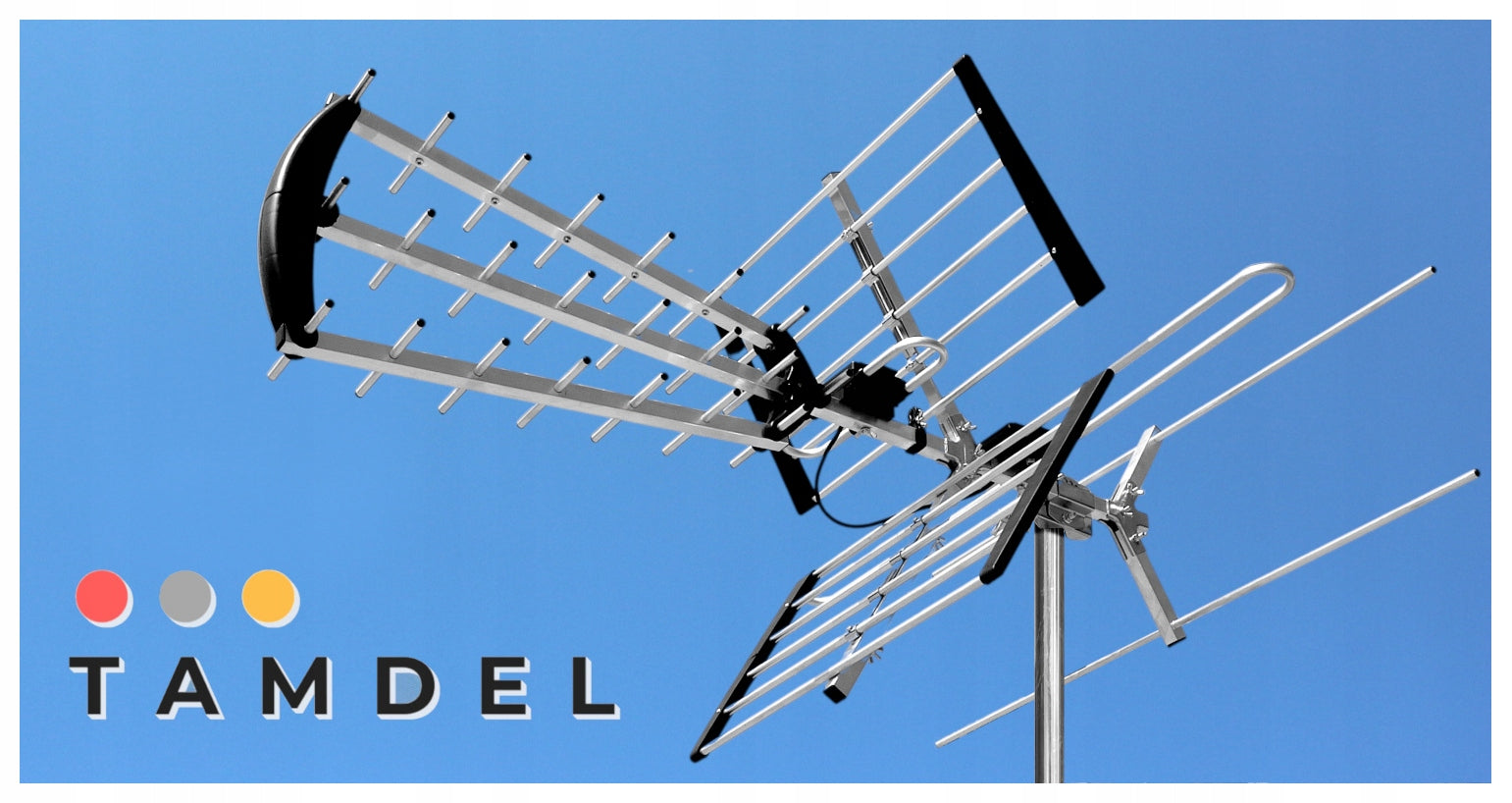

Lauko DVB-T2 televizijos antena MUX8 LTE Full HD 4K PREMIUM

Trumpai apie prekę

Prekė: Lauko DVB-T2 televizijos antena MUX8 LTE Full HD 4K PREMIUM. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-26
• Spalva: silver

▶ Passive COMBO directional antenna for receiving free DVB-T / DVB-T2 terrestrial television.

▶ Receives MUX-1 / MUX-2 / MUX-3 / MUX-4 and MUX-8 thanks to work in the VHF + UHF band.

▶ Without amplifier and without power supply — works when the antenna cable is connected to the TV or set-top box.

▶ The extensive VHF directors section supports MUX-8 reception and helps improve signal stability.

▶ Ability to receive MUX-8 in horizontal and vertical polarization – depending on the setting of the VHF element.

▶ LTE filter reduces interference from mobile networks.

▶ Design adapted to external assembly.

▶ Reception range up to 120 km — under favorable conditions, depending on transmitter power, mounting height and terrain.

✅ DVB-T2 / HEVC / 4K – compliant with the current standard

▶ Supports DVB-T / DVB-T2 with H.265 / HEVC compression.

▶ Allows you to receive channels in Full HD and 4K quality if they are broadcast in a given location.

▶ A TV or set-top box supporting this standard is required to receive DVB-T2/HEVC.

✅ LTE filter – less signal interference

▶ Built-in LTE filter reduces interference from mobile networks, including LTE 800 MHz.

▶ Can be helpful near buildings, GSM masts and base stations.

✅ Installation and connection

▶ All mounting hardware is matched to the antenna.

▶ Mount the antenna outside — preferably as high as possible, e.g. on the mast, balcony or facade.

▶ Set the antenna to the nearest DVB-T / DVB-T2 transmitter.

▶ Connect the antenna cable to the TV or DVB-T2 decoder.

▶ Run automatic DVB-T / DVB-T2 channel search.

✅ How to set up an antenna to receive MUX-8

The TAMDEL TAZ-26 antenna has two independent reception paths:

• larger dipole and extended section of VHF directors – used to receive MUX-8

• smaller UHF dipole – used to receive MUX-1 / MUX-2 / MUX-3 / MUX-4

If in a given location MUX-8 is broadcast in vertical polarization:

▶ Turn the larger VHF dipole and its director by 90° – position them vertically.

▶ Do not rotate the entire antenna – just change the position of the VHF elements.

▶ MUX-1 / MUX-2 / MUX-3 / MUX-4 channels will continue to be received in horizontal polarization.

▶ The extensive section of VHF directors supports more stable reception of MUX-8, especially in places away from the transmitter or with more difficult reception conditions.

▶ The pictures below show the horizontal and vertical setting of the VHF elements.

✅ Weather resistant

▶ Aluminum construction — lightweight and corrosion resistant.

▶ Antenna box protects the antenna connection from moisture.

▶ Design adapted to external mounting — for working in rain, sun and changing weather conditions.

▶ The antenna can be mounted on a mast, balcony or facade.

✅ Technical specification

Model: TAMDEL TAZ-26

Antenna type: directional, external, passive

Reception range: up to 120 km (under favorable conditions)

Compatibility: DVB-T / DVB-T2 / HEVC H.265

Supported bands: VHF + UHF

Multiplexes: MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8

LTE filter: yes

Signal quality: Full HD/4K Ultra HD

Assembly: mast, balcony or facade

Frequency range: VHF 168 – 230 MHz / UHF 470 – 790 MHz

Antenna gain: VHF 12 to 14 dB / UHF 16 to 18 dB

Working channels: 5 – 57

Impedance: 75 Ohms

Certificates: CE, RoHS

📏 Antenna dimensions and mounting method

▶ Detailed antenna dimensions are shown in the graphic.

▶ Mounting bracket fits masts with a diameter of 2 – 5 cm.

▶ Antenna length after unfolding: approx. 103 cm.

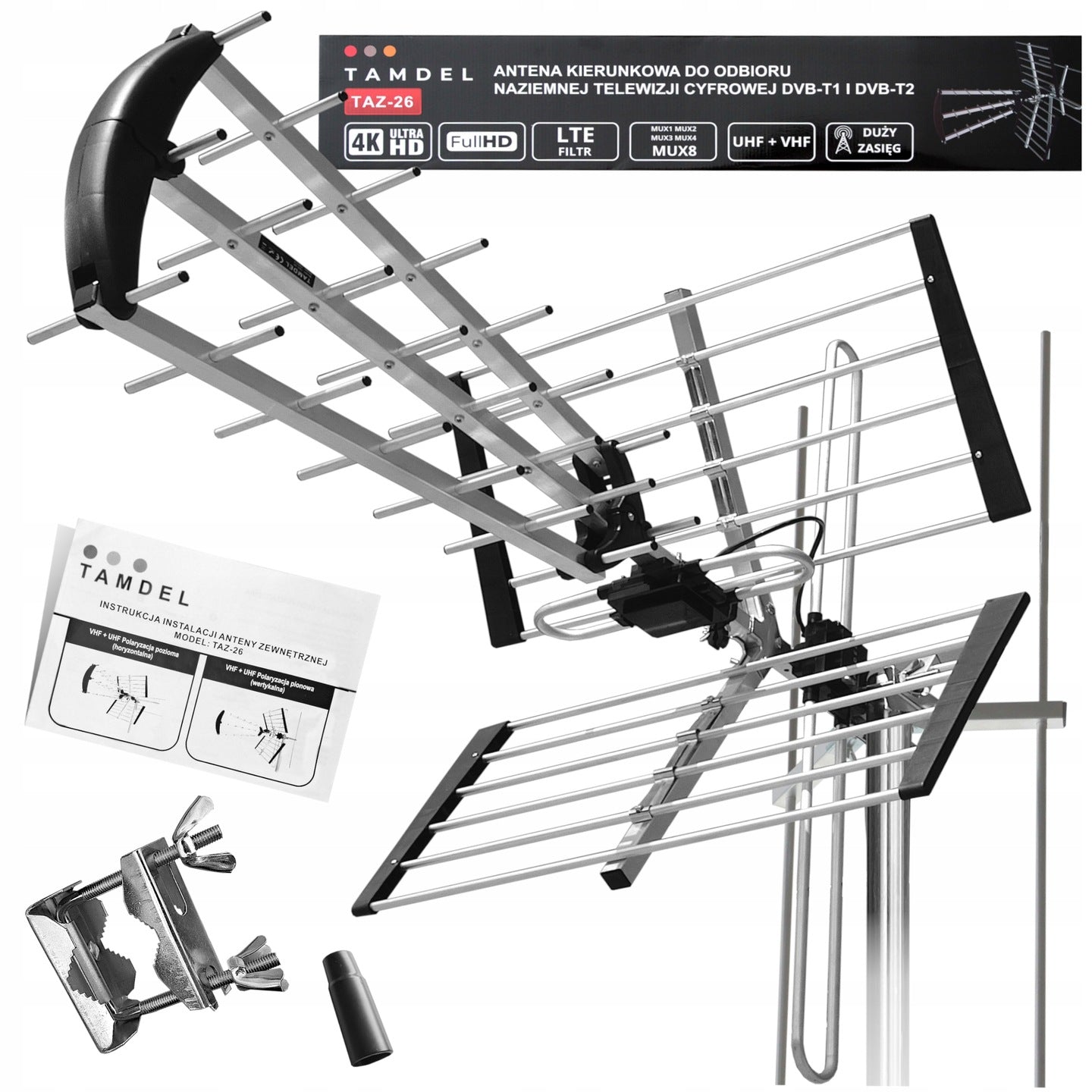

✅ Set includes

▶ External directional antenna TAMDEL TAZ-26

▶ Mounting kit — screws and mast holder

▶ Instructions for assembly in Polish

▶ Original manufacturer packaging
