Lauko bevieliai prieigos taškai TP-LINK EAP772, 2 vnt., PoE, Omada

Trumpai apie prekę

Prekė: Lauko bevieliai prieigos taškai TP-LINK EAP772, 2 vnt., PoE, Omada. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP772-Outdoor

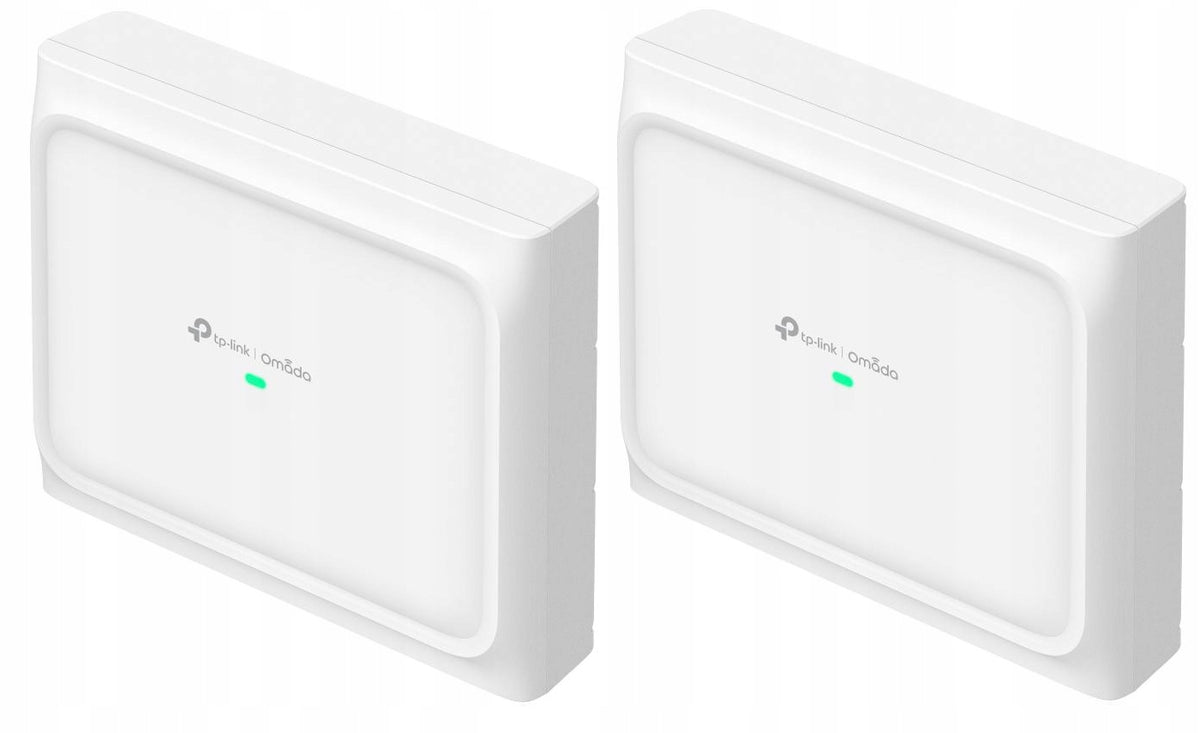

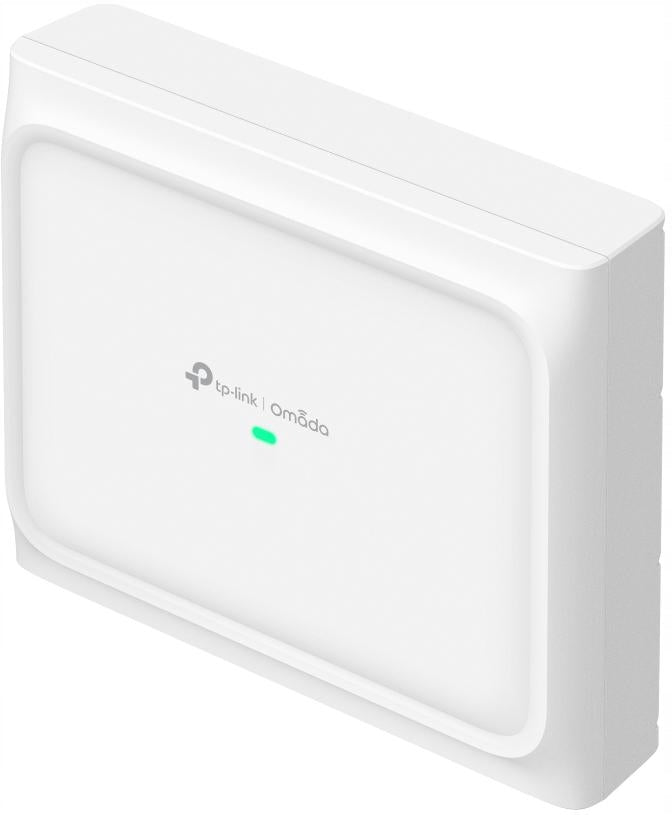

2x Access Point TP-LINK EAP772-Outdoor PoE Omada External Access Point

Key features:

• Wi-Fi 7 BE9300 in three bands: operation in 2,4 GHz, 5 GHz and 6 GHz, with speeds up to 688 Mb/s, 2882 Mb/s and 5765 Mb/s, and up to 9335 Mb/s in total.
• 6 GHz band with AFC: automatic frequency management supports more stable operation in external applications.
• Multi-user support: up to 380 concurrent clients, making it easy to deploy in public places and extensive networks.
• Performance technologies: Multi-Link Operation, Multi-RU, OFDMA, MU-MIMO, 4K-QAM and Load Balancing support high throughput under load.
• Better signal coverage and stability: Beamforming, Band Steering and Airtime Fairness help keep your network running smoothly in real-world conditions.
• Omada Mesh and smooth roaming: the ability to build a multipoint network with 802.11k/v/r roaming, without interrupting the connection.
• IP68 housing: dustproof and waterproof design, with the possibility of immersion up to 1,5 m up to 1 hour.
• 2.5G port with PoE-In: RJ45 2.5G with 802.3at PoE support makes it easy to install with one cable.
• Omada management: application and Web interface, cloud controllers, hardware OC200, OC300 and software controllers, with VLAN, multi-site and access control functions.
• Set contents: 2x (EAP772-Outdoor, sealing kit, mounting kit, installation instructions, power supply not included. )

TP-LINK EAP772-Outdoor is a three-band Wi-Fi 7 access point that is used to build a fast and stable wireless network outside and inside buildings. It is designed for businesses, public facilities and home users who need a strong signal in the garden, on the terrace, on the property, or in common areas. Addresses poor coverage, connection interruptions, and performance drops across multiple users, offering high bandwidth and advanced Wi-Fi technologies. Thanks to the resistant housing and operation in three bands, the device works where the network must work reliably, despite changing conditions.

The device operates in the Wi-Fi 7 (802.11be, BE9300) standard and supports three bands, 2,4 GHz, 5 GHz and 6 GHz, while the 6 GHz band with AFC supports automatic frequency management for outdoor areas. The maximum Wi-Fi speed is up to 9335 Mb/s in total, including up to 5765 Mb/s in 6 GHz, up to 2882 Mb/s in 5 GHz and up to 688 Mb/s in 2,4 GHz. The access point is prepared to support multiple users because it can work with 380 clients simultaneously, and technologies such as OFDMA, MU-MIMO, Multi-RU and Multi-Link Operation support high performance, even under heavy loads.

EAP772-Outdoor offers features that help maintain network quality in hands-on deployments including Beamforming, Airtime Fairness, Band Steering and Load Balancing. Support for Omada Mesh and smooth roaming 802.11k/v/r enables the construction of a long-range network where devices switch between access points without interrupting the connection, which is important for streaming, voice calls and on-the-go operation. Additionally, you can create up to 24 Multi SSID networks, 8 for each band, making it easy to separate networks for guests, employees, and different applications.

The model is equipped with an RJ45 2.5G port with PoE-In 802.3at support, which facilitates installation, because power supply and data transmission can be carried out with one cable. The device is designed to be mounted on a wall or on a pole, and the set includes a mounting kit and a sealing kit. In practice, this means that it is ready to be installed out of the package, while you need a 802.3at PoE source to power it, because the power supply is not included.

You can use Omada, both through the application and the Web interface, as well as controllers, Omada Cloud Controller, Omada Hardware Controller OC200 and OC300, or Omada Software Controller. The solution supports central management and functions such as VLAN, MAC access control, multi-site, system log, and SNMP and SSH support. Security includes WPA, WPA2 and WPA3 in Personal and Enterprise mode, 802.1X authentication, captive portal, client isolation, MAC filtering, AP rogue detection and OWE.

Key words: external Wi-Fi 7 access point, TP-LINK EAP772-Outdoor, Omada, BE9300, 6 GHz AFC, Omada Mesh, roaming 802.11k/v/r, AP for garden and business, PoE 802.3at, 2.5G.

FAQ - Frequently Asked Questions

• Is TP-LINK EAP772-Outdoor suitable for outdoor use? Yes, it is an access point for outdoor and indoor use, in IP68 grade housing, dustproof and waterproof.
• What bands does this model work in? It supports three bands, 2,4 GHz, 5 GHz and 6 GHz, and the 6 GHz band has AFC, which is automatic frequency management for outdoor areas.
• What speeds can Wi-Fi provide? Up to 9335 Mbps in total, including up to 688 Mbps at 2,4 GHz, up to 2882 Mbps at 5 GHz and up to 5765 Mbps at 6 GHz.
• How many devices can work simultaneously? The manufacturer provides support for up to 380 simultaneous customers.
• Does the device support Mesh and roaming? Yes, it supports Omada Mesh and smooth 802.11k/v/r roaming, which helps keep the connection going while you move.
• Can I separate networks for different users? Yes, the device supports Multi SSID up to 24 networks, 8 for each band, and supports VLANs.
• What does the installation of the device look like? The access point can be mounted on a wall or pole, and a mounting kit and sealing kit are included.
• How to power EAP772-Outdoor? The device is powered by PoE 802.3at, through RJ45 2.5G port with PoE-In, power supply not included.
• Can I manage the network remotely? Yes, management is possible through Omada, the application and web interface, and through controllers including Omada Cloud Controller, OC200, OC300 and software controller.

Step-by-step configuration: 1) Mount the device on a wall or pole using the mounting and sealing kit from the package. 2) Connect the network cable to RJ45 2.5G port while providing 802.3at PoE power. 3) Run management via the Web interface, or Omada application. 4) Configure SSID, WPA, WPA2 or WPA3 security, and a possible VLAN and authentication portal if needed. 5) If you are building a larger network, enable Omada Mesh and 802.11k/v/r roaming, and configure schedules and speed limits as needed.

Do I need to buy additional products? Yes, you need a 802.3at PoE source to power, such as a 802.3at PoE switch, or another standard-compliant PoE power supply, because the power supply is not included. To be managed by the controller, if it is to be used, you need an Omada controller, cloud controller, hardware controller OC200, OC300, or software controller.

Gallery:

Specification:

• Model: TP-Link Omada EAP772-Outdoor
• Device type: three-band, omnidirectional Wi-Fi access point 7, 802.11be, BE9300, for outdoor and indoor use
• Wi-Fi standards: IEEE 802.11be, 802.11ax, 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a
• Frequency bands: 2,4 GHz, 5 GHz, 6 GHz, 6 GHz with AFC, automatic frequency management for outdoor areas
• Maximum Wi-Fi speed: 2,4 GHz to 688 Mbps, 5 GHz to 2882 Mbps, 6 GHz to 5765 Mbps, total up to 9335 Mbps
• Range coverage: up to 300 m, omnidirectional range in three bands
• Number of concurrent customers: 380
• Wi-Fi technologies: 4K-QAM, Multi-RU, OFDMA, MU-MIMO, Multi-Link Operation, MLO, Beamforming, Airtime Fairness, Band Steering, Load Balancing, 802.11k, 802.11v, 802.11r, Omada Mesh
• Network ports: 1 × RJ45 2.5G, LAN, WAN, PoE-In
• Power Supply: PoE 802.3at, no power supply included
• Power consumption: maximum about 21,5 W, powered by PoE
• Antennas: 2,4 GHz 2 × 4 dBi, 5 GHz 2 × 6 dBi, 6 GHz 2 × 6 dBi, bipolarized
• GNSS receiver: L1 GPS, Galileo, GLONASS, BeiDou, sensitivity -164 dBm, integrated 3 dBi omnidirectional antennas
• Bluetooth: BLE 5.2
• Housing: IP68 rated, dustproof and waterproof, immersion up to 1,5 m up to 1 hour
• Assembly: on wall, pole, mounting kit included
• Buttons: Reset
• Management: Omada Cloud Controller, Omada Hardware Controller OC200, OC300, Omada Software Controller, Omada App, Web Interface
• Management functions: central management, multi-site, VLAN, MAC access control, DHCP, SNMP v1, SNMP v2c, SSH, system log
• Wi-Fi security: WPA, WPA2, WPA3, Personal, Enterprise, 802.1X authentication, captive portal, client isolation, MAC filtering, AP rogue detection, OWE
• Additional Wi-Fi features: Multi SSID up to 24, 8 for each band, Wi-Fi and restart schedule, speed limit, SSID statistics, AP, clients
• Working temperature: -30 °C to 70 °C
• Working humidity: 10% – 90%, non-condensing
• Storage temperature: -40 °C to 70 °C
• Storage humidity: 5% – 90%, non-condensing
• Dimensions: 230 × 207,5 × 69,7 mm
• Certificates: CE, FCC, RoHS
• Package contents: EAP772-Outdoor, sealing kit, mounting kit, installation instructions
• System requirements: Windows XP to Windows 11, Linux

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	Management	app
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Product weight with unit packaging	0.15 kg
Parametry	EAN (GTIN)	1210002602280
Parametry	Manufacturer code	EAP772-Outdoor
Parametry	Model	EAP772-Outdoor
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11be (Wi-Fi 7)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11be (Wi-Fi 7),802.11ax (Wi-Fi 6),802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
