Lauko bevielė WiFi tilto stotelė, 3 km, CPE ryšio stiprintuvas

Trumpai apie prekę

Prekė: Lauko bevielė WiFi tilto stotelė, 3 km, CPE ryšio stiprintuvas. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: no brand
• Modelis: WIFI CPE Bridge

Product Description：

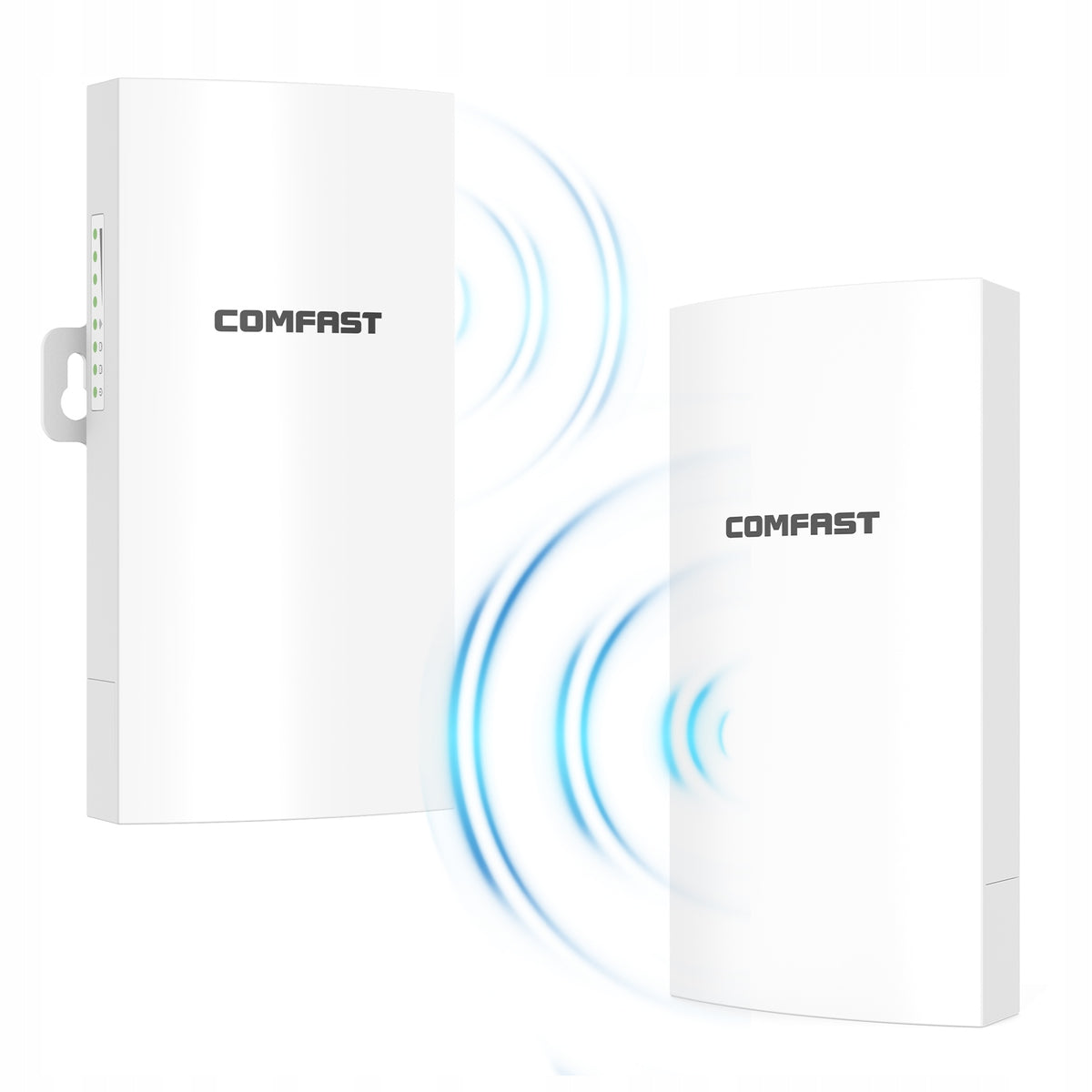

CF-E113A V2 is a 300Mbps outdoor high-power engineering bridge, which works in the 5.8GHz frequency band. It is suitable for the transmission of wireless signals in security monitoring projects. It has the characteristics of flexible and convenient engineering installation, simple settings, and stable transmission. It is wireless monitoring. A necessary tool for engineering.

High-Speed Stability Project Worry-Free

5.8G 300Mbps Wireless Bridge Pairing Kit | No Wiring and easy construction

① Point to point long distance transmission

② Professional, stable and portable

③ Security monitoring partner

Smart Signal Indicator LED

Four signal LED Lights represent the currently

signal strength that CF-E113AV2 receives from peer device.

It is helpful to find the right location to

deploy the device and achieve a better performance.

High-Performance Qualcomm Chips & High power FEM Amplifier

Industrial Configuration More Stable Transmission

CF-E113AV2 uses high-performance Qualcomm chips.

External high power FEM amplifier, wireless transmission more stable.

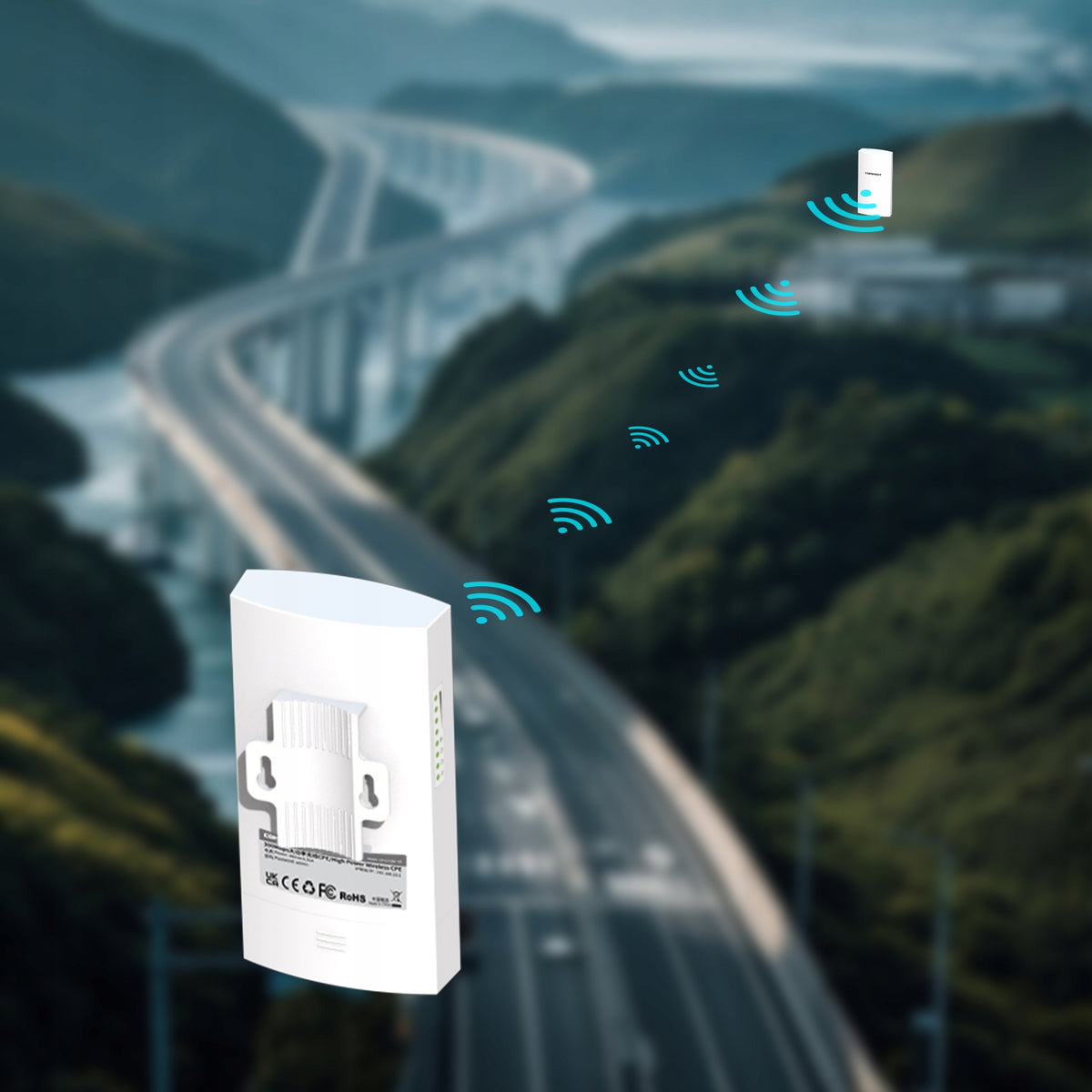

3km Stable Transmission

Full engineering grade hardware technology, high power

PA RF amplifier and 11dBi high gain antenna.

Realize 3km point-to-point and point-to-multipoint

wireless transmission.

Note:：

Transmitter and receiver should be free of physical

obstruction,otherwise it will affect the signal strength.

5.8G Effective Anti-Interference More stable Data Transmission

The bridge supports 5.8G mainstream frequency band,

and the anti-interference ability of multiple channels

is improved Wireless speed up to 300Mbps,

to ensure stable data transmission, clear, no stalling.

Stable Transmission & Strong Signal & HD Monitoring Image

Note：The transmitter and receiver need to be free of physical obstructions,otherwise the signal strength will be affected.

48V P0E Power Supply

CF-E113AV2 is powered by 48V POE Adapter or POE

switch via Ethernet cable, which is very convenient.

Four Reasons to Choose Wireless Bridge

Help security industry four major advantages,can meet different scenarios network needs

① Convenient Construction

Wired wiring is laborious, Plug and play

② Cost Reduction

High cost for long distance traveling, Cost-effective bridge

③ Long Distance Transmission

Point-to-point directional transmission,Long distance is not a problem

④ Network Sharing

Multiple locations sharing one network

One-Click Pairing Easy Transmission

One-click pairing, easy transmission，

Say goodbye to complex Settings,

novices can also operate, flip the switch

can be paired successfully Video data is clearly

transmitted back, no delay and

no switching Whether it is a construction

site or remote monitoring transmission,

it can provide stable transmission

Rich Software Features

The wireless bridge software has a scientific and

user-friendly interface,Both mobile phones and computers

can be set up for internet access, allowing for real-time

monitoring of device status

Performance Upgrade, Advantages Immediately

1. Industrial chip configuration

2. 5.8GHz anti-interference

3. Professional outdoor protection

4. Meet engineering requirements

5. 48V POE power supply

6. Automatic bridge pairing

7. More peace of mind from anti-fouling

8. Signal strength more intuitive

Hidden SSID Safety WiFi

Support SSID hiding,solve network problems,

and ensure project stability

Comprehensive Protection, Worry Free Outdoors

Adopt integrated molding shell design,

adapt to the harsh outdoor environment.

Even if the wind, sun, rain and snow,

it can be stable as before

Multiple Working Modes

Bridge Mode & AP Mode & Repeater Mode & Router Mode

According to different projects requirements,

choose the appropriate working mode to apply to

different working scenarios.

Connect Application Diagram：

01/ Point to Point Connection Diagram

Multiple cameras connecting way 1：

Connect the camera to the switch, then connect with COMFAST CPE. it will transmit the data through two CPE.

02/ Multipoint to multipoint connection

Multiple cameras connecting way 2：

If the distance among the cameras is so far, each camera is configured with double CPE.

The control center connect CPE with AP mode through the switch, then connect with the DVR.

03/ Point to Multi-point Connection Diagram

If the angle between camera and control center is within 60 , there can consider one point to multi point connection.

It can reduce CPEs with the transimitting mode,which can save project cost a lot.

Pls pay attention that it has to be meet the angle and brand with requirements.

Note：

In wireless monitoring transmission, we suggest you to use above way to do connection.

Pls pay attention that the transimission angle for the device is 60°.

Specifications：

1. Power Adapter: 48V

2. Bridge/AP/Repeater /Router Mode

3. Frequency：5.180GHz-5.825GHz

4. IEEE802.11a/an Wireless Standard

5. Transmission Rate:300Mbps

6. Chipset：

Qualcomm AR9344 560MHz Industrial CPU；

RAM: DDR 64MB; Flash: 8MB; PA: SKY85735

7. 11dBi 5.8GHz Antennas

8. 8* Indicators：Power/WAN/LAN/WiFi/Signal Strength(1-4)

9. Physical Ports：

1* 10/100Mbps WAN RJ45 Ethernet Port；

1* 10/100Mbps LAN RJ45 Ethernet Port1* RESET Button

10.  Installation Way：Pole-Mounted

Easy Installation Method

Pole mounting without tools required.

Can be mounted on a pole, suspended, or mounted on a bracket.

Please purchase the bracket yourself.

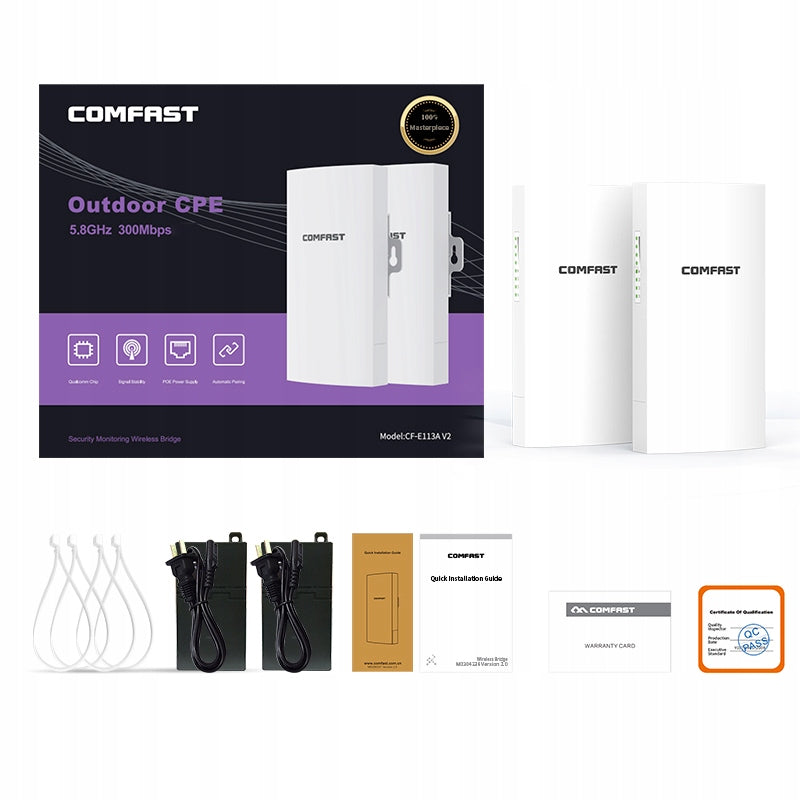

Packing list：

2* Outdoor  Bridge

4* Cable Ties

2* POE Adapter

1* Manual

1* Warranty Card

1* Certificate
