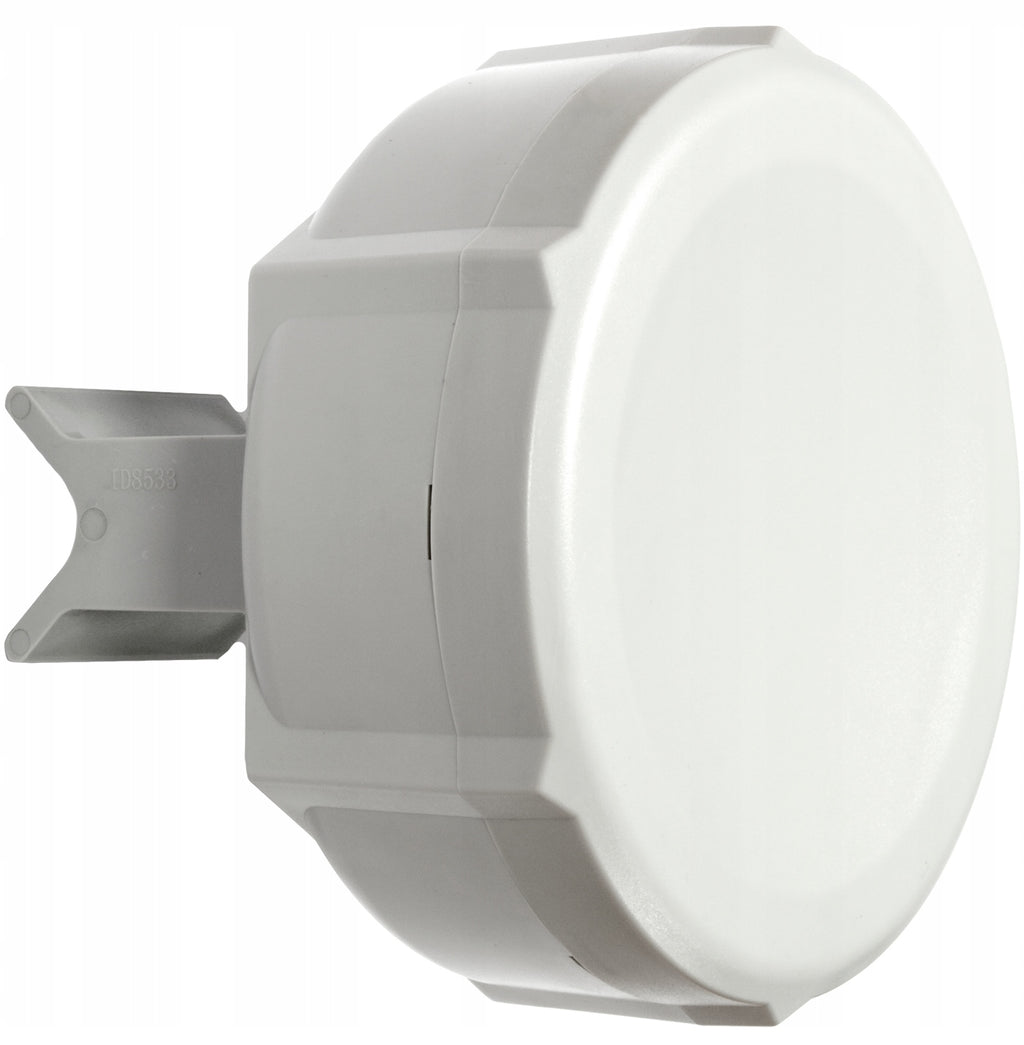

Lauko belaidė stotelė MikrotTik SXT SA5 ac RBSXTG-5HPacD-SA

Trumpai apie prekę

Prekė: Lauko belaidė stotelė MikrotTik SXT SA5 ac RBSXTG-5HPacD-SA. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: SXT G-5HPacD-SA
• Plotis: 140 mm
• Aukštis: 140 mm

MikroTik SXT ac is an external wireless device operating in the 5 GHz band, equipped with Gigabit Ethernet interface and support for IEEE 802.11a/n/ac standards. The device provides wireless bandwidth up to 866 Mbps thanks to the use of 256-QAM modulation and 80 MHz channels. SXT ac supports MikroTik Nv2 and Nstreme protocols, enabling efficient point-to-point and point-to-multipoint connections. Versions with a directional antenna with a beam width of 28° and the SXT ac SA model are available, equipped with a sectoral antenna with a beam width of 90°. The device maintains full backward compatibility with 802.11a/n standards and older RouterBOARD devices, which allows you to upgrade existing networks without having to replace client devices. Thanks to the gigabit Ethernet port, it is possible to take full advantage of the performance offered by the 802.11ac standard. The design is adapted to work in external conditions and operator applications requiring stable data transmission in the 5 GHz band.

Specification:

• Product code: RBSXTG-5HPacD-SA
• Processor Architecture: MIPSBE
• Processor: QCA9557
• Number of CPU Cores: 1
• Processor Clock: 720 MHz
• Operating System: RouterOS
• RouterOS License Level: Level 4
• RAM: 128 MB
• Storage: 128 MB NAND
• Average uptime (MTBF): approx. 200 000 hours at 25°C
• Operating temperature range: -40°C to +70°C
• Power by PoE-In: 802.3af/at
• Supported supply voltage: 12 to 57 V DC (recommended 15 to 60 V)
• Maximum power consumption: 12 W
• Passive cooling
• Operating Band: 5 GHz
• Wireless standards: IEEE 802.11a/n/ac
• Wi-Fi Generation: Wi-Fi 5 (802.11ac)
• Maximum wireless bandwidth: 867 Mbps
• Number of radio tracks (chains): 2x2 MIMO
• Radio chip: QCA9892
• Antenna Gain: 14 dBi
• Sectoral antenna with 90° beam width
• Ethernet port: 1 × 10/100/1000 Mbps Gigabit Ethernet
• USB port: 1 × USB Type-A
• USB Power Reset
• Maximum USB port current: 1 A
• PCB Temperature Monitoring
• Monitoring of supply voltage
• Built-in sounder (Beeper)
• Degree of protection of housing: IP54
• Certificates: CE, FCC, IC, EAC, RoHS
• Purpose: external point-to-point (PtP) and point-to-multipoint (PtMP) connections in the 5 GHz band.
