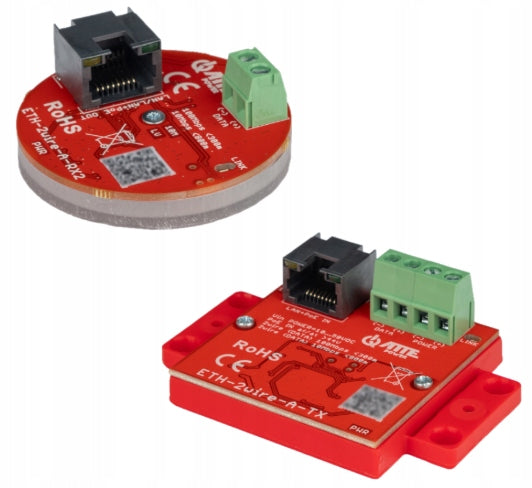

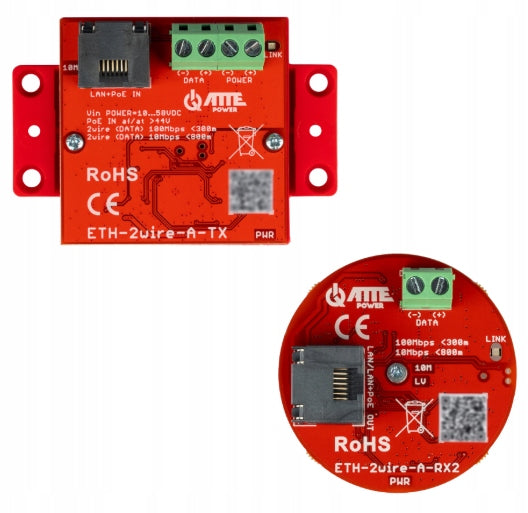

LAN perdavimo rinkinys ETH-2wire-A-SET2 10/100Mbps + PoE per 2 laidus ATTE

Trumpai apie prekę

Prekė: LAN perdavimo rinkinys ETH-2wire-A-SET2 10/100Mbps + PoE per 2 laidus ATTE. Kategorija: Priedai.

• Gamintojas: Atte
• Modelis: ETH-2WIRE-A-SET2

TECHNICAL SPECIFICATION:

• Total number of ports: 2 PoE ports, 2 Screw strips
• PoE port IN: LAN + PoE IN 802.3af/at
• PoE ports OUT: LAN + PoE OUT 802.3af/at/bt60
• LAN ports 10/100Mbps: LAN + PoE IN, LAN + PoE OUT
• Input voltage (PoE): Vin PoE - 24 ... 56 V
• Input voltage (Power): Vin Power - 12 ... 56 V
• PoE output voltage: Vout = Vin (44... 58 V)
• Power consumption: 1,35 W (whole track)
• Power control at the output: Autonegotiation
• Overvoltage protection: LAN and DATA
• Overload protection: ETH-2wire-A-TX - level 0,6 A
• Length of 2WIRE track cable: < 800m - 2 single twisted wires (e.g. 1 pair of UTP twisted pair)
• Track signaling 2wire: LED LINK (green) - link and data transmission in 2wire track
• Power signal: LED PWR - presence of power supply
• PoE signaling: LED RJ45 port (yellow) - presence of PoE power supply
• Transmission signal: LED RJ45 port (green) - link and data transmission in LAN track
• LAN bandwidth signaling: LED 10Mb – LAN transmission in 2WIRE track at 10Mbps
• Low Voltage Indicator: LED LV LowVoltage Indicator Diode (< 44V)
• Operating temperature range: -25°C ... +65°C
• Degree of protection: IP20
• Housing design (TX): Universal mounting base
• Housing design (RX2): Polycarbonate
• Assembly: Mounting pins, additional adapters available for TH-35 and RACK - TX buses
• Dimensions (TX): 51 x 51(73) x 21 mm
• Dimensions (RX2): Ø49,3 x 19 mm
