Laidų, metalo ir medienos ieškiklis

Trumpai apie prekę

Prekė: Laidų, metalo ir medienos ieškiklis. Kategorija: Detektoriai.

• Gamintojas: no brand
• Modelis: Wykrywacz kabli metalu drewna przewodów

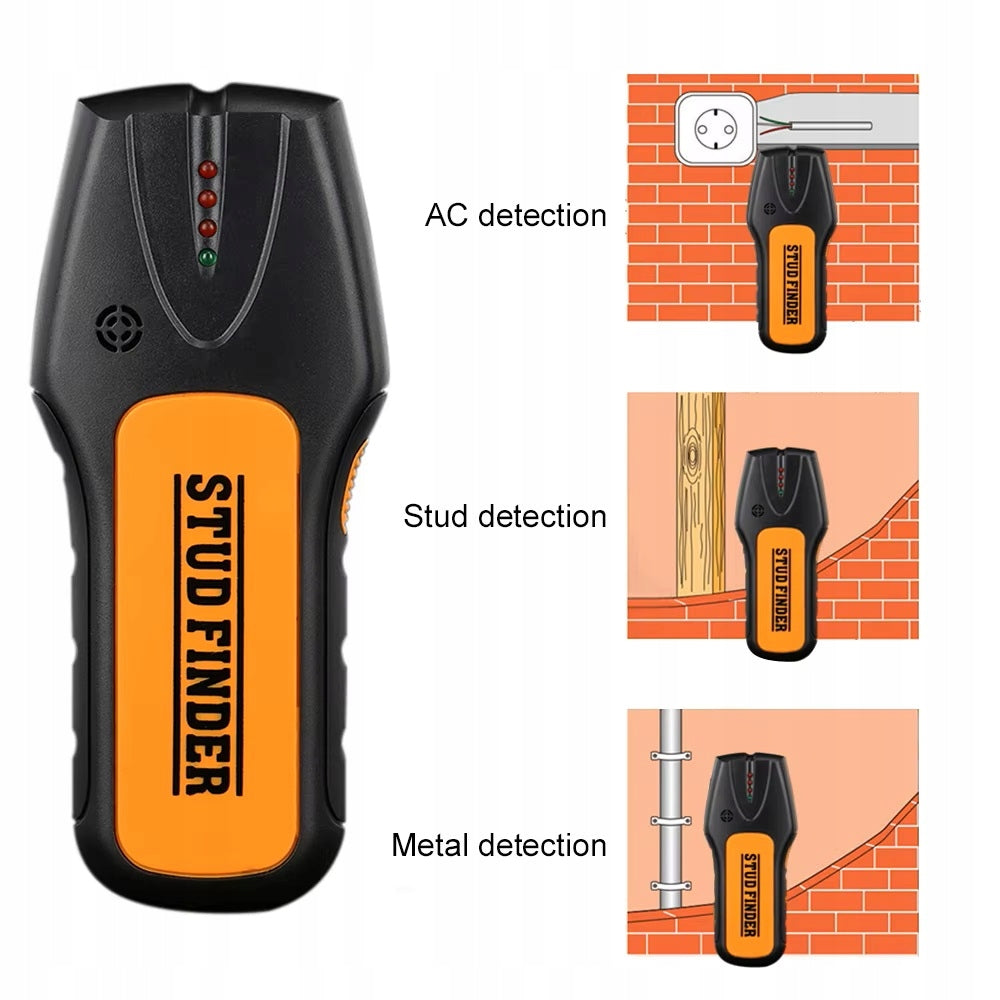

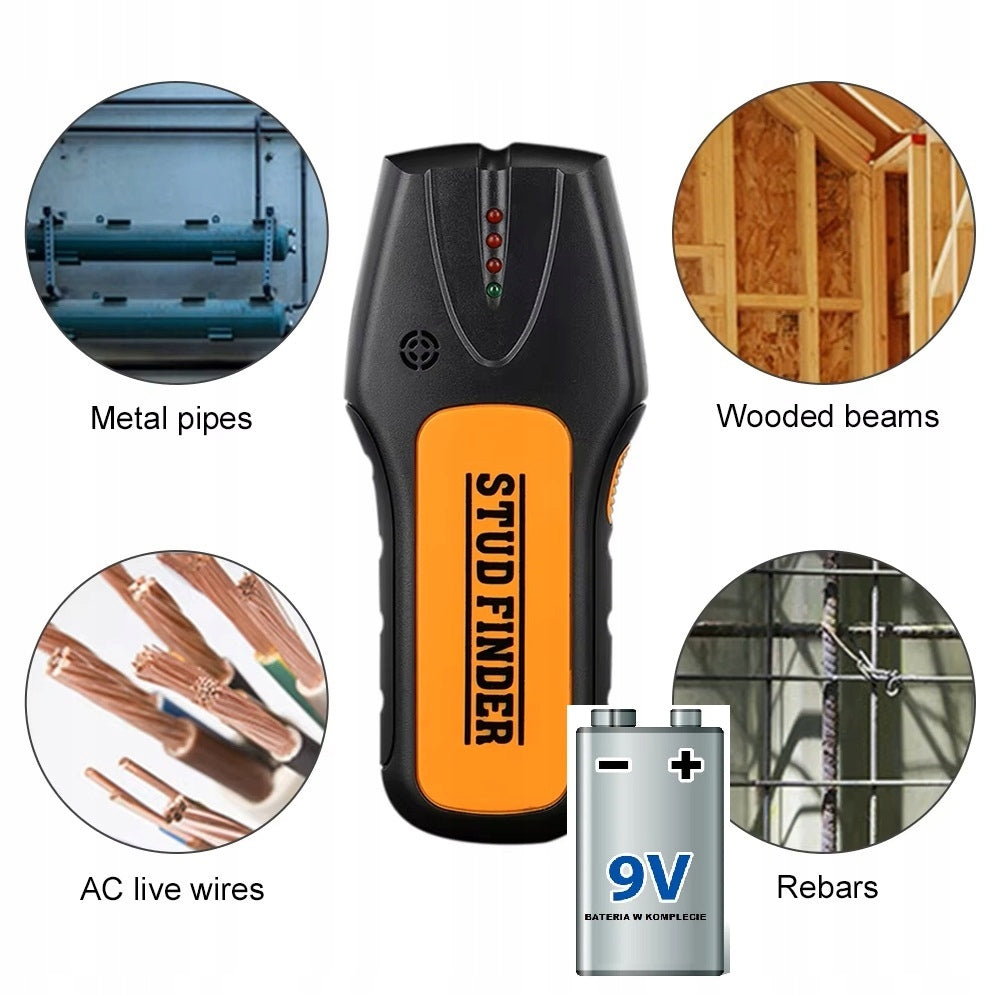

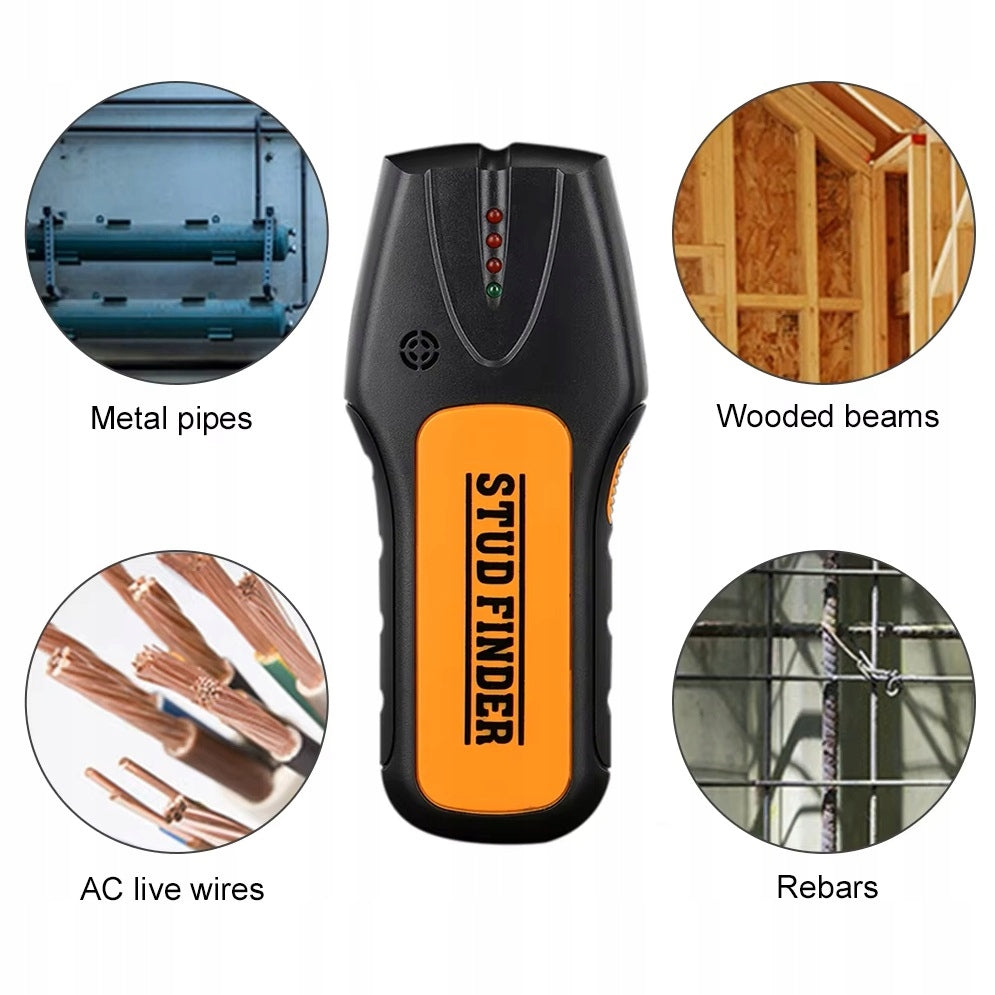

The wall detector is designed to detect metals, wooden structures and live wires, which are located in the wall, floor or ceiling.

When metal and wood are detected, the instrument will flash and make a sound.

9V battery included.

The device detects objects in concrete, in wooden surfaces and ceramic surfaces.

With the detector, you will avoid the risk of damage to the hydraulic and electronic systems.

MAXIMUM DETECTION DEPTH

• A: Copper cables (voltage): up to 20mm
• B: Metals: up to 20 mm,
• C: Wood: up to 20mm

Device dimensions: 145 x 62 x 25mm

Test sampling:

Place the instrument on the test surface and press the power switch. At this point, the first red and green indicator lights light up and you can hear a beep, and then the red indicator goes out, indicating success. During sampling, the first red indicator is red. The indicator light always emits a short beep, indicating that sampling has failed, interference occurs or the measured object exceeds the built-in limit value.

Test of operation:

After successfully taking the sample, do not release the power switch and move around the tested powierzchni.Gdy instrument will detect a foreign object, the red indicator light will start to light up after kolei.Gdy LED lights up completely and emits a "drip" sound, take the next step with a pencil.

Place the instrument in the opposite direction to the sampling surface and approach the position znakowania.Gdy the instrument will detect a foreign object, the red indicator lights will start to light up after kolei.Gdy all the LEDs are lit and you can hear the dripping sound, use the pencil to mark the next sign. Release the power switch.

Repeat the test several times, if the alarm is triggered, that is, under the middle area there may be support pillars (foreign bodies).

When there are no metal objects or other foreign bodies underneath, it will not flash or issue any dźwięku.Aby to get the accuracy of the test results, you can carry out several tests.

This instrument is designed on the principle that a change in the density of a substance below the surface of the detected object causes a change in the frequency of the detector. The maximum detection depth shall be 19 mm below the surface of the uniform object, the detection range error shall be 3 mm and the range of the detected object shall not be less than 1200 mm2

Specifications
