Laidų ieškiklis FNIRSI WD-02, metalo, kabelių ir medžio aptikimas, tikslus ekranas

Trumpai apie prekę

Prekė: Laidų ieškiklis FNIRSI WD-02, metalo, kabelių ir medžio aptikimas, tikslus ekranas. Kategorija: Detektoriai.

• Gamintojas: Fnirsi
• Modelis: FN-WD-02-SCR

SKU: FNI_WD-02

Key Features

☑ Detection of reinforcement and pipes up to a depth of 120 mm: You can safely drill a deep hole in the concrete, ensuring that you do not damage the steel structure of the building.

☑ Location of cables up to 50 mm: You will protect yourself from electric shock and avoid costly wall forging after drilling the installation.

☑ Centering indicator Center 100%: You gain absolute confidence in where to drill – the TFT HD screen will precisely guide you to the center of the hidden profile.

☑ USB-C charging of the 300 mAh battery: You forget to buy a 9V battery – you can recharge the equipment with a smartphone charger or powerbank at any time.

☑ Scanning wooden joists up to 38 mm: Instantly find a solid mounting point under the cardboard-gypsum board to securely hang a heavy TV or cabinet.

☑ Large marking hole 122 g: You work comfortably on a ladder and immediately mark the point of drilling with a pencil, without taking the detector off the wall.

☑ 3-color traffic lights and alarm: You focus on your work – the clear sound and changing color of the LED will immediately alert you to approach the obstacle.

☑ Automatic shutdown after 5 minutes of inactivity: You save energy for the next stages of renovation, even if you hurry to put the device away without turning it off.

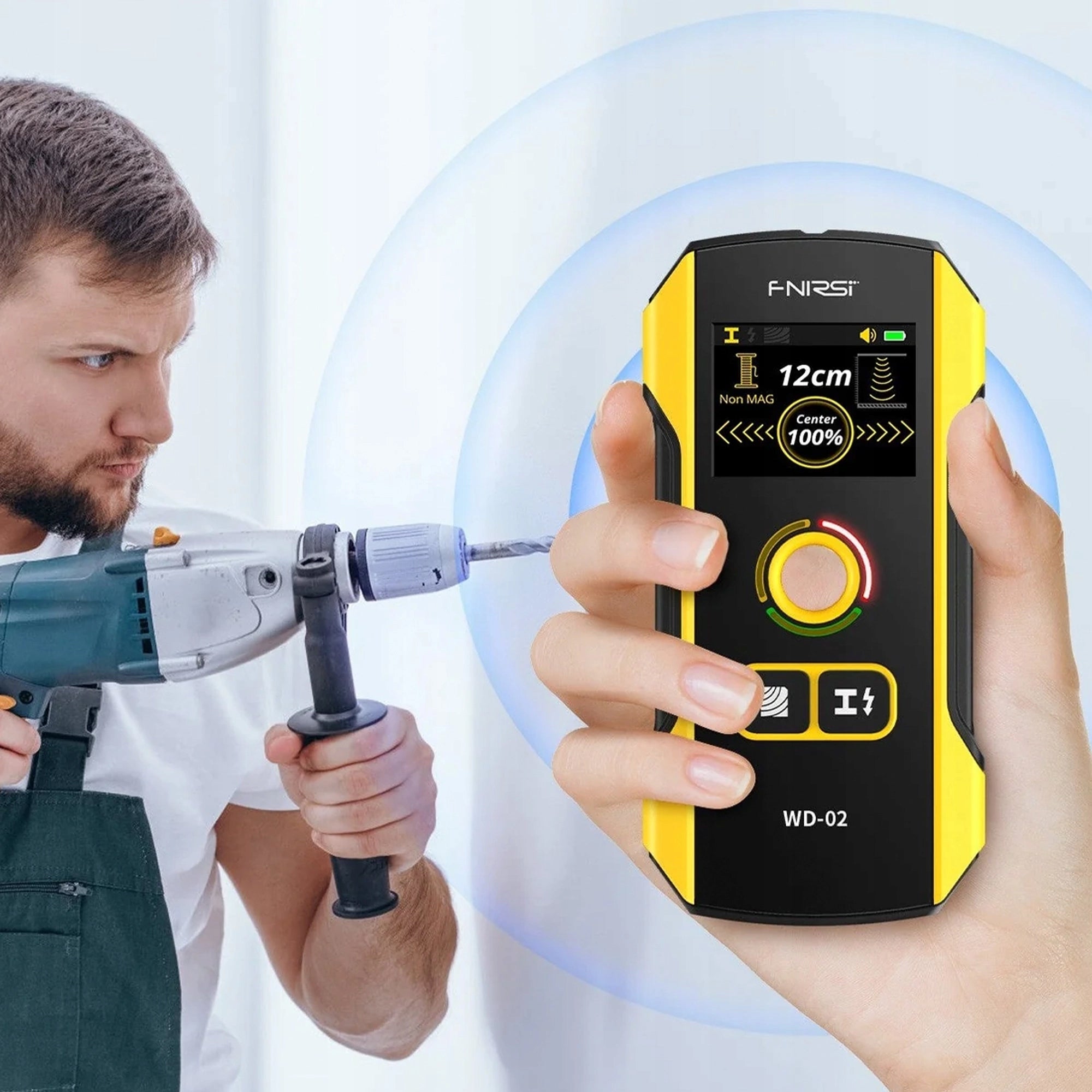

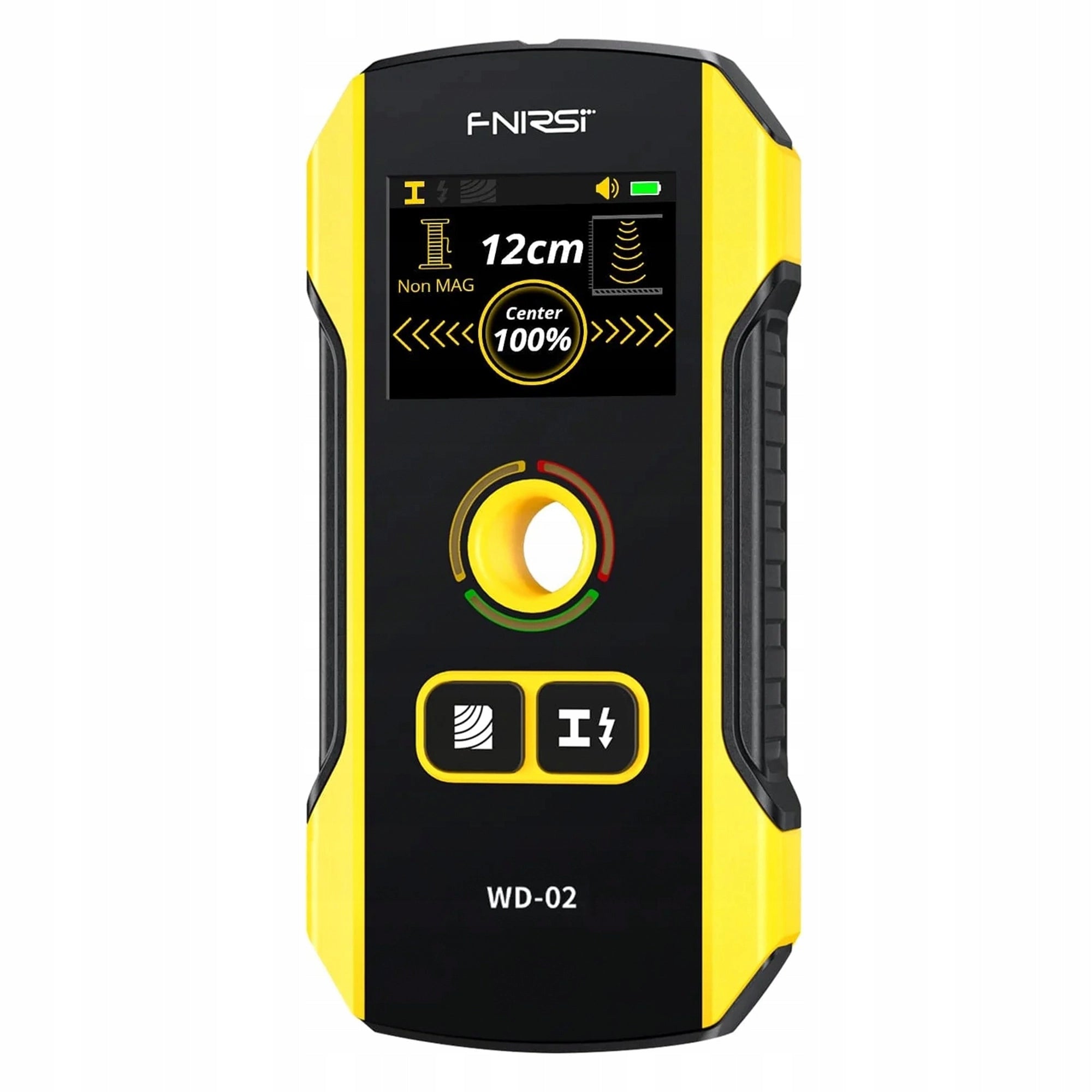

TFT HD Color Screen and Precise Positioning

The FNIRSI WD-02 wall scanner completely eliminates guesswork when drilling, precisely indicating what is inside the wall.

• TFT HD screen with assistant: The display continuously analyzes the ground and uses arrows to instruct which way to move the scanner.
• Precise centering: When you reach the center of the object perfectly (e.g. wooden joists), the device displays a message about one hundred percent centering and emits an audible alarm.
• Effect: Stress-free operation, full control over each drilling and protection against accidental damage to the installation.

3 Detection Modes for Any Type of Material

The device is a universal detector, which thanks to three dedicated operating modes comprehensively protects the renovation and facilitates the installation of heavy furniture or TVs.

• Metal (up to 120 mm): Locates steel rebar (up to 120 mm) and copper pipes (up to 100 mm).
• Voltage cables (up to 50 mm): Flawlessly targets electrical wires, protecting the installation from drilling.
• Wood (up to 38 mm): Indispensable for finding profiles and joists under plasterboard.

Marking Hole and Ergonomic Design

Designed for maximum comfort and ergonomics when working on a ladder, in tight spaces or when scanning ceilings.

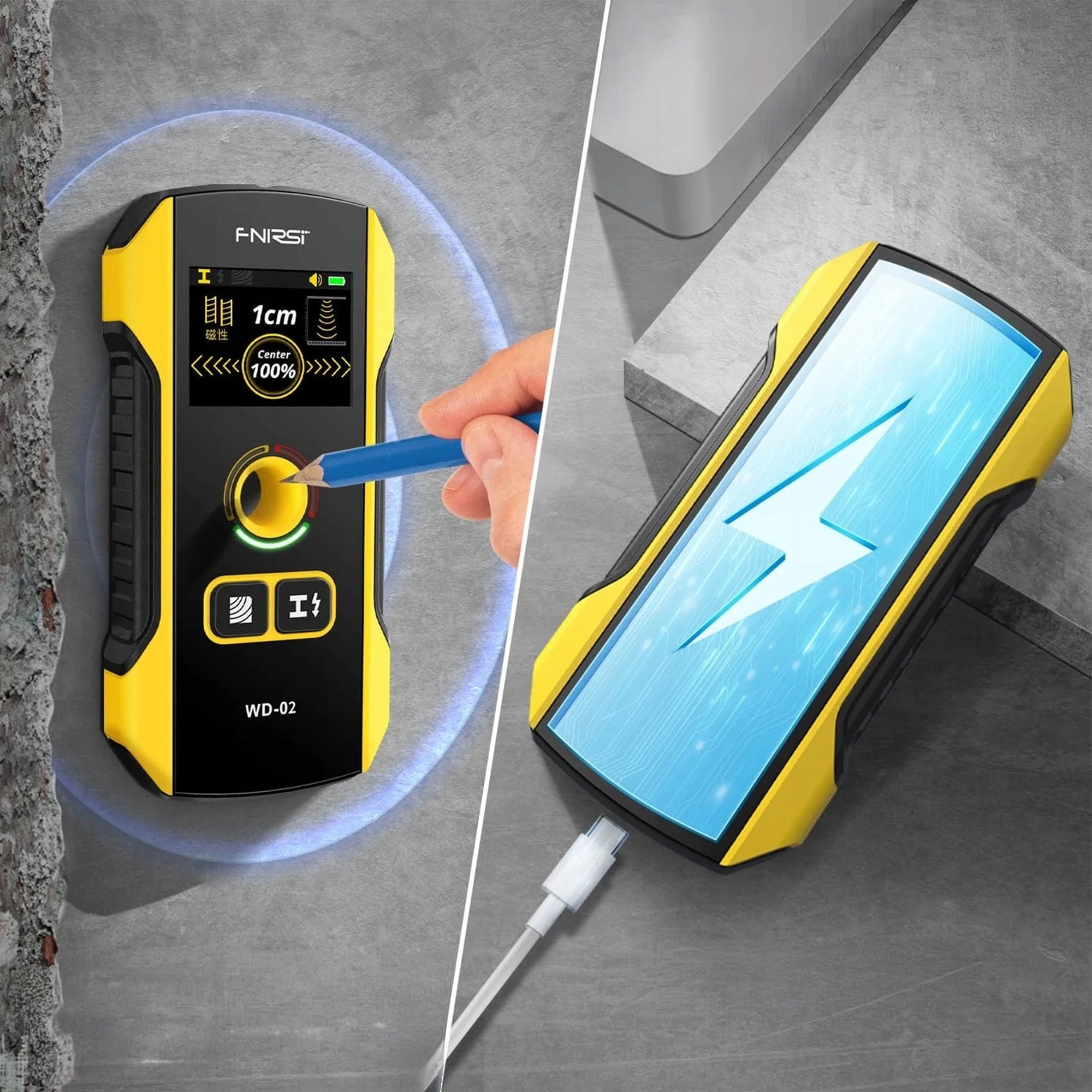

• Marking hole: The hole placed in the center of the device allows you to precisely mark the center of the detected profile with a pencil, without having to move the scanner away from the wall.
• Ergonomics and grip: The non-slip texture of the ABS plastic housing guarantees a secure hold on the instrument.
• Lightness: Low weight (only 122 g) means that even long-term work with raised hands does not cause fatigue.

USB-C Power Supply and Advanced HPC Module

The wall scanner eliminates the problem of cumbersome battery replacement and guarantees instant, stable measurements without interference.

• Built-in 300 mAh battery: Charged via a universal USB-C port with powerbank, phone charger or car, which saves on disposable batteries.
• Modern HPC module: Effectively filters interference, speeds up calculations and prevents the device from crashing.
• Automatic calibration: The detector is self-configurable when applied to the wall, ensuring repeatable and reliable results.

Specification

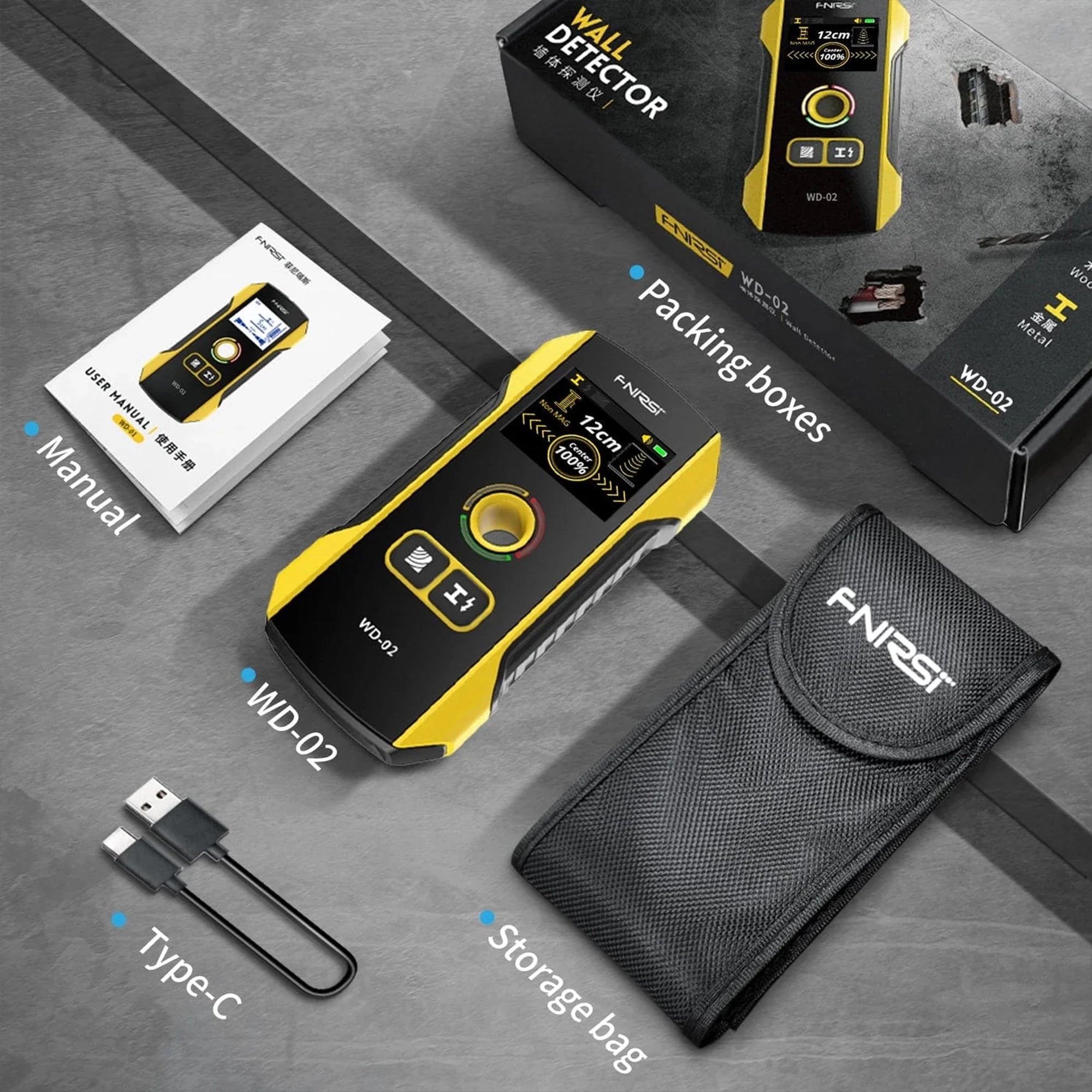

Contents of the set:

• wall detector FNIRSI WD-02
• instruction manual
• storage bag/cover
• USB-C cable
• product packaging

Basic parameters:

• Brand: FNIRSI
• Model: WD-02
• display: TFT HD/LCD color
• detection module: HPC
• signalling: light (green, yellow, red) and sound (alarm)
• sensitivity adjustment: 3-stage
• supported languages: Russian, English, Portuguese, Japanese, Simplified Chinese, Traditional Chinese
• additional functions: automatic calibration, marking hole

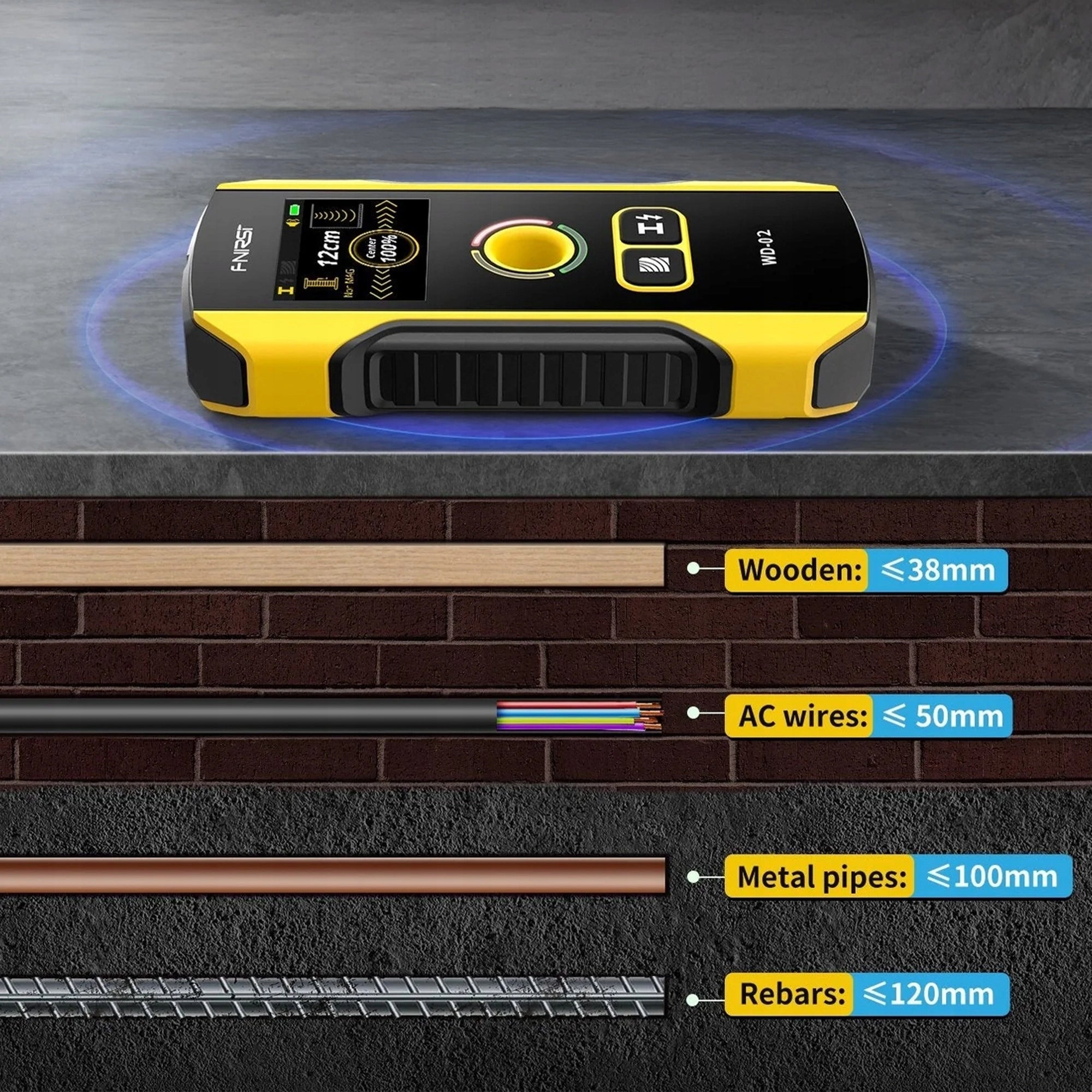

Detection ranges:

• operating modes: wood, live AC cables, metal
• maximum depth of metal detection: 120 mm
• maximum depth of detection of non-ferrous metals (e.g. copper): 100 mm
• maximum detection depth of AC cables: 50 mm
• maximum detection depth of a single copper conductor: 40 mm
• maximum depth of wood detection (depth mode): 38 mm
• maximum depth of wood detection (precision mode): 20 mm

Power Supply:

• power source: built-in 3,7 V 300 mAh lithium battery
• Charging Connector: USB-C
• automatic shutdown: after 5 minutes of inactivity

Materials and construction:

• housing: impact-resistant ABS plastic
• Front panel: clear acrylic
• buttons: silicone finish
• handle: non-slip texture on the sides

Dimensions and weight:

• dimensions: 138 x 68 x 22 mm
• Weight: 122 g

Applications:

• safe drilling in walls, floors and ceilings
• installation of cabinets, shelves and TV holders
• installation of air conditioners and wall equipment
• location of profiles and joists for development
• professional installation and renovation works

FAQ

I have plastic (PVC) pipes in my bathroom. Will this detector detect them so I don't drill into them?

No, this model does not detect plastic pipes. FNIRSI WD-02 is designed exclusively for locating metal, wood and live wires. If there is a plastic water installation in the wall, the device will not indicate its location, which is worth considering before starting work.

Are the menus and messages on the screen in Polish? I must admit that I don’t speak English very well.

No, the interface of this device does not have Polish language. There is, among others, English to choose from, but the WD-02 model is mainly based on very simple icons, directional arrows and colors. Thanks to this, the lack of Polish menu does not hinder everyday work and precise positioning on the wall.

I want to hang cabinets on a wall of drywall. Will this device find aluminum profiles under the plate?

Yes, the detector will easily locate the structural profiles under the g-k plate. The non-ferrous metal detection mode in the FNIRSI WD-02 model has a range of up to 100 mm, which with a large supply is enough to scan standard wall thicknesses. On the screen you will see an accurate indication of the center of such a profile, which will facilitate safe installation.

How much does the battery hold and do I have to buy these large 9V batteries like in older devices?

You do not need to buy any batteries, because the device has a built-in battery with a capacity of 300 mAh. It charges using the included USB-C cable, so you can quickly recharge with a regular phone charger if needed. Plus, the built-in shutdown function after 5 minutes of inactivity ensures that your equipment is ready to go on your next renovation.

I drove quickly across the wall and nothing was written down, and I know there's a cable going. What am I doing wrong?

The lack of reading usually results from moving the device too quickly across the surface. In order for the FNIRSI WD-02 scanner to work properly and calibrate, it should be carried on the wall very slowly, evenly and without peeling off the housing. It is also worth removing metal jewelry and a watch from your hands, as they can interfere with the operation of the measuring module.

I'm thinking about a cheaper detector with LEDs only. What does this screen give me in practice?

The screen in this model eliminates the guesswork you will encounter with simple LED devices. The display in the FNIRSI WD-02 precisely shows with arrows which way you need to move the equipment to hit perfectly in the middle of the cable or joists. Thanks to this, you immediately know where to use the marking hole, which significantly reduces the risk of confusion during drilling.
