CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE
CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Manufacturer code 00014A11
CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Brand no brand
CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Product height 7.8 cm
CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Product width 31 cm
CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Product depth 9 cm
CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE EAN (GTIN) 742385184219
Kryžminis darbinis stalas preciziniam universaliam frezavimo staklėms
Paslinkite virš paveikslėlio, kad priartintumėte Spustelėkite paveikslėlį, kad priartintumėte
CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINECROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Manufacturer code 00014A11CROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Brand no brandCROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Product height 7.8 cmCROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Product width 31 cmCROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE Product depth 9 cmCROSS WORKING TABLE FOR PRECISION MULTIFUNCTION MILLING MACHINE EAN (GTIN) 742385184219Kryžminis darbinis stalas preciziniam universaliam frezavimo staklėms

Kryžminis darbinis stalas preciziniam universaliam frezavimo staklėms

Kaina:
€48,94
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Kryžminis darbinis stalas preciziniam universaliam frezavimo staklėms. Kategorija: Stalai.

  • Gamintojas: no brand
  • Modelis: 00014A11

WORKING CROSS TABLE FOR MILLING MACHINE / DRILL – PRECISE MULTIFUNCTIONAL

Professional support for metal, wood and plastic processing!

Precision cross table is a universal workshop device that significantly increases the capabilities of milling machines, table drills and other machines. With its smooth X and Y axis adjustments, it allows you to perform precise drilling, milling, and engraving operations.

TECHNICAL SPECIFICATION:

✅ Construction:

  • Material: Stable, reinforced cast iron or aluminium construction (depending on model)
  • Working surface: Smoothly sanded with T-grooves (possibility of attaching a vice or other accessories)
  • Guide system: Precision screw or ball slides (minimum clearance, smooth movement)

✅ Movement range:

  • X-axis (longitudinal): 200 mm
  • Y-axis (transverse): 50 mm

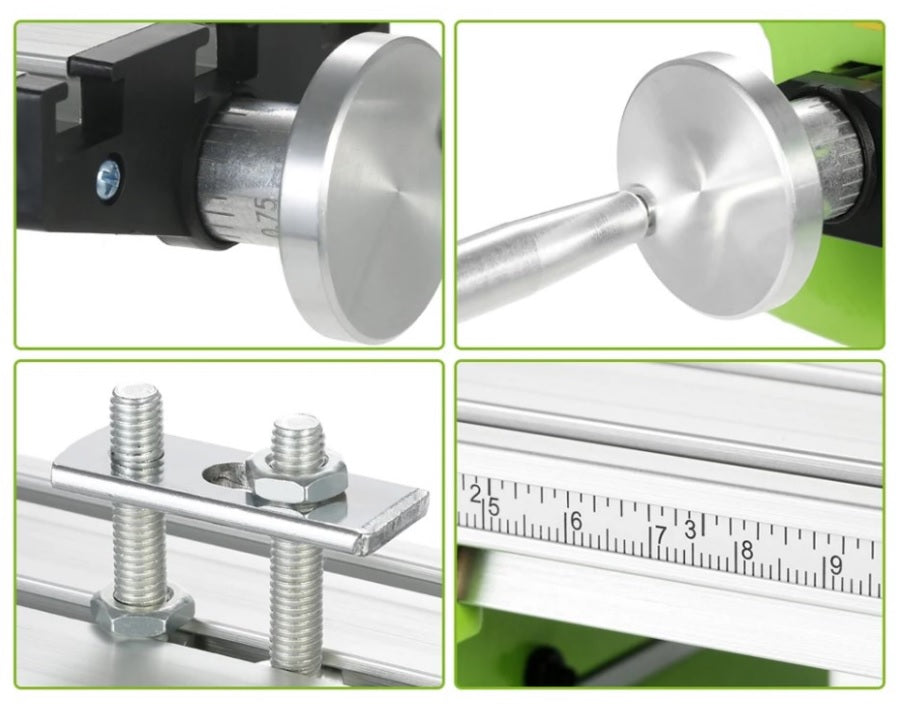

  • Position adjustment: Micrometric knobs with graduation (0,05 mm)

✅ Dimensions:

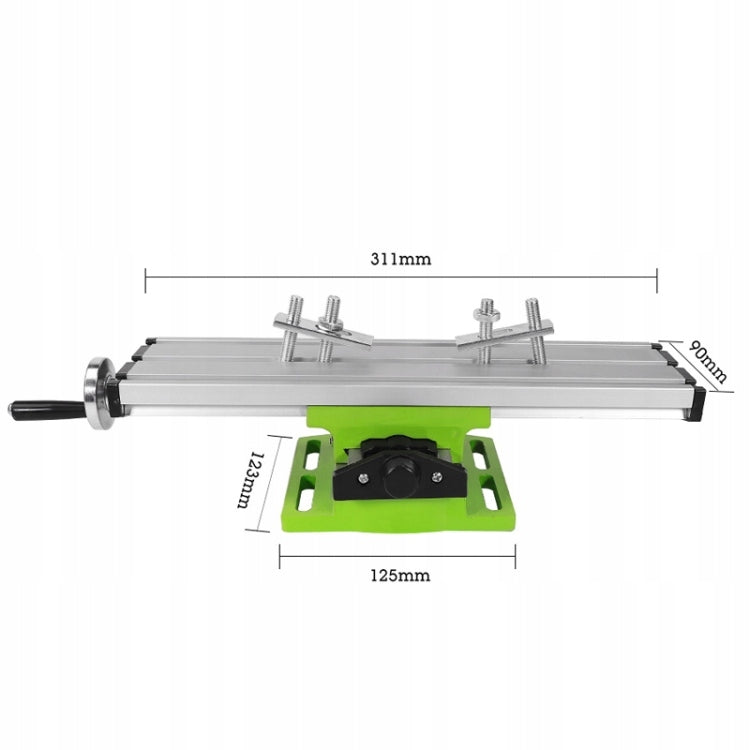

  • Table Size: 300*85*78mm
  • Distance between grooves: 34mm
  • 1 ring = 1,25 mm
  • 1 scale = 0.05 mm

✅ Compatibility:

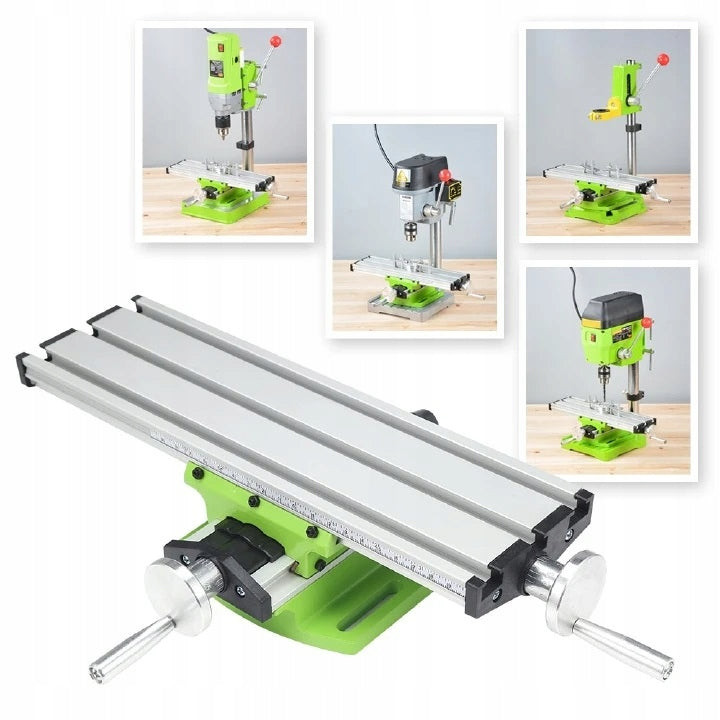

  • Suitable for: Table milling machines, column drills, CNC micromilling machines
  • Attachment: Universal handles (can be mounted to most machines)

APPLICATION:

  • Milling of grooves, channels and shapes
  • Precise drilling of holes in specific positions
  • Gravering and processing of small elements of metal, wood or plastics
  • Enhancing the capabilities of workshop machines

WHY CHOOSE OUR CROSS TABLE?

✔ Precision – accuracy up to 0,05 mm thanks to high-quality guides

✔ Universality – compatible with many workshop equipment

✔ Durability – robust wear-resistant construction

✔ Safety – stable mounting and minimal vibration

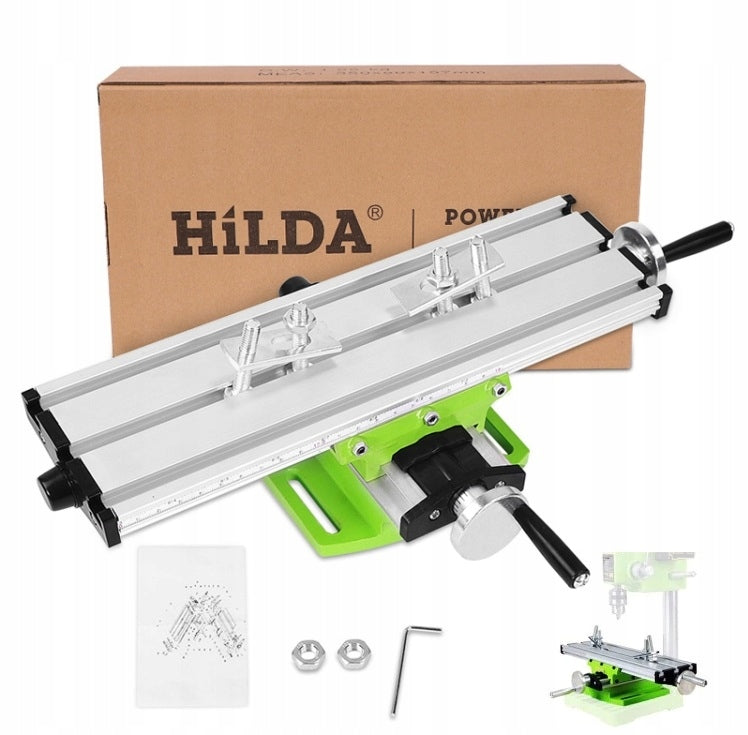

THE SET INCLUDES:

  • 1x Work Table
  • 1x Accessory Set

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand no brand
Parametry Manufacturer code 00014A11
Parametry EAN (GTIN) 742385184219
Parametry Product height 7.8 cm
Parametry Product width 31 cm
Parametry Product depth 9 cm
