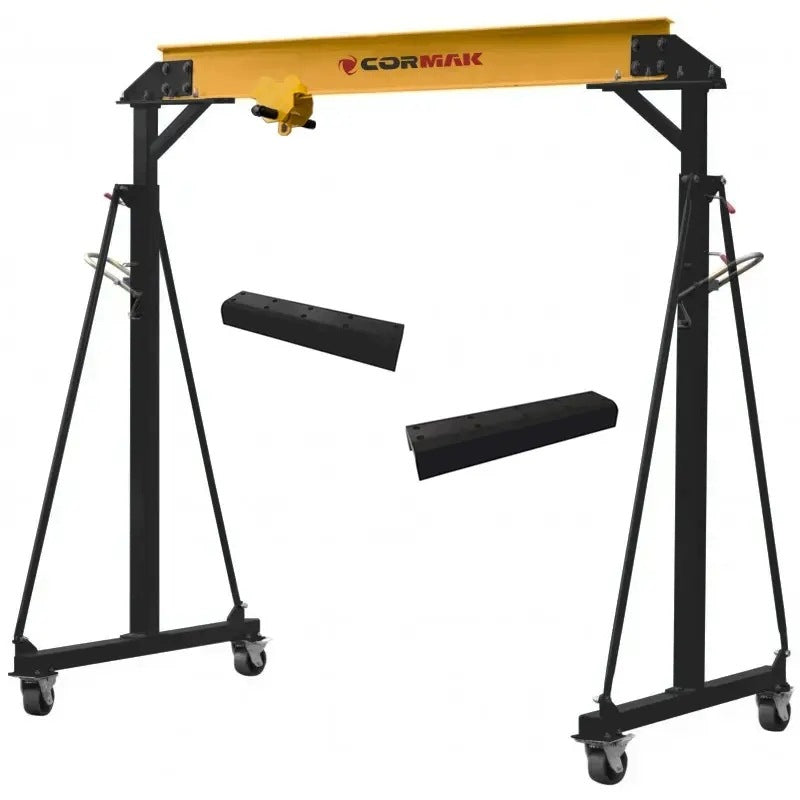

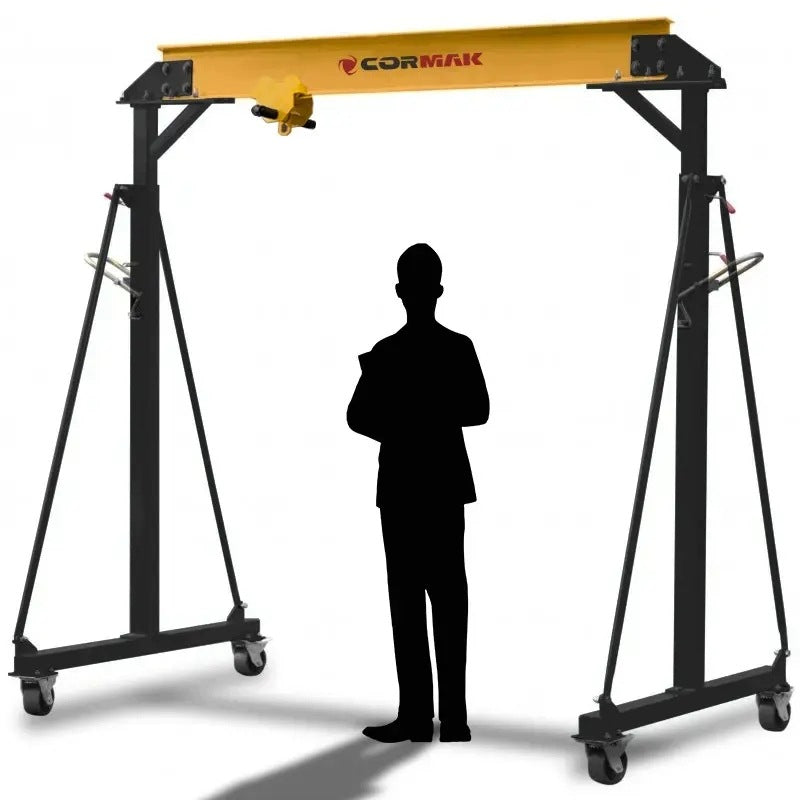

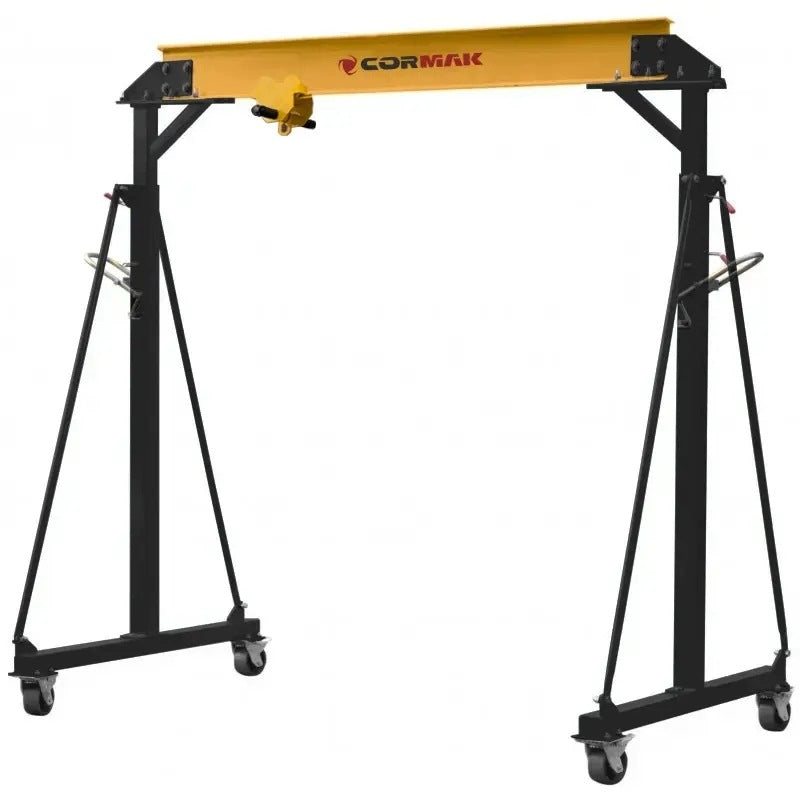

Kranas dirbtuvėms CORMAK PK1, keliamoji galia 1000 kg, aukščio reguliavimas 2500–3600 mm

Trumpai apie prekę

Prekė: Kranas dirbtuvėms CORMAK PK1, keliamoji galia 1000 kg, aukščio reguliavimas 2500–3600 mm. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Cormak
• Modelis: PK!

carrying capacity 1000 kg | height adjustment 2500 – 3600 mm | internal width 2300 mm | trolley included

CORMAK PK1 is a mobile gantry crane designed for lifting, moving and positioning heavy elements in a workshop, warehouse, service or production hall. It will work where you need a workstation to work with loads, and there is no fixed crane or ceiling crane.

Adjustable working height of 2500 to 3600 mm, load capacity of 1000 kg and internal width of 2300 mm allow you to comfortably adjust the crane for various service, assembly and storage tasks. The PK1 model is equipped with swivel rollers with parking brakes and a trolley.

The most important advantages

• Capacity 1000 kg — for lifting heavy components, subassemblies and structures.
• Adjustable height 2500 – 3600 mm – adaptable to the workstation and load height.
• Internal width 2300 mm — comfortable working space under the beam.
• Working width for winch 1750 mm — the ability to move the load along the support beam.
• I-beam support beam 76 × 120 mm — robust construction for load-bearing applications.
• 4 swivel castors with parking brakes – easier crane positioning and stabilization in the workplace.
• Trolley included — allows you to move the lifting point on the beam.
• Support frame tensioners — strengthen and stiffen the structure.
• Transverse reinforcement of the support beam — improves stability during operation.
• Mobile design — a practical solution for workshop, service and warehouse.

Elements of the set

• CORMAK PK1 gantry crane,
• steel frame with adjustable height,
• support beam made of 76 × 120 mm I-beam,
• 4 swivel rollers with parking brakes,
• transverse reinforcements,
• load-bearing frame tensioners,
• wheelchair.

Note: The crane does not include a winch. Photos with a winch are for illustrative purposes only.

Technical data

• Model: PK1
• Capacity: 1000 kg
• Height: 2500 – 3600 mm
• Internal width: 2300 mm
• Two-way: 76 × 120 mm
• Total base width: 2400 mm
• Upper beam width: 2550 mm
• Working width for winch: 1750 mm
• Support frame tensioners: 4 pcs.
• Transverse reinforcement of the support beam: 2 pcs.
• Weight: 142 kg
• Manufacturer: CORMAK

Practical application of PK1

The CORMAK PK1 gantry crane is suitable for lifting and moving heavy elements in mechanical workshops, production halls, warehouses and service points.

It can be used by m.in. for removing engines, gearboxes, machine components, structural components, steel parts and other loads requiring controlled lifting. It is a practical solution for assembly, repair, handling and service work.

Note: The crane does not include a winch. Photos with a winch are for illustrative purposes only.

Buyer's Trust

You buy the product from proven supplier of machines and workshop equipment CORMAK.

You get the device from a reliable source, consistent with the description and designed to work in a workshop, service, regeneration plant or production company.

• Quality – robust equipment for workshop and industrial applications.
• Service – access to technical support and parts.
• Documentation – instruction manual in Polish.
• Counselling – help in choosing the right solution for work.

Specifications
