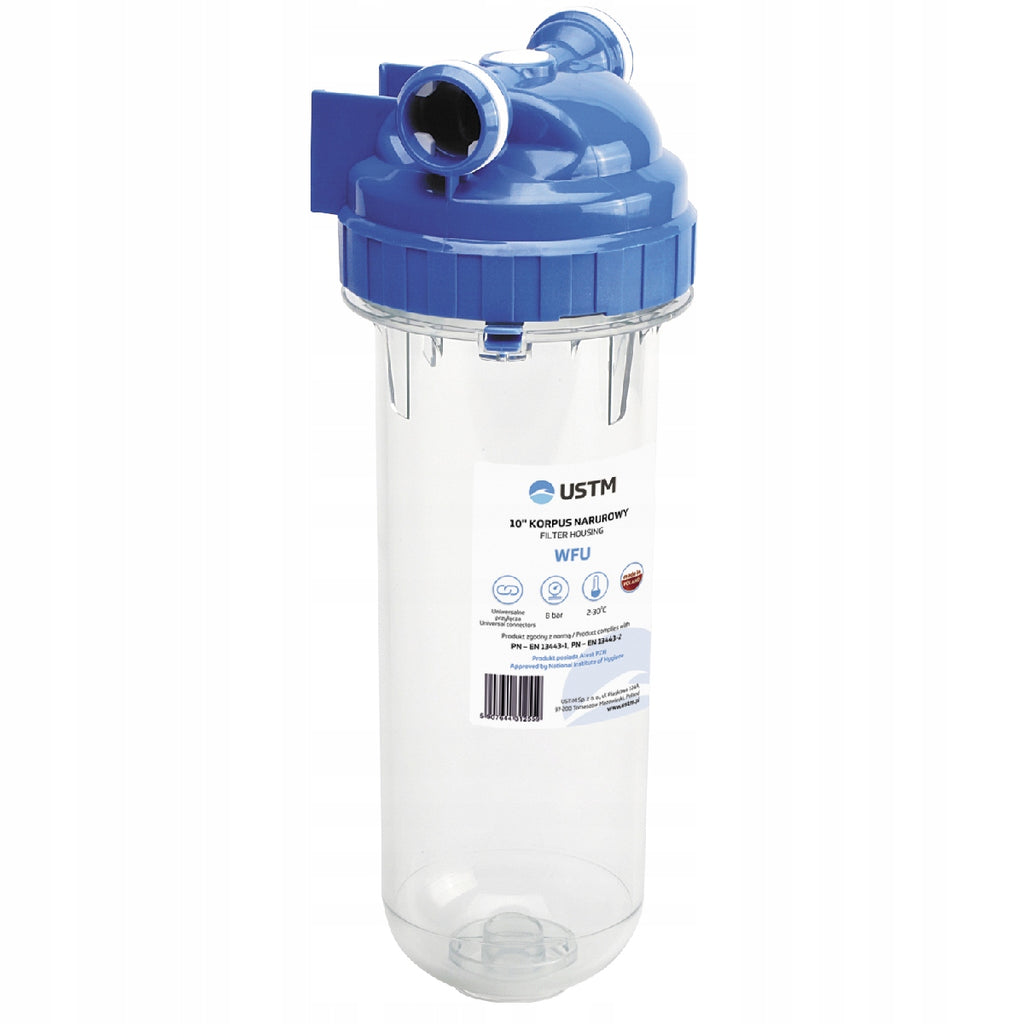

Korpuso filtras USTM WFU 10" permatomas

Trumpai apie prekę

Prekė: Korpuso filtras USTM WFU 10" permatomas. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: UST-M
• Modelis: WFU
• Talpa: 0.1 l

Index: 06010125

RELEVANT INFORMATION

In-line body USTM WFWU 10" dedicated after inserting appropriate cartridges for cold water filtration. It has a universal mounting system, allowing it to be adapted to any type of installation. The product is equipped with a double O-ring and protection against too strong tightening.

USTM is a leading manufacturer of water filters, central vacuuming system and sanitary installations on the Polish market.

The USTM WFU 10" in-line bodies are one of the latest bodies currently produced on the market, which have their application in water filtration. The USTM product family includes bodies that are characterized by versatility of applications depending on customer needs, thanks primarily to various parameters.

WFU is a universal in-line body, brand USTM designed to work with 10 inch standard cartridges. The water connection (to be purchased separately) allows connection to the installation:

• WF-UP1: 1 inch
• WF-UP34: 3/4 inch
• WF-UP12: 1/2 inch
• WF-UPQ: 1/4 inch quick coupler
• WF-UPN: nipple (body connector)

Connections are very easy to install in the connection socket, because you only need to push them into the socket. The security of this connection is guaranteed by the clip securing the USTM connection to the WFU body (also available in our store), which fastens after installing the connection. Important information is the fact that the connections do not have to be symmetrical (with identical dimensions). Therefore, on the one hand, we can use a connection, e.g. 1/2 inch and the other 1/4 inch etc.

The presented filter is dedicated to the installation of cold water. The product works with all 10 inch UST-M cartridges, except the STO cartridge. The twisted connection of the body head with the lower lampshade is secured with a special locking ratchet uncontrolled unscrewing of the housing. In addition, the ratchet protects the body against "dragging", i.e. too strong tightening, which in other types of bodies can cause cracks or, at best, serious problems with unscrewing to replace the cartridge. The seal was made on two O-ring seals. The WFU USTM body has been approved for the treatment of food water.

In order to read the installation and operation instructions, it is enough to open the "additional information" tab.

MAIN ELEMENTS OF THE USTM EMI WFU SET

• Lampshade and head made of glass fibre reinforced polypropylene
• Head with vent valve
• Two O-rings guaranteeing the tightness of the device

PROPERTIES OF THE BODY USTM WFU

• High quality workmanship on specialized production equipment
• Resistance to higher than typically permitted operating pressures
• Double sealing, effectively eliminating the risk of leakage
• Head equipped with brass plugs and vent
• Protection against too strong tightening
• Head design for easy positioning of the cartridge when twisting
• The body is transparent

APPLICATION

• Home installations
• Food industry
• Pre-filtration systems
• Laboratories and industry

ADVANTAGES

• Durability - allows you to work even at a pressure of 8 Bar
• Compatibility with third-party cartridges
• The product is made of high-quality plastic (BPA-free)
• Maximum leak protection (2 O-rings)
• Protection against strong tightening
• Product with flow indicator

TECHNICAL DATA

• Producer: USTM
• Product: In-line body
• Product Symbol: WFU
• Purpose: Home installations, food industry, pre-filtration systems, laboratories and industry
• Connection: Universal
• Operating temperature: 2 - 30°C
• Max working pressure: 8 Bar
• Size: 10"
• Dimension: 320 x 100 mm
• Color: Transparent
• EAN code: 5907644309214
