Korpusas, BB20, 20 colių viso namo filtras

Trumpai apie prekę

Prekė: Korpusas, BB20, 20 colių viso namo filtras. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Kuna Filter
• Modelis: BB-20
• Talpa: 0 l

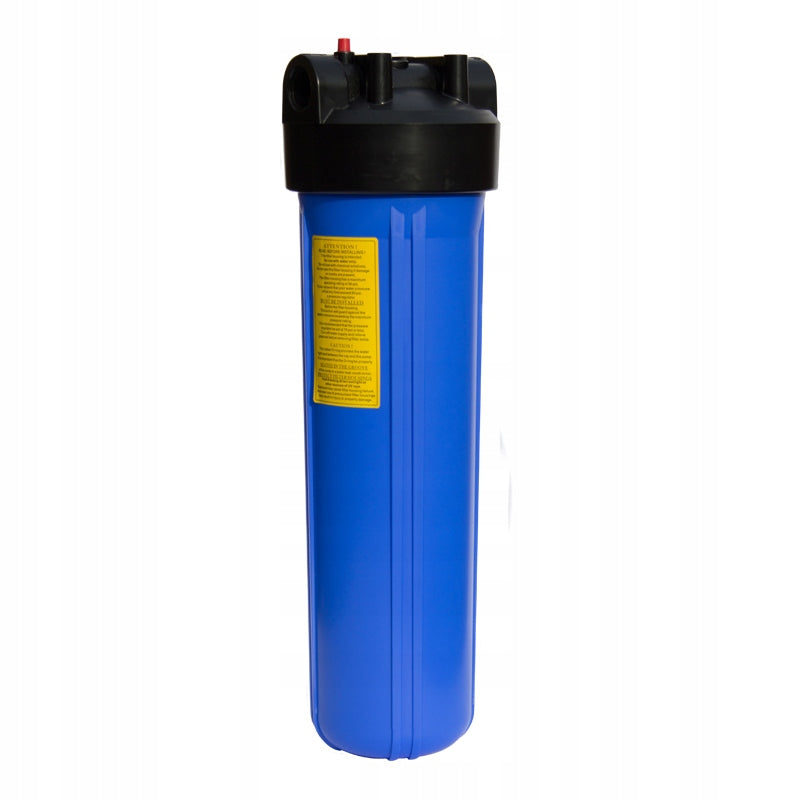

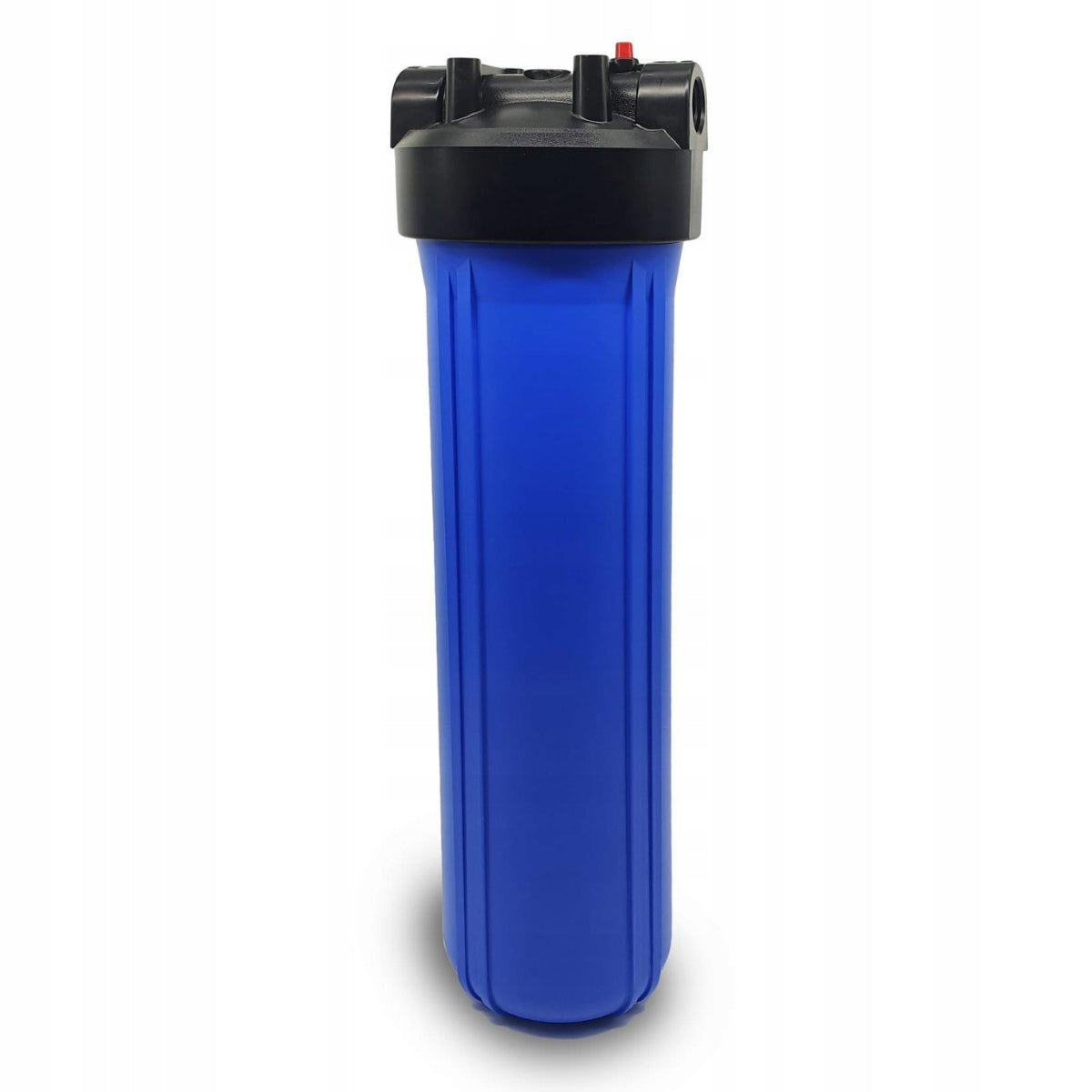

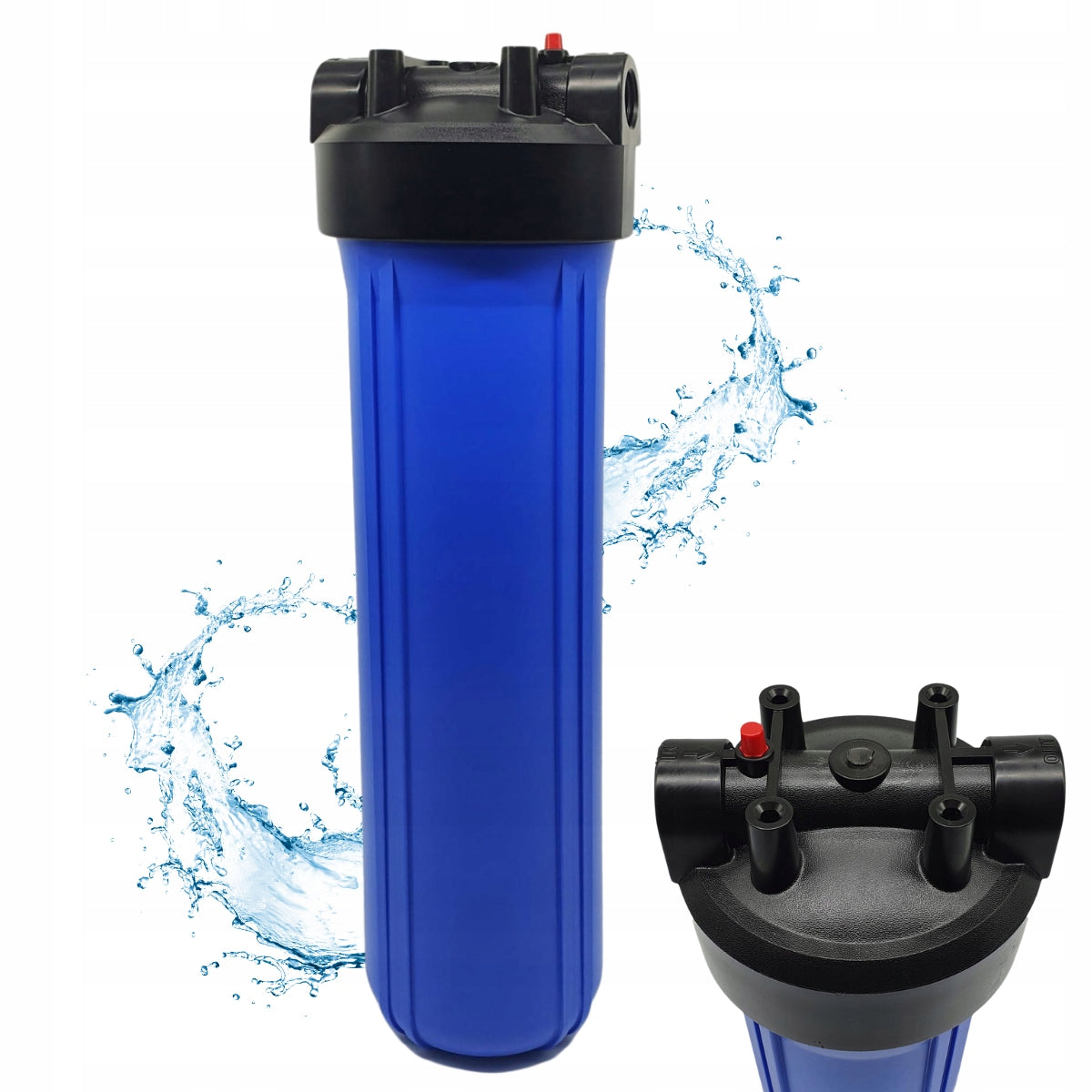

BB-20" body with vent.

✅ Application of BB20'' filters

The BB20'' filter can be used individually or in a configuration with two or three housings, which allows for better quality of purified water or increased system efficiency through parallel installation. The enclosures are made of opaque plastic and have an inlet with a diameter of 1''. They can be installed in different places, but most often they are installed at the entrance of water to a building or house.

✅ Types of cartridges and their use

Inside each BB20'' case, different types of replaceable cartridges can be used, There are i.a. to choose from string or foam filters, which are used for mechanical filtration, and activated carbon cartridges, which effectively remove chemical impurities and improve the taste and smell of water.

Performance (water flow rate): up to 200 litres per minute (depending on the type of filter selected and the feed water pressure).

✅ Sample two-filter configuration

A very popular solution is to mount two BB20'' filters on one mounting plate. In such a set, usually the first body contains a 20 micron thick string or foam cartridge that removes larger mechanical impurities. The second body is equipped with an activated carbon cartridge, which additionally cleanses water from chemicals.

✅ Dimensions

• Diameter: 153 mm
• Width: 185 mm
• Total height: 606 mm
• Connection: 1''

Specifications
