Konferencijų PTZ kamera 10x optinis priartinimas 7F

Trumpai apie prekę

Prekė: Konferencijų PTZ kamera 10x optinis priartinimas 7F. Kategorija: Veidrodiniai fotoaparatai.

• Gamintojas: no brand
• Modelis: 1267GDXW
• Komplektacija: not specified

Function:

1. High accuracy motor algorithm: Adopt high accuracy motor algorithm to control ball head, precise positioning (± 0,01°), support ‑170°~+170° horizontal rotation, –30°~+90° tilt rotation, ubiquitous rotation, fast and stable, and capture the whole space each space.

2. 1/2,8 inch CMOS sensor: Adopt 1/2,8 inch premium low noise CMOS sensor can provide high definition image and video and 1080p 60 frame video, 10x optical zoom, rich high definition multimedia interface/SDI/IP video output interface.

3. Applicable scenes: 1080p HD video camera is suitable for different scenarios, widely used, can be used for live streaming, online teaching, video conferencing, video calling, distance education, telemedicine, churches, courts, media centers, etc.

4. Control methods and control protocols: 10x optical Zoom PTZ Supports 4 remote control modes/IP/RS232/RS485, support Visca 3 control protocols.

5. High signal to noise ratio: 55 pre-set bits, Support Image, adopt 2D and 3D noise reduction technology, low noise, high noise to noise ratio to ensure clear images. Support H.264/H.265 encoding, video is smoother and clearer under low bandwidth conditions.

6. High compatibility and installation methods: The HD 1080P PTZ camera supports common video conferencing software and instant chat software in the market. Variety of installation methods, support desktop, ceiling, wall, tripod installation.

Specification:

• Item Type: 1080p HD Video Camera
• Material: ABS + optical glass
• Color: as pictures shown
• Weight: approx. 2,350 kg / 5,2 lbs
• Image sensor: 1/2,8 inch CMOS HD sensor
• Effective image pixels: 2.07MP
• Signal System: PAL/NTSC
• Video format: 1080p60/50/30/25, 720p60/50, 1080p59/29, 720p59/29
• Optical Zoom: 10x optical zoom
• Viewing angle: 58°(W)～ 5,8°(t)
• Signal to Noise Ratio: ≥50dB
• Minimum lighting: 0,1lx
• Gain: Auto/Manual
• White balance: auto/internal/external/one touch/instruction
• AE Control: Automatic/Manual
• Flip Image: Yes
• Backlight Compensation: Yes
• Noise Cancellation Function (3D NR): Yes
• Video Output: Support 3G SDI, High Resolution Multimedia Interface, USB3.0, IP 4 -Way Video Interface Output Image
• Positions: 255 (9 settings set on the remote control, with power function on the watch)
• Smart Cruise Mode: Operation
• Image Selection: Support
• Control protocol: Visca, for Pelco D, for Pelco P TCP/IP, HTTP, RTSP, RTMP, DHCP, SRT, NDI, Network Visca, Visca via IP control protocols
• Control Interface: RS422 (RS485)/RS232
• Installation Method: Formal Installation / Pull Out / Tripod
• Head/Tilt/Zoom Control: IR Pilot Control/IP/RS232/RS485 4 Control methods
• Pan rotation angle: Pan rotation: ± 170 degrees; Tilt rotation: -30 degrees to +90 degrees
• Ball head control speed: PAN: 0,1-100°/s; Tilt: 0,1-60°/s
• Multiple network protocols: support GB/T28181, RTSP, RTMP protocols; Support RTMP push mode, easily connect streaming media servers (wowza, FMS); Support RTP multicast mode, Support VISCA complete control network
• Coding technology: H.264/H.265
• Audio interface: line 3,5 mm w
• Audio Encoding Format: AAC, MP3, G711
• Audio sampling rate: supports 8000, 16000, 32000, 44100, 48000
• Supported Function: Support low power sleep/wake up, sleep energy consumption is less than 400MW
• Remote control battery: 2 AAA (not included)

How to use:

• Connect adapter and power cord to camera, connect power supply, DC12V, maximum current 2A.

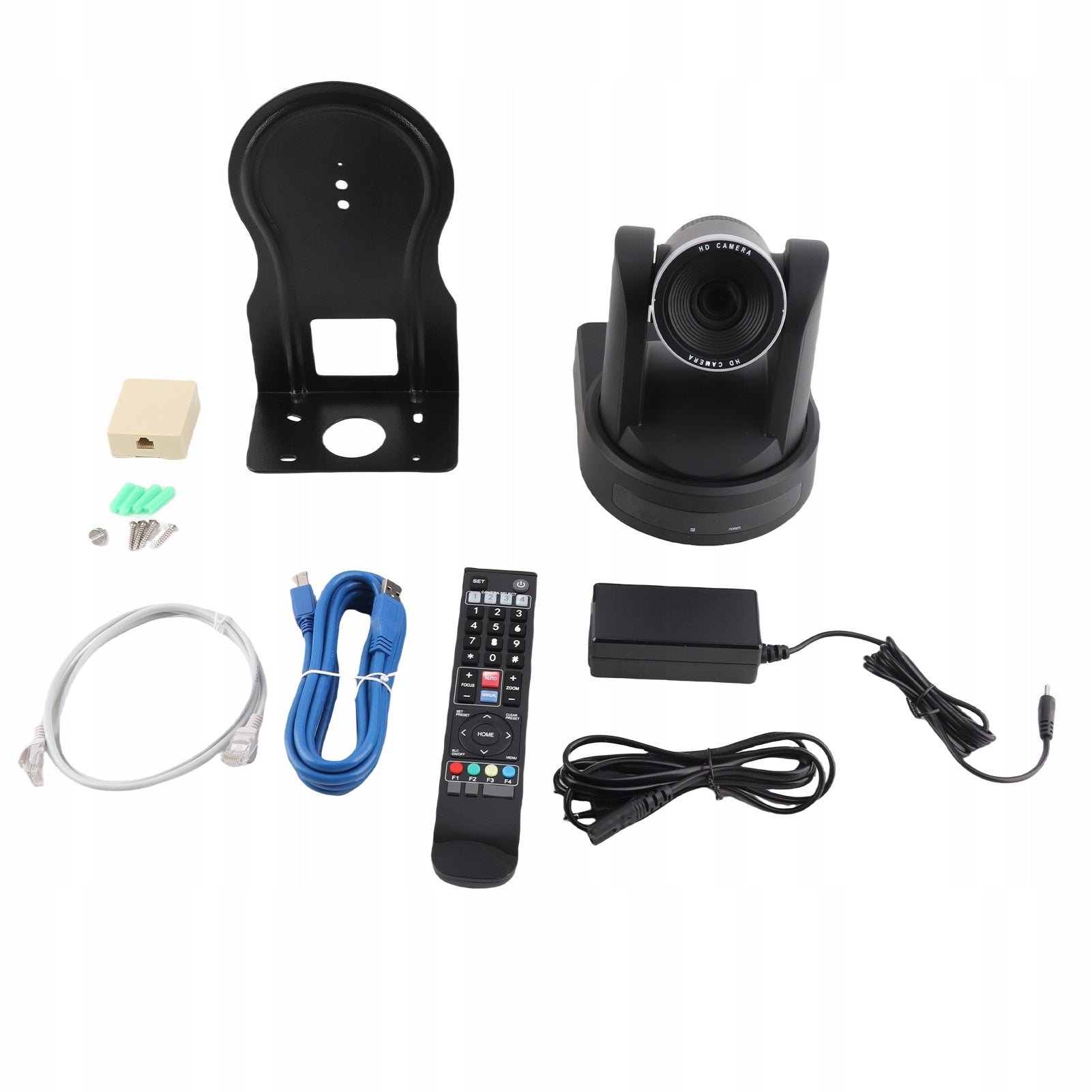

• List of packages

:

• 1 x Camera
• 1 x Adapter
• 1 x Power Cord
• 1 x Remote Control
• 1 x Mounting Bracket
• 4 x Mounting Screw
• 4 x Install plastic components
• Screw 1 x 1/4 inch
• Line 1 x RS232
• 1 x Manual
