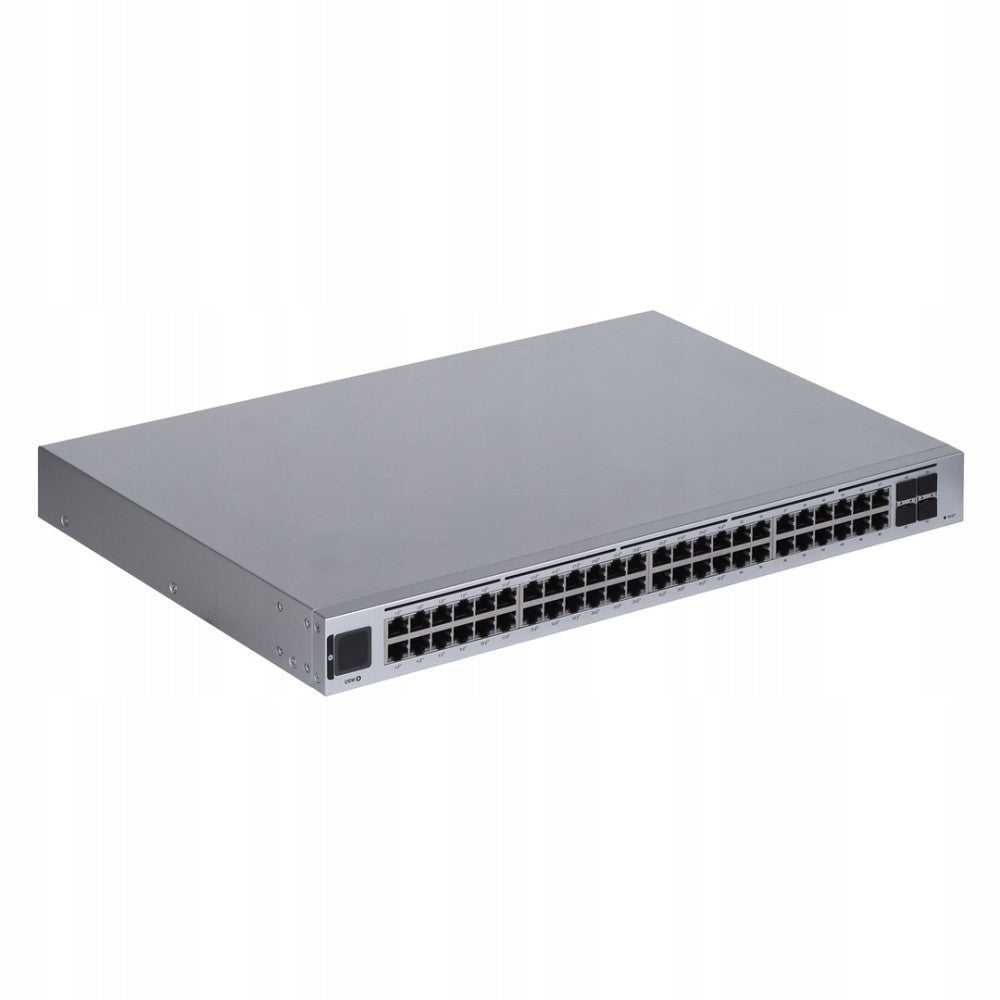

Komutatorius Ubiquiti USW-48-POE, 48 prievadai, 195W, valdomas

Trumpai apie prekę

Prekė: Komutatorius Ubiquiti USW-48-POE, 48 prievadai, 195W, valdomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Ubiquiti
• Modelis: USW-48-POE

Efficient switch for modern corporate network

Ubiquiti USW-48-POE is an advanced, managed layer 2 switch that has been created for companies, offices, professional installations and extensive business networks. It offers 48 Gigabit Ethernet RJ-45 ports and 4 SFP 1G slots, allowing you to conveniently connect end devices, access points, IP cameras, VoIP phones and fiber optic uplinks in a single, consistent infrastructure. It is a solution for users who expect stability, high bandwidth and central management in the UniFi ecosystem.

PoE+, flexibility and full control in UniFi

This model is equipped with 32 IEEE 802.3af/at compliant PoE+ ports, offering 195W PoE power budget and up to 32W per port, which significantly simplifies the deployment of network devices without the need for additional power supplies. UniFi controller and mobile application enable convenient configuration and supervision of functions such as VLAN, link aggregation, port mirroring, RADIUS, flow control or spanning tree protocol. Thanks to this, USW-48-POE works well both in everyday work and in more demanding environments where safety, traffic segmentation and easy administration count.

Compact 1U rack design and professional reliability

The switch is enclosed in a 1U enclosure for rack, measuring 442,4 x 285 x 43,7 mm, which facilitates integration with existing IT infrastructure. Fanless design promotes quiet operation, and the touch screen LCM 1,3" provides a quick overview of the most important information about the device. Noteworthy is also the switching bandwidth of 104 Gbit/s, capacity 52 Gbit/s and forwarding speed of 77,38 Mpps, which guarantee smooth handling of intensive network traffic. Ubiquiti USW-48-POE is an excellent choice for those who are looking for a professional Gigabit PoE switch for the company, combining modern management, high work culture and business-class reliability.

Product Features:

• Certificates: CE, FCC, IC
• AC input voltage: 100 - 240 V
• Automatic MDI/MDI-X: Yes
• Layout: 1U
• Total Power over Ethernet (PoE) budget: 195 W
• Multilayer switch: L2
• Product height: 43,7 mm
• Authentication type: RADIUS
• Connection aggregator: Yes
• User's Manual: Yes
• PoE support: Yes
• Switch Type: Managed
• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Communication standards: IEEE 802.1x
• Flow control support: Yes
• Number of SFP slots: 4
• Port mirroring: Yes
• Product width: 442,4 mm
• LEDs: Link
• Basic RJ-45 switching Number of Ethernet ports: 48
• Product color: Stainless steel
• Compatible with Jumbo Frames: Yes
• Power consumption (max): 45 W
• Power over Ethernet Plus (PoE) number of ports: 32
• Performance: 52 Gbit/s
• Product depth: 285 mm
• Input frequency AC: 50 - 60 Hz
• Temperature range (operation): -5 - 40 °C
• Support 10G: No
• Power over Ethernet (PoE) power supply per port: 32 W
• Power source: AC/DC
• Spanning tree protocol: Yes
• Transfer speed: 77,38 Mpps
• VLAN support: Yes
• Power supply included: Yes
• Relative humidity range: 10 - 90%
• Product weight: 4,52 kg
• Routing/switching throughput: 104 Gbit/s
• Frame mounting options: Yes
• Automatic detection: Yes
• Without windmill: Yes
• Manufacturer: Ubiquiti
• Number of ports: 48
• Product weight with unit packaging: 4.61
• LAN port operating standard: 10/100/1000 Mbps
• Safety information: CE
• Number of LAN ports (RJ-45): 1
