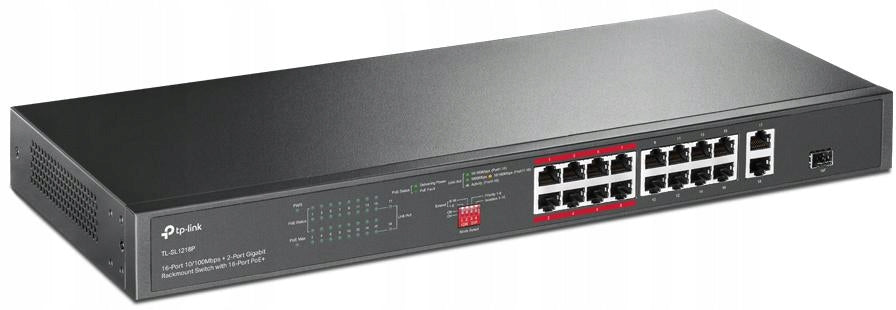

Komutatorius TP-Link TL-SL1218P, 16 PoE+ prievadų, iki 250 m

Trumpai apie prekę

Prekė: Komutatorius TP-Link TL-SL1218P, 16 PoE+ prievadų, iki 250 m. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SL1218P

SWITCH TP-LINK TL-SL1218P

TP-LINK

SWITCH TP-LINK TL-SL1218P

• Model: TL-SL1218P
• Housing Type: Rack
• Switch Type: Unmanaged
• FastEthernet ports: 16
• GigaEthernet ports: 2
• SFP Ports: 1
• Number of POE ports: 16
• Console Port: No
• Switch transmission speed: 7,2 Gbps
• Architecture switch: Fast Ethernet
• PoE (Power over Ethernet) support: Yes
• Number of ports: 18 pcs.
• Device bandwidth: 7.2 Gbps

• Housing Type: Rack
• Switch type: Unmanaged
• FastEthernet ports: 16
• GigaEthernet ports: 2
• SFP ports: 1
• Number of POE ports: 16
• Console port: No
• Transmission speed switch: 7,2 Gbps
• Architecture switch: Fast Ethernet
• PoE (Power over Ethernet) support: Yes
• Number of ports: 18 pcs.
• Device bandwidth: 7.2 Gbps

TL-SL1218P Rack Mount Switch, 16 Ports 10/100 Mbps PoE+, 2 Gigabit Ports

• 16 RJ45 10/100 Mbps PoE+ ports, 2 gigabit RJ45 ports, 1 gigabit SFP combo slot
• Large total PoE power supply - up to 30W on each PoE port and 150W for all PoE ports*.
• Up to 250 m data and power transmission range in Extend mode**
• Priority mode provides high priority for ports 18 to maintain high quality performance of systems susceptible to interference, such as e.g. video surveillance.
• Isolation mode allows you to separate customer-generated traffic with a single click for increased protection and efficiency.
• Plug and play connection, no need for configuration and complicated installation.

Multifunctional PoE switch with extraordinary performance

• 150 In total PoE capacity
• Up to 250 m transmission range
• One-click Priority mode
• One-click motion separation mode
• Ultra HD Video
• Plug and Play
• Wide operating temperature range

Switch designed for multiple applications 16 PoE+ ports with a total power of 150 W

Compliance with the 802.3af/at PoE+ standard ensures that up to 30W of power can be offered on each PoE port. 150 In total PoE power supply, a switch equipped with 16 gigabit PoE+ ports is the ideal solution for m.in. for monitoring systems, offices, dormitories and small businesses. The device is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Switch designed for IP monitoring systems up to 250 m transmission range

In Extend mode, the PoE transmission range reaches up to 250 m, making the switch an excellent solution for deploying IP cameras over a large area.

Switch designed for IP surveillance systems for greater efficiency and better protection

• Priority High-Quality Video Guarantee - The ability to prioritize ports 1 through 8 with one-click Priority mode guarantees high-quality latency-sensitive applications such as video recordings.
• One-click separation of traffic on ports 1-16 - With just one click, you can enable Isolation mode, which easily distributes traffic on ports 1 to 16 to eliminate the problem of eavesdropping and copying data. The switch can thus isolate broadcast storms from the network, thereby improving the security of the local network and data transmission.

Guarantee of high quality video

2 gigabit RJ45 ports and 1 gigabit SFP port is a solution fully sufficient to ensure smooth transmission even when 16 IP cameras recording in HD quality are running at the same time.

Intelligent power consumption management to protect against overloads

When the total power consumption exceeds 150W, the Intelligent Power Consumption Management function turns off the power supply of the lowest priority port to ensure that the higher priority ports are powered and thus protect the device from overload. It also enables automatic detection of the PoE power required by the device and protects non-PoE devices from damage.

Wide operating temperature range and efficient heat dissipation

The durable metal housing and construction that eliminates the problem of overheating of the device make the switch work stably in a wide temperature range (0 – 50℃).

Many possible applications

TL-SL1218P is fully compatible with PoE devices such as IP cameras, Access Points and IP Phones. It also works with non-PoE devices to provide gigabit connections to computers, printers, and IP TV.

Technical data

HARDWARE FEATURES

• Ports - 16 RJ45 10/100 Mbps PoE+ ports, 2 RJ45 10/100/1000 Mbps ports, 1 gigabit SFP combo slot
• Network cabling - 10BASE-T: UTP cable cat. 3, 4 or 5 (up to 100m), EIA/TIA-568 100Ω cable (up to 100m), 100BASE-TX: UTP cat. 5, or 5e (up to 100m), EIA/TIA-568 100Ω cable (up to 100m), 1000BASE-T: UTP cat. 5, 5e, 6 or higher (up to 100m), EIA/TIA-568 100Ω cable (up to 100m), 1000BASE-X MMF, SMF
• Number of fans - No, 2 fans
• Physical security - Yes
• Power supply - 100 – 240 V AC, 50/60 Hz
• PoE+ ports (RJ45) - Compliance with 802.3af/at standards, PoE ports: 1 to 16, Total PoE power: 150 W
• Dimensions (S x G x W) - 440 × 180 × 44 mm (17,3 × 7,1 × 1,7 inches)
• Max. energy consumption - 12,71 W (220 V/50 Hz, without connected PoE devices), 172,8 W (220 V/50 Hz, with connected PoE devices of 150 W)
• Amount of heat generated - 43,34 BTU/h (without connected PoE devices), 589,25 BTU/h (with connected PoE devices with 150 W power)

EFFICIENCY

• Switching performance - 7,2 Gbps
• Package redirection speed - 5,36 Mp/s
• MC Address Board - 8K
• Jumbo frames - 10 KB

SOFTWARE FUNCTIONS

• Advanced Features - Compatible with IEEE 802.3af/at PoE (PD) powered devices, Extend mode (up to 250 m data transmission and PoE power range), Priority mode, Isolation mode, Automatic memorization and blanking of MAC addresses, Support IEEE802.3x bandwidth control
• Method of transmission - Store-And-Forward

OTHER

• Certificates - CE, FCC, RoHS
• Package Content - TL-SL1218P, Power Cord, Installation Manual, Two Mounting Brackets
• Working environment - Permissible operating temperature: 0℃~50℃ (32℉~122℉);, Permissible storage temperature: -40℃~70℃ (-40℉~158℉), Permissible air humidity: 10%~90%, non-condensing, Permissible storage humidity: 5%~90%, non-condensing
