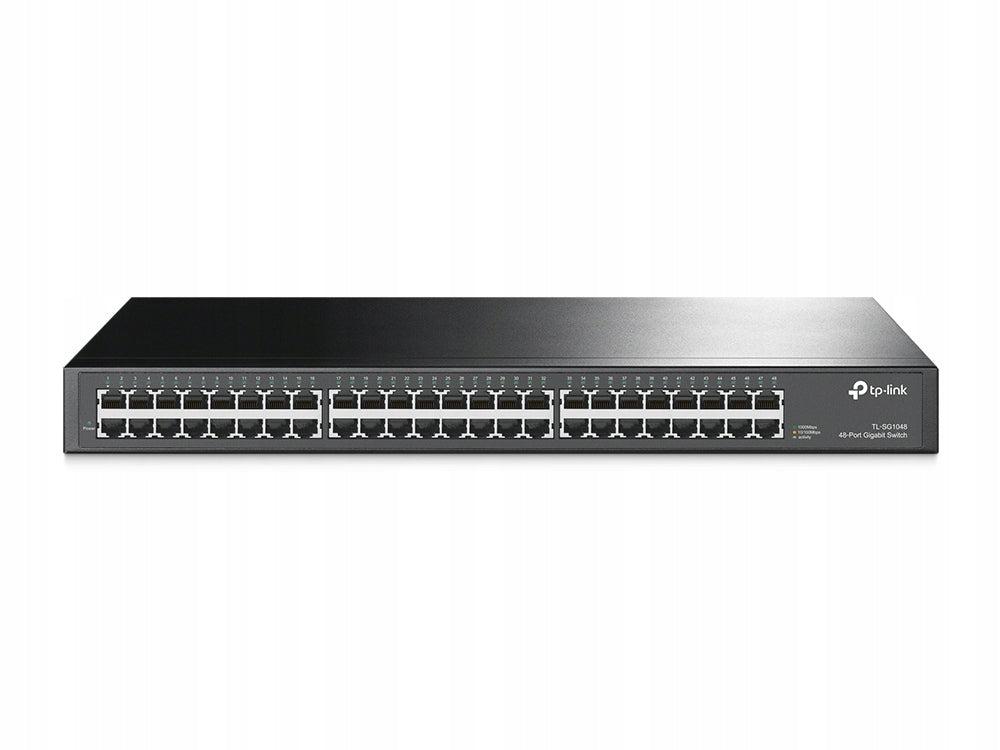

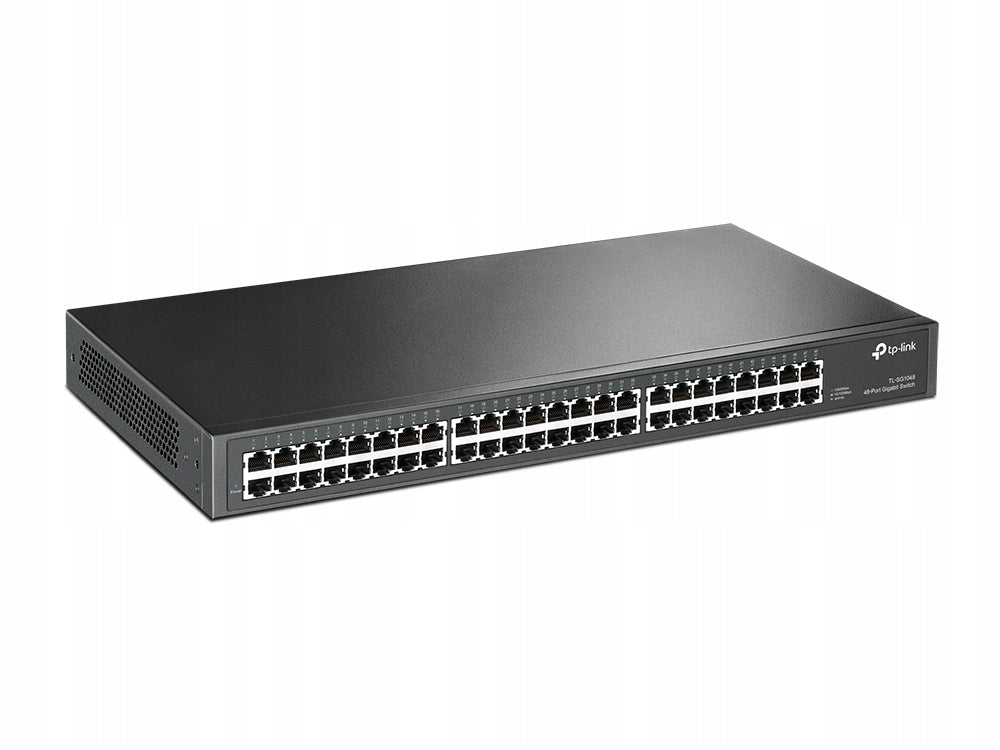

Komutatorius TP-LINK TL-SG1048

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SG1048. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG1048

Rack Mount Switch 48 Ports Gb

P/N : TL-SG1048

Key Features :

• 48 RJ45 10/100/1000Mb/s ports
• Innovative technology allows for high energy savings
• Support MAC address self-learning, automatic call patching (MDI/MDIX)
• Possible installation in 19" steel cabinets

Application of the product

The 48 port gigabit TL-SG1048 switch is designed for users with high network connection quality requirements. The device is easy to use and has no complex management functions. It is equipped with 48 ports 10/100/1000Mbps. TL-SG1048 switch is an inexpensive device that guarantees high work efficiency. It is a good choice for network administrators looking for the best solutions at the lowest possible prices.

TP-Link Green technology

The new generation TL-SG1048 switch uses technology to increase network bandwidth with high energy savings. The device automatically adjusts the power consumption depending on the connection status and cable length, ensuring the protection of the environment. The device complies with the European RoHS directive, limiting the use of equipment made of environmentally hazardous materials. In addition, 80% of the product packaging is recyclable.

Simple operation

Automatic switch operation thanks to plug and play function ensures simple and hassle-free installation. The device does not require additional software. With MDI/MDIX, there is no need for patch cables or uplink ports. The automatic connection negotiation function detects the speed of the connected device (10, 100 or 1000Mbps) on each port, ensuring the best transmission performance. The desktop enclosure allows you to place the device in places where there is not much free space. A safe and convenient solution is also to place the switch in the cabinet. LEDs indicate the operating status of the device and detect major errors in transmission.

High productivity

The TL-SG1048 uses a seamless data packet switching architecture for wired networks. The switching capacity is 96Gb/s, thanks to which maximum bandwidth is used. The 16K MAC address array ensures the scalability of even large networks. Support for bandwidth control standard for full duplex mode (802.3x) and backpressure function for half duplex mode ensures smooth network traffic and reliable data transmission.

HARDWARE FEATURES

Standards and protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Ports

48 RJ45 10/100/1000Mb/s ports

Automatic connection speed negotiation and automatic patching (Auto-MDI/MDIX)

Network wiring

10BASE-T: UTP cable cat. 3, 4 or 5 (up to 100m)

100BASE-TX/1000BASE-T: UTP

Number of fans

Yes

Physical security

NO

Power supply

100~240VAC, 50/60Hz

Dimensions (S x G x W)

440*220*44 mm

(17,32*8,7*1,73 inches)

Installation

For rack mounting

Max energy consumption

32,29W (220V/50Hz)

Amount of heat generated

110,17 BTU/h

EFFICIENCY

• Switching capacity: 96Gb/s
• Package redirection speed: 71,4 Mp/s
• MAC Address Table: 16K
• Buffer size: 12Mb
• Jumbo frames: 12KB
• Switching architecture: Store-and-Forward

OTHER

Certificates

FCC, CE, RoHS

Content of packaging

Desktop Switch, 48 Gb Ports

Power cable

User manual

Mounting hardware for 19" rack cabinet

Rubber feet

Working environment

Permissible operating temperature: 0℃~40℃ (32℉~104℉);

Permissible storage temperature: -40℃~70℃ (-40℉~158℉);

Permissible air humidity: 10%~90%, non-condensing

Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	6.35 kg
Parametry	Number of ports	48
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	0012302227153
Parametry	Manufacturer code	TL-SG1048
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
