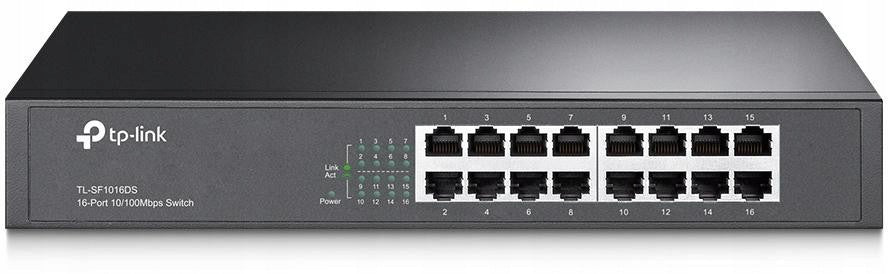

Komutatorius TP-LINK TL-SF1016DS, 16 prievadų

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SF1016DS, 16 prievadų. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 4790

SWITCH TP-LINK TL-SF1016DS 16-PORT

TP-LINK

SWITCH TP-LINK TL-SF1016DS

Model: TL-SF1016DS KEY FEATURES

• Innovative technology saves up to 25% of energy
• Support bandwidth control standard for full duplex mode (IEEE802.3x) and backpressure function for half duplex mode
• Seamless network traffic switching architecture enables packet forwarding and filtering at full speed with maximum link bandwidth
• Switching capacity 3,2Gb/s
• Store and forward packet switching program
• Thanks to the MDI/MDIX function, there is no need for patch cables
• Support for auto-learning and auto-aging MAC addresses
• Automatic negotiation of connections on ports enables better integration of devices operating at different transmission speeds: 10Mbps or 100Mbps
• Simple installation with Plug and Play
• No fan in the housing ensures quiet operation of the device

USE OF THE PRODUCT

TL-SF1016DS Fast Ethernet Switch is a cost-effective, efficient and easy to use solution. It allows you to upgrade the network by providing data transmission speeds up to 100Mbps. Each of the 16 ports of the device has an automatic patching function MDI/MDIX allowing you to quickly install the device without having to check the type of cables used. The TL-SF1016DS switch is environmentally friendly, as it uses innovative technology to save up to 25% of energy consumption. In addition, 70% of the product packaging is recycled material.

TECHNICAL SPECIFICATION

• Standards and protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
• Ports: 16 RJ45 10/100Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
• Network cabling: 10Base-T: UTP cable cat. 3, 4 or 5 (up to 100m) STP cable EIA/TIA-568 100Ω (up to 100m) 100Base-Tx: UTP cable cat. 5, or 5e (up to 100m) STP cable EIA/TIA-568 100Ω (up to 100m)
• Backup transmission bandwidth: 3,2Gb/s
• External power supply: 100-240VAC, 50/60Hz
• LED: Power, Link/Act, 100Mbps
• Dimensions (S x G x W): 294×180×44 mm (11,6×7,1×1,7 inches)
• Basic functions: High speed wired transmission Support auto-learning and auto-aging MAC addresses Support bandwidth control standard for full duplex mode (IEEE802.3x) and back pressure function for half duplex mode
• Port Forwarding: 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
• Broadcasting method: Store-and-Forward
• MAC Address Table: 8k
• Certificates: FCC, CE
• System requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• Working environment: Permissible operating temperature: 0℃~40℃ (32℉~104℉) Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
