Komutatorius TP-LINK TL-SF1008P, 8x10/100, 4xPoE, stalinė versija 8.0, dupleksinis

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SF1008P, 8x10/100, 4xPoE, stalinė versija 8.0, dupleksinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 6935364020682

✅ Automatic port patching (Auto MDI-MDIX)

✅ Automatic negotiation of connection speed

✅ Half and full-duplex operation

✅ Priority function

✅ Simple operation

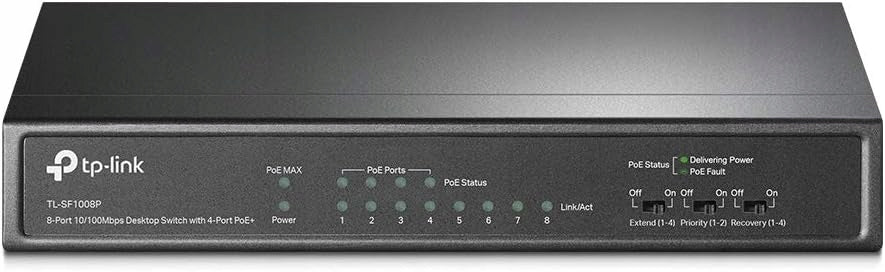

TP-LINK TL-SF1008P

The TL-SF1008P PoE switch has 8 RJ45 ports with 10/100Mbps speed, no configuration required. 4 of them (1-4) support Power over Ethernet (PoE). The switch automatically detects PD devices operating in the IEEE 802.3af standard and supplies them with energy. This allows you to extend the range of the network in places where there is no access to sockets or power lines, and where there is a need to place access points, IP cameras, IP phones, etc.

Principle of operation

The switch has 8 RJ45 ports with automatic connection speed negotiation function. 4 of them (1-4) support Power over Ethernet (PoE). The switch automatically detects PD devices operating in the IEEE 802.3af standard and supplies them with energy.

Prevention of overload

The switch has a priority function, thanks to which it protects the system in moments of overload. The power consumption of PoE-powered devices is up to 66W. Devices connected to higher-priority ports are powered first.

Prioritization of ports

Port priorities: port-1>port-2>port-3>port-4. This function protects the system in moments of overload. E.g. Ports 1,2 and 4 draw 15,4W (the maximum value for the port is 15,4W), then the system uses 46,2W (PoE LED will light up in red). If a 12W download device is connected to port 3, the system will cut the power from port 4. Port 1 and 2 will therefore be powered by 15,4W, port 3 - 12W, while port 4 will be disconnected from power.

Simple operation

TL-SF1008P switch is simple to install and operate. No setup or assembly required. With its reliability and high-quality transmission, the TL-SF1008P 10/100M 8-Port Desktop Switch with four PoE ports is the ideal solution for expanding your home or office network.

Technical data:

• Access - Web browser (GUI)
• Network architecture - Fast Ethernet
• Connectors -RJ-45 10/100 Mbps - 8 pcs.
• Power over Ethernet (PoE) - PoE 802.3af (PSE) to 15.4 W
• Number of PoE/PoE+ ports - 4
• Supported standards - IEEE 802.3 x
• MAC board size - 2 k
• Switching algorithm - Store-and-forward
• Bandwidth - 1,6 Gb/s
• Maximum power consumption - 65 W
• Height - 27 mm
• Width - 171 mm
• Depth - 98 mm
• Included accessories - Power supply
