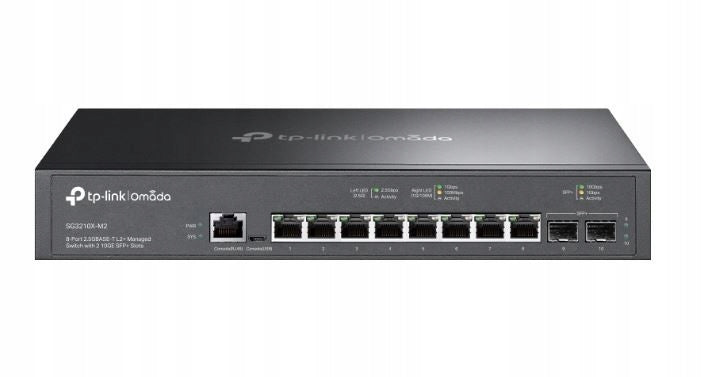

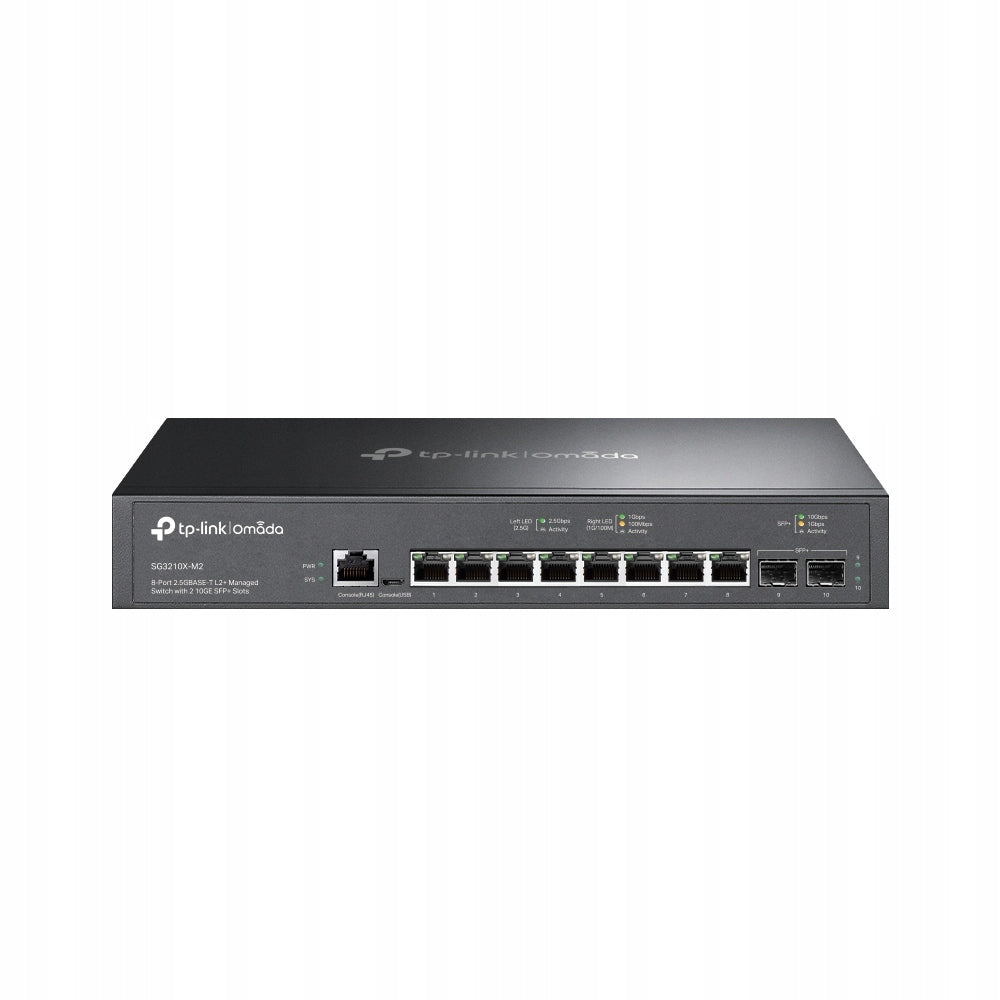

Komutatorius TP-LINK SG3210X-M2, 8x2.5GE, 2xSFP+

Trumpai apie prekę

Prekė: Komutatorius TP-LINK SG3210X-M2, 8x2.5GE, 2xSFP+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: SG3210X-M2

• 2,5 Gbps speeds: 8 RJ45 2,5 Gbps ports provide fast and reliable connections to other switches and devices.
• 10G Lightning-Fast Connectivity: The 2 10Gb/s SFP+ slots allow for high-bandwidth connectivity and non-blocking switching capabilities.
• Integrated with Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management and intelligent monitoring.
• Centralized management: Cloud access and Omada app for exceptional convenience and easy management.
• Static routing: Helps direct internal traffic for more efficient use of network resources.
• Optimize voice and video applications: L2/L3/L4 QoS and IGMP snooping.
• Self-managed: Internet, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management capabilities.

HARDWARE FEATURES

Ports

• 8 RJ45 2,5 Gbps ports
• 2 SFP+ 10G slots
• 1 RJ45 console port
• 1 microUSB console port

Number of fans - Fanless

Power supply - 100-240 V AC~50/60 Hz

Dimensions (S x G x W) - 294 × 180 × 44 mm (11,6 × 7,1 × 1,7 inches)

Assembly - Rack or Countertop Mount

Max. energy consumption - 15,0 W (110V/60Hz)

Amount of heat generated - 51,18 BTU/h (110 V/60 Hz)

EFFICIENCY

Switching performance - 80 Gbps

Package redirection speed - 59,52 Mp/s

Address table MAC - 16 K

Package buffer - 12 Mb

Jumbo frames - 9 KB

SOFTWARE FUNCTIONS

Quality of Service

• 8 queues of prioritization
• Support for 802.1p CoS/DSCP prioritization
• Priority Schedule Mode: - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR
• Bandwidth control - Limiting transfer speed based on port/data flow
• Smoother operation
• Actions for flows: - Mirror (to supported interface) - Redirect (to supported interface) - Speed limit - QoS Remark

Features of the L3 switch

• 32 IPv4/IPv6 interfaces
• Static routing - 48 static routes
• Static IDA - 128 static entries
• ARP proxy
• Gratuitous ARP
• DHCP server
• DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay
• DHCP L2 Relay

Functions L2 and L2+

• Link aggregation - Static link aggregation - LACP 802.3ad - Up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol (STP) - STP 802.1d - RSTP 802.1w - MSTP 802.1s - STP Security: TC Protection, BPDU Filtering, Root Protection
• Loopback detection - Port-based - VLAN-based
• Flow Control - Flow Control 802.3x - HOL Blocking Prevention
• Mirroring - Port Mirroring - Processor Mirroring - One-to-One Transfer - Many-to-One Transfer - Tx / Rx / both

L2 Multicast

• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication
• IGMP authentication
• MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Configuration - Limited IP Multicast
• MVR
• Multicast transmission filtering: 256 profiles and 16 profile entries

Advanced functions

• Automatic detection of devices
• Group configurations
• Group software updates
• Intelligent monitoring of network status
• Warnings of unusual events
• Unified configuration process
• Reboot schedule

VLANs

• VLAN Groups - Max. 4K VLAN groups
• Tagging 802.1Q VLAN
• MAC VLAN address: 256 entries
• VLAN protocol: Protocol 16 template, VLAN 16 protocol
• GVRP
• VLAN VPN (QinQ) - QinQ based on ports - Selective QinQ
• Voice VLAN

Access control lists

• Time-based access control list (ACL)
• MAC ACL Address - Source MAC Address - Target MAC Address - VLAN ID - User Priority - Ethertype
• IP address ACL - Source IP address - Target IP address - Fragment - IP protocol - TCP flag - TCP/UDP port - TOS DSCP/IP - User Priority
• Combined ACL
• Package Content ACL
• IPv6 ACLs
• Access control policy - Mirroring - Speed limit - Redirect - QoS Remark
• Application of ACL to Port/VLAN

Security of transmission

• Binding IP, MAC and Port addresses - 512 entries - DHCP Snooping - ARP Inspection - Protection of source IPv4 address: 100 entries
• Binding IPv6, MAC and Ports - 512 entries - DHCPv6 Snooping - ND detection - Protection of source IPv6 address: 100 entries
• Protection against DoS attacks
• Port protection through static/dynamic configuration: - Up to 64 MAC addresses per port
• Storm Control Broadcast/Multicast/Unicast: - control mode (kbps/indicator)
• 802.1X Authentication - Port-Based Authentication - MAC Address-Based Authentication - VLAN Assignment - MAB - Guest VLAN - Authentication and Authorization via RADIUS
• AAA (including TACACS+)
• Port isolation
• Secure web management via HTTPS with SSLv3/TLS 1.2 encryption
• Secure CLI management with SSHv1/SSHv2 encryption
• IP/Port/MAC access control

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACLs
• IPv6 interface
• Static IPv6 routing
• Neighbor discovery (ND) used by IPv6
• Maximum transmission unit (MTU) path detection
• ICMP v6
• TCPv6 / UDPv6
• Applications of IPv6 protocol: - DHCPv6 client - Ping6 - Tracert6 - Telnet (v6) - SNMP IPv6 - SSH IPv6 - SSL IPv6 - HTTP/HTTPS - TFTP IPv6

MIB

• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support for private TP-Link MIB

MANAGEMENT

Omada app - Yes. Requires the use of OC300 Controller, OC200 Controller, Cloud-based Omada Controller or Omada Software Controller.

Centralized management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Access to the cloud - Yes. Requires the use of OC300 Controller, OC200 Controller, Cloud-based Omada Controller or Omada Software Controller.

Maintenance-free ZTP configuration - Yes. Requires the use of a cloud-based Omada Controller.

Functions of the management panel

• GUI graphical interface
• CLI command line interface via console port, Telnet
• SNMP v1/v2c/v3: - Trap/Inform - RMON (groups 1, 2, 3, 9)
• SDM Template
• DHCP/BOOTP client
• 802.1ab LLDP/LLDP-MED
• Automatic DHCP installation
• Dual Image, Dual Configuration
• Monitoring CPU usage
• Diagnostics of wiring
• EEE
• Password recovery
• SNTP
• System Journal OTHER CertificatesCE, FCC, RoHS Package Contents
• SG3210X-M2
• Power cable
• Quick installation instructions
• Rack Cabinet Mounting Kit
• Rubber feet

System requirements

• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7, 8, 10, 11 MAC® OS NetWare® UNIX® Linux

Working environment

• Permissible operating temperature: 0℃~50℃ (32℉~122℉);
• Permissible storage temperature: -40℃~70℃ (-40℉~158℉);
• Permissible air humidity: 10%~90%, non-condensing
• Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	2.84 kg
Parametry	Number of ports	8
Parametry	Number of LAN (RJ-45) ports	8
Parametry	LAN port operating standard	10/100/2500 Mbps
Parametry	EAN (GTIN)	4897098689523
Parametry	Manufacturer code	SG3210X-M2
Parametry	Certificates of conformity	CE
