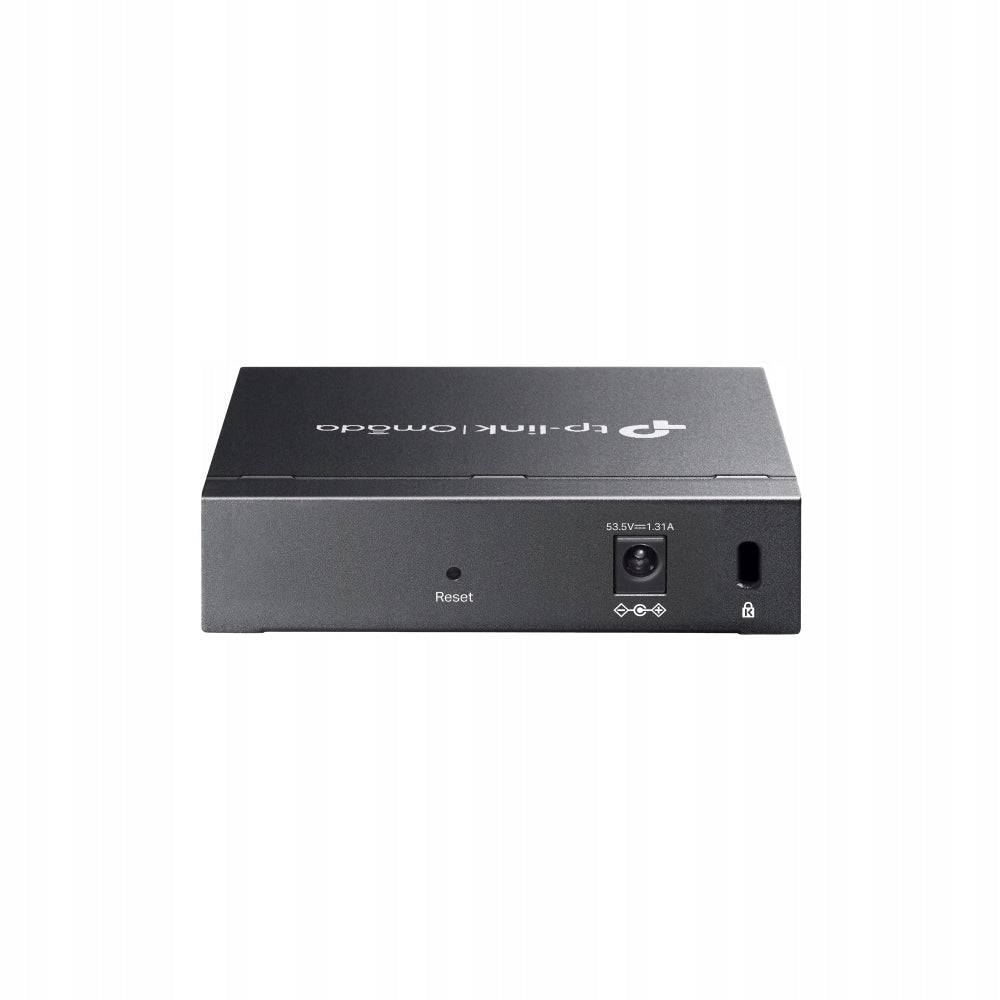

Komutatorius TP-Link ES205GP, 5 gigabitiniai prievadai, 4 PoE+ (65W)

Trumpai apie prekę

Prekė: Komutatorius TP-Link ES205GP, 5 gigabitiniai prievadai, 4 PoE+ (65W). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: ES205GP

ES205GP

ES205GP

• 5 RJ45 ports with 10/100/1000 Mbps (including 4 ports compatible

  with 802.3at/af)

• Total power supply up to 65W. Up to 30W of power on each PoE port. *
• Easy to use thanks to Plug-and-Play operation, which allows you to get an instant connection, and simple configuration gives you access to additional functions
• Centralized management in the cloud via the Omada† website or application
• Up to 250m PoE power range**, QoS△, PoE Auto Recovery‡ and Port isolation for reliable monitoring networks
• Automatic loop prevention, VLAN and IGMP Snooping
• Fanless design for noiseless operation
• Durable metal housing with the possibility of mounting on a countertop or wall

HARDWARE FEATURES

Ports

• 5 RJ45 10/100/1000 Mbps ports (1-4 ports support 802.3at PoE+ and 802.3af PoE)

• Automatic negotiation / Automatic MDI/MDIX

Number of fans

Fanless

Assembly

Countertop or wall mounting

Physical security

Yes

Power supply

External power supply: 53,5V DC / 1,31A

PoE ports (RJ45)

• Compliance with 802.3af PoE and 802. at PoE+

• PoE ports: 1-4

• Total PoE power 65W on PoE+ ports, up to 30W power per port

• PoE Auto Recovery‡

• Up to 250m PoE transmission range**

Dimensions (S x G x W)

100 × 98 × 25 mm

(3,9 × 3,9 × 1,0 inches)

Surge Protection

±6kV

PERFORMANCE

Switching performance

10 Gbps

Package redirection speed

7,4 Mp/s

MAC address table

8K

Package buffer

4 Mb

Jumbo frames

15 KB

SOFTWARE FUNCTIONS

Quality of Service

• QoS based on ports/802.1p/DSCP

• 8 priority queues

• Prioritization schedule mode

WRR (Weighted Round Robin)

• Queue weight configuration

• Bandwidth control

- Port-based transfer speed limitation

• Storm Control

- Multiple control modes (kbps/p/s)

- Broadcast/Multicast/Unknown-Unicast△ transmission control

Features of Layer 2 Switch

• Static link aggregation

• Loop Prevention / Loopback Detection

• Flow control

- Flow control 802.3x

• Mirroring

- Port mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port statistics

- Port Mirroring Status

- Traffic statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLANs

• MTU VLAN

• Port-based VLAN

• Tagging 802.1Q VLAN

- Max 32 VLAN groups

- 4K VID

Method of transmission

Store-And-Forward

MANAGEMENT

Omada application

Yes. Requires the use of the Omada Hardware Controller, Cloud-based Omada Controller or Omada Software Controller.

Central management

• Cloud-based Omada Controller

• Omada hardware controller

• Omada software controller

Access to the cloud

Yes. Requires the use of the Omada Hardware Controller, Cloud-based Omada Controller or Omada Software Controller.

Support-free ZTP configuration

Yes. Requires the use of a cloud-based Omada Controller.

Functions of the management panel

• Web GUI graphical interface

• DHCP client

• Cable diagnostics

• Automatic detection of devices†

• Group configuration†

• Group software update†

• Unified configuration†

OTHER

Certificates

FCC, CE, RoHS

Content of the package

• ES205GP

• Power supply

• Installation instructions

• Rubber feet

Working environment

• Permissible operating temperature: 0℃~40℃ (32℉~104℉);

• Permissible storage temperature: -40℃~70℃ (-40℉~158℉);

• Permissible air humidity: 10%~90%, non-condensing

• Permissible storage humidity: 5%~90%, non-condensing

SET CONTENTS :

Poland Distribution only. We are an Authorized Partner of TP-LINK Poland

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Number of ports	5
Parametry	Number of LAN (RJ-45) ports	1
Parametry	EAN (GTIN)	8885020620931
Parametry	Manufacturer code	ES205GP
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
