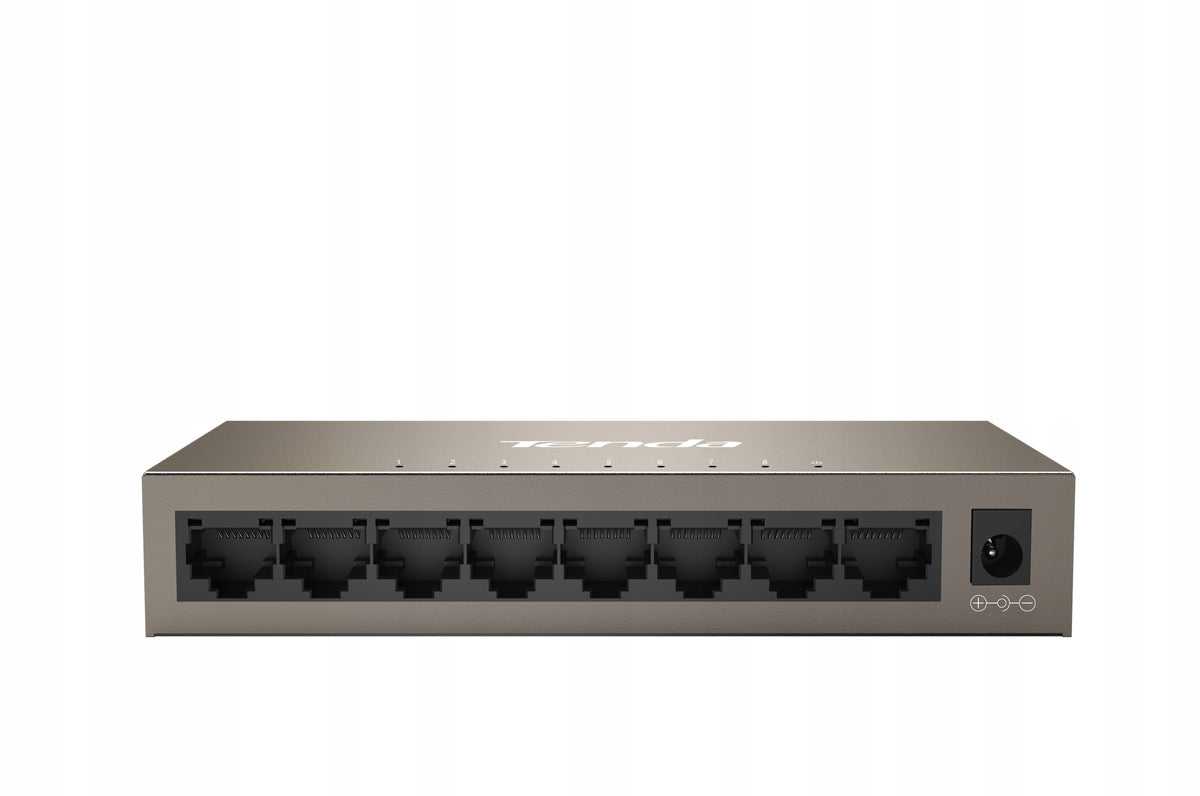

Komutatorius Tenda TEG1008M

Trumpai apie prekę

Prekė: Komutatorius Tenda TEG1008M. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Tenda
• Modelis: TEG1008M

The TEG1008M is a high-performance 8-port, fully gigabit Ethernet switch designed for small and medium-sized surveillance systems and businesses.

Designed with a mini steel coating, it does not take up much space and dissipates heat accordingly. It provides 8 ports with automatic 10/100/1000 Mbps negotiation, which 10 times increases the transmission rate, improves the transfer rate of large files and effectively solves problems such as video jams and image loss in high-resolution monitoring.

The TEG1008M can be installed on a desk or wall. It supports plug and play function without configuration, is easy to use and ideal for improving network performance.

Gigabit Speed

8 gigabit ports provide large file transfer rates and improve file performance

Supports 9-12V DC input

9-12V DC input design, support centralized power supply and monitor power supply

Easy installation and Plug-n-play

Desk or wall mount, plug-n-play, easy to use

Metal housing, stable operation

Fully metal and larger housing for effective cooling

Specification

• Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
• Interface: 8*10/100/1000M RJ45 Ports
• Network media: Cat.5 UTP、Cat.5e UTP or better
• Transfer Mode: 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps
• Power supply: input： AC:190-240V; 50/60Hz DC：9-12V
• Dimensions: 140*66.5*25.3mm(W*D*H)
• LED: 1*Power；8*Link/Act
• Switching: 16Gbps
• MAC address table: 4K
• Power consumption: Max :5W
• Broadcast Mode: Store-and-Forward
• Protocol: CDMA/CD
• Learning MAC addresses: Auto learning & auto aging
• Temperature: Operating temperature: 0℃~40℃；Storage temperature: -40℃~70℃
• Humidity: Operating humidit: 10%~90% non-condensing；Storage humidit: 5%~90% non-condensing
• Certificates: CCC, CE, FCC, RoHS
• Operating system: Windows 8 32/64 bit、Windows 7 32/64 bit、Windows xp 32/64 bit、Linux、MAC OS
• Package Contents: 1 * 8-Port 10/100/1000M Ethernet Desktop Switch; 1 * Power Adapter; 1 * Quick Installation Guide
