Komutatorius POE 8 ATTE IPUPS-8-20-H kameroms

Trumpai apie prekę

Prekė: Komutatorius POE 8 ATTE IPUPS-8-20-H kameroms. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: IPUPS-8-20-H

Model: IPUPS-8-20-H

Purpose

IPUPS-8-20-H is a ready-made set, dedicated to buffer power supply of IP CCTV system consisting of 8 IP cameras. Electronic protection of PoE outputs ensures continuity of operation of the entire system when short-circuiting or overloading individual power branches, and automatic return of voltage after failure. The device is used in systems requiring increased network bandwidth, such as CCTV 4K Ultra HD monitoring.

Buffer sets with PoE switch are designed to work with IP cameras and other network devices powered in the PoE 802.3at/af and PoE PASSIVE standard. The inclusion of appropriate batteries ensures uninterrupted operation of the power supply system during periodic power outages.

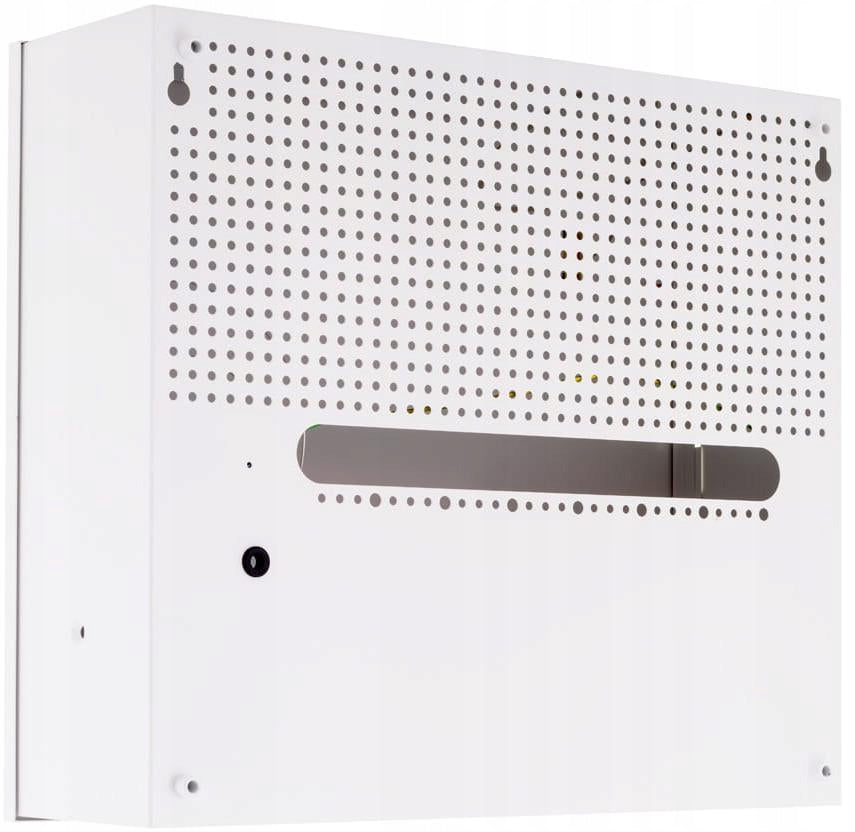

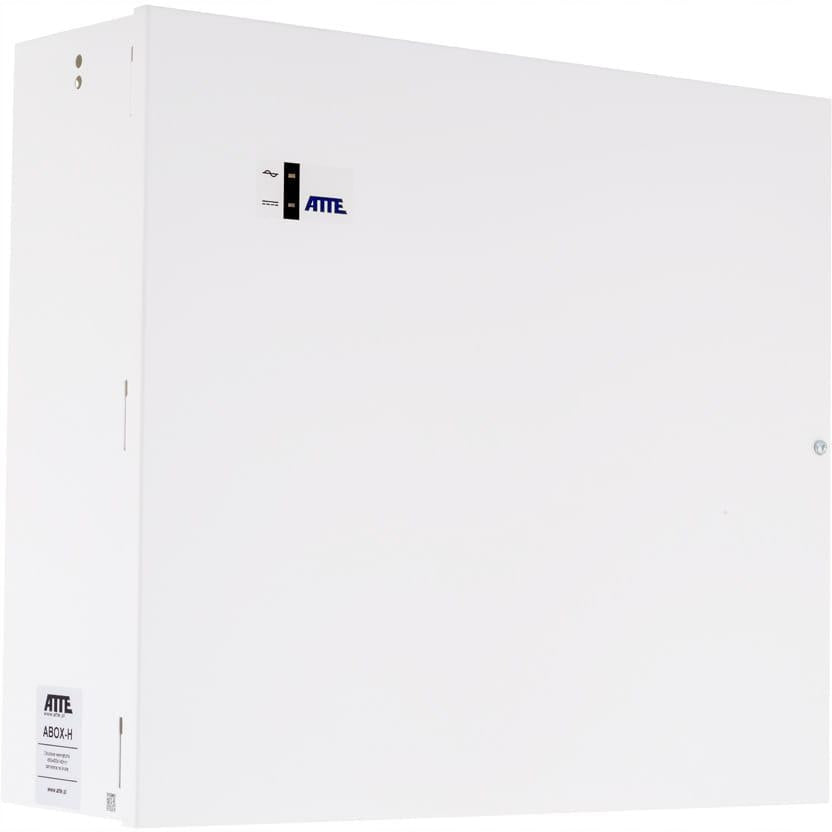

Interior enclosures of the ABOX series are a convenient solution to the problem of aesthetic installation of devices and termination of wiring inside buildings. All housings are made of steel sheet, powder coated in semi-matte, white color. Production using a modern technological line ensures the highest quality and precision. Each case is equipped with a screw closure, removable door and opening tamper. The models available in the offer have a special hole in the pitch of 10,8mm. It is compatible with the mounting hole spacing of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any open part of the housing.

Key features and functions:

• Support for 4K Ultra HD cameras
• possibility of buffer power supply of 8 PoE 802.3at/af or PASSIVE receivers
• electronic fuse independently for each PoE channel (auto return)
• possibility of switching off power on PoE ports
• clear optical indication of power supply and data transmission status
• up to 40W power on PoE ports (LAN_1 to LAN_8)
• easy and quick start-up without the need to configure parameters
• high efficiency of the power supply module (90%)
• two supply voltage values available: 12VDC and 48VDC
• easy and quick installation service thanks to modular design
• easy expansion and scaling of the system by attaching additional xPoE / IP and IPB / IPUPS series switches
• installation of modules in any open part of the housing (raster system)
• space for 2 18Ah batteries
• space for video recorder (NVR)
• possibility of maintaining the supply of cables inside the housing
• Cable culverts on the back of the housing
• distance to wall/mounting surface

Specification

• LAN ports: 10 RJ45 ports(8xLAN+PoE 10/100Mbps, 2x Gigabit UpLink)
• Supported PoE receivers (standard / max power): 802.3af - up to 15,4W LAN_1...LAN_8 (Vin > 48VDC) 802.3at - up to 30W LAN_1...LAN_8 (Vin > 48VDC) PoE PASSIVE - up to 40W LAN_1...LAN_8
• PoE outputs (standard / power mode): LAN_1...LAN_8 PoE PASSIVE, mode B (4,5+) (7,8-)
• PoE output protection (overcurrent / short circuit): LAN_1...LAN_8 0,75A / electronic (auto-return)
• SW1 microswitches (DIP switch): switches 1...8 "PoE ON/OFF" - PoE power supply on LAN_1 ports...LAN_8
• Power supply (type/type): pulse SMPS/AUPS-70-120-OF
• Power supply output protection (overcurrent / short circuit): 9A, electronic (power supply restart may be required after short circuit)
• Power supply thermal protection: TSD (thermal shutdown) 130°C, needs restart
• Power supply input voltage range / input protection: 180...240VAC / T3,15A F1 fuse
• Power supply output (continuous): 72W dynamically shared with battery charging (priority has power output)
• Power supply efficiency: 90% @60W
• Power supply output voltage: 12V +/-15%
• PoE output voltage (camera power): 48V +/- 2%
• Power budget for PoE outputs (maximum): 65W
• Battery / place in housing: 12V battery (gel or AGM) / 2x18Ah
• Single battery charging current: 1A/2A (selected by JP1 jumper)
• Battery circuit protection: F6,3A Fuse fuse F2
• Battery protection: disconnection of the battery at a voltage below 10,2V
• Power supply signaling outputs / load capacity / type: OUF - no output voltage, ACF - no voltage 230AC / 50mA / OC (open collector)
• Housing mounting: wall mounted, mounting holes 6mm
• Operating temperature range: -10°C...+40°C
• Assembly of devices inside the housing: system hole 4,8mm in 10,8mm pitch
• Housing (type / material / color / protection / cable passes): ABOX-H / metal / white / tamper opening / back of housing, distance to the wall
• Dimensions / net weight / degree of protection: 400x450x140mm / 4,4kg / IP20

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Atte
Parametry	Product weight with unit packaging	4.816 kg
Parametry	Number of ports	8
Parametry	Number of LAN (RJ-45) ports	8
Parametry	EAN (GTIN)	5902143690436
Parametry	Manufacturer code	IPUPS-8-20-H
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
