Komutatorius Planet IGSW-24040T (pagal užsakymą)

Trumpai apie prekę

Prekė: Komutatorius Planet IGSW-24040T (pagal užsakymą). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: IGSW-24040T

Planet IGSW-24040T on request

Planet

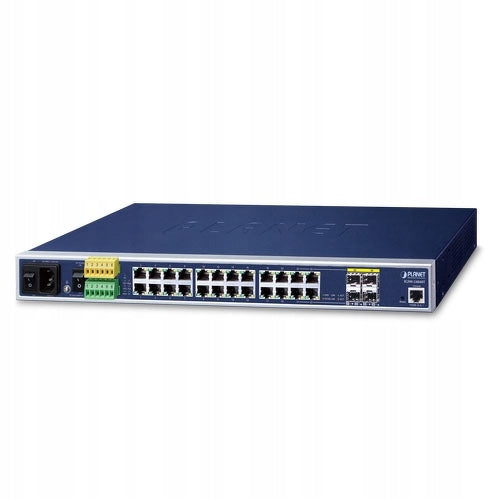

PLANET IGSW-24040T is an industrial gigabit Layer 2+ managed switch, equipped with 24 10/100/1000 Mbps ports and 4 shared SFP ports and supporting Layer 3 static routing in a 1U chassis. With a total bandwidth of 48 Gbps, the IGSW-24040T can handle large amounts of data in a secure topology that connects to an industrial backbone network or high-capacity servers. The IGSW-24040T is capable of providing non-blocking switch structure and wire-speed bandwidth in the temperature range of -40 to 75 degrees C without packet loss and CRC errors. This greatly simplifies the tasks involved in upgrading an industrial LAN to meet the growing bandwidth requirements. In addition, the user-friendly "Front Access" design is used, which facilitates wiring and maintenance of the IGSW-24040T when placed in the cabinet.

Cybersecurity networking solution to minimize security risks

The IGSW-24040T supports SSHv2 and TLS protocols, providing strong protection against advanced threats. It includes a number of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user account management, SNMPv3 authentication, and so on to complement it as a full security solution.

Redundant ring, fast recovery for critical network applications

The IGSW-24040T switch supports redundant ring technology and features a strong, fast self-healing function to prevent interruptions and intrusions from outside. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) in the client network to increase system reliability and uptime in a variety of environments.

Redundant AC and DC power supply for continuity of operation

The IGSW-24040T features a 100~240V AC power supply and a dual 36~60V DC power supply used as a redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to meet the demands of high-tech facilities that require the highest power integrity. Moreover, with 36~60V DC power supply implemented, IGSW-24040T can be used as a telecommunication device and placed in almost any harsh environment.

Digital input and output for external alarm

The IGSW-24040T helps network administrators effectively manage unexpected network situations by providing digital input and digital output for an external front panel alarm device. The digital input can be used to detect and record the status of external devices, such as a door intrusion sensor. The digital output can be used to send alarms whenever the IGSW-24040T has a port connection or power failure.

Effective alarm for better protection

The IGSW-24040T supports Fault Alarm, which can alert users when something is wrong with the switches. With this ideal feature, users won’t have to waste time finding where the problem occurs. This will help save time and human resources.

IPv6/IPv4 dual stack management

Supporting both IPv6 and IPv4 protocols, the IGSW-24040T helps small and medium-sized businesses enter the IPv6 era with the lowest capital expenditures because their network devices do not need to be replaced or renovated if the IPv6 FTTx edge network is configured.

Layer 3 IPv4 and IPv6 VLAN routing for secure and flexible management

The IGSW-24040T offers IPv4/IPv6 VLAN routing, which enables cross-over of different VLANs and different IP addresses for highly secure, flexible management and a simpler network application.

Solid Layer 2 features

The IGSW-24040T can be programmed for advanced switch management features such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree (MSTP) protocol, loop and BPDU protection, IGMP snooping and MLD snooping. Through link aggregation, the IGSW-24040T enables high-speed connection to multiple ports and also supports failover. In addition, Link Layer Discovery Protocol (LLDP) is a Layer 2 protocol that helps detect basic information about neighboring devices in your local broadcast domain.

Efficient motion control

The IGSW-24040T is equipped with robust QoS capabilities and efficient traffic management to enhance business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, port bandwidth control, DSCP QoS IP priority and adding notes. They guarantee the best performance for VoIP transmissions and video streams and enable enterprises to take full advantage of limited network resources.

Powerful security

PLANET IGSW-24040T offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 access control lists (ACLs) to enforce security at the network edge. They can be used to restrict access to the network by rejecting packets based on the source and destination IP addresses, TCP/UDP ports or defined common network applications. Their protection mechanism also includes port-based authentication of 802.1X users and devices that can be deployed with RADIUS and TACACS+ to ensure port-level security and block illegal users. With the protected port feature, communication between edge ports can be prevented to guarantee user privacy. What’s more, the port security feature allows you to limit the number of network devices on a given port

Friendly and secure management

For efficient management, the IGSW-24040T is equipped with web, Telnet and SNMP management interfaces.

• With its built-in Web-based management interface, the IGSW-24040T offers easy-to-use, platform-agnostic management and configuration features.
• For text management, you can access the switches through Telnet and the console port.
• With support for standard SNMP protocol, switches can be managed using any standard management software

What’s more, the IGSW-24040T offers secure remote management with support for SSHv2, TLSv1.2 and SNMP v3 connections that encrypt packet content during each session.

Flexibility and expandability over long distances

The IGSW-24040T provides 4 built-in gigabit SFP interfaces supporting 100BASE-FX/1000BASE-SX/LX SFP (small form-factor pluggable) fiber optic transceivers for connecting to a backbone switch and long-distance monitoring center. The distance can be increased from 550 meters to 2 kilometers (multimode fiber) and to more than 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for use in enterprise data centers and distributions.

Intelligent SFP diagnostic mechanism

The IGSW-24040T supports SFP-DDM (Digital Diagnostic Monitor) function, which greatly helps the network administrator to easily monitor SFP parameters in real time, such as optical output power, optical input power, temperature, laser polarization current and transceiver supply voltage.

• Redundant Power Supply: No
• Management: Yes
• Main Port Type: RJ45
• Main Port Bandwidth: Gigabit Ethernet
• PoE Support: No
• Quantity in Bulk Package: 5 pcs
• Height: 4.42 cm
• Width: 44.4 cm
• Depth: 20 cm
• Weight: 2.788 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4711213688461
Parametry	Manufacturer code	IGSW-24040T
